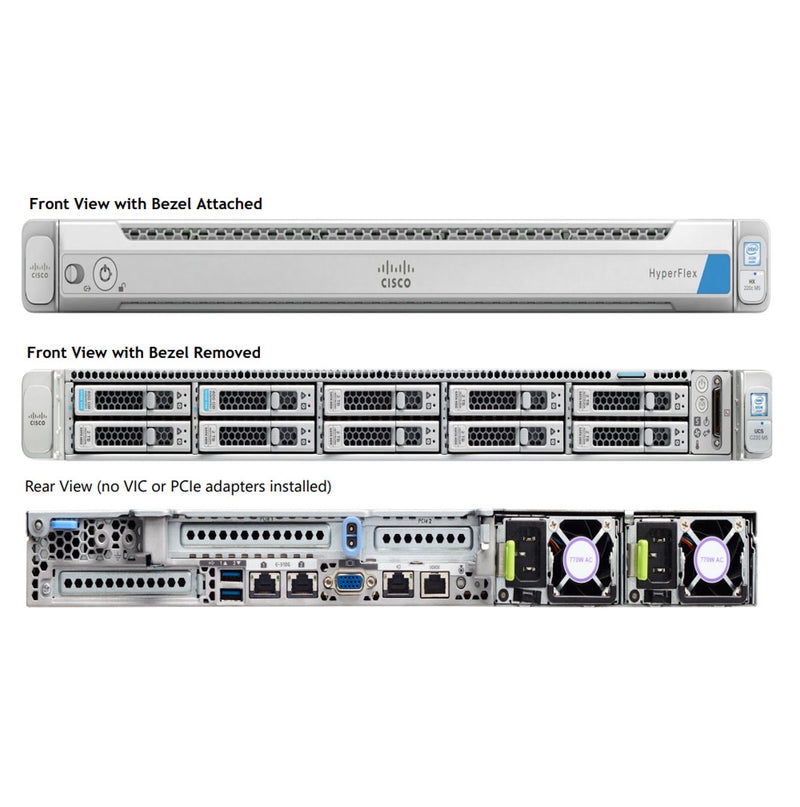

Cisco HyperFlex HX220c M5 Rack Server Chassis

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

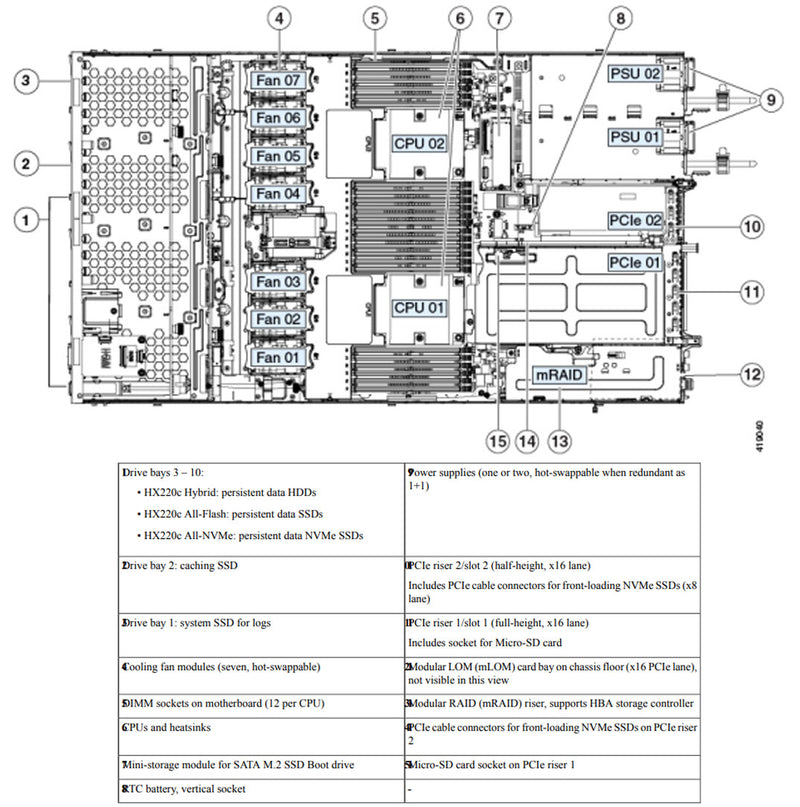

Quick Specs

What's New for Cisco HX220c M5
  • (2) 2nd Gen Intel Xeon Scalabel Processors
  • (24) DDR4 2933 MT/s DIMMs
  • (10) SAS/SATA Drives
    • Slot 1 System SSD
    • Slot 2 Caching SSD
    • Slots 3 - 10 Persistent data drives
  • (2) PCIe 3.0 slots
    • Riser 1 FH,3/4 Length CPU 1 (x16 PCIe 3.0)
    • Riser 2 HH,HL Length CPU 2 (x16 PCIe 3.0)
  • (7) Fans
  • (2) Power Supply Units
  • (1) Dedicatred mLOM slot
  • (1) Dedicated Internal SAS HBA Slot
  • (1) M.2 Supported for Boot
  • (1) Micro SD Slot on Riser 1
  • (2) GPUs Supported
Other HX-Series HyperFlex Servers:

(Click to View)

Ideal for:

  • Big Data Analytics
  • Cloud Servers
  • Database
  • Hyper-Converged infrastructure (HCI)
  • Virtual Desktop Interface (VDI)
  • Virtualization

The Cisco HyperFlex HX220c M5 SX Node is a 1RU system tailored for hyper-converged infrastructure, ideal for workloads like virtualization, cloud computing, and databases. Powered by 2nd Gen Intel® Xeon® Scalable Processors with up to 28 cores per CPU and 24 DDR4 DIMM slots supporting up to 3 TB of memory, it delivers exceptional performance.

Networking is enhanced with a modular LAN-on-motherboard (mLOM) and support for Cisco VIC 1387 Dual-Port 40Gb or VIC 1457 Quad-Port 10/25Gb adapters. Two PCIe slots offer additional expansion for network or storage needs, ensuring scalability and flexibility in demanding environments.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Capability/FeatureDescription
ChassisOne rack unit (1RU) chassis
CPUOne or two 2nd Generation Intel® Xeon® scalable family
ChipsetIntel® C621 series chipset
Memory24 slots for registered DIMMs (RDIMMs) or load-reduced DIMMs (LRDIMMs)
Multi-bit Error ProtectionThis server supports multi-bit error protection.
VideoThe Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
  • Integrated 2D graphics core with hardware acceleration
  • 512MB total DDR4 memory, with 16MB dedicated to Matrox video memory
  • Supports all display resolutions up to 1920 x 1200 x 32bpp resolution at 60Hz
  • High-speed integrated 24-bit RAMDAC
  • Single lane PCI-Express host interface
  • eSPI processor to BMC support
Power subsystemOne or two of the following hot-swappable power supplies:
  • 770 W (AC)
  • 1050 W (AC)
  • 1050 W (DC)
  • 1600 W (AC)
  • 1050 W (AC) ELV
One power supply is mandatory; one more can be added for 1 + 1 redundancy.
Front PanelA front panel controller provides status indications and control buttons
ACPIThis server supports the advanced configuration and power interface (ACPI) 6.2 standard.
FansSeven hot-swappable fans for front-to-rear cooling

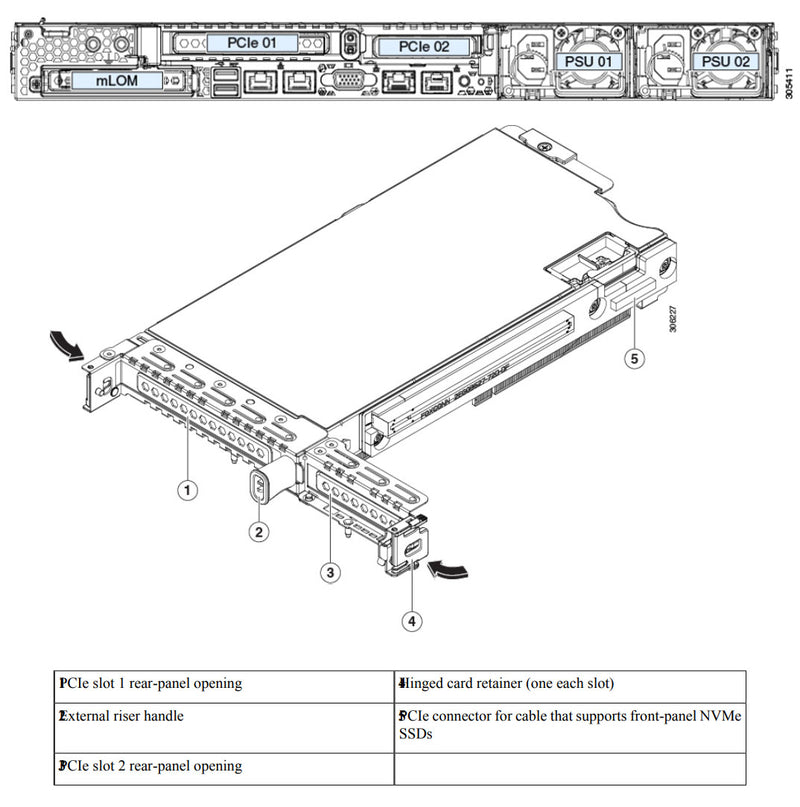

Expansion slots
  • Riser 1 (controlled by CPU 1):
    • One full-height profile, 3/4-length slot with x24 connector and x16 lane.
  • Riser 2 (controlled by CPU 2):
    • One half-height profile, half-length slot with x24 connector and x16 lane.
    • NOTE: Use of PCIe riser 2 requires a dual CPU configuration.
  • Dedicated SAS HBA slot (see Figure 8 on page 44).
  • An internal slot is reserved for use by the Cisco 12G SAS HBA.

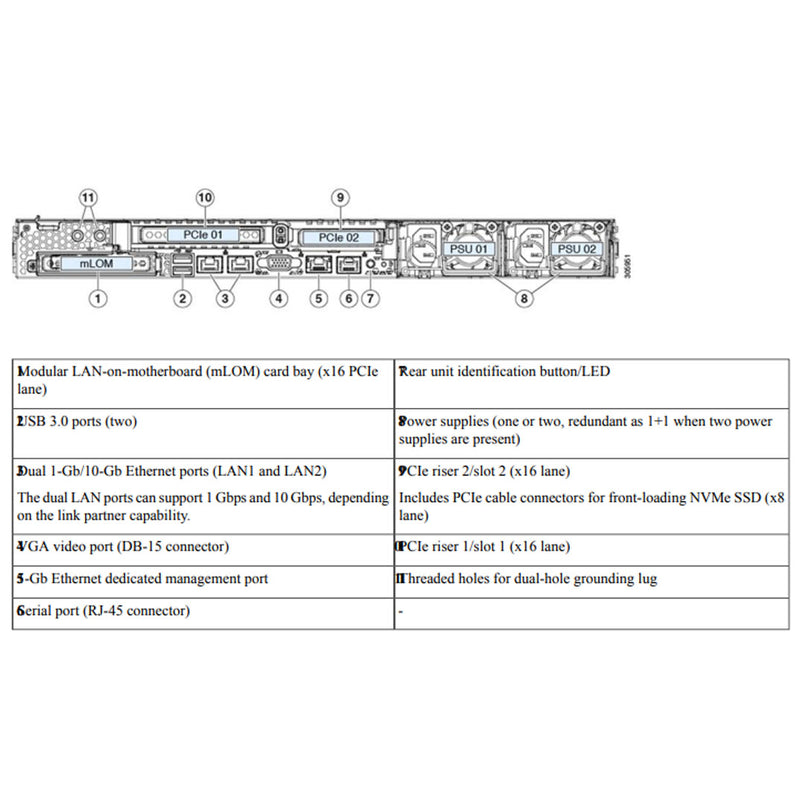

InterfacesRear panel:
  • One 1Gbase-T RJ-45 management port (Marvell 88E6176).
  • Two 1/10GBase-T LOM ports (Intel X550 controller embedded on the motherboard).
  • One RS-232 serial port (RJ45 connector).
  • One DB15 VGA connector.
  • Two USB 3.0 port connectors.
  • One flexible modular LAN on motherboard (mLOM) slot that can accommodate various interface cards.
Front panel:
  • One KVM console connector (supplies two USB 2.0 connectors, one VGA DB15 video connector, and one serial port (RS232) RJ45 connector).
Internal storage devices
  • Up to 10 Drives are installed into front-panel drive bays that provide hot-swappable access for SAS/SATA drives. 10 Drives are used as below:
    • Six to eight SAS HDD or six to eight SED SAS HDD (for capacity).
    • One SATA/SAS SSD or one SED SATA/SAS SSD (for caching).
    • One SATA/SAS SSD (System drive for HyperFlex Operations).

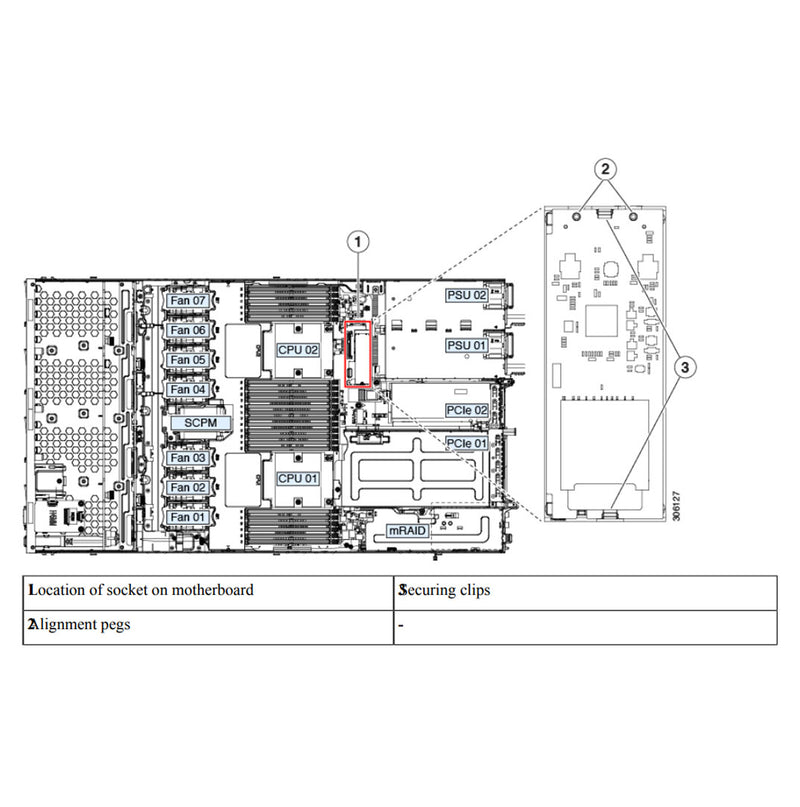

  • A mini-storage module connector on the motherboard for M.2 module for one M.2 SATA SSDs for following usage:
    • ESXi boot and HyperFlex storage controller VM.
  • One slot for a micro-SD card on PCIe Riser 1 (Option 1 and 1B).
    • The micro-SD card serves as a dedicated local resource for utilities such as host upgrade utility (HUU). Images can be pulled from a file share (NFS/CIFS) and uploaded to the cards for future use. Cisco Intersight leverages this card for advanced server management.
Integrated management processorBaseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware.
  • Depending on your CIMC settings, the CIMC can be accessed through the 1 GE dedicated management port, the 1GE/10GE LOM ports, or a Cisco virtual interface card (VIC).
  • CIMC manages certain components within the server, such as the Cisco 12G SAS HBA.
Storage controllerCisco 12G SAS HBA (JBOD/Pass-through Mode):
  • Supports up to 10 SAS/SATA internal drives
  • Plugs into the dedicated RAID controller slot

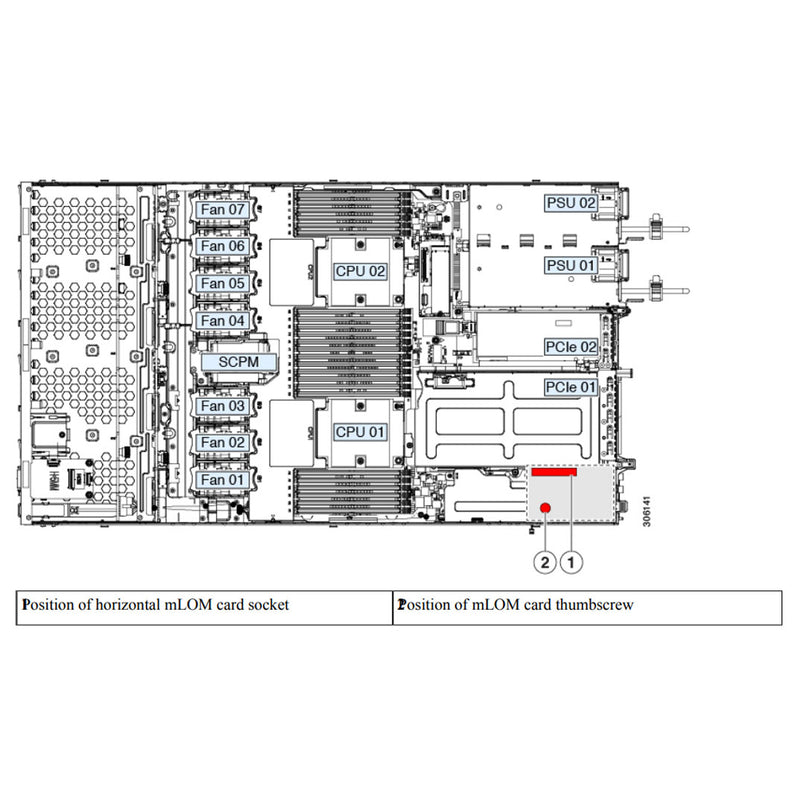

mLOM SlotThe mLOM slot on the motherboard can flexibly accommodate the following cards:
  • Cisco VIC 1387 Dual Port 40Gb QSFP CNA mLOM
  • Cisco UCS VIC 1457 Quad Port 10/25G SFP28 CNA mLOM
Note:
  • 1387 VIC natively supports 6300 series FIs.
  • To support 6200 series FIs with 1387, 10G QSAs compatible with 1387 are available for purchase.
  • Breakout cables are not supported with 1387.
  • Use of 10GbE is not allowed when used with 6300 series FI.
PCIe optionsPCIe slots on the Riser 1 and 2 can flexibly accommodate the following cards: Network Interface Card (NICs):
  • Intel X550-T2 dual port 10Gbase-T
  • Intel XXV710-DA2 dual port 25GE NIC
  • Intel i350 quad port 1Gbase-T
  • Intel X710-DA2 dual port 10GE NIC
Virtual Interface Card (VICs):
  • Cisco VIC 1385 Dual Port 40Gb QSFP+ CNA w/RDMA
  • Cisco UCS VIC 1455 Quad Port 10/25G SFP28 CNA PCIe
UCSMUnified Computing System Manager (UCSM) runs in the Fabric Interconnect and automatically discovers and provisions some of the server components.
