Specs
Quick Specs
What's New for Cisco C240 M5 SFF Chassis
- (2) Intel Xeon 2nd Gen Scalable Processors
- (24) 2933MT/s DDR4 DIMMs
- Support for Intel® Optane™ Persistent Memory (PMem)

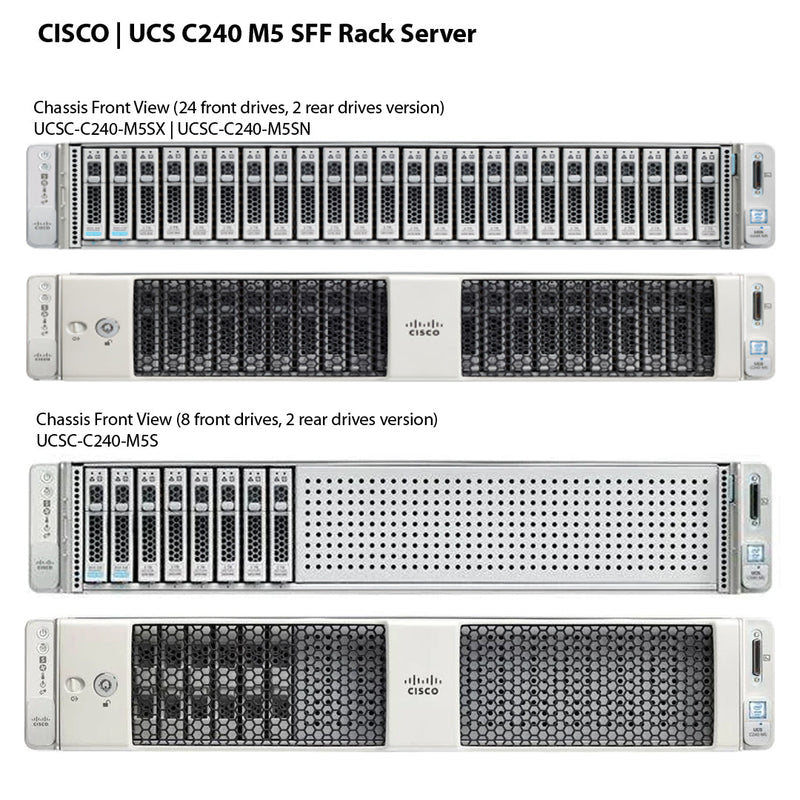

- (8) SFF SATA/SAS Drives
- (2) Rear Drives SAS/SATA/NVMe
- (6) PCIe 3.0 Slots
- (6 SW, 2 DW) GPU Support
- Dedicated mLOM Slot
- Dedicated Cisco 12G SAS Modular RAID controller Slot
- Embedded 2 x 10GBASE-T LAN-on-motherboard (LOM)
- (6) Hot Swap Fans
Other Versions:
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Data Analytics
- Database
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Machine Learning (ML)

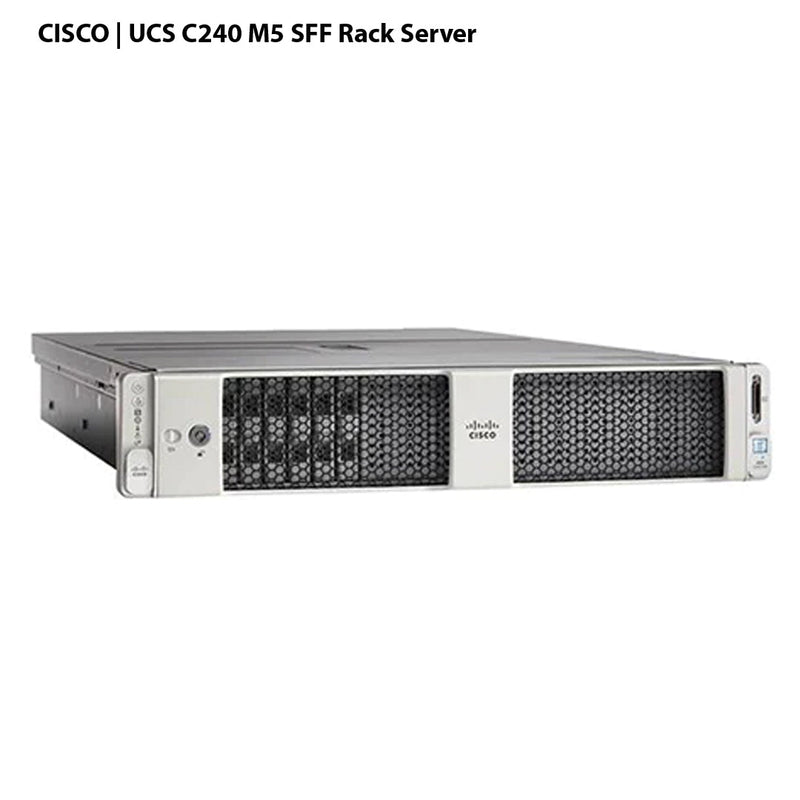

The UCS C240 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, 3200 MHz DDR4 memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem).
With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Capability / Feature | Description |
|---|---|
| Chassis | Two rack unit (2RU) chassis |
| CPU | One or two 2nd Generation Intel® Xeon® scalable family CPUs |
| Chipset | Intel® C621 series chipset |
| Memory | 24 slots for registered DIMMs (RDIMMs), load-reduced DIMMs (LRDIMMs), or through silicon via (TSV) DIMMs and support for Intel® Optane™ Persistent Memory (PMem) |
| Multi-bit Error Protection | This server supports multi-bit error protection. |
| Video | The Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
|
| SATA Interposer Board | An optional SATA interposer board supports up to eight front facing SATA-only drives. |
| Power subsystem | Up to two of the following hot-swappable power supplies:
|

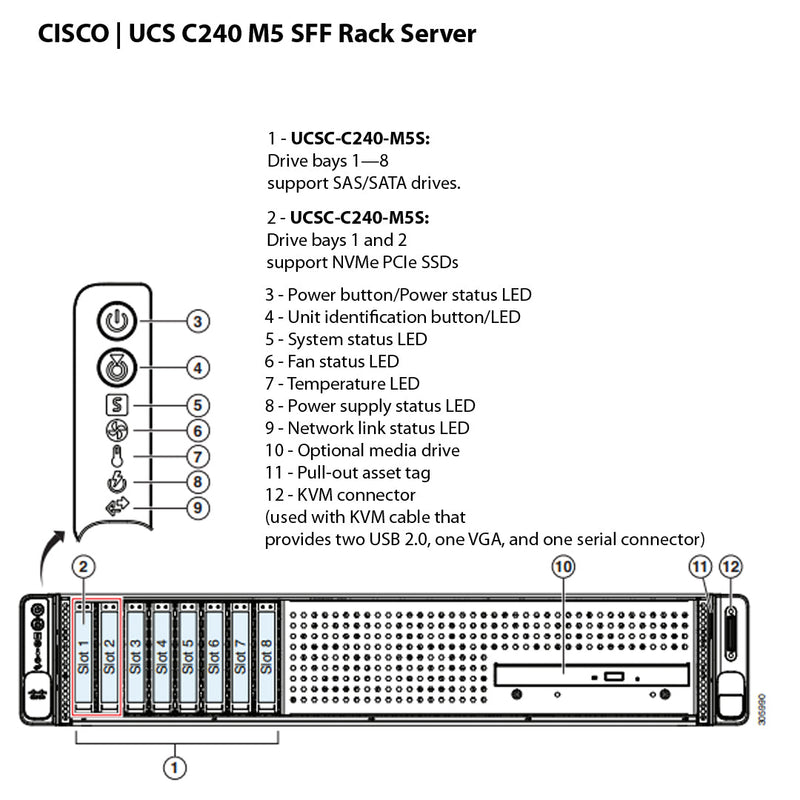

| Front Panel | A front panel controller provides status indications and control buttons. |
| ACPI | This server supports the advanced configuration and power interface (ACPI) 6.2 standard. |
| Fans | Six hot-swappable fans for front-to-rear cooling |
| Infiniband | The InfiniBand architecture is supported by the PCIe slots. |
| Expansion slots | Up to six PCIe slots (on two riser cards)
|
| Internal storage devices |
|
| - |
|
| - | One slot for a micro-SD card on PCIe Riser 1 (Option 1 and 1B). The micro-SD card serves as a dedicated local resource for utilities such as HUU. Images can be pulled from a file share (NFS/CIFS) and uploaded to the cards for future use |
| I/O Interfaces |
|
| Storage controller |
|
| Modular LAN on Motherboard (mLOM) slot | The dedicated mLOM slot on the motherboard can flexibly accommodate the following cards:
|
| Integrated management processor | Baseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware. Depending on your CIMC settings, the CIMC can be accessed through the 1GE dedicated management port, the 1GE/10GE LOM ports, or a Cisco virtual interface card (VIC). CIMC manages certain components within the server, such as the Cisco 12G SAS HBA. |
| UCSM | UCS Manager (UCSM) runs in the Fabric Interconnect and automatically discovers and provisions some of the server components. |
Tech Specs
| Parameter | Value |
|---|---|
| Height | 3.43 in. (87.1 mm) |
| Width (including slam latches) | 17.57 in.(446.3 mm) Including handles: 18.96 in (481.5 mm) |
| Depth | 29.56 in. (750.8 mm) Including handles: 30.44 in (773.1 mm) |
| Front Clearance | 3 in. (76 mm) |
| Side Clearance | 1 in. (25 mm) |
| Rear Clearance | 6 in. (152 mm) |
| Weight Below | Weight does not include outer rail, which is attached to the rack. |
| Maximum | - |
| (24 HDD model with 26 HDDs, 2 CPUs, 24 DIMMs, 2 1600 W power supplies) | 59.5 lbs (26.1 kg) |
| (8 HDD model with 8 HDDs, 2 CPUs, 24 DIMMs, 2 1600 W power supplies) | 45.5 lbs (20.6 kg) |
| Minimum | - |
| (24 HDD model with 1 HDD, 1 CPU, 1 DIMM, 1 770 W power supply) | 41.5 lbs (18.8 kg) |
| (8 HDD model with 1 HDD, 1 CPU, 1 DIMM, 1 770 W power supply) | 37 lbs (16.8 kg) |
| Bare | - |
| (24 HDD model with 0 HDD, 0 CPU, 0 DIMM, 1 770 W power supply) | 40 lbs (18.1 kg) |
| (8 HDD model with 0 HDD, 0 CPU, 0 DIMM, 1 770 W power supply) | 35.5 lbs (16.1 kg) |
