SKU: 5RX80

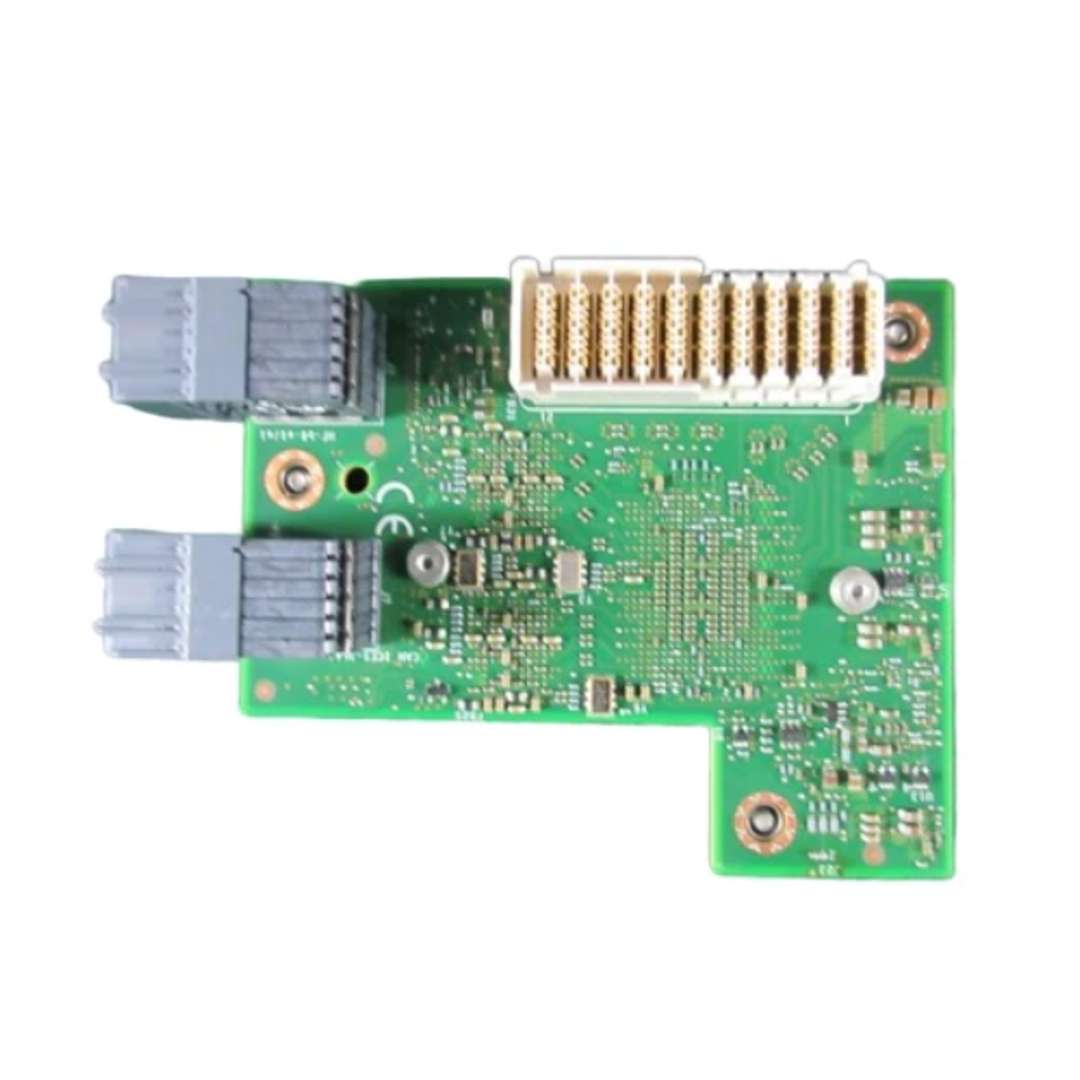

Dell Qlogic 41262 Dual Port 25GbE Storage Offload Ethernet Mezz Adapter | 5RX80

Name: Dell Qlogic 41262 Dual Port 25GbE Storage Offload Ethernet Mezz Adapter | 5RX80
Brand: Dell
SKU: 5RX80
Availability: InStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs

Port Type: Dual Port
Data Transfer Speed: 25Gbps
Protocol: Ethernet
Provides X8 PCI-e Interface
Features A Compact Space-Saving Design
Ideal For High-Performance Network Applications

The Gigabit Ethernet PCI-express® Network Interface Card From Dell™ Is Ideal For Connecting Your Server To Your Network. The Gigabit Dual Port Server Adapter Proven To Be Reliable And Standards-Based Solutions. This Product Has Been Tested And Validated On Dell Systems. It Is Supported By Dell Technical Support When Used With A Dell System.

Additional Info


Manufacturer	Dell
Device Type	Network Adapter
Form Factor	Plug-In Card - Mezzanine
Interface (Bus) Type	Pci Express 3.0 X8
Pci Specification Revision	PCI-e 3.0
Ports	25 Gigabit SFP28 X 2
Dimensions (Wxdxh)	16.7 Cm X 6.9 Cm
Data Link Protocol	10 Gige, 25 Gigabit Lan
Network / Transport Protocol	Tcp/Ip, Udp/Ip
Compliant Standards	Ieee 802.1Q, Ieee 802.3Ad (Lacp), Ieee 802.1Qbb, Ieee 802.1Qaz, Ieee 1588-2008, Ieee 802.3By, Ieee 802.3-2015, Ieee 1588-2002
System Requirements	Linux, Microsoft Windows
Device Type	X8 PCI-e
Connectivity Technology	Wired
Data Transfer Rate	25 Gbps
Interfaces	2 X 25Gb Ethernet - SFP28
Min Operating Temperature	0 °C
Max Operating Temperature	55 °C
Humidity Range Operating	10 - 80% (Non-Condensing)

Compatible With:

Dell Mx740c
Dell Mx750c
Dell Mx840c
