NetApp AFF A320 Single Chassis HA Pair Filer Head (AFF-A320A)

SKU: AFF-A320A

NetApp AFF-A320 Dual Controller All Flash Filer Head (HA)

Name: NetApp AFF-A320 Dual Controller All Flash Filer Head (HA)
Brand: NetApp
SKU: AFF-A320A
Availability: OutOfStock

NetApp

| Flash Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

The NetApp AFF-A320 is a high-performance all-flash storage system designed for enterprises that require ultra-low latency, high-speed connectivity, and scalability. Featuring a single-chassis design with dual controllers in an HA (high availability) configuration, it delivers 512GB of memory and four 64-bit, 10-core processors running at 2.20 GHz. With a total rack height of 2U, the system supports up to 96 NVMe SSDs and a maximum capacity of 1.46PB, making it ideal for demanding workloads such as artificial intelligence, machine learning, and high-speed analytics.

The AFF-A320 provides industry-leading connectivity, including eight 100Gb QSFP28 Ethernet ports per controller, enabling ultra-fast data transfers and seamless integration into high-bandwidth network environments. The system includes four PCIe expansion slots, allowing additional networking or performance-enhancing modules. Storage expansion is supported through NS224 disk shelves, ensuring efficient scaling as data storage needs grow.

The chassis measures 3.43 inches in height, 18.94 inches in width with mounting flanges, and 34.72 inches in depth with cable management, with a maximum weight of 75 lbs. Supporting RAID 4, RAID 6 (RAID-DP), and RAID-TEC, the AFF-A320 provides enterprise-grade data protection and redundancy. With remote management capabilities, NVMe-optimized storage, and high-speed 100Gb connectivity, this system is built for organizations that demand high throughput, rapid data access, and continuous uptime in mission-critical environments.

System Config

Model: NetApp AFF-A320
Chassis: Single Chassis
Total Rack Height: 2U
Controllers: Dual Controller (HA)
Processor Model: 4x 64-bit 10-core 2.20 Ghz
Memory: 512GB
Internal Drives: N/A
Ethernet Ports (per): 8 x QSFP28 (100Gb)
Module Expansion Slots: 4 x PCIe
Max Drives (total): 96
Max Capacity: 1,468TB (1.46PB)
Disk Shelves: NS224
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 2U
Chassis Heights: 3.43" (8.7 cm)
Chassis Width w/ Mounting Flanges: 18.94" (48.1 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 34.72" (88.2 cm)
Chassis Depth w/o Cable Mgmt: 32.17" (81.7 cm)
Chassis Weight: up to 75.0 lb (34 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
Expansion Module Slot (per): 2 x PCIe
Ethernet Ports (per): 4 x QSFP28 (100Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): N/A
SAS Ports (per): N/A
Remote Management: Yes
Processor Model (per): 2x 64-bit 10-core 2.20 Ghz
Memory (Single/HA): 256GB/512GB
NVRAM (Single/HA): 16GB/32GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 96
Max Capacity: 1,468TB (1.46PB)
Max # of NVMe SSD Drives: 96
Drive Interface: NVMe SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of NS224 Shelves: 4 external

AFF-A320 Parts Lists

View Adapters

View Transceivers

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

Compatible With:

NetApp AFF A320

(Click to View)

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of NVMe SSD Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves	Max # of DS460C Shelves
96	N/A	-	-	-	-	96	N/A	-	N/A	N/A	-	-	-	-	4 external

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
1468800	1468800	-	6519268.8	6519268.8	-

Core Cluster Limits

Max SVM's - NAS	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Flexible Volumes with DPO - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Volume (GiB) - Node	Max IPsec Policies	Max Auditing-Enabled SVMs - Cluster
Node: - HA Pair: - Cluster: 1024	Node: 512 HA Pair: 512 Cluster: 3072	Node: 100000 HA Pair(Non-Scalable): 100000	Aggregate (Single data Agg. per Node): - Aggregate (Multiple data Agg. per Node): - Node: 2500 HA Pair: 5000 Cluster: 15000	Node: 2500 HA Pair: 5000 Cluster: 12000	Node: 1200000 HA Pair: 1200000 Cluster: 12288000	8	191488	150	SVM: 256 Cluster: 1500	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max FlexGroup Data Constituent Size	Max Infinite Volume Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
24 / 12	16800 TiB	100 TiB	Not Supported	150 GiB	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 10-core 2.20 Ghz	64 bit	2.20 Ghz	2	4	10	20	40

Memory

NVRAM (Per Node)	NVRAM (Per Config)	NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
16 GB	32 GB	-	-	N/A	N/A	256 GB	512 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
8 x QSFP28 (100Gb)	-	-	-	4 x PCIe3

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
2	3.43" (8.7 cm)	18.94" (48.1 cm)	17.6" (44.7 cm)	34.72" (88.2 cm)	32.17" (81.7 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
6.03" (15.3 cm)	33.88" (86 cm)	6.03" (15.3 cm)	36.01" (91.4 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 41 to 104 deg F - 5 to 40 deg C Humidity: 8 to 85 % Altitude: Up to 10000.0 ft - Up to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m	Sound Power: 8.7 bels Sound Pressure: 67.2 dBA	200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1, 9.11.1P1	9.11.1RC1	9.11.1P1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	N/A	12.4

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
24000	200000	1024	Node: 100000 HA Pair: 100000	Node: 1024000 HA Pair: 1024000 Cluster: 4096000

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
800	100	16	Volume: 1023 Node: 1023000 HA Pair: 2046000	255	100000	2000000000	Volume: 4995 Node: 100000 HA Pair: 200000 Cluster: 800000	Node: 16 HA Pair: 16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	40000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node: 125 HA Pair: 250 Cluster: 1000	Single data Aggregate: - Multiple data Aggregates: - Node: 2500 HA Pair: 5000 Cluster: 15000	Node: 2500 HA Pair: 5000 Cluster: 12000	Valume: 1024 Node: 12288 HA Pair: 24576 Cluster: 98304	Node: 12288 HA Pair: 24576 Cluster: 98304	16	2048	Port: 512 Node: 8192 HA Pair: 16384 Cluster: 65536	Port: 32 Portset: 32 Node: 512 HA Pair: 1024 Cluster: 4096	Port: 32 Portset: 32 Node: 512 HA Pair: 1024 Cluster: 4096	Node: 4096 HA Pair: 8192 Cluster: 32768	igroup: 256 Node: 4096 HA Pair: 8192 Cluster: 32768	Node: 4096 HA Pair: 8192 Cluster: 32768	Node: 8192 HA Pair: 16384 Cluster: 65536

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node: 1000000 HA Pair: 1000000	Node: - HA Pair: - Cluster: 300000	Connection: 65536 Node: 1500000 HA Pair: 1500000	35000	320000	640000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	# of Consistency Groups in SM-BC relationships	# of Constituent Volumes in SM-BC relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster	# of Concurrent SVM Migration - Cluster	# of Volumes with SVM Migration - SVM	# of Cluster for SVM Migration - Cluster
Node: 36 HA Pair (Non-Scalable): 36	Volume: 1 Node: 2500 HA Pair: 5000 Cluster: 15000	2	100	8	2	255	FlexGroup: 200 FlexGroup-Node: 50 HA Pair: 1000 Cluster: 6000	Volume: 1 Node: 400 HA Pair (Non-Scalable): 400	HA Pair (Non-Scalable): 50	Consistency group: 16 HA Pair (Non-Scalable): 400	SVM: 300 HA Pair: 1000	128	1	100	6

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster	# of Flexible volumes, NVMe/oF	# of Flexible volumes with DPO, NVMe/oF	# of Namespaces	# of Subsystems	# of Namespace Mappings	Namespace Size	I/O queue depth available - NVMe/FC - Queue	I/O queue count available - NVMe/FC - Controller	Hosts - Subsystem	LIFS, NVMe/oF	# of Controllers - NVMe/FC - Port	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
32	Node: 2500 HA Pair: 5000 Cluster: 15000	Node: 2500 HA Pair: 5000 Cluster: 12000	Volume: 1024 Node: 12288 HA Pair: 24576 Cluster: 98304	Node: 512 Node: 512	Subsystem: 1024 Node: 12288 HA Pair: 24576 Cluster: 98304	16	32	4	64	Port: 16 SVM: 8 Node: 32 HA Pair: 32 Cluster: 32	256	2	128	1024

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
100	Node: 100 HA Pair: 200	Node: 800 HA Pair: 1600	Node: 100 HA Pair: 200	Node: 800 HA Pair: 1600

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver: 12000 Cluster: 12000	400000000000	Vserver: 4000 Cluster: 96000	20

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Consistency Groups and Parents Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Child Consistency Groups in a Parent Consistency Groups - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
15000	15000	15000	5	80	80	80

Flex Array Specifications

Third Party Array Compatibility	Array LUN Absolute Min Raw Capacity	Array LUN Block Size	Default Array LUN RAID Group Size	Array LUN Max RAID Groups Per Aggregate	Max Array LUN Size	Max Array LUN Raid Group Size	Min Array LUN Size	Min Array LUN Root Vol Size	Min Array LUN RAID Group Size	Min Array LUN Aggregate Size	Array LUN neighborhood Visible Assigned Devices	Array LUN Recommended Min RAW Capacity	Spare Core Array LUN Min Size
-	-	-	-	-	-	-	-	-	-	-	-	-	-

Footnotes -

Notes ID

Notes Description

[1]

The onboard UTA2 ports can be configured as FC Target/Initiator or CNA (FCoE target/Ethernet). The UTA2 ports are based on a dual port ASIC and both ports on each ASIC must be set to the same mode (enforced by Data ONTAP). Install X6599A-R6 10GbE SFP+ modules or approved copper twinax cables when using in CNA (FCoE target/Ethernet) mode. Install X6596-R6 16Gb FC SFP+ module when using in FC Target/Initiator mode.

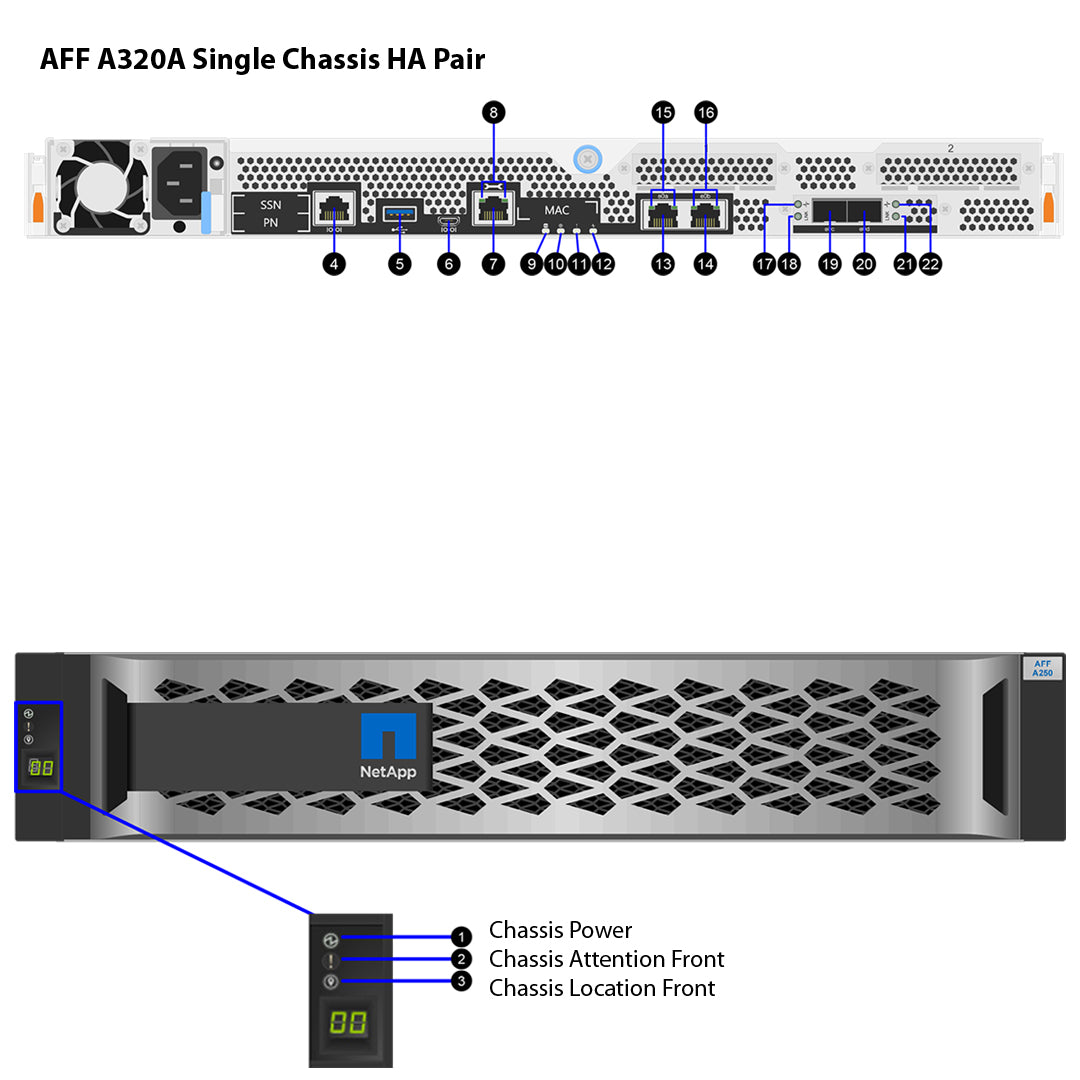

Platform LED for AFF A320 Single Chassis HA Pair

LED Label	LED Name	Type	Status Indicator	Description
1	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
2	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
3	Location LED on chassis front	-	On or flashing blue	The LED has been manually activated to aid in physically locating

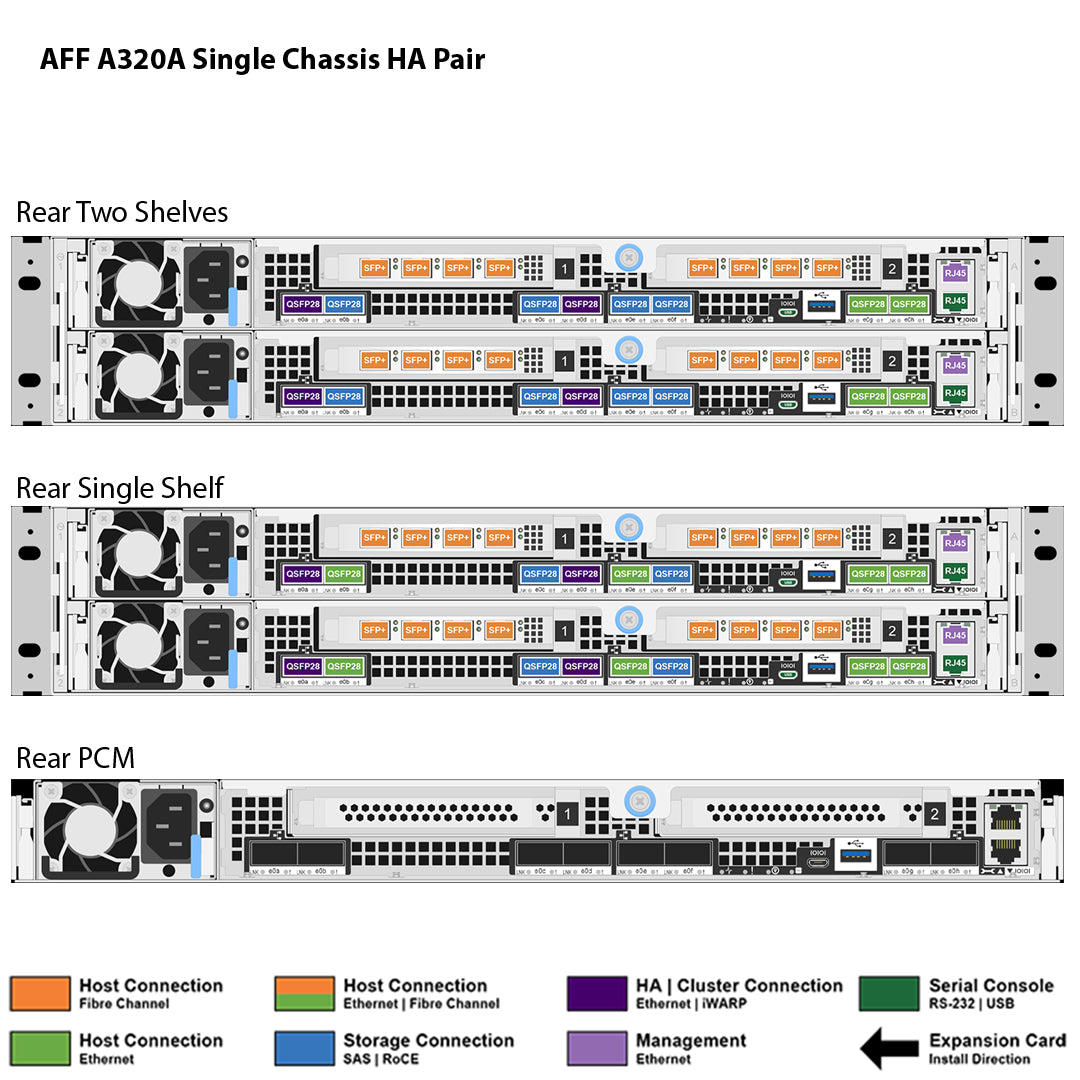

Back View
LED Label	LED Name	Type	Status Indicator	Description
e0a	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0b	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0c	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0d	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0e	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0f	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0g	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0h	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0m/BMC	Port Remote Management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and some upstream device.
-	-	-	Off	No link is established.
-	-	-	Off	No traffic is flowing over the connection.

Supported Shelves Drives for AFF A320 Single Chassis HA Pair

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
NS224 with NSM100 shelf modules
X4010A	1.92TB	N/A	NVMe SSD	AES-256	No	Yes	No	96	No
X4011A	3.84TB	N/A	NVMe SSD	AES-256	No	Yes	No	96	No
X4012A [1]	3.84TB	N/A	NVMe SSD	AES-256, FIPS 140-2 Level 2, NSE	No	Yes	No	96	No
X4013A	7.68TB	N/A	NVMe SSD	AES-256	No	Yes	No	96	No
X4014A	15.3TB	N/A	NVMe SSD	AES-256	No	Yes	No	96	No
X4016A	3.84TB	N/A	NVMe SSD	No	No	Yes	No	96	No
X4018A	1.92TB	N/A	NVMe SSD	No	No	Yes	No	96	No
X4019A [1]	15.3TB	N/A	NVMe SSD	AES-256, FIPS 140-2 Level 2, NSE	No	Yes	No	96	No
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported RAID Configurations - AFF A320 Single Chassis HA Pair

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NVMe SSD	0 TB	15.3 TB	3	8	14
RAID-DP
NVMe SSD	0 TB	15.3 TB	5	24	28
RAID-TEC
NVMe SSD	0 TB	15.3 TB	7	25	29
Root Aggregate
RAID4
NVMe SSD	0 TB	15.3 TB	2	-	14
RAID-DP
NVMe SSD	0 TB	15.3 TB	3	-	28
RAID-TEC
NVMe SSD	0 TB	15.3 TB	7	-	29

Supported Adapter Cards - AFF A320 Single Chassis HA Pair

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	Block Access (Target)	PCIe3	X1135A	111-03648	4p 32Gb FC SFP+ Op	111-03648	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
2	Networking	PCIe3	X1148A	111-04025	2p 100GbE RoCE QSFP28	111-04025	2p 100GbE RoCE QSFP28	QSFP28	Ethernet 40/100 Gb	View	Ethernet 40/100 Gb	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
3	Networking	PCIe3	X1122A	111-04027	2p 25GbE RoCE SFP28 Cu\|Op	111-04027	2p 25GbE RoCE SFP28 Cu\|Op	SFP28	Ethernet 10/25Gb, Ethernet 10Gb, Ethernet 25Gb	View	Ethernet 10/25Gb,	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
4	Networking	PCIe3	X1147A	111-03854	4p 10GbE SFP+ Cu\|Op	111-03854	4p 10GbE SFP+ Cu\|Op	SFP+	Ethernet 10Gb	View	Ethernet 10Gb	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
5	Tape (Initiator)	PCIe3	X1135A [2]	111-03648	4p 32Gb FC SFP+ Op	111-03648	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
[2] Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.

Supported Connections for AFF A320 Single Chassis HA Pair

Switched 100GbE or 40GbE Cluster Interconnect

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect
2-node Switchless Cluster/HA	Supported	N/A	2	None

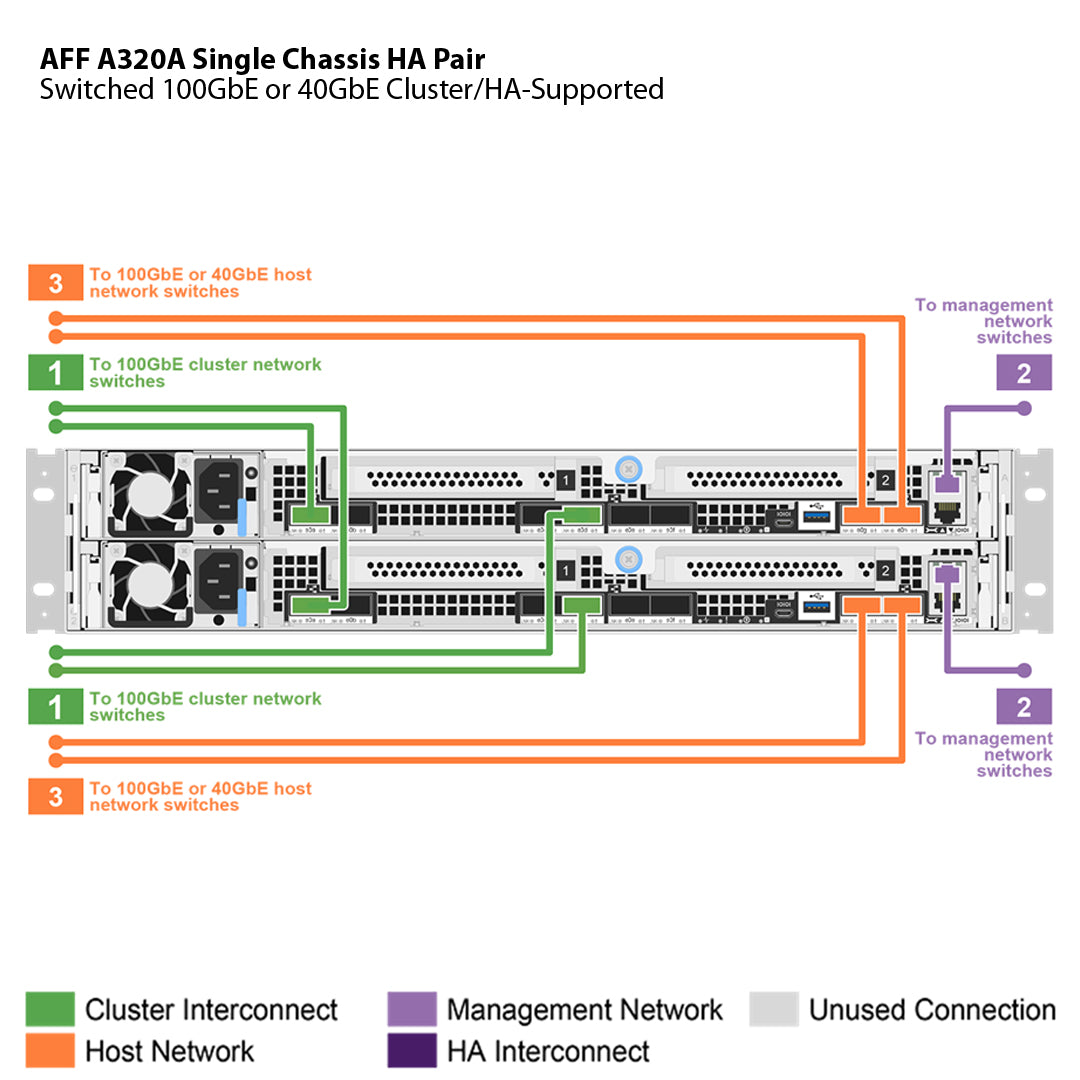

Switched 100GbE or 40GbE Cluster/HA	Supported	View Image	2	2
Storage Connection

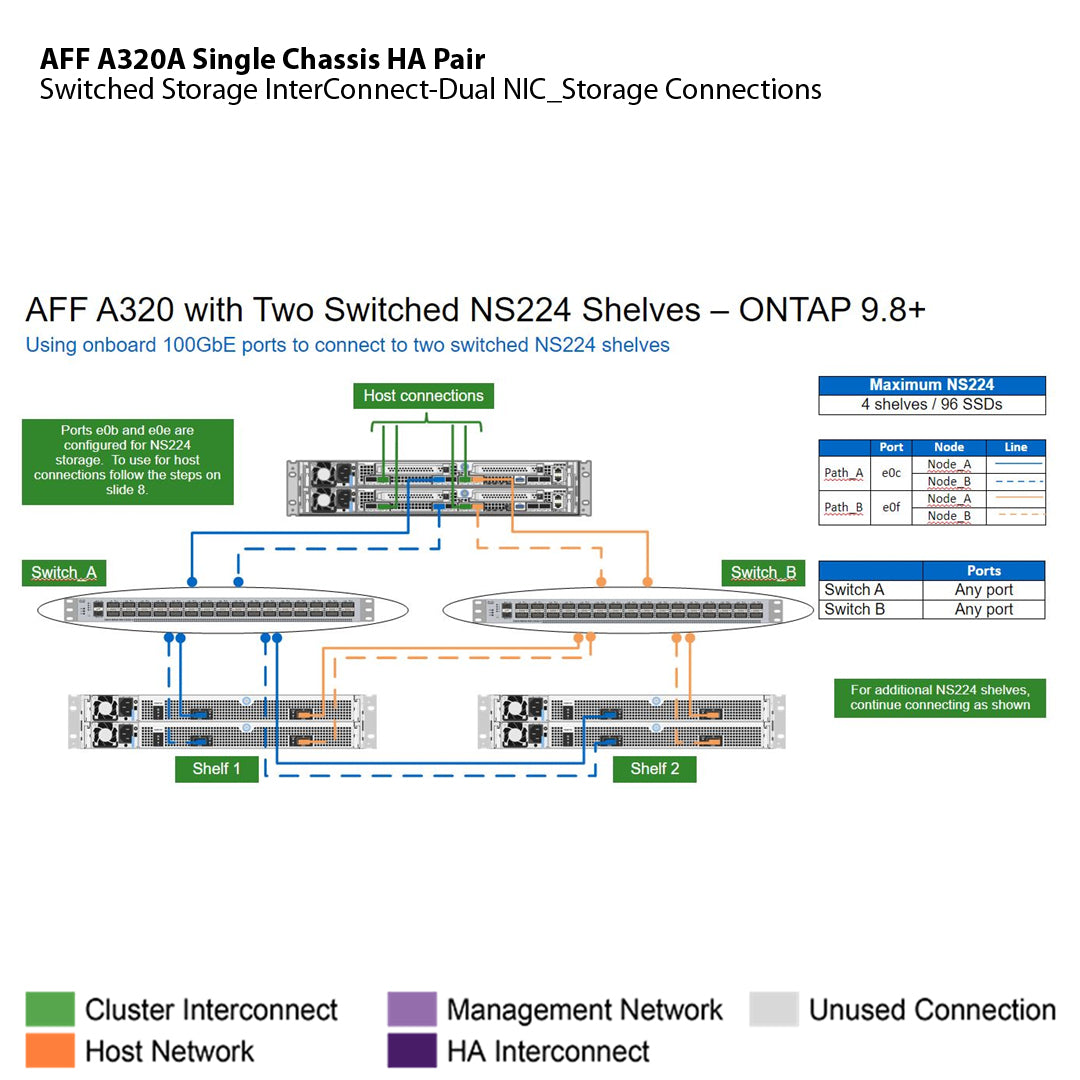

Switched Storage InterConnect	Dual NIC	View Image	2	2

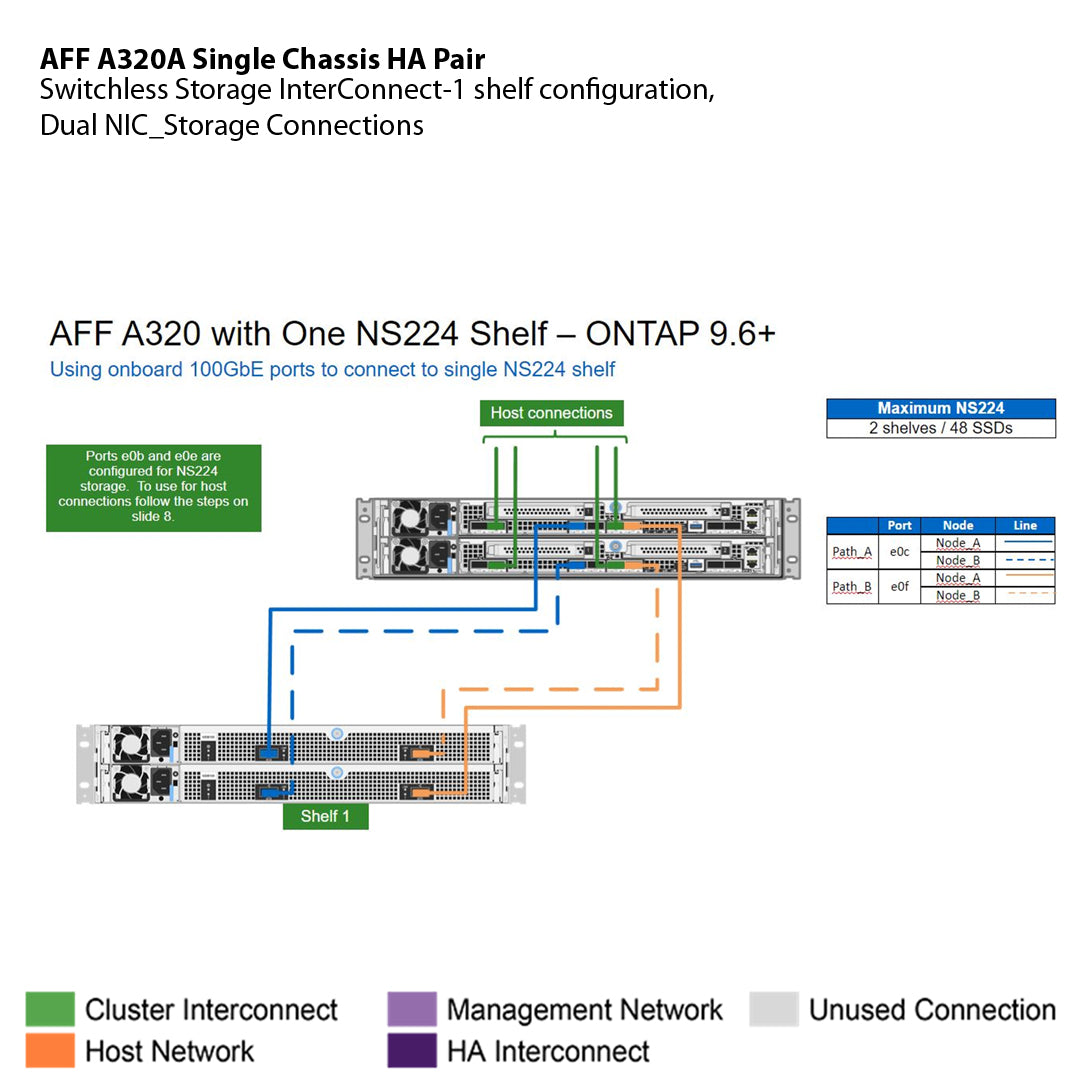

Switchless Storage InterConnect	1 shelf configuration, Dual NIC	View Image	2	2

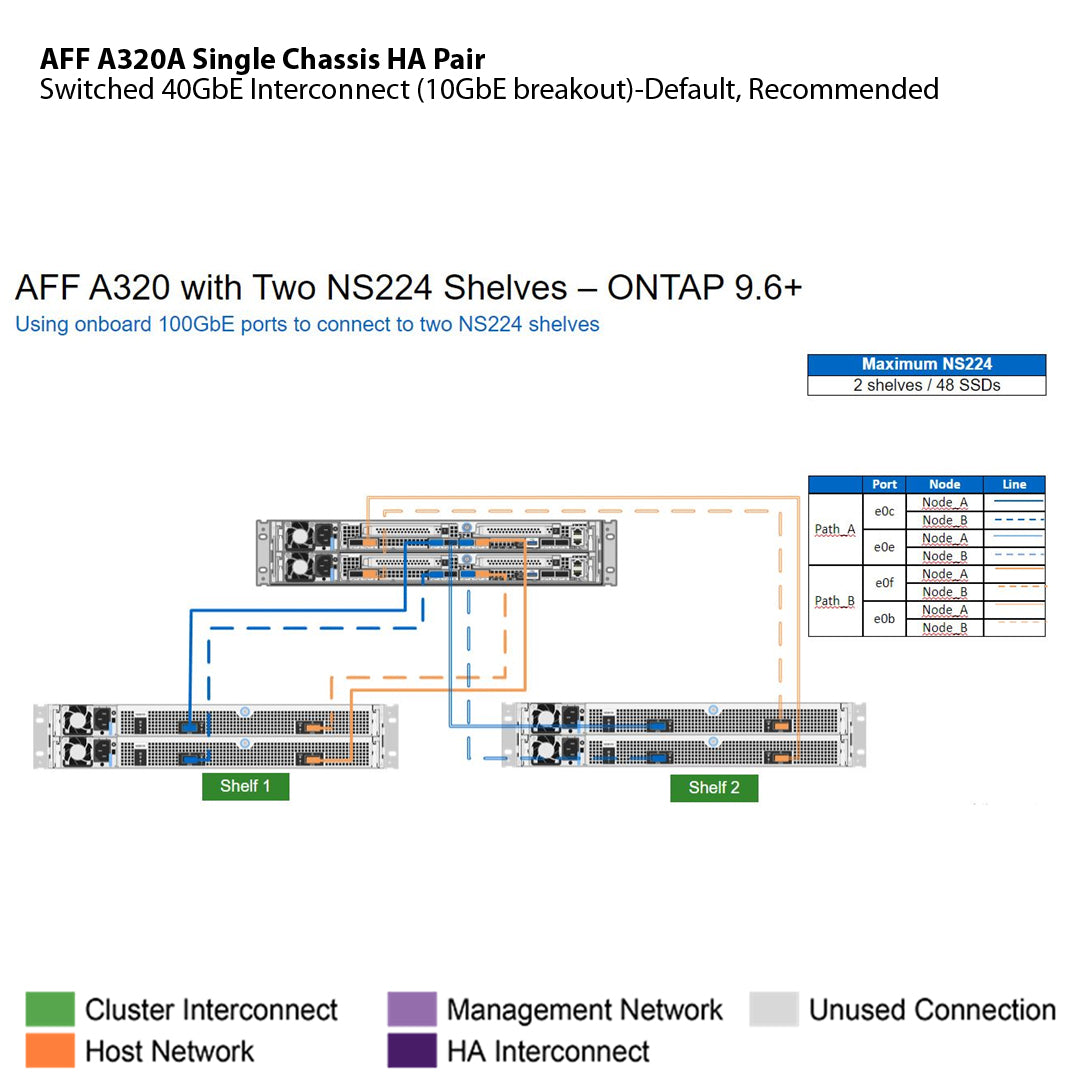

Switchless Storage InterConnect	2 shelf configuration, Dual NIC	View Image	4	4
Shared Cluster / Storage Connection

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node

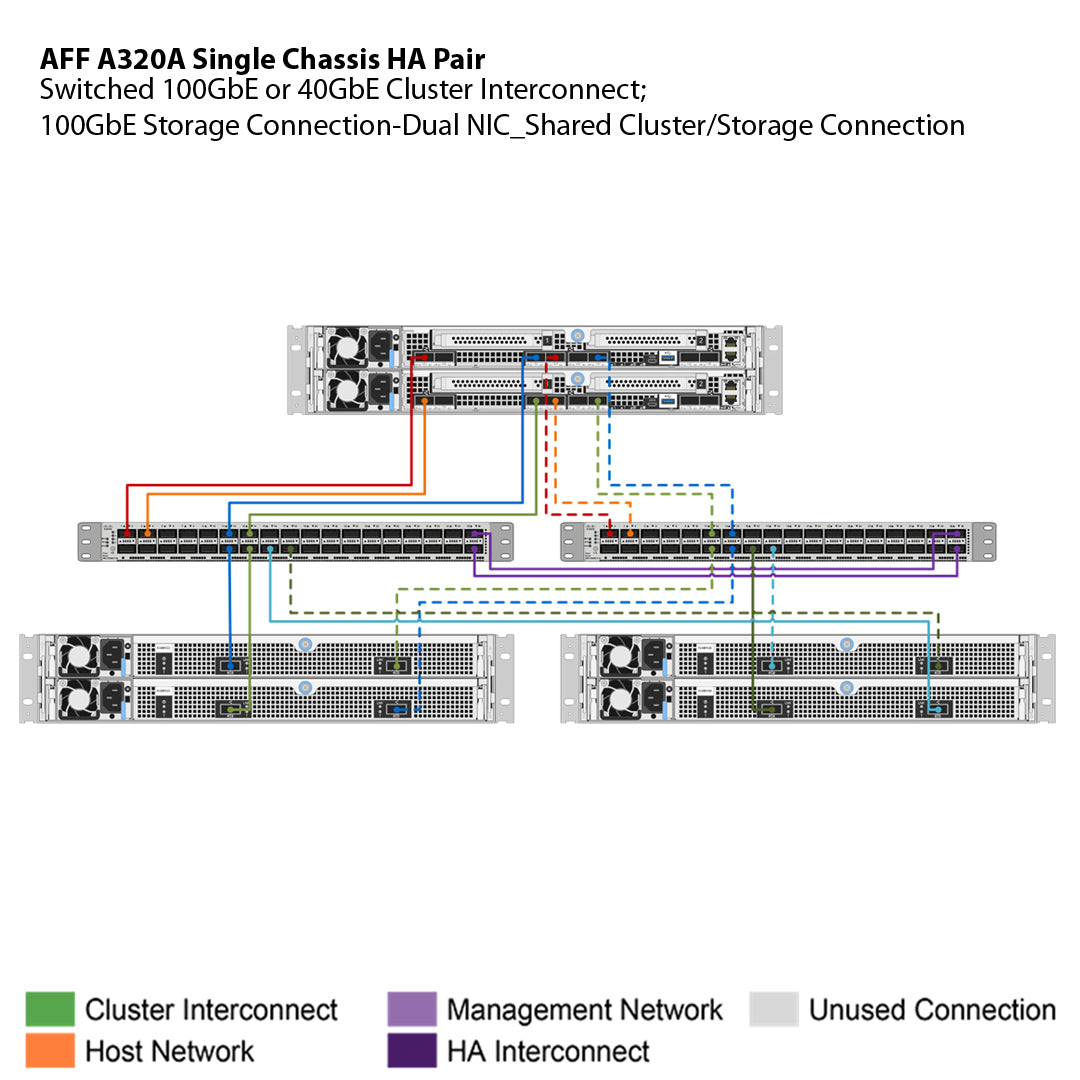

100GbE Storage Connection	Dual NIC	View Image	4	4

Platform Mixing Rules - AFF A320 Single Chassis HA Pair

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
FAS2720A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS2750A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
FAS2750A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS500fA	24 Nodes	12 Nodes	9.8RC1
FAS8300A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8300A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS9000A	24 Nodes	12 Nodes	9.6RC2
FAS9500A	24 Nodes	12 Nodes	9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A	24 Nodes	12 Nodes	9.8RC1
AFF A250A 100V	24 Nodes	12 Nodes	9.8P4
AFF A400A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A400A FC Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A700A	24 Nodes	12 Nodes	9.6RC2
AFF A800A	24 Nodes	12 Nodes	9.6RC2
AFF A900A	24 Nodes	12 Nodes	9.10.1
AFF C190A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
AFF C190A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS - Legacy EOA Configuration(s)
FAS8200A	24 Nodes	12 Nodes	9.6RC2
AllFlashFAS - Legacy EOA Configuration(s)
AFF A220A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
AFF A220A UTA2	24 Nodes	12 Nodes	9.6RC2
AFF A300A	24 Nodes	12 Nodes	9.6RC2
AFF A320A	24 Nodes	12 Nodes	9.6RC2
AFF A700s	24 Nodes	12 Nodes	9.6RC2
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Certificates - AFF A320 Single Chassis HA Pair

Standard	Description
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00046AWB	Global	Platforms : AFF A300, AFF A700, FAS8200, FAS9000
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00046AWB	Global	Platforms : AFF A300, AFF A700, FAS8200, FAS9000
Declaraion of Similarity NAF-1601	Global	Platforms : AFF A300, FAS8200
NAF-1601 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A300, FAS8200
NAF-1601 (Jabil Mexico) BIS	BIS - India	Platforms : AFF A300, FAS8200
NAF-1601 (Jabil Singapore) BIS	BIS - India	Platforms : AFF A300, FAS8200
NAF-1601 60950-CB	CB - International	Platforms : AFF A300, FAS8200
NAF-1601 62368-CB-3rd_Edition	CB - International	Platforms : AFF A300, FAS8200
NAF-1601 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A300, FAS8200
NAF-1601 BSMI	BSMI - Taiwan	Platforms : AFF A300, FAS8200
NAF-1601 CSA	CSA - United States, Canada	Platforms : AFF A300, FAS8200
NAF-1601 CE DoC	CE - European Union DoC	Platforms : AFF A300, FAS8200
NAF-1601 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A300, FAS8200
NAF-1601 FCC	FCC - United States	Platforms : AFF A300, FAS8200
NAF-1601 IRAM	IRAM - Argentina	Platforms : AFF A300, FAS8200
NAF-1601 KC	KC - South Korea	Platforms : AFF A300, FAS8200
NAF-1601 Morocco	Morocco	Platforms : AFF A300, FAS8200
NAF-1601 NOM	NOM - Mexico	Platforms : AFF A300, FAS8200
NAF-1601 NRCS	NRCS - South Africa (Safety)	Platforms : AFF A300, FAS8200
NAF-1601 SONCAP	SONCAP - Nigeria	Platforms : AFF A300, FAS8200
NAF-1601 TBS	TBS - Tanzania	Platforms : AFF A300, FAS8200
NAF-1601 UKRSepro	UKRSepro - Ukraine	Platforms : AFF A300, FAS8200
NAF-1601 VCCI	VCCI - Japan	Platforms : AFF A300, FAS8200
NAF-1601 UKCA DOC	UKCA -United Kingdom	Platforms : AFF A300, FAS8200
NAF-1601 62368-CB-2nd_Edition	CB - International	Platforms : AFF A300, FAS8200
PSU 80+ Platinum Certificates
NAF-1601 62368-CB-2nd_Edition	CB - International	Platforms : AFF A300, FAS8200
DCJ14602-01 Energy Star Report	Global	PSU : X5729A
Voluntary Product Accessibility Template
DCJ14602-01 Energy Star Report	Global	PSU : X5729A

Supported OS Version - AFF A320 Single Chassis HA Pair

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1P1, 9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1
ONTAP 9.10.1	9.10.1P5, 9.10.1P7, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030	9.10.1P7, 9.10.1P6
ONTAP 9.9.1	9.9.1P11, 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029	9.9.1P11, 9.9.1P10, 9.9.1P9
ONTAP 9.8	9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028	9.8P13, 9.8P12
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
EOS OS
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for AFF A320 Single Chassis HA Pair

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: AFF A320 Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
e0a	Cluster/HA Interconnect	Ethernet 40/100 Gb	Ethernet	QSFP28
e0b	Ethernet (RoCE) / Storage	Ethernet 40/100 Gb	Ethernet	QSFP28
e0c	Storage	Ethernet 40/100 Gb	Ethernet	QSFP28
e0d	Cluster/HA Interconnect	Ethernet 40/100 Gb	Ethernet	QSFP28
e0e	Ethernet (RoCE) / Storage	Ethernet 40/100 Gb	Ethernet	QSFP28
e0f	Storage	Ethernet 40/100 Gb	Ethernet	QSFP28
e0g	Ethernet (iWARP)	Ethernet 40/100 Gb	Ethernet	QSFP28
e0h	Ethernet (iWARP)	Ethernet 40/100 Gb	Ethernet	QSFP28
e0m/BMC	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
-	Storage Host Port	USB 2.0	USB 3.0	USB Type A
Serial Interface	Micro USB	RS-232 115200bps	USB 3.0	USB 2.0 Micro-B
Serial Interface Icon	Serial Console	RS-232 115200bps	Serial Interface	RJ45
Footnote:
[1] See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements

Supported Platform Configurations - AFF A320 Single Chassis HA Pair

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
AFF A300A	AFF A300 Single Chassis HA Pair	CC	1	2	0	3	76.00 lb (34.473 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
MetroCluster
AFF A300-2NBSMC	AFF A300 2-Node Stretch MetroCluster, Fiber Bridge	Cb-HA	2	1	0	6	65.80 lb (29.846 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF A300-2NDSMC	AFF A300 2-Node Stretch MetroCluster, Optical SAS	Cb-HA	2	1	0	6	65.80 lb (29.846 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF A300-2NFMC	AFF A300 2-Node Fabric MetroCluster	Cb-HA	2	1	0	6	65.80 lb (29.846 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF A300-4NFMC	AFF A300 4-Node Fabric MetroCluster	CC-CC	2	2	0	6	76.00 lb (34.473 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF A300-4NMCIP	AFF A300 4-Node MetroCluster IP	CC-CC	2	2	0	6	76.00 lb (34.473 kg)	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF A300-8NFMC	AFF A300 8-Node Fabric MetroCluster	2x(CC-CC)	4	2	0	12	76.00 lb (34.473 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF A300-8NMCIP	AFF A300 8-Node MetroCluster IP	2x(CC-CC)	4	2	0	12	76.00 lb (34.473 kg)	9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - AFF A320 Single Chassis HA Pair

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X93144A	32GB RDIMM	107-00215	no	16	32	-	512
X93143A	16GB NVDIMM	107-00216	yes	2	16	32	-

Supported Rail Kit for AFF A320 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
Third-Party Cabinet Rail Kits
X5532A	113-00251	Rail,4-Post,Thin,Rnd/Sq-Hole,Sm,Adj,24-32

Field Replacement Unit Parts - AFF A320 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X1122A	111-04027	NIC 2-Pt Bare Cage 25GbE RoCE SFP28 PCIe
X1122A-C	111-04027	NIC 2-Pt Bare Cage 25GbE RoCE SFP28 PCIe,-C
X1122A-N-C	111-04027	NIC 2-Pt Bare Cage 25GbE RoCE SFP28 PCIe,-C
X1135A [1]	111-03648	HBA,4-port FCP Targt-Init 32Gb PCIe w/SFP+
X1135A-C [1]	111-03648	HBA,4-port FCP Targt-Init 32Gb PCIe w/SFP+,-C
X1135A-N-C [1]	111-03648	HBA,4-port FCP Targt-Init 32Gb PCIe w/SFP+,-C
X1147A	111-03854	NIC 4-Port Bare Cage 10GbE SFP+ PCIe
X1147A-C	111-03854	NIC 4-Port Bare Cage 10GbE SFP+ PCIe,-C
X1147A-N-C	111-03854	NIC 4-Port Bare Cage 10GbE SFP+ PCIe,-C
X1148A	111-04025	NIC 2-Pt BareCage 100GbE RoCE QSFP28 PCIe
X1148A-C	111-04025	NIC 2-Pt BareCage 100GbE RoCE QSFP28 PCIe,-C
X1148A-N-C	111-04025	NIC 2-Pt BareCage 100GbE RoCE QSFP28 PCIe,-C
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
X3156A	111-04057	Batt,LI-ION,7.2V,2-CELL,CYL,GEN5
Bezel
X80113A	111-04251	Bezel,A320
Boot Media
X3311A	111-03066	SUB ASSY,NVME,FLASH,1.0TB
Cable Management Guide
X98601A	111-04083	Cable Management,KIT,A320
Chassis
X3187A	N/A	Chassis,Midplane,A320
Data Cable
X-QSFP-4SFP10G-CU3M	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m
X-QSFP-4SFP10G-CU3M-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU3M-N-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU5M	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m
X-QSFP-4SFP10G-CU5M-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-QSFP-4SFP10G-CU5M-N-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6	112-00210	Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6	112-00211	Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6	112-00212	Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X66100-3	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-3-K-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-5	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66100-5-K-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-N-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66200-15	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m
X66200-15-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-15-N-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-2	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m
X66200-2-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-2-N-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-30	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m
X66200-30-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-30-N-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-5	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m
X66200-5-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66200-5-N-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66211A-05	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-05-K-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-1	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-K-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-2	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-K-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-5	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-K-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211B-1-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-1-N-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-2-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-2-N-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-5-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66211B-5-N-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66220A-15	112-00586	Cable,100GbE,QSFP28-QSFP28,AOC,15m
X66220A-15-N-C	112-00586	Cable,100GbE,QSFP28-QSFP28,AOC,15m,-C
X66220A-30	112-00589	Cable,100GbE,QSFP28-QSFP28,AOC,30m
X66220A-30-N-C	112-00589	Cable,100GbE,QSFP28-QSFP28,AOC,30m,-C
X66240A-05	1111455002, 112-00639, NDCCGF-0006	Cable,25GbE,SFP28-SFP28,Cu,0.5m
X66240A-05-N-C	1111455002, 112-00639, NDCCGF-0006	Cable,25GbE,SFP28-SFP28,Cu,0.5m,-C
X66240A-2	1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102	Cable,25GbE,SFP28-SFP28,Cu,2m
X66240A-2-N-C	1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102	Cable,25GbE,SFP28-SFP28,Cu,2m,-C
X66240A-5	1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105	Cable,25GbE,SFP28-SFP28,Cu,5m
X66240A-5-N-C	1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105	Cable,25GbE,SFP28-SFP28,Cu,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-30-N-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5	112-00344	Cable,LC-LC,OM4,5m
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66260-30	112-00354	Cable,LC-LC,OPT,OS2,30M
X66260-30-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-30-N-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-5	112-00353	Cable,LC-LC,OPT,OS2,5M
X66260-5-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
X66260-5-N-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
Drive
X4010A	108-00741	SSD,1.92TB,NVMe,SED
X4011A	108-00742	SSD,3.8TB,NVMe,SED
X4012A [2]	108-00743	SSD,3.8TB,NVMe,SED,NSE
X4013A	108-00745	SSD,7.6TB,NVMe,SED
X4014A	108-00892	SSD,15.3TB,NVMe,SED
X4016A	108-00744	SSD,3.8TB,NVMe,Non-SED
X4018A	108-00894	SSD,1.92TB,NVMe,Non-SED
X4019A [2]	108-00883	SSD,15.3TB,NVMe,SED,NSE
Fan
X3190A	441-00074	Fan Module,Enclosure,A320
Memory Module
X93143A	107-00216	NVDIMM,16GB,AFF-A800
X93144A	107-00215	DIMM,32GB, AFF-A800
Power Cord
X-50617-00	N/A	Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C	N/A	Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6	N/A	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	N/A	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	N/A	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	N/A	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	N/A	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	N/A	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	N/A	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	N/A	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	N/A	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	N/A	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	N/A	Power Cable,Continental Europe,R6
X800B-R6-C	N/A	Power Cable,Continental Europe,-C,R6
X800C-R6	N/A	Power Cable,UK and Ireland,R6
X800C-R6-C	N/A	Power Cable,UK and Ireland,-C,R6
X800D-R6	N/A	Power Cable,Japan,R6
X800D-R6-C	N/A	Power Cable,Japan,-C,R6
X800E-R6	N/A	Power Cable,North America,R6
X800E-R6-C	N/A	Power Cable,North America,-C,R6
X800F-R6	N/A	Power Cable,Australia/New Zealand,R6
X800F-R6-C	N/A	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	N/A	Power Cable,Switzerland,R6
X800G-R6-C	N/A	Power Cable,Switzerland,-C,R6
X800H-R6	N/A	Power Cable,Argentina,R6
X800H-R6-C	N/A	Power Cable,Argentina,-C,R6
X800I-R6	N/A	Power Cable,China,R6
X800I-R6-C	N/A	Power Cable,China,-C,R6
X800J-R6	N/A	Power Cable,Denmark,R6
X800J-R6-C	N/A	Power Cable,Denmark,-C,R6
X800K-R6	N/A	Power Cable,India,South Africa,R6
X800K-R6-C	N/A	Power Cable,India,South Africa,-C,R6
X800L-R6	N/A	Power Cable,Israel,R6
X800L-R6-C	N/A	Power Cable,Israel,-C,R6
X800M-R6	N/A	Power Cable,Italy,R6
X800M-R6-C	N/A	Power Cable,Italy,-C,R6
X800N	N/A	POWER CABLE,INDIA BIS
X800N-C	N/A	Power Cable,India BIS,-C
X800P-R6	N/A	Power Cable,North America,250V,R6
X800P-R6-C	N/A	Power Cable,North America,250V,-C,R6
X800T-R6	N/A	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	N/A	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	N/A	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	N/A	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	N/A	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	N/A	Power Cable,Japan,250V/15A
X800Y-R6-C	N/A	Power Cable,Japan,250V/15A,-C
Power Supply Unit
x736A	114-00194	PSU,AFF A700s,A800,A320
X737A	114-00208	PSU,AFF A700s,A800,EF600,EF300
Processor Controller Module (PCM)
X3186A	111-04084	Controller,No MEM,A320
Transceiver
X65402	332-00389, AFBR-79EEPZ-NA1, AFBR-79EEPZ-NA2, FTL410QD2C-N1, FTL410QD2C-NQ, FTL410QD4C-N1, FTL410QD4C-NQ	QSFP,Opt,40Gb,Shortwave
X65402-C	332-00389, AFBR-79EEPZ-NA1, AFBR-79EEPZ-NA2, FTL410QD2C-N1, FTL410QD2C-NQ, FTL410QD4C-N1, FTL410QD4C-NQ	QSFP,Opt,40Gb,Shortwave,-C
X65402-N-C	332-00389, AFBR-79EEPZ-NA1, AFBR-79EEPZ-NA2, FTL410QD2C-N1, FTL410QD2C-NQ, FTL410QD4C-N1, FTL410QD4C-NQ	QSFP,Opt,40Gb,Shortwave,-C
X65404	332-00436, AFBR-725SMZ-NA1, AFBR-725SMZ-NA2, AFBR-734SMZ-NA1, AFBR-734SMZ-NA2, FTLF8536P4BCL-N1, FTLF8536P4BCL-NQ, FTLF8536P5BCL, FTLF8536P5BCL-N1, FTLF8536P5BCL-NQ, MMA2P00-AS	SFP28,25GbE,SR
X65405	332-00440	QSFP28,100GbE,SR
X65405-C	332-00440	QSFP28,100GbE,SR,-C
X65405-N-C	332-00440	QSFP28,100GbE,SR,-C
X65406	332-00450	QSFP28,CWDM4,2KM
X6569-R6	332-00299R6	SFP+ for X1117A,Optical,10GbE,R6
X6569-R6-C	332-00299R6	SFP+ for X1117A,Optical,10GbE,R6,-C
X6569-R6-N-C	332-00299R6	SFP+ for X1117A,Optical,10GbE,R6,-C
X6589-N-C	332-00279R6	SFP+Optical 10Gb Shortwave,-C
X6589-R6	332-00279R6	SFP+Optical 10Gb Shortwave
X6589-R6-C	332-00279R6	SFP+ Optical 10Gb Shortwave,-C
X6603A	332-00400	SFP+ Optical,32Gb FC Shortwave
X6603A-C	332-00400	SFP+ Optical,32Gb FC Shortwave,-C
X6603A-N-C	332-00400	SFP+ Optical,32Gb FC Shortwave,-C
X6604A	332-00405	SFP+ Optical,UTA,10GbE LongReach
X6604A-C	332-00405	SFP+ Optical,UTA,10GbE LongReach,-C
X6604A-N-C	332-00405	SFP+ Optical,UTA,10GbE LongReach,-C
Footnote:
[1]	Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.
[2]	Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

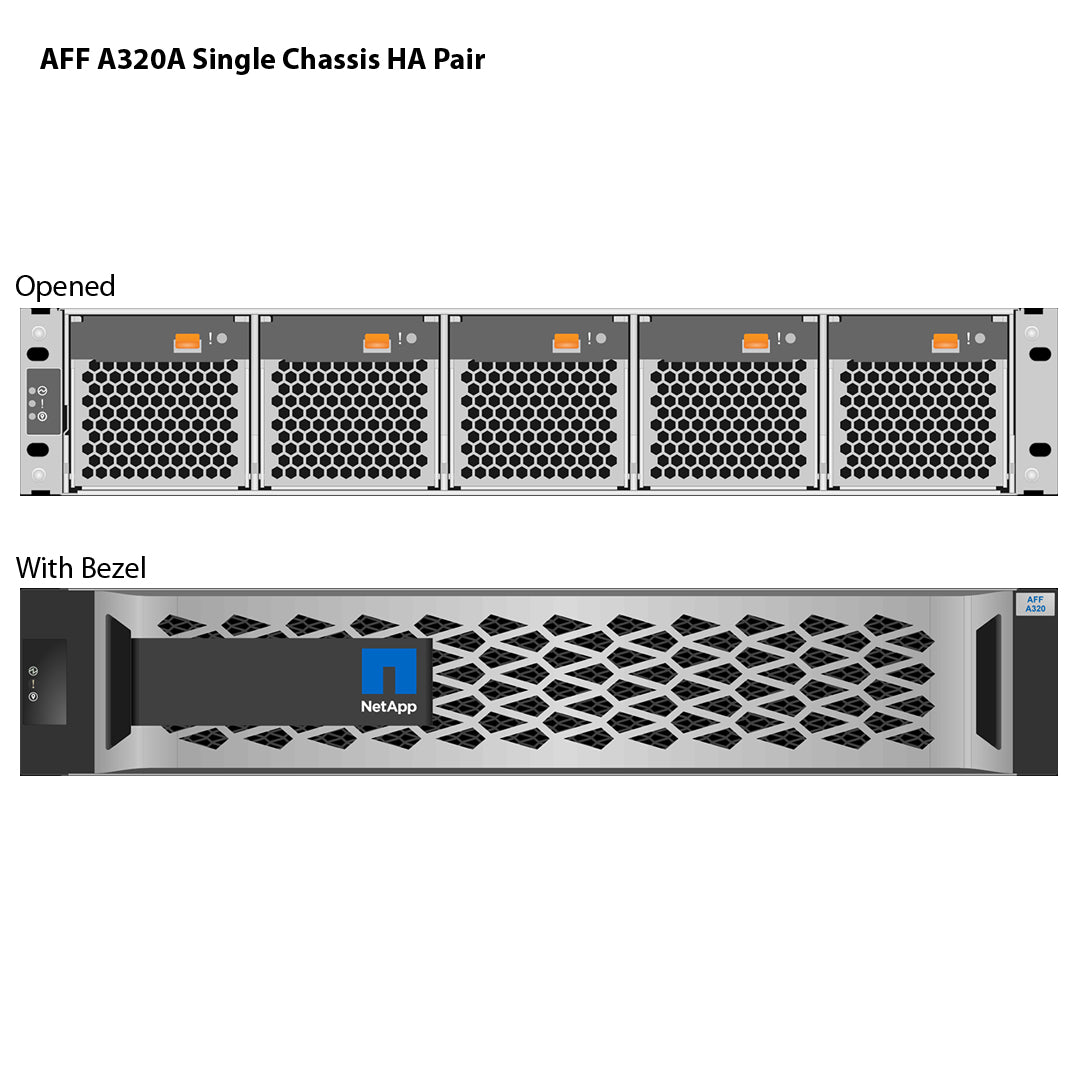

Supported Firmware Matrix - AFF A320 Single Chassis HA Pair

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1P1, 9.11.1RC1	14.8*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6	14.8*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	14.8, 14.7*
ONTAP 9.9.1	9.9.1P11	14.8*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P6	14.8, 14.7*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2, 9.9.1P1	14.8, 14.7, 14.5*
ONTAP 9.9.1	9.9.1, 9.9.1RC1	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.7*
ONTAP 9.8	9.8P13	14.8*
ONTAP 9.8	9.8P11-P12, 9.8P10, 9.8P9, 9.8P8	14.8, 14.7*
ONTAP 9.8	9.8P7, 9.8P6	14.8, 14.7, 14.5*
ONTAP 9.8	9.8P5, 9.8P4	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.7*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6*, 14.4.1 Loader 6.3.7
ONTAP 9.8	9.8, 9.8RC1	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4*
ONTAP 9.7	9.7P19, 9.7P17-P18	14.8, 14.7*
ONTAP 9.7	9.7P16, 9.7P15	14.8, 14.7, 14.5*
ONTAP 9.7	9.7P14	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.7*
ONTAP 9.7	9.7P13, 9.7P12, 9.7P11	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6*, 14.4.1 Loader 6.3.7
ONTAP 9.7	9.7P10, 9.7P9, 9.7P8	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4*
ONTAP 9.7	9.7P7, 9.7P6, 9.7P5, 9.7P4	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4, 14.3*
ONTAP 9.7	9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4, 14.3, 14.2*
ONTAP 9.6	9.6P18, 9.6P17	14.8, 14.7*
ONTAP 9.6	9.6P16	14.8, 14.7, 14.5*
ONTAP 9.6	9.6P15	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.7*
ONTAP 9.6	9.6P13-P14	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6*, 14.4.1 Loader 6.3.7
ONTAP 9.6	9.6P12	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4*
ONTAP 9.6	9.6P10-P11	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4, 14.3*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P3, 9.6P2, 9.6, 9.6P1, 9.6RC2	14.8, 14.7, 14.5, 14.4.1 Loader 6.3.6, 14.4.1 Loader 6.3.7, 14.4, 14.3, 14.2, 14.1*
BMC
ONTAP 9.11.1	9.11.1P1	12.4*
ONTAP 9.11.1	9.11.1	12.4
ONTAP 9.11.1	9.11.1RC1	12.4, 12.3*
ONTAP 9.10.1	9.10.1P7	12.4*
ONTAP 9.10.1	9.10.1P5-P6, 9.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	12.4, 12.3*
ONTAP 9.9.1	9.9.1P11	12.4*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	12.4, 12.3*
ONTAP 9.8	9.8P13, 9.8P11-P12, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3	12.4, 12.3*
ONTAP 9.8	9.8P2, 9.8P1	12.4, 12.3, 12.2P1*
ONTAP 9.8	9.8, 9.8RC1	12.4, 12.3, 12.2P1, 12.2*
ONTAP 9.7	9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14, 9.7P13	12.4, 12.3*
ONTAP 9.7	9.7P12, 9.7P11, 9.7P10	12.4, 12.3, 12.2P1*
ONTAP 9.7	9.7P9, 9.7P8, 9.7P7	12.4, 12.3, 12.2P1, 12.2*
ONTAP 9.7	9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	12.4, 12.3, 12.2P1, 12.2, 12.1P1*
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15	12.4, 12.3*
ONTAP 9.6	9.6P13-P14	12.4, 12.3, 12.2P1*
ONTAP 9.6	9.6P12, 9.6P10-P11	12.4, 12.3, 12.2P1, 12.2*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6	12.4, 12.3, 12.2P1, 12.2, 12.1P1*
ONTAP 9.6	9.6P4, 9.6P3, 9.6P2	12.4, 12.3, 12.2P1, 12.2, 12.1P1, 12.1, 12.0P1*
ONTAP 9.6	9.6, 9.6P1, 9.6RC2	12.4, 12.3, 12.2P1, 12.2, 12.1P1, 12.1, 12.0P1, 12.0*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - AFF A320 Single Chassis HA Pair

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
Declaraion of Similarity NAF-1801	Global	Platforms : AFF A320
NAF-1801 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A320
NAF-1801 (FXN Taiwan) BIS	BIS - India	Platforms : AFF A320
NAF-1801 60950-CB	CB - International	Platforms : AFF A320
NAF-1801 62368-CB	CB - International	Platforms : AFF A320
NAF-1801 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A320
NAF-1801 BSMI	BSMI - Taiwan	Platforms : AFF A320
NAF-1801 CSA	CSA - United States, Canada	Platforms : AFF A320
NAF-1801 CE DoC	CE - European Union DoC	Platforms : AFF A320
NAF-1801 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A320
NAF-1801 FCC	FCC - United States	Platforms : AFF A320
NAF-1801 IRAM	IRAM - Argentina	Platforms : AFF A320
NAF-1801 KC	KC - South Korea	Platforms : AFF A320
NAF-1801 Morocco	Morocco	Platforms : AFF A320
NAF-1801 NOM	NOM - Mexico	Platforms : AFF A320
NAF-1801 NRCS SABS	NRCS - South Africa (Safety)	Platforms : AFF A320
NAF-1801 SONCAP	SONCAP - Nigeria	Platforms : AFF A320
NAF-1801 TBS	TBS - Tanzania	Platforms : AFF A320
NAF-1801 UKRSepro	UKRSepro - Ukraine	Platforms : AFF A320
NAF-1801 VCCI	VCCI - Japan	Platforms : AFF A320
NAF-1801 UKCA DOC
NAF-1801 VCCI	VCCI - Japan	Platforms : AFF A320
PSU 80+ Platinum Certificates
NAF-1801 VCCI	VCCI - Japan	Platforms : AFF A320
DPS-1600AB-18 B Energy Star Report	Global	PSU : X735A, X736A, X737A
PS-2162-8F Energy Star Report	Global	PSU : X735A, X736A, X737A
Voluntary Product Accessibility Template
PS-2162-8F Energy Star Report	Global	PSU : X735A, X736A, X737A

Size, Weight, Acoustic, Power AFF A320 Single Chassis HA Pair

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
AFF A320
AFF A320A	AFF A320 2 PCM	2	75.0 lb (34.0 kg)	8.7 Bels	67.2 dBA	200 (200 to 240)	4.32	5.64	845	1105	2884	3772

NetApp AFF-A320 Dual Controller All Flash Filer Head (HA)

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits -

Consistency Groups - All Maximums

Flex Array Specifications

Footnotes -

Platform LED for AFF A320 Single Chassis HA Pair

Supported Shelves Drives for AFF A320 Single Chassis HA Pair

Supported RAID Configurations - AFF A320 Single Chassis HA Pair

Supported Adapter Cards - AFF A320 Single Chassis HA Pair

Supported Connections for AFF A320 Single Chassis HA Pair

Switched 100GbE or 40GbE Cluster Interconnect

Platform Mixing Rules - AFF A320 Single Chassis HA Pair

Product Certificates - AFF A320 Single Chassis HA Pair

Supported OS Version - AFF A320 Single Chassis HA Pair

Supported Power Cords for AFF A320 Single Chassis HA Pair

Onboard Ports Configuration: AFF A320 Single Chassis HA Pair

Supported Platform Configurations - AFF A320 Single Chassis HA Pair

Platform Memory Specifications - AFF A320 Single Chassis HA Pair

Supported Rail Kit for AFF A320 Single Chassis HA Pair

Field Replacement Unit Parts - AFF A320 Single Chassis HA Pair

Supported Firmware Matrix - AFF A320 Single Chassis HA Pair

Product Certificates - AFF A320 Single Chassis HA Pair

Size, Weight, Acoustic, Power AFF A320 Single Chassis HA Pair

You may also like

Currency
