NetApp Adapter X2067-R6 (ONTAP) PCIe bus with plug QSFP (4p 6Gb SAS Cu|Op)

SKU: X2067-R6

NetApp Quad Port QSFP 6Gb SAS Adapters (111-00625) | X2067-R6

Name: NetApp Quad Port QSFP 6Gb SAS Adapters (111-00625) | X2067-R6
Brand: NetApp
SKU: X2067-R6
Price: 50.0 USD
Availability: InStock

NetApp

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

$50.00

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

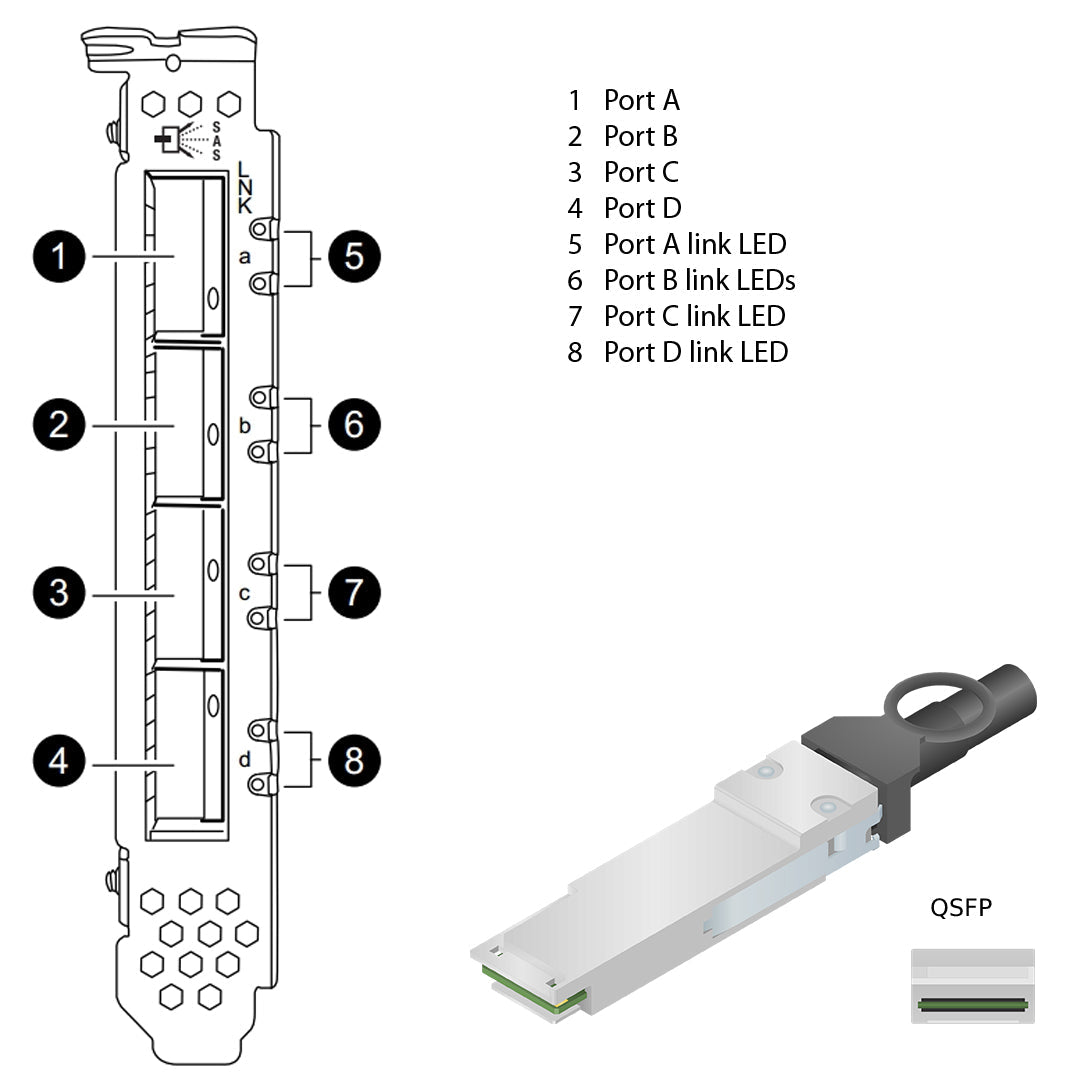

Adapter Specs

Part Number: X2067-R6
Mfg Number: 111-00625
Spare Part Number: SP-2067-R6
Bus Type: PCI-e
Ports: Quad Port
Plug Type: QSFP
Cable Type: Copper
Speed: 6Gb
Supported Protocol(s): SAS 3/6 Gb
Optical Module Included?: No
Min ONTAP: 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.1

Platform Models

V6290, V6280, V6250, V6240, V6220, V6210, SA620, FAS6290, FAS6280, FAS6250, FAS6240, FAS6220, FAS6210

Cables

SAS 3Gbps (Cu) Copper Cables

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp 0.5m	X6557-R6 / 112-00176	0.5m	QSFP / QSFP
NetApp 1m	X6594-R6 / 112-00256	1m	QSFP / QSFP
NetApp 2m	X6558-R6 / 112-00177	2m	QSFP / QSFP
NetApp 3m	X6595-R6 / 112-00255	3m	QSFP / QSFP
NetApp 5m	X6559-R6 / 112-00178	5m	QSFP / QSFP
NetApp 10m	X6590-R6 / 112-00242	10m	QSFP / QSFP
NetApp 20m	X6591-R6 / 112-00243	20m	QSFP / QSFP

SAS 6Gbps (Cu) Copper Cables

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp 1m	X66020A-R6 / 112-00429	1m	MiniSAS HD / QSFP
NetApp 2m	X66021A-R6 / 112-00430	2m	MiniSAS HD / QSFP
NetApp 5m	X66022A-R6 / 112-00431	5m	MiniSAS HD / QSFP
NetApp 0.5m	X6557-R6 / 112-00176	0.5m	QSFP / QSFP
NetApp 1m	X6594-R6 / 112-00256	1m	QSFP / QSFP
NetApp 2m	X6558-R6 / 112-00177	2m	QSFP / QSFP
NetApp 3m	X6595-R6 / 112-00255	3m	QSFP / QSFP
NetApp 5m	X6559-R6 / 112-00178	5m	QSFP / QSFP
NetApp 10m	X6590-R6 / 112-00242	10m	QSFP / QSFP
NetApp 20m	X6591-R6 / 112-00243	20m	QSFP / QSFP

SAS 6Gbps (Op) Optical Transceiver X65400A-R6 with Supported Cables

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp XCVR Optical Fibre / Fiber Data Cable	X65400A-R6 / 332-00335,AFBR-79EQDZ-NA1,FTL410QE2C-N1,FTL410QE4C-N1,FTL410QL1C-N1	XCVR	QSFP / MPO

SAS 6Gbps (Op) Optical Cables

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp 30m	X66011A-R6 / 112-00264	30m	MPO / 4xSC
NetApp 1m	X66000A-R6 / 112-00265	1m	QSFP / QSFP
NetApp 2m	X66001A-R6 / 112-00266	2m	QSFP / QSFP
NetApp 3m	X66002A-R6 / 112-00267	3m	QSFP / QSFP
NetApp 5m	X66003A-R6 / 112-00268	5m	QSFP / QSFP
NetApp 5m	X66008A-R6 / 112-00260	5m	QSFP / 4xLC
NetApp 5m	X66010A-R6 / 112-00263	5m	QSFP / 2xSC
NetApp 5m	X66012A-R6 / 112-00278	5m	QSFP / 4xMT-RJ
NetApp 5m	X66014A-R6 / 112-00272	5m	QSFP / 8x Simplex LC
NetApp 5m	X66016A-R6 / 112-00274	5m	QSFP / 8x Simplex SC
NetApp 5m	X66018A-R6 / 112-00281	5m	QSFP / 4xMT-RJ
NetApp 7m	X66004A-R6 / 112-00269	7m	QSFP / QSFP
NetApp 15m	X66005A-R6 / 112-00270	15m	QSFP / QSFP
NetApp 30m	X66006A-R6 / 112-00271	30m	QSFP / QSFP
NetApp 30m	X66009A-R6 / 112-00261	30m	QSFP / 4xLC
NetApp 30m	X66013A-R6 / 112-00279	30m	QSFP / 4xMT-RJ
NetApp 30m	X66015A-R6 / 112-00273	30m	QSFP / 8x Simplex LC
NetApp 30m	X66017A-R6 / 112-00276	30m	QSFP / 8x Simplex SC
NetApp 30m	X66019A-R6 / 112-00282	30m	QSFP / 4xMT-RJ
NetApp 50m	X66007A-R6 / 112-00280	50m	QSFP / QSFP

Min OS

NetApp Min OS:

OS	Platforms
ONTAP 9.1P9	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1P8	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1P3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1P17	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1P13	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1P10	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1P1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.1RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.0	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.0RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
ONTAP 9.0RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3.2RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3.1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3.1RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.3RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.5P5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.4	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.4	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.2RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.2RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.1RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.1RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2.1RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.1RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.1.4	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.4	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.1.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.1.3RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.3RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.1.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.1.2RC2	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1.2RC2	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.1.1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1.1	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.1.1RC1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1.1RC1	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.0.5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.0.5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, SA620, V6210, V6220, V6240, V6250, V6280, V6290,
Clustered Data ONTAP 8.0.4	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.4	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.0.4RC1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.4RC1	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.0.3	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.3	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.0.2	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.2	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
Clustered Data ONTAP 8.0.1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.1	FAS6210, FAS6240, FAS6280, SA620, V6210, V6240, V6280,
7-Mode 8.2.5P5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.4	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.2RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.1RC2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2.1RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.2RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.4	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.3	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.3RC1	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.2	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.1.2RC2	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1.1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1.1RC1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.5	FAS6210, FAS6220, FAS6240, FAS6250, FAS6280, FAS6290, V6210, V6220, V6240, V6250, V6280, V6290,
7-Mode 8.0.4	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.4RC1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.3	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.2	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
7-Mode 8.0.1	FAS6210, FAS6240, FAS6280, V6210, V6240, V6280,
