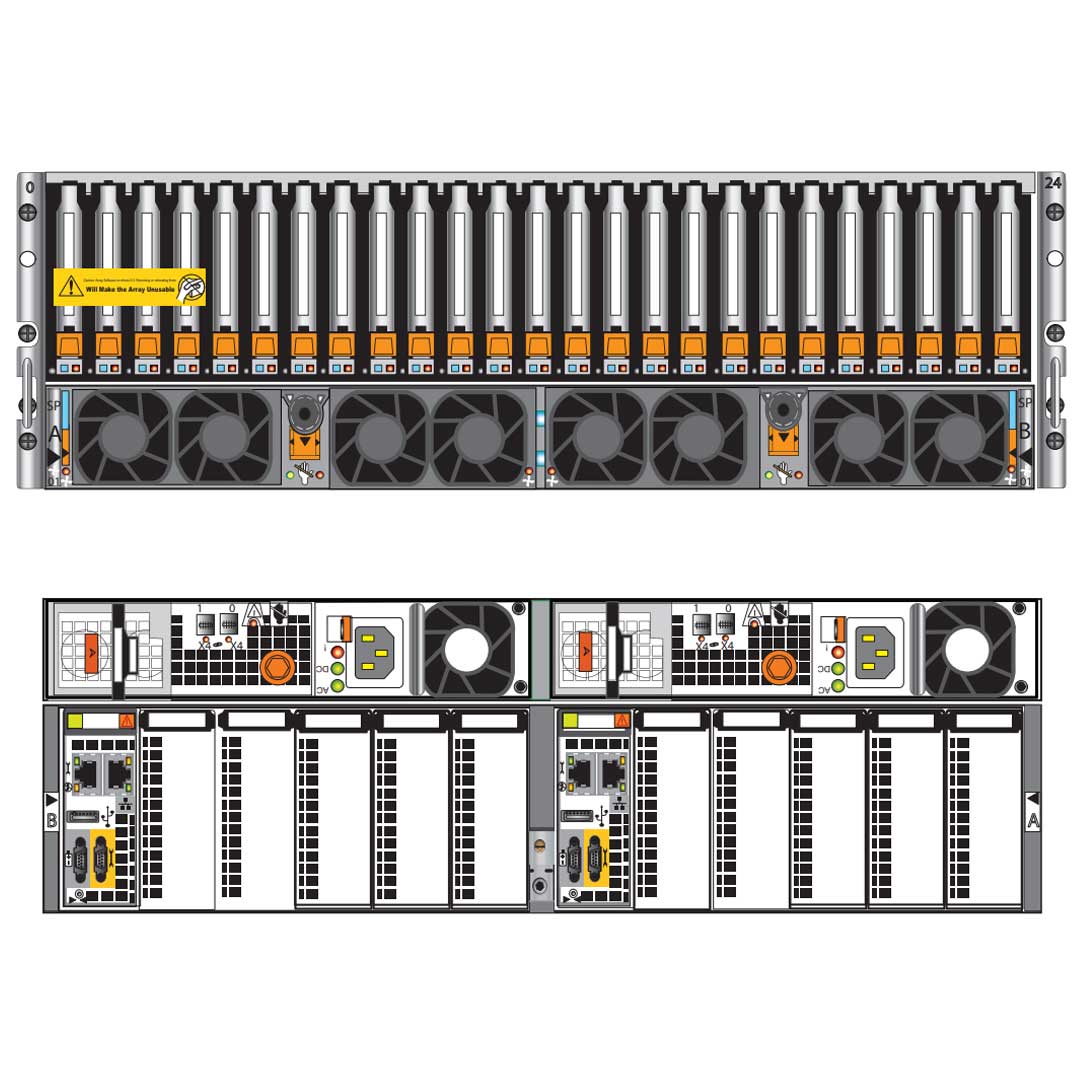

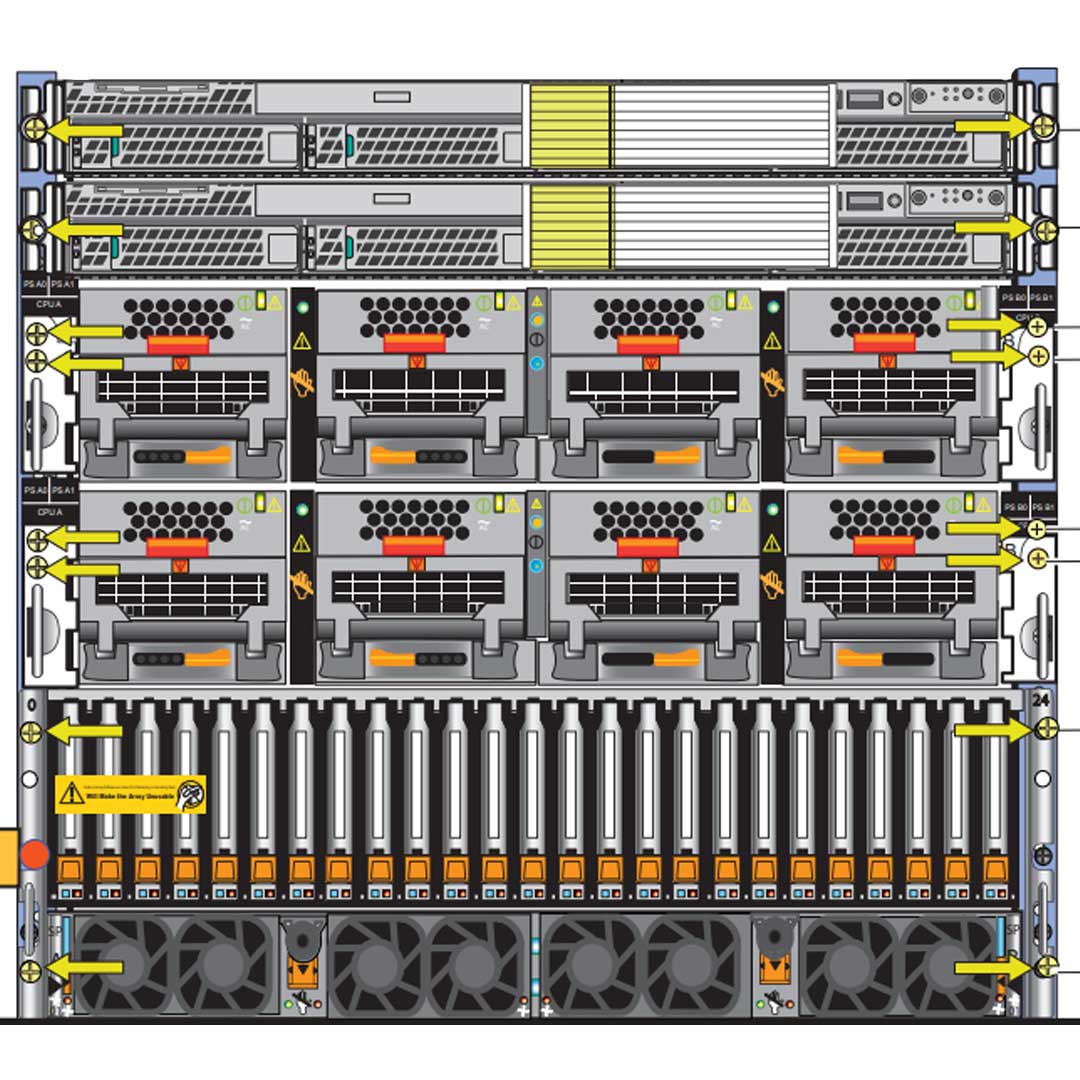

EMC VNX5200 Disk Processor Enclosure (DPE)

SKU: VNX5200

EMC VNX5200 Disk Processor Enclosure (DPE)

Name: EMC VNX5200 Disk Processor Enclosure (DPE)
Brand: EMC
SKU: VNX5200
Availability: OutOfStock

EMC

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor:

3U 25 (2.5”) SFF

Max Drives:

4/125 | Flash SSD, SAS, NL-SAS

RAID:

RAID 0 / 1 / 3 / 5 / 6 / 10

I/O Supported:

FC, FCoE, NFS, CIFS, iSCSI,

Standby Power Supply (SPD)

Two SPD are supported.

Supported Disk Array Enclosures (DAE):

2U 25 (2.5”) | 3U 15 (3.5”) | 3U 120 (2.5”) | 4U 60 (3.5”)

VNX Gen 2 Controllers:

VNX5200
VNX5400
VNX5600
VNX5800
VNX7600
VNX8000

Ideal for:

Corporate IT
Data Analytics
Database
Virtual Desktop Interface (VDI)
Virtualization

The EMC VNX5200 Disk Processor Enclosure (DPE) delivers scalable, unified storage in a compact 3U chassis designed for growing IT environments. Supporting up to 125 small form factor drives and a wide range of RAID levels including 0, 1, 3, 5, 6, and 10, it offers the flexibility to tailor performance and protection to your specific workload demands. With compatibility for multiple UltraFlex I/O modules—including Fibre Channel, iSCSI, and FCoE—the VNX5200 ensures seamless integration into diverse data center infrastructures. It also supports NFS and CIFS protocols, making it an ideal platform for unified file and block storage in a single solution.

Built with efficiency and expansion in mind, the VNX5200 supports various Disk Array Enclosures (DAEs) and allows up to two standby power supplies for increased availability. It's engineered to work with the full range of VNX Gen 2 controllers, from the entry-level VNX5200 to the high-end VNX8000, enabling future upgrades without disruption. Designed for virtualization, VDI, database, and analytics workloads, the VNX5200’s modular design and robust storage features provide enterprise-grade performance and resilience in corporate IT environments.

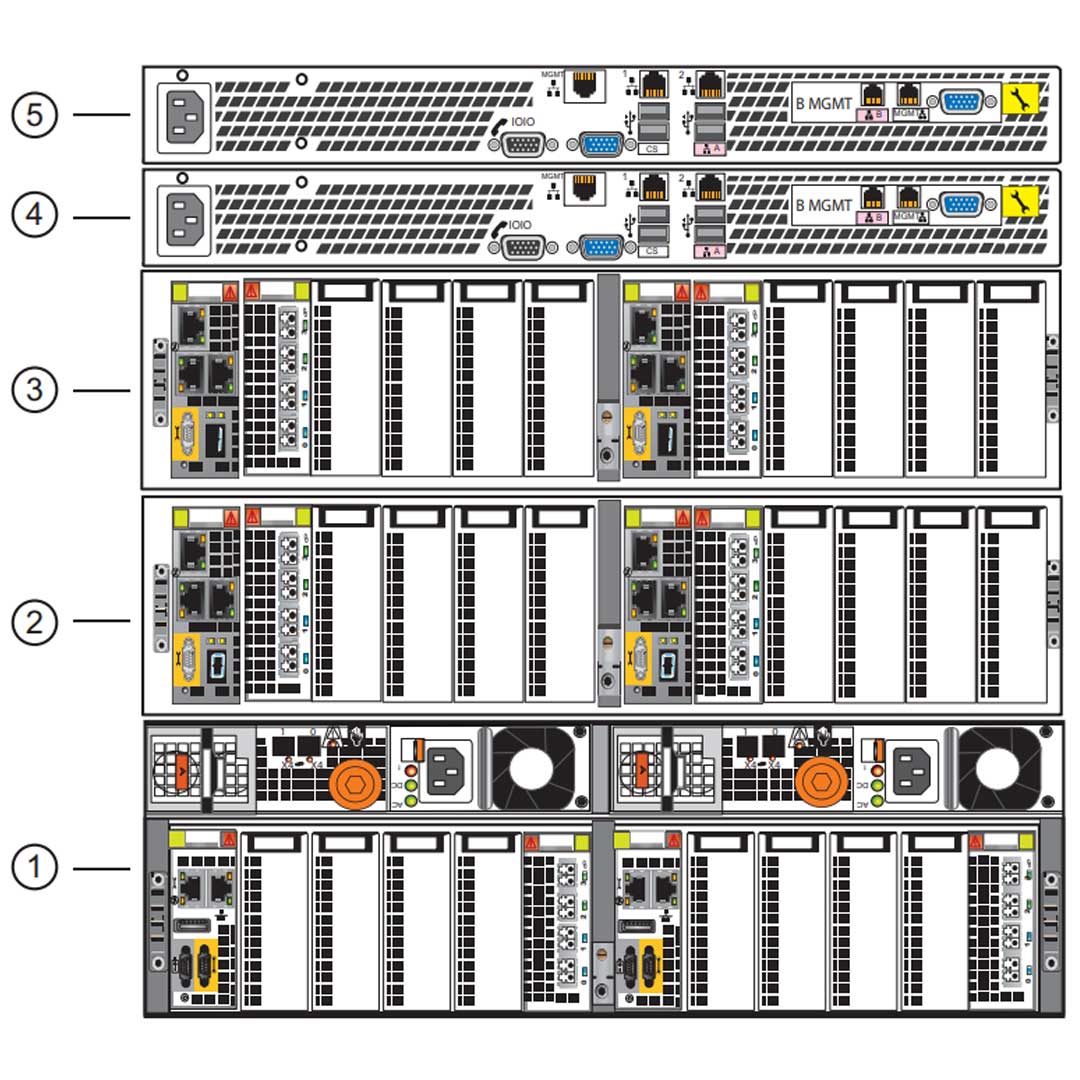

Storage Processor I/O Supported:

UltraFlex I/O Expansion Modules for Block:

4-Port 2/4/8Gb/s Fibre Channel
4-Port 1Gb/s (copper) iSCSI
2-Port 10Gb/s (optical) iSCSI
2-Port 10GBASE-T (copper) iSCSI
2-Port 10GbE (optical or twinax) FCoE

Data Movers Enclosure (DME):

2 Enclosures holding 8 Data Movers
UltraFlex I/O Expansion Modules for File:

4-Port 1GBASE-T
4-Port 1GBASE-T and 1GbE (optical)
2-Port 10GbE (optical)
2-Port 10GBASE-T (copper)

Control Station (CS):

1 Control Station is required in a Unified Configuration. The second one is optional.

Spec Sheet 4

EMC VNX5200 Technical Specifications

EMC VNX5200 TECHNICAL SPECIFICATIONS
Storage Type	Unified
Maximum Raw Capacity (per controller)	500TB
Max FAST Cache	600GB
Number of Drives (Min/Max)	6/150
Drive Enclosure Options	15x 3.5" NL-SAS/SAS/Flash (3U) 25x 2.5" NL-SAS/SAS/Flash Drives (2U)
Drive Options	3.5" Drive Enclosure (15 x 3.5") 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 2.5" Drive Enclosure (25 x 2.5") 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS
CPU / Memory Per Controller	2x Intel Xeon E5-2600 Quad Core 1.2GHz / 32GB per Controller
Max Block UltraFlex IO Modules per Array	6
Embedded IO Ports per Array	2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array	2x 4 Lane
Max 6Gbps SAS BE Buses per Array	2x 4 Lane
Max Total Ports per Array	28
2/4/8 Gbps FC Max Ports per Array	24
1 GBaseT iSCSI Max Total Ports per Array	24
10 GbE iSCSI Max Total Ports per Array	12
Max FCoE Total Ports per Array	12
File Components
# File Data Movers	1-3
# Control Stations	1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory	Intel Xeon 5600 / 6GB
Max File UltraFlex IO MOdules per Data Mover	3
Min/Max 2/4/8 Gbps FC Ports per Data Mover	4
Max IP Ports per Data Mover	8
Max 1 GBaseT Ports per Data Mover	8
Max 10GbE Ports per Data Mover	3
Management	LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity	500TB
Max SAN Hosts	1,024
Max Max Number of Pools	15
Max Number of LUNs (Pool)	1000
Max Number of LUNs (Classic)	2048
Max Pool Based LUN Size	256TB (Virtual Pool LUN)
Max File System Size	16TB
Maximum Usable File Capacity per Data Mover	256TB
Compatible Disk Array Expansions (DAEs)	VNXB6GSDAE15 VNXB6GSDAE25
Protocols Supported	CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum)	4.3A max at 200 Vac 8.0A max at 100V
Power Consumption (Operating Maxium)	860 VA (835 W) max (200V) 798 VA (768W) max (100V)
Power Factor	0.97 min at 200V at full load, low voltage 0.96 min at 100V at full load, low voltage
In-rush Current	30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current	29 A rms max for 50 ms, at any line voltage
AC Protection	10 A fuse on each power supply
AC Inlet Type	IEC320-C14 appliance coupler, per power zone
Dimensions
Height	5.25"
Width	17.5"
Depth	24"
Vertical Size	3 NEMA Units
Weight	90.395 lbs
ECS Warranty	1-Year Parts Replacement Warranty
