Cable Specs

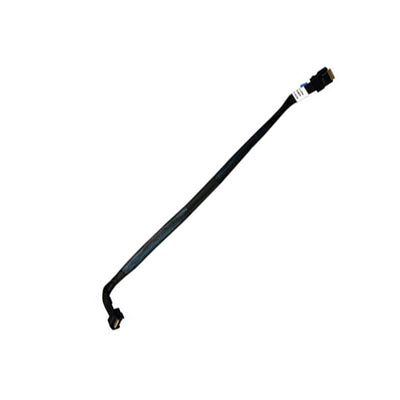

- Type: BOSS-N1 Signal Cable
- Part Number: PFHYD
- Supported Servers: Dell PowerEdge R760, R7625, R6615, R760xa
- Length: 170 mm (for Riser 1), 240 mm (for 4 x 2.5-inch rear drive module)
- Connector Type: Custom connector for BOSS-N1 module and system board
- Use Case: Transmits PCIe signals from the system board to the BOSS-N1 module
- Installation: Connects between the system board and BOSS-N1 module; refer to server's installation manual for detailed instructions
Part Number:
- PFHYD
The Dell BOSS-N1 Signal Cable (PFHYD) is an essential component for connecting the BOSS-N1 (Boot Optimized Storage Solution) module to the system board in Dell PowerEdge 16th Generation servers. This cable facilitates the transmission of PCIe signals, enabling the BOSS-N1 module to function effectively as a dedicated boot device hosting M.2 NVMe SSDs.
Designed for specific server configurations, the PFHYD cable comes in lengths suitable for different installations: 170 mm for Riser 1 and 240 mm for the 4 x 2.5-inch rear drive module. Proper installation involves connecting the cable between the system board and the BOSS-N1 module, following the guidelines provided in the server's installation and service manual.
Compatible With:
- Dell R760
- Dell R7625
