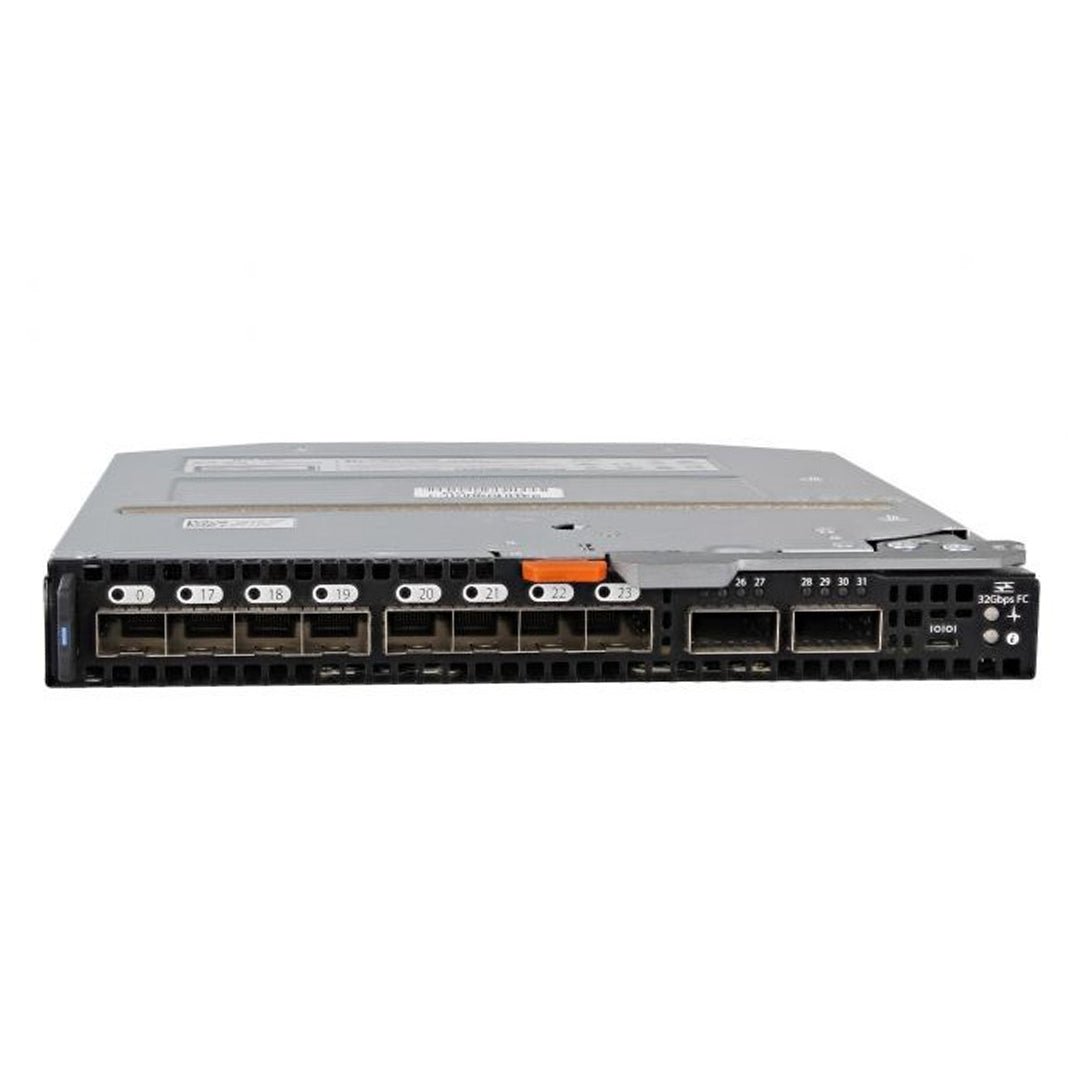

Dell EMC Networking MXG610s Fibre Channels Switch 16 Port | 210-AOCK

SKU: 210-AOCK

Dell EMC Networking MXG610s 16 Port Fibre Channels Switch | 210-AOCK

Name: Dell EMC Networking MXG610s 16 Port Fibre Channels Switch | 210-AOCK
Brand: Dell
SKU: 210-AOCK
Price: 1995.0 USD
Availability: InStock

Dell

| Switches

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,995.00

Thanks for the request. We'll get back to you with in 24 hours.

MXG610s Additional Information

Must be ordered in pairs
Supports all PowerEdge MX Fibre Channel HBAs
3 base models available: –
-- 8 activated ports & 2x FC32 SFP+ optics
-- 16x activated ports & 4x FC32 SFP+ optics
-- 16x activated ports & 8x FC32 SFP+ optics, Enterprise Bundle
Additional port licenses can be added

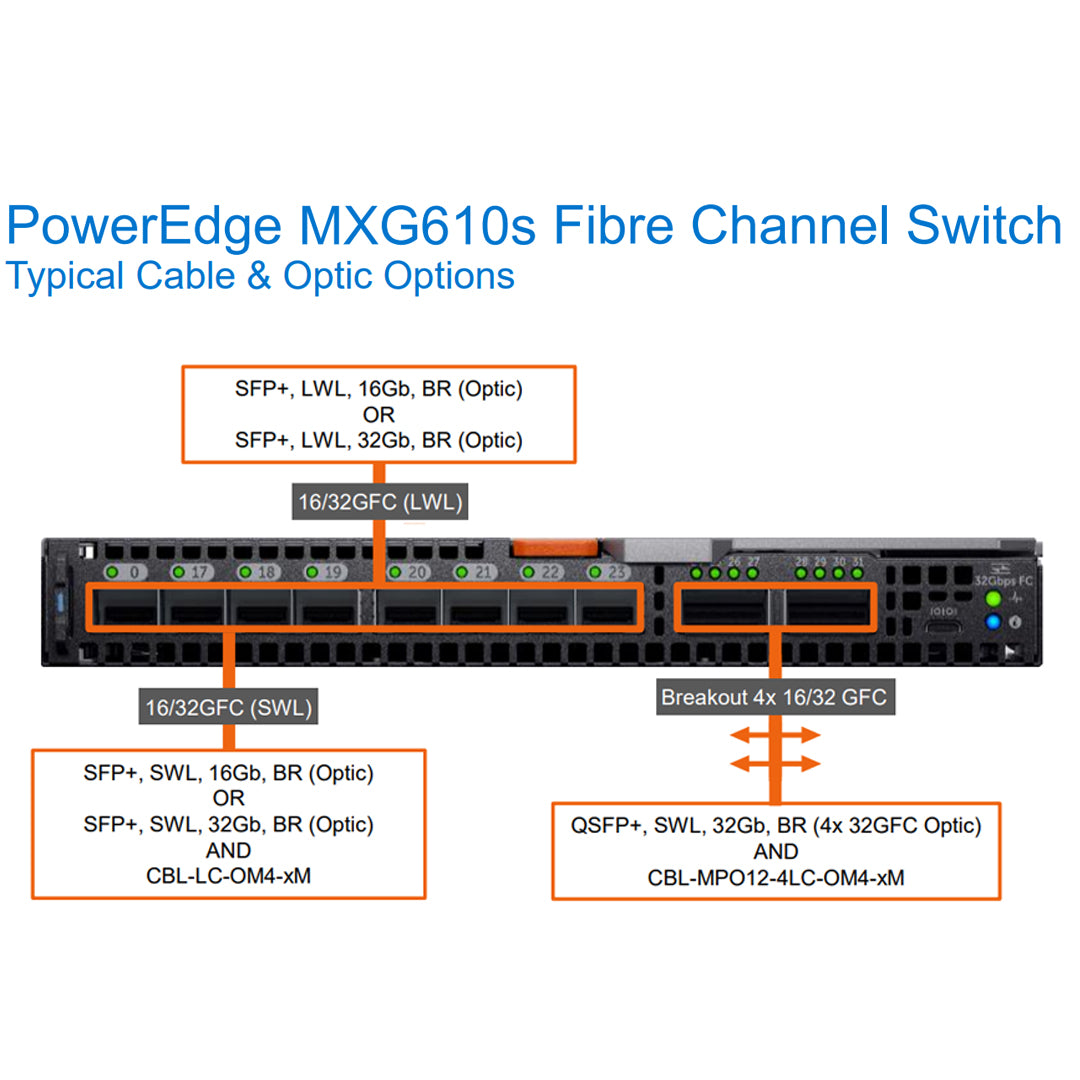

Additional 16G FC and 32G FC optics can be purchased for activated ports
NOTE: A port license is consumed when that port is activated, regardless if port is internal or external (QSFP ports count as 4 licenses)
NOTE: While 32 licensed ports is technically possible, 24 ports is the maximum number of ports that are usable. Don’t purchase more than 24 port licenses

The Enterprise bundle includes ISL Trunking, Fabric Vision, and Extended Fabric licenses:

ISL Trunking: Provides the ability to aggregate multiple physical links into one logical link for enhanced network performance and fault tolerance. Also enables Brocade Access Gateway ISL Trunking (N_port Trunking)
Fabric Vision: Enables MAPS (Monitoring and Alerting Policy Suite), Flow Vision, IO Insight, VM Insight, and ClearLink (a.k.a. D_Port) to non-Brocade devices
– MAPS: enables rules based monitoring and alerting capabilities, provides comprehensive dashboards to quickly troubleshoot problems in Brocade SAN environments
– Flow Vision: enables host to LUN flow monitoring, application flow mirroring for offline capture and deeper analysis, and test traffic flow generation function for SAN infrastructure validation
– IO Insight: automatically detects degraded storage IO performance with integrated device latency and IOPS monitoring embedded in the hardware
– ClearLink (D_Port): to non-Brocade devices allows extensive diagnostic testing of links to devices other than Brocade switches and adapters. (Functionality requires support by attached device, availability to be checked by the user)
Extended Fabric: Provides greater than 10km of switched fabric connectivity at full bandwidth over long distances
NOTE: These features are only available in the Enterprise Bundle - individual feature licenses are not available

Compatible With:

Dell Mx7000
