Specs

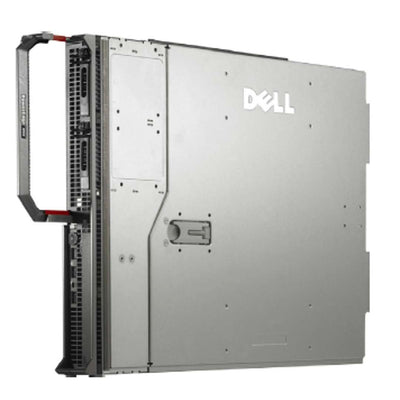

The Dell PowerEdge M905, with its large memory capacity, multiple redundant fabrics and massive total throughput, is an excellent choice for the high-end applications driving modern data centers.
Built for virtualization and engineered to address the key challenges faced by IT personnel, Dell PowerEdge M905 fullheight blade servers deliver leading enterprise-class functionality. With features including three highly available, fully redundant I/O fabrics, massive total throughput, and large RAM capacity, these PowerEdge servers are excellent for applications requiring large memory footprints.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical Specifications | |
|---|---|---|
| Chipset | NVIDIA MCP55 | |
| Memory | 24 DIMM slots 1GB/2GB/4GB ECC DDR2 667/800MHz Options Support for up to 192GB1 using 24x8GB DIMMs | |
| Drive Bays | Two 2.5 Hot-Swappable SAS/Solid State Drives | |
| Storage | Up to two Hot-Swappable Internal Drives: 2.5 SAS (10K rpm): 73GB, 146GB, 300GB, 600GB 2.5 SAS (15K rpm): 36GB, 73GB or 146GB 25GB2, 50GB2 Solid State Drive (SSD) Up to two Hot-Swappable Internal Drives: Up to 600GB2 per blade via two 2.5 300GB hot-swappable SAS (10k rpm) hard drives | External Storage Options: Dell EqualLogic PS5000 Series PowerVault NX1950 Unified Storage Solution PowerVault MD3000i Dell/EMC products: Dell/EMC fibre channel and/or iSCSI external storage, including Dell/EMC AX150i, CX300, CX3-10c, CX3-20, CX3-40, and CX3-80 |
| RAID Controller Options | SAS6/IR (Raid 0/1) hardware based CERC6/IR (Raid 0/1 w/ Cache) PERC 6i Modular (RAID 0/1 w/ battery-backed cache) PERC 6.2 Firmware | |
| I/O Mezzanine Card Options | 1Gb & 10Gb Ethernet: Dual-Port Broadcom Gb Ethernet w/ TOE (BCM-5709S) Quad-Port Intel Gb Ethernet (BCM-82576) Quad-Port Broadcom Gb Ethernet (BCM-5709S) Dual-Port Broadcom 10Gb Ethernet (BCM-57711) Brocade BR1741M-k Dual-Port Mezzanine CNA 10Gb Enhanced Ethernet & Converged Network Adapters (CEE/DCB): Dual-Port Qlogic Converged Network Adapter (QME8142) - Supports CEE/DCB 10GbE + FCoE Fibre Channel: Dual-Port QLogic FC8 Fibre Channel Host Bus Adapter (HBA) (QME2572) Dual-Port Emulex FC8 Fibre Channel Host Bus Adapter (HBA) (LPe1205-M) Emulex 8 or 4 Gb/s Fibre Channel Pass-Through Module InfiniBand: Dual-Port Mellanox ConnectX Quad Data Rate (QDR) InfiniBand Dual-Port Mellanox ConnectX Dual Data Rate (DDR) InfiniBand | |
| Operating Systems | Microsoft Windows Essential Business Server 2008 Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V ) Microsoft Windows Server 2008 R2, x64 (includes Hyper-V v2) Microsoft Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Sun Solaris Virtualization Options: Citrix XenServer Microsoft Hyper-V via Microsoft Windows Server 2008 VMware vSphere 4.1 (including VMware ESX 4.1 or VMware ESXi 4.1) For more information on the specific versions and additions, visit www.dell.com/OSsupport. | |
| Featured Database Applications | Microsoft SQL Server solutions (see Dell.com/SQL) Oracle database solutions (see Dell.com/Oracle) | |
| Power Supply | Supplied by Dell PowerEdge M1000e Blade Chassis | |
| Video | ATI RN50 (32MB Memory) | |
| Systems Management | Dell OpenManage Software Tools Altiris Deployment Solution for Dell Blade Servers Integrated Dell Remote Access Controller (iDRAC) with: | |
| Embedded Hypervisor | Optional Embedded SD Media | |
