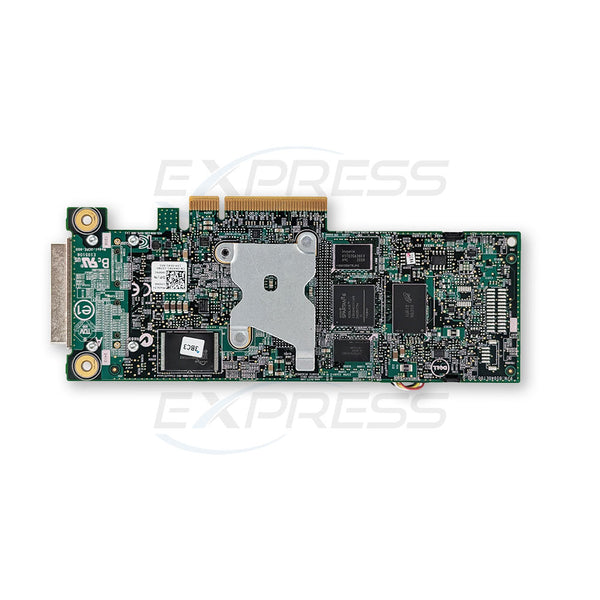

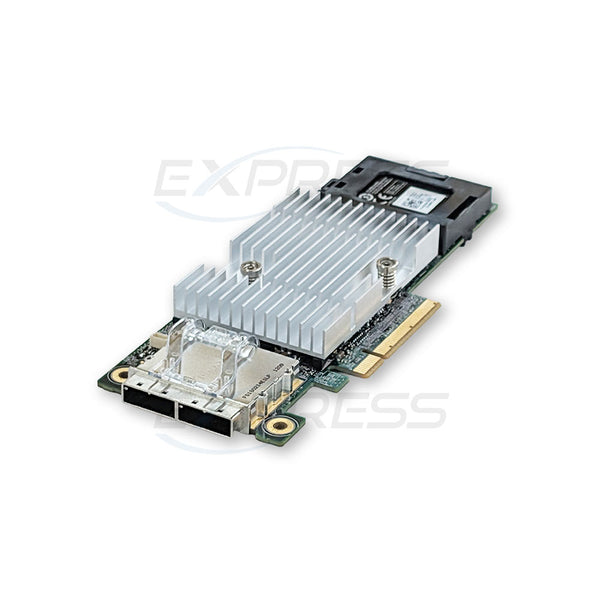

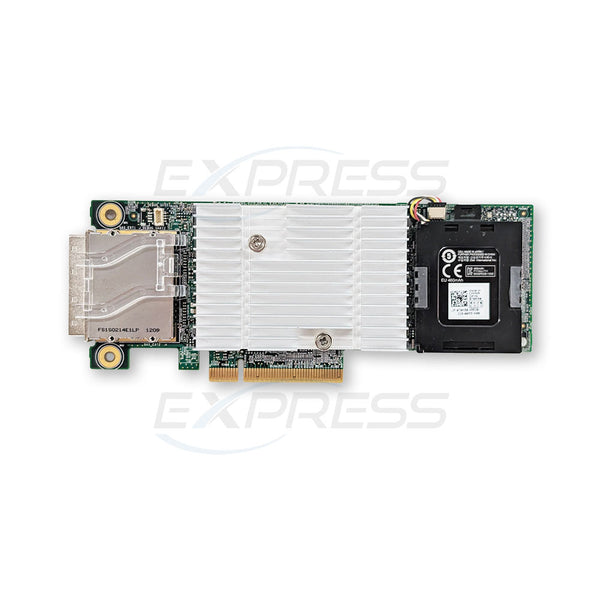

Dell PERC 8 H810 1GB SAS x8 PCI-e RAID Controller FH | KKFKC

Name: Dell PERC 8 H810 1GB SAS x8 PCI-e RAID Controller FH | KKFKC
Brand: Dell
SKU: KKFKC
Availability: InStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs

Type: SAS RAID Controller
Interface: PCI Express 2.0 x8
Data Rate: Up to 6Gb/s per Port
Connectors: 2x External mini-SAS SFF-8088
Cache: 1GB Non-Volatile
Max Drives: Up to 192
RAID Support: 0, 1, 5, 6, 10, 50, 60
Controller: 2x Dual-Core PowerPC
Features: CacheCade 1.1, Onboard Battery
Voltage: +3.3V

Part Number:

KKFKC
VV648
NDD93

The Dell PERC 8 H810 is a low-profile external RAID controller designed for high-capacity storage configurations. Featuring dual external mini-SAS ports (SFF-8088) and a PCIe 2.0 x8 interface, it delivers up to 6Gb/s per port and supports up to 192 drives with advanced RAID levels.

Equipped with 1GB of non-volatile cache, onboard battery, and dual-core PowerPC processors, the H810 is optimized for performance and reliability. CacheCade 1.1 support allows SSDs to accelerate read performance, making this controller ideal for demanding enterprise environments.

Shared PERC 8

Primary Use Shared storage in VRTX chassis (multi-server access)
Ports/Connectivity 2x external mini-SAS (SFF-8088), up to 2 JBOD enclosures
Cache 1GB DDR3 NV RAM with BBU
RAID Levels 0, 1, 5, 6, 10, 50, 60
Interface PCIe 2.0 x8, 6Gb/s SAS
Unique Features SR-IOV for 4 virtual functions; controller failover in dual setup; managed via Chassis Management Controller (CMC) only—no BIOS boot from shared storage
Management CMC web/CLI; no OpenManage or BIOS utility
Firmware/Drivers Same drivers as H810, but VRTX-specific firmware

H810

Primary Use Dedicated external RAID for single PowerEdge server
Ports/Connectivity 2x external mini-SAS (SFF-8088), up to 32 SAS/SATA drives
Cache 1GB DDR3 with BBU
RAID Levels 0, 1, 5, 6, 10, 50, 60
Interface PCIe 2.0 x8, 6Gb/s SAS
Unique Features Standard BIOS/UEFI config; virtual disk migration between H810s; supports booting from RAID
Management Full Dell OpenManage, BIOS config utility
Firmware/Drivers Standard PERC firmware

Compatible With:

Dell MD1200
Dell MD1220
Dell R210
Dell R210ii
Dell R220
Dell R510
Dell R610
Dell R710
Dell R810
Dell R820
Dell R920
Dell T610
Dell T710

(Click to View)

Spec Sheet 4

Models	Drive Types	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H810 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	192	Hardware
H710P Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710P Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710P Mini Blade	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	4	Hardware
H710 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710 Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710 Mini Blade	6 Gb/s SAS	PCI-e 2.0	1x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	4	Hardware
H310 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	-	-	0,1,5,10,50	16, Non-RAID 32	Hardware
H310 Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	-	-	0,1,5,10,50	16, Non-RAID 32	Hardware
H310 Mini Blade	6 Gb/s SAS	PCI-e 2.0	1x4 Internal	-	-	0,1,5,10,50	4	Hardware
S110	3 Gb/s SATA	PCI-e 2.0	-	-	-	0,1,5,10	4	Software - Windows Only
