Quick Specs
What's New for DL580 Gen8
- (4) Intel Xeon E7-4800/8800 v2
- (96) DDR3 RDIMM & LRDIMM slots
- (9) PCIe Gen3.0 slots
- Supports up to (10) Drives
- Supports up to (4) PSUs
- Supports up to (5) GPUs
- Supports 12Gbps SAS
- Embedded HPE Smart Array 12Gb P830i Controller with FBWC
- New flexible network technology - FlexibleLOMs

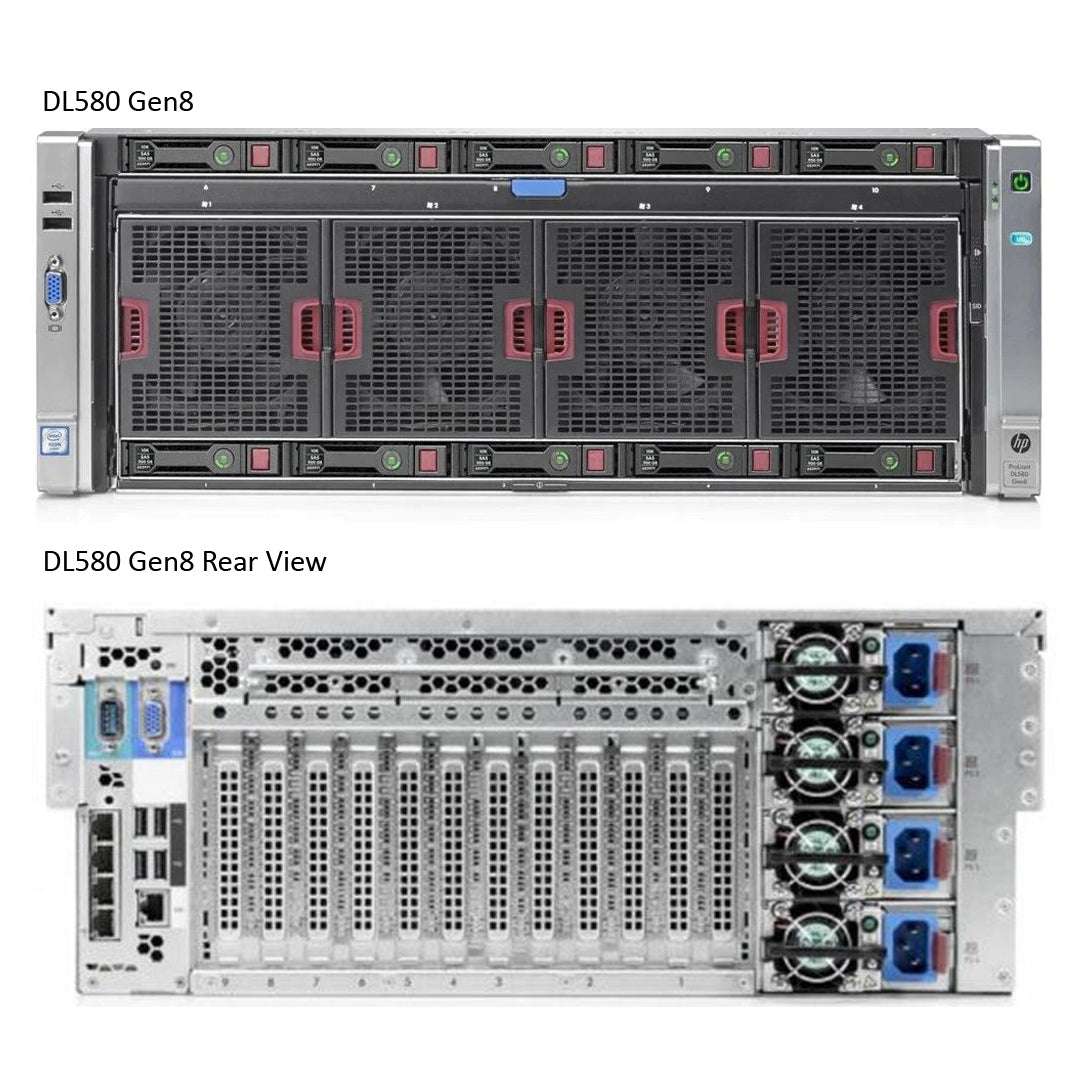

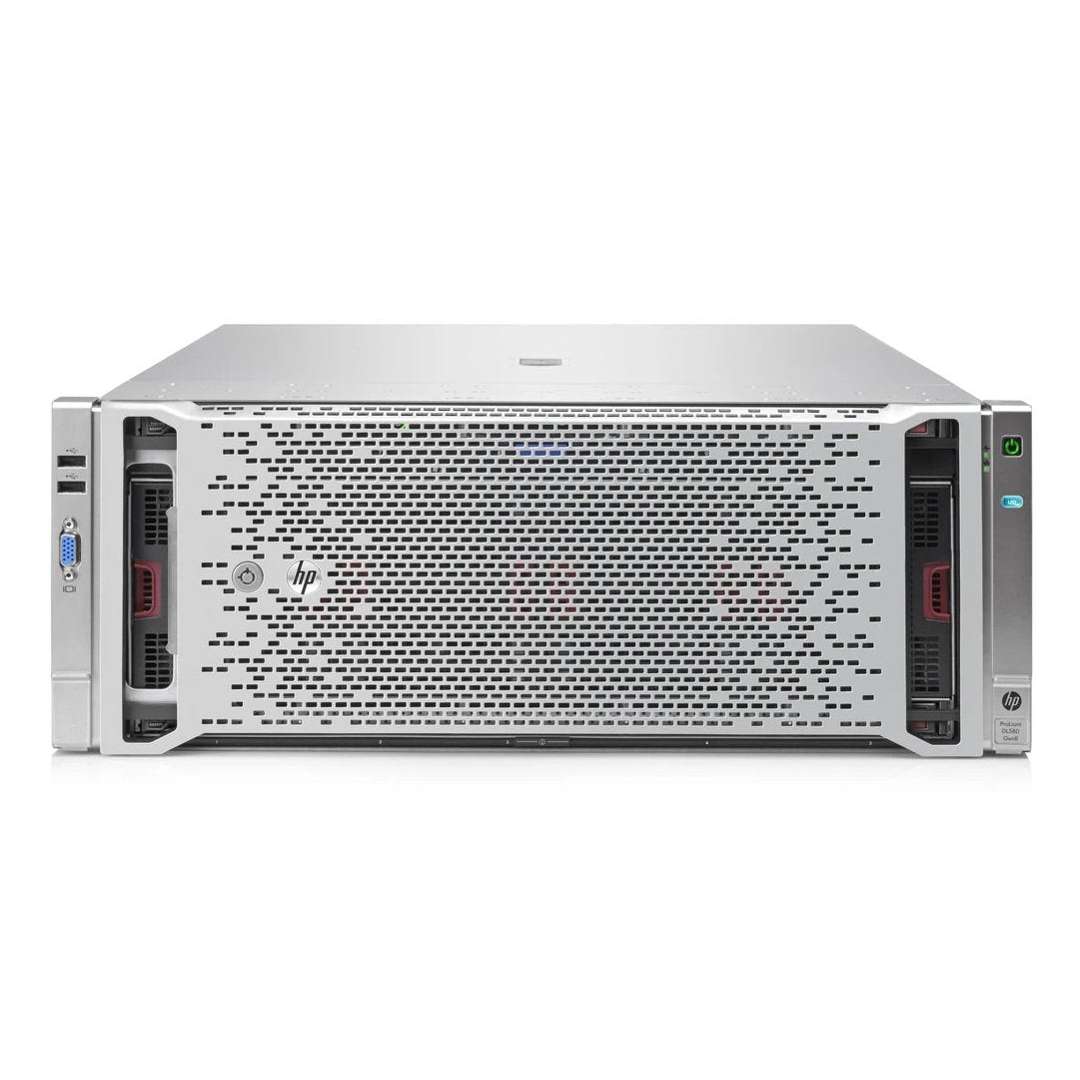

The refurbished HPE ProLiant DL580 Gen8 Server is an Enterprise-Grade four socket (4S) x86 server offering break through performance, Rock-Solid reliability, and compelling consolidation and manageability efficiencies. It is ideal for Mission-Critical enterprise, business intelligence, and database applications.
Other Versions:
(Click to View)
Ideal for:
- Cloud Servers
- Corporate IT
- Database
Featuring Intel Xeon E7-4800/8800 v2 processors, the DL580 Gen8 offers blazing fast results with enhanced processor performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12 Gbps SAS).
CTO Configuration Support
Need help with the configuration? Contact us today!
Drive Options
The HPE DL580 (G8) has two Drive Bays. Standard is 5 SFF Drive installed in the lower Bay. The system comes with the option to upgrade to 10 SFF Drives when the HP ProLiant DL580 5 Small Form Factor Drive Backplane Cage Kit (739405-B21) is installed. This upgrade will populate the upper drive bay with 5 additional drives.
Memory Options | (96) DDR3 DIMMs
The HPE DL580 (G8) has a very unique DIMM setup for this server to pack so many DIMMS into a such a tight fit. The way HPE pulls this off is with the (8) DIMM cartridges These cartridges hold (12) dimms each for the total dimms being 96 DDR3 DIMMs.
FlexibleLOM Networking Options
HPE ProLiant Gen8 servers offer a new flexible network technology - FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter. Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.
This card is tucked away under the SPI card. You must remove the SPI to view the Flexlom Adapter. For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
Dimensions & Weight
Dimensions
- 6.88in (H) x 29 in (D) x 17.48in (W)
- 17.5cm (H) x 73.6cm (D) x 44.4cm (W)
Weight
- Min - 32.18 kg (70.94 lb)
- Max - 52.87 kg (116.56 lb)
