- Included, 1x Intel Xeon 6 6716P-B 2.5GHz 40-core 235W Processor
- (4) DDR5 DIMM slots – Max Memory 512 GB
- (8) High Performance Fans
- (2x FHHL x16 PCIe Gen5) or (1x OCP DSFF + 1x OCP SFF)
- OCP 3.0 support
- (1) or (2) M-CRPS power supply options (1300W AC or 1000W -48VDC)
- Up to (2) M.2 NVMe SSDs (Software RAID)
- HPE iLO 7
- Up to (2) Half-Height Half-Length GPUs or (2) 100W In-Line Accelerators
- NEBS* Level 3 compliance
(Click to View)

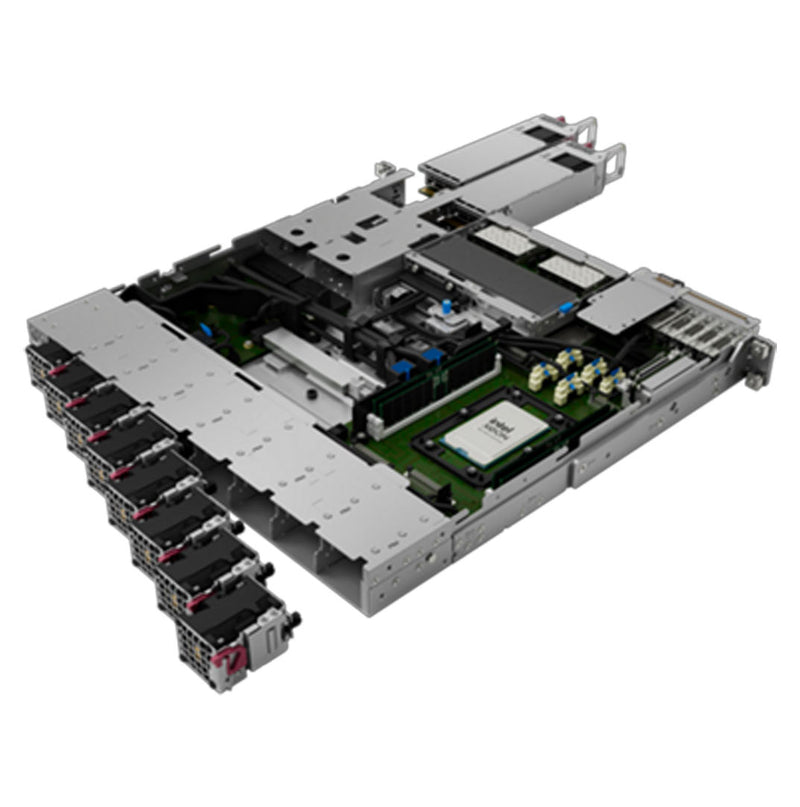

Built for edge applications that need high bandwidth and low latency—like vRAN and future 6G deployments—the HPE ProLiant Compute DL110 Gen12 delivers dense I/O with PCIe Gen5 speed, acceleration, and powerful compute from Intel® Xeon® 6 SoC processors, all on open, standards-compliant infrastructure.
The Intel Xeon 6 6716P-B SoC is soldered on the system board. It combines 40 cores, on-die networking, Intel vRAN Boost, media acceleration, and AMX on every core (up to 3.2× better RAN AI performance per core) with PCIe Gen5, delivering high-bandwidth, low-latency compute without needing separate accelerators or discrete networking cards.
- CPU Frequency: 2.1GHz
- Cores: 40
- L3 Cache (MB): 160
- Power: 235 W
- DDR5: 6400 MT/s
The DL110 Gen12 uses Intel Virtual RAID on CPU (VROC) as its software RAID solution for the dual onboard NVMe M.2 SSDs.
VROC runs directly on the Xeon 6 SoC, delivering high-performance RAID 0 or RAID 1 without a separate hardware RAID controller. This keeps latency extremely low and preserves full PCIe bandwidth—critical for edge and vRAN workloads.
VROC is disabled by default and requires a license (RAID 1 or Premium). Once licensed, it provides a clean, CPU-integrated way to protect or stripe the two M.2 drives for boot or high-speed local storage.
The DL110 Gen12 ships with eight onboard 10/25GbE SFP28 ports built directly into the system.
These front-accessible ports deliver full 25GbE bandwidth with ultra-low latency, eliminating the need for any add-in network card for core connectivity. They are purpose-designed for the high-density, deterministic traffic of vRAN and edge workloads, giving the server immediate high-bandwidth networking right out of the box.
- 8 × onboard 10/25GbE SFP28 ports
- Front-accessible
- Native 25GbE bandwidth
- Ultra-low latency design
- No add-in card required for core networking
Note that selecting the 2x16 FHHL PCIe riser disables both OCP options entirely.
Dual Small Form FactorP86621-B21
Small Form FactorP86622-B21

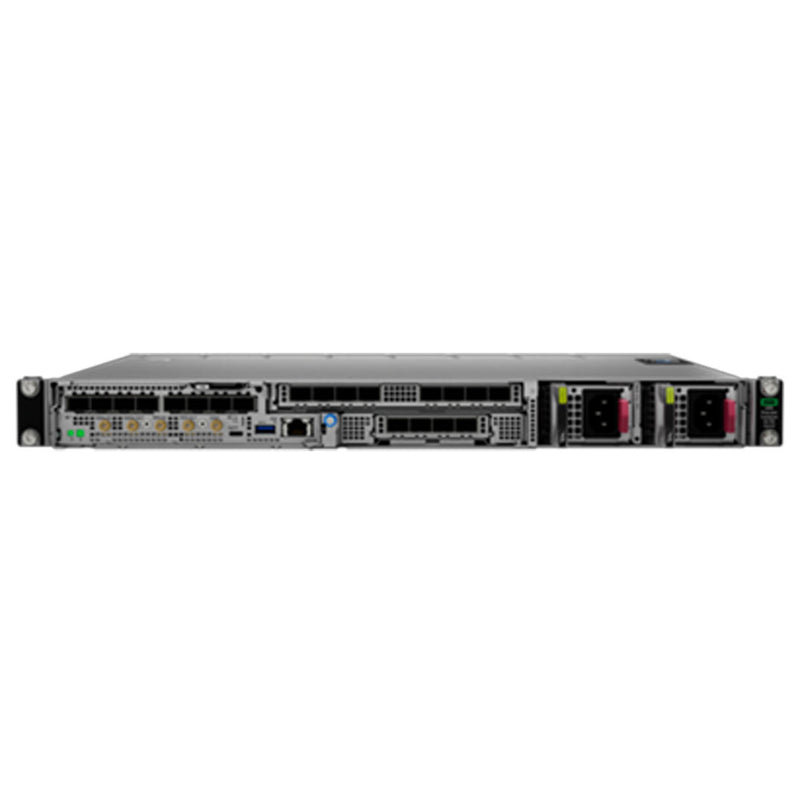

The DL110 Gen12 uses a purpose-built reverse-airflow design with a short-depth, front-cabled chassis. Air moves front-to-rear and every major connection (networking, power, management, and I/O) is accessible from the front, making the server ideal for dense telco and edge racks where rear access is limited.
- Form factor: 1U short-depth
- Depth: 17–18.61 in (43.46–47.28 cm)
- Airflow: Reverse (front-to-rear)
- Chassis: Fully front-cabled
- Fans: 8 dual-rotor hot-plug
- Compliance: NEBS Level 3 ready
Dimensions
- Depth: 47.28 cm (18.61 in)
- Width: Chassis: 43.46 cm (17.11 in)
- Height: 4.29 cm (1.69 in)
- Width: Ear-to-ear: 48.16 cm (18.96 in)
Current Configuration
(List below serves as quick links to each section)
Server Chassis
Memory
OCP 3.0
Networking
Storage Controller
Drives
Risers Configuration
GPU
Rail Kit
Power Supply Unit (PSU)
Select Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Technical specifications | HPE ProLiant Compute DL110 Gen12 |
|---|---|
| Processor type | Intel |
| Processor family | Intel® Xeon® 6 SoC processors |
| Processor number | 1 |
| Processor core available | 40 core |
| Processor speed | 2.5 GHz |
| Processor cache | 160 MB |
| Memory type | HPE DDR5 Smart Memory |
| Maximum memory | 512 GB with 128 GB DDR5 |
| Memory slots | 4 DIMM slots |
| Accelerators | Up to (2) Half-Height Half-Length GPUs or up to (2) 100W In-Line Accelerators |
| System fan features | 8 Hot-plug |
| Expansion slots | 2, for detailed descriptions refer to the QuickSpecs |
| Form factor | 1U Rack |
| Network controller | Wide range of speeds and form factors (PCIe and OCP3.0). Please see QuickSpecs for network card choices. |
| Drive supported | Up to 2 M.2 NVMe SSD with Software RAID solution |
| Power supply type | HPE M-CRPS 1300W Hot Plug AC RAF Power Supply or HPE 1000W M-CRPS -48VDC Hot Plug Power Supply |
| Infrastructure management | Included - HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO7 Advanced, and HPE OneView Advanced. Refer to the iLO 7 User Guide |
| Security | UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs. |
