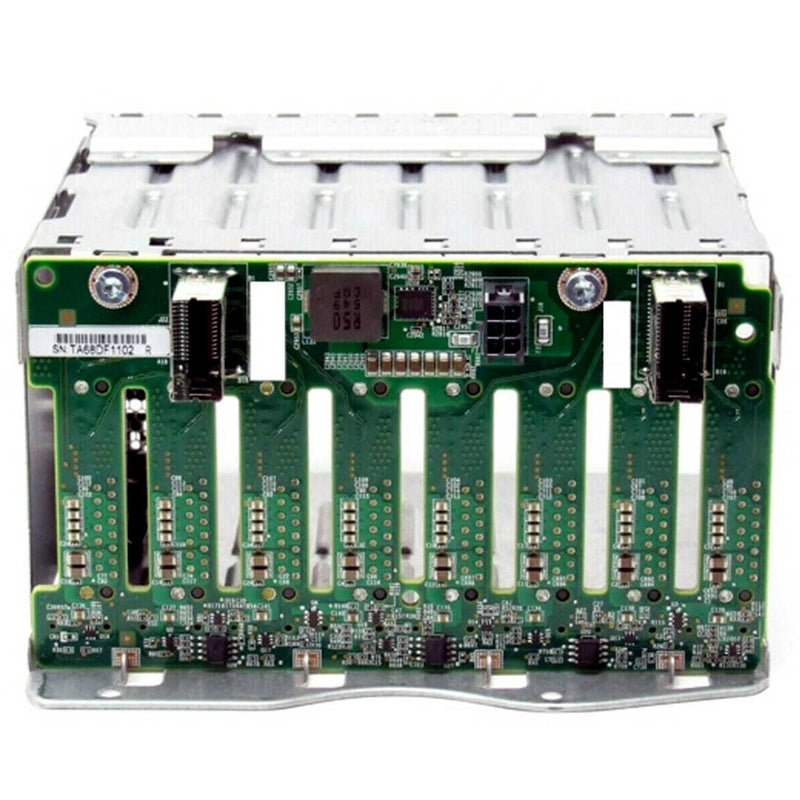

HPE DL38X Gen10 Premium 6 SFF SAS/SATA + 2 NVMe or 8 SFF SAS/SATA Bay Kit | 826690-B21
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Backplane Specs
DL380 Gen10 Notes:
This kit can be supported in Box 1, 2 or 3 and provides support for up to 6 SAS/SATA + 2 NVMe or 8 SFF SAS/SATA drives per Box. If only populating SFF SAS/SATA, the HPE DL38X Gen10 SFF Box1/2 Cage/Backplane Kit (826691-B21) is the more appropriate option.
With NVMe drives a specific riser is required.
NVMe drives require the addition of the High Performance Fan kit (867810-B21).
DL385 Gen10 Notes:
− This option provides support for up to 8 SAS/SATA SFF drives or a combination of 6 SATA/SATA and 2 NVMe drives in the same cage, and can be populated in all Boxes in the SFF model.
− For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations. Notes: For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) or the NVME cable (871827-B21) with the on board NVMe connections me be used.
− NVMe drives require the addition of the High Performance Fan kit (867810-B21).
HPE Apollo 6500 Gen10 Notes:
This kit provides support for up to 8 SFF SAS/SATA or 6 SAS/SATA + 2 NVMe drives per Box. With NVMe drives the HPE XL270d Gen10 NVMe FIO Enablement Kit (P01056-B22) is required.
- HPE DL380
- HPE DL385
- HPE Proliant DL380
