The D6020 can be directly connected to ProLiant Gen9 servers using the Smart Array P441, and the P841 Controllers using a standard 2M SAS cable/ The HPE D6020 also supports the HPE H241 Host Bus Adapter (HBA). HPE ProLiant Gen10 server direct connectivity is supported with the E208e-p SR Gen10 Controller and the HPE Smart Array P408e-p SR Gen10 Controller.
Use the D6020 as part of a straight-forward in-rack 6 Gb/s SAS implementation that delivers high-density, low-cost external zoned direct attach storage for HPE BladeSystem servers. Easily configure storage on the fly with easy to use management software.
Three enclosures can be daisy-chained together to provide support for up to 210 drives. Up to six D6020 storage devices can be supported off a single BladeSystem enclosure. 12Gb/s host connectivity enables higher performance, eases configuration/ deployment and broadens supported features of a D6020 using HPE Smart Array P741m controller and 6 Gb/s SAS BL switches.
The HPE Apollo A4520 supports six (6) D6020 enclosures per A4520 (3 per node).
HPE D6020 Gen9 Base Knowledge .

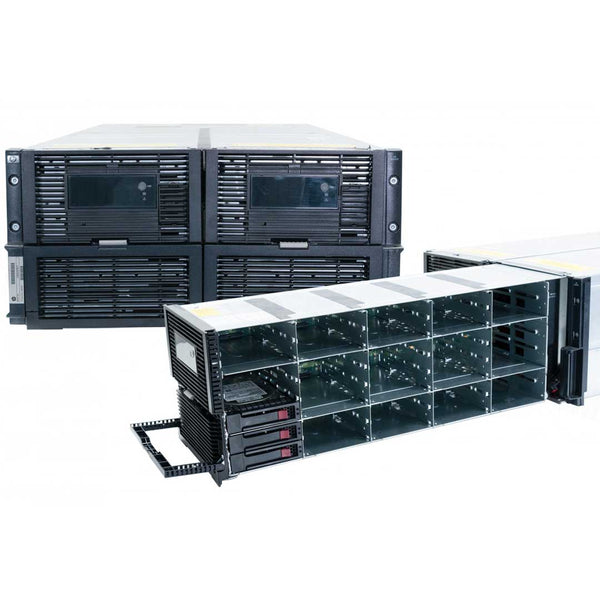

The HPE D6020 is a 12Gb/s SAS Disk Shelf that works with many Blades Sever and Switches. When referring to the Apollo 4500 Line. Only the HPE Apollo 4520 Rack Server can support the D6020 Disk Shelf. Up to 70 SAS, SAS MDL, or Solid State 3.5" hot-plug hard drives can be supported per D6020, or up to 210 drives when three D6020s are daisy-chained together. This D6020 Includes four redundant hot-plug fans and 4 hot-plug PSUs.
A single BladeSystem enclosure supports up to six D6020s externally.
Maximum Internal Storage
70 LFF Universal SAS, SAS MDL, and SSD drives in 5U
HPE Smart Storage Controllers
The D6020 supports Gen9 and Gen10 controllers. Please carefully read the quick specs PDF for each server to make sure it's compatible with this HPE D6020 DAS Disk Shelf
A dual-domain environment typically refers to a computing or IT infrastructure that is divided into two distinct domains or areas. Each domain operates independently with its own set of rules, security policies, user access rights, and administrative controls. The primary reasons for implementing a dual-domain environment are to enhance security and isolation between different types of data, applications, or user groups.
When you install the HPE D6020 Dual I/O Module Option Kit (K2Q23A) when using dual-ported SAS drives will be able to create a dual domain environment.

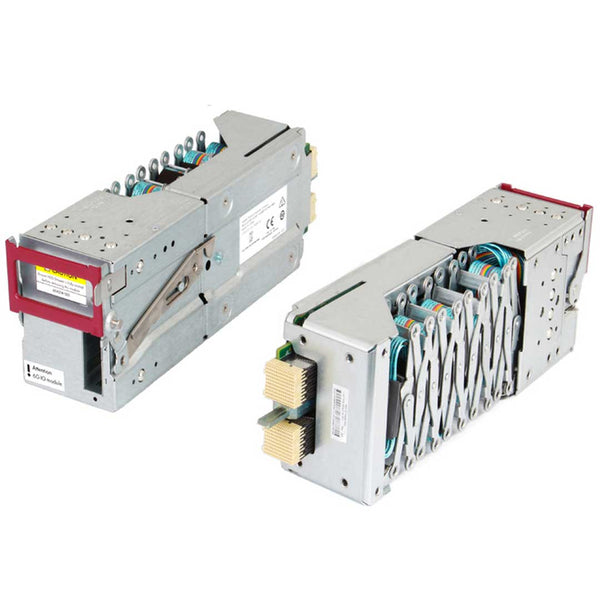

HPE D6020 Gen9 I/0 Ports
Each D6020 comes with 2 I/O Modules, add HPE D6020 Dual I/O Module Option Kit (K2Q23A) option kit to the K2Q28A when using dual-ported SAS drives to create a dual-domain environment.

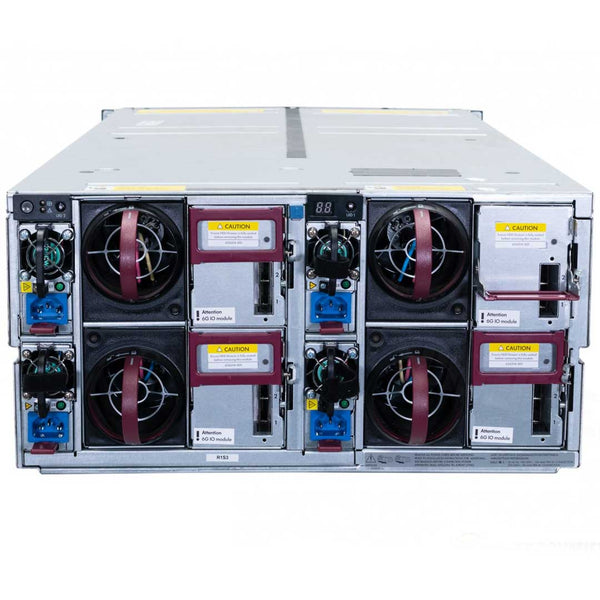

HPE D6020 Gen9 Power and Cooling
The HPE D6020 Enclosure includes four hot-plug 1200W Common Slot power supplies for n+2 redundancy and four hot-plug fans for n+1 redundancy. The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors. A D6020 fully loaded with drives weighs 320 lbs. So, it is very important to get the correct rack to host the server.
