-*Image may differ from actaul product

NetApp FAS8300 Dual Controller FC Bundle Filer Head (HA)

NetApp FAS8300 Single Chassis HA Pair, FC Bundle Filer Head (FAS8300A-004)

NetApp FAS8300 Dual Controller FC Bundle Filer Head (HA)

Price: Request a Quote

Brand:

NetApp

MPN:

FAS8300A-004

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS8300 Dual Controller FC Bundle Filer Head (HA)

The NetApp FAS8300 is a powerful enterprise storage system designed for high availability and scalability. Featuring a single-chassis design with dual controllers in an HA (high availability) configuration, it delivers 256GB of memory and four 64-bit, 10-core processors running at 2.20 GHz. With a total rack height of 4U, this system supports up to 720 drives and a maximum storage capacity of 15PB, making it an ideal choice for demanding workloads and large-scale data storage.

For connectivity, the FAS8300 includes eight 10Gb SFP+ fiber ports for high-speed networking, eight MiniSAS HD ports (12Gb) for storage expansion, and ten PCIe slots for additional functionality. It also features four M.2 PCIe slots, typically used for system caching and boot functions. The system is compatible with DS212C, DS224C, and DS460C disk shelves, providing flexible storage expansion options to accommodate evolving enterprise needs.

The chassis measures 6.89 inches in height, 17.6 inches in width, and 34.72 inches in depth, with a maximum weight of 108.5 lbs. Supporting RAID 4, RAID 6 (RAID-DP), and RAID-TEC, the FAS8300 ensures robust data protection and reliability. With remote management capabilities and high-speed networking options, it is well-equipped to handle mission-critical applications and enterprise workloads that require continuous availability and performance.

System Config

Model: NetApp FAS8300
Chassis: Single Chassis
Total Rack Height: 4U
Controllers: Dual Controller (HA)
Memory: 256GB
Processor Model: 4x 64-bit 10-core 2.20 Ghz
Fiber Ports: 8 x SFP+ (16Gb)
SAS Ports: 8 x MiniSAS HD (12Gb)
PCIe Expansion Slots: 4 x M.2 PCIe + 10 x PCIe
Max Drives (total): 720
Max Capacity: 15,000TB (15PB)
Disk Shelves: DS212C, DS224C, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 4U
Chassis Heights: 6.89" (17.5 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 34.72" (88.2 cm)
Chassis Weight: up to 108.5 lb (49.2 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 4 x M.2 PCIe + 10 x PCIe
Ethernet Ports (per): N/A
Fibre Channel Ports (per): 4 x SFP+ (16Gb)
UTA2 Ports (per): N/A
SAS Ports (per): 4 x MiniSAS HD (12Gb)
Remote Management: Yes
Processor Model (per): 2x 64-bit 10-core 2.20 Ghz
Memory (Single/HA): 128GB/256GB
NVRAM (Single/HA): 16GB/32GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 720
Max Capacity: 15,000TB (15PB)
Max # of MSATA Drives: 720
Max # of SATA Drives: 720
Max # of NL-SAS Drives: 720
Max # of SAS Drives: 720
Max # of SSD Drives: 480
Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS212C Shelves: 60 external
Max # of DS224C Shelves: 30 external
Max # of DS460C Shelves: 12 external

FAS8300 Parts Lists

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

This Product Is Compatible With The Following Systems:

NetApp FAS8300

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves
Supported Shelves/Drives	720	N/A	720	720	720	720	480	60 external	30 external	30 external	N/A	30 external	30 external

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
11520000	11520000	N/A	51131520	51131520	N/A

Core Cluster Limits

Max SVM's	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Volume (GiB) - Node	Max IPsec Policies	Max Auditing-Enabled SVMs - Cluster
Node:N/A HA Pair:N/A Cluster:1024	Node:512 HA Pair:512 Cluster:3072	Node:100000 HA Pair(Non-Scalable):100000	Aggregate (Single data Agg. per Node):Detailed Matrix Aggregate (Multiple data Agg. per Node):N/A Node:N/A HA Pair:1000 Cluster:2000	Node:1200000 HA Pair:1200000 Cluster:12288000	8	191488	150	SVM:256 Cluster:1500	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max Infinite Volume Data Constituent Size	Max FlexGroup Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
24 / 12	16800 TiB	Not Supported	100 TiB	150 GiB [1]	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 10-core 2.20 Ghz	64 bit	2.20 Ghz	2	4	10	20	40

Memory

NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
16 GB	32 GB	128 GB	N/A	N/A	256 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
4 x QSFP28 (40Gb)	-	Not Supported	4 x M.2 PCIe, 10 x PCIe3	8 x MiniSAS HD (12Gb)

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
4	6.89" (17.5 cm)	19.02" (48.3 cm)	17.6" (44.7 cm)	34.72" (88.2 cm)	32.6" (82.8 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
6.03" (15.3 cm)	34.51" (87.6 cm)	6.03" (15.3 cm)	36.01" (91.4 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 50 to 95 deg F - 10 to 35 deg C Humidity: 8 to 80 % Altitude: Up to 10000.0 ft - Up to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m	Sound Power: 8.5 bels Sound Pressure: 67.2 dBA	100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1	9.11.1RC1	9.11.1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	13.6P1	-

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
24000	200000	1024	Node:100000 HA Pair:100000	Node:1024000 HA Pair:1024000 Cluster:12288000

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
800	100	16	Volume:1023 Node:1023000 HA Pair:2046000	255	100000	2000000000	Volume:4995 Node:100000 HA Pair:200000 Cluster:2400000	Node:16 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	40000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:125 HA Pair:250 Cluster:1000	Single data Aggregate:N/A Multiple data Aggregates:N/A Node:1000 HA Pair:2000 Cluster:12000	Node:2500 HA Pair:5000 Cluster:12000	Valume:1024 Node:12288 HA Pair:24576 Cluster:98304	Node:12288 HA Pair:24576 Cluster:98304	16	2048	Port:512 Node:8192 HA Pair:16384 Cluster:65536	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Node:4096 HA Pair:8192 Cluster:32768	igroup:256 Node:4096 HA Pair:8192 Cluster:32768	Node:4096 HA Pair:8192 Cluster:32768	Node:8192 HA Pair:16384 Cluster:65536

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:1000000 HA Pair:1000000	Node:N/A HA Pair:N/A Cluster:300000	Connection:65536 Node:1500000 HA Pair:1500000	35000	320000	640000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster
Node:36 HA Pair (Non-Scalable):36	Volume:1 Node:1000 HA Pair:2000 Cluster:15000	2	100	8	2	255	FlexGroup:200 FlexGroup-Node:50 HA Pair:1000 Cluster:6000	Volume:1 Node:40 HA Pair (Non-Scalable):40	SVM:300 HA Pair:1000	128

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster	# of Flexible volumes, NVMe/oF	# of Flexible volumes with DPO, NVMe/oF	# of Namespaces	# of Subsystems	# of Namespace Mappings	Namespace Size	I/O queue depth available - NVMe/FC - Queue	I/O queue count available - NVMe/FC - Controller	Hosts - Subsystem	LIFS, NVMe/oF	# of Controllers - NVMe/FC - Port	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
32	Node:1000 HA Pair:2000 Cluster:12000	Node:2500 HA Pair:5000 Cluster:12000	Volume:1024 Node:12288 HA Pair:24576 Cluster:98304	Node:512 Node:512	Subsystem:1024 Node:12288 HA Pair:24576 Cluster:98304	16			64		N/A	2	128	1024

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
100	Node:100 HA Pair:200	Node:800 HA Pair:1600	Node:100 HA Pair:200	Node:800 HA Pair:1600

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver:12000 Cluster:12000	400000000000	Vserver:4000 Cluster:96000	20

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Consistency Groups and Parents Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Child Consistency Groups in a Parent Consistency Groups - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
15000	15000	15000	5	80	80	80

Platform LED for FAS8300 Single Chassis HA Pair, FC Bundle

LED Label	LED Name	Type	Status Indicator	Description

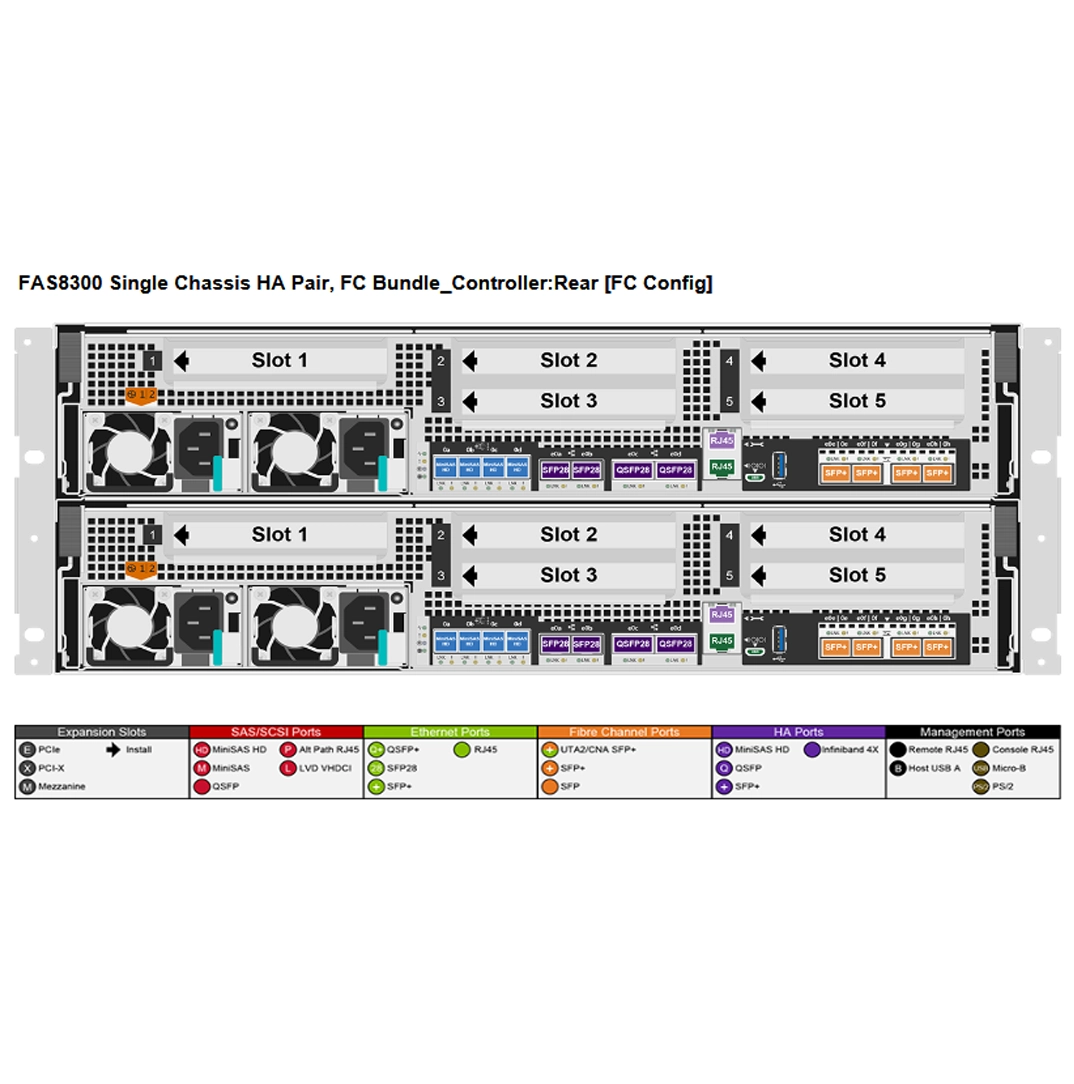

Back View
LED Label	LED Name	Type	Status Indicator	Description
0a	Link is Established - Green No link - off Port requires attention - Amber Port operates as normal- off	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0b	Link is Established - Green No link - off Port requires attention - Amber Port operates as normal- off	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0c	Link is Established - Green No link - off Port requires attention - Amber Port operates as normal- off	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0d	Link is Established - Green No link - off Port requires attention - Amber Port operates as normal- off	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0e	FC link and Attention	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0f	FC link and Attention	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0g	FC link and Attention	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
0h	FC link and Attention	Attention	Amber	Port requires attention
-	-	-	Off	Port operates as Normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0a	Port Ethernet SFP Config	Attention	Yellow	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0b	Port Ethernet SFP Config	Attention	Yellow	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0c	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0d	Port Ethernet QSFP Link/Attention	Attention	Amber	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	Link is established
-	-	-	Off	No link
e0m/BMC	Port Remote Management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and some upstream device.
-	-	-	Off	No link is established.

Supported Shelves Drives for FAS8300 Single Chassis HA Pair, FC Bundle

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
DS212C with IOM12 / IOM12B / IOM12 / IOM12B shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	No	720	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	No	720	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	No	720	No
X315A-R6 [1]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X317A [1]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X339A	2TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X380A	10TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X388A	16TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X488A-R5	900GB	10K	SAS	No	Yes	No	No	720	No
X489A-R6	1.2TB	10K	SAS	No	Yes	No	No	720	No
X490A-R6	1.8TB	10K	SAS	No	Yes	No	No	720	No
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	480	No
X364A	3.84TB	N/A	SSD	No	No	No	Yes	480	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	480	No
X374A	960GB	N/A	SSD	No	No	No	Yes	480	No
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	480	No
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	480	No
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	480	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	480	No
DS224C with IOM12B / IOM12 / IOM12 / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	No	720	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	720	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	720	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X417A-R6 [1]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	720	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	720	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	720	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	720	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	720	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X319A	7.6TB	N/A	SSD	No	No	Yes	No	480	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	480	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	480	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X359A	30.6TB	N/A	SSD	No	No	Yes	No	480	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	480	No
X386A [1]	960GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	480	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	480	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X446A-R6	200GB	N/A	SSD	No	No	No	Yes	480	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	480	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	480	No
X670A	15.3TB	N/A	SSD	No	No	Yes	No	480	No
DS460C with IOM12B / IOM12 / IOM12B / IOM12 shelf modules
X375A	4TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X376A	8TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X377A	10TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X378A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X379A	960GB	N/A	SSD	No	No	No	No	120	No
X387A	16TB	7.2K	NL-SAS	No	Yes	No	No	720	No
DS2246 with IOM6 / IOM6 / IOM12B / IOM12 / IOM12 / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	No	720	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	720	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	720	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X417A-R6 [1]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	720	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	720	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	720	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	720	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	720	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	480	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	480	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	480	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	480	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	480	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	480	No
X446A-R6	200GB	N/A	SSD	No	No	No	Yes	480	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	480	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	480	No
DS4246 with IOM6 / IOM6 / IOM12 / IOM12B / IOM12 / IOM12B shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	No	720	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	No	720	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	No	720	No
X309A-R6 [1]	3TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X315A-R6 [1]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X316A-R6	6TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X317A [1]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	720	No
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X380A	10TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	720	No
X488A-R5	900GB	10K	SAS	No	Yes	No	No	720	No
X489A-R6	1.2TB	10K	SAS	No	Yes	No	No	720	No
X490A-R6	1.8TB	10K	SAS	No	Yes	No	No	720	No
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	480	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	480	No
X374A	960GB	N/A	SSD	No	No	No	Yes	480	No
X441A-R5	100GB	N/A	SSD	No	No	No	No	480	No
X442A-R5 [2]	100GB	N/A	SSD	No	No	No	No	480	No
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	480	No
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	480	No
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	480	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	480	No
X577A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	480	No
DS4486 with IOM6 shelf modules
X381A	10TB	7.2K	MSATA	No	No	No	No	720	No
X478A-R5	3TB	7.2K	MSATA	No	No	No	No	720	No
X480A-R6	4TB	7.2K	MSATA	No	No	No	No	720	No
X481A-R6	6TB	7.2K	MSATA	No	No	No	No	720	No
X483A-R6	8TB	7.2K	MSATA	No	No	No	No	720	No
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] This drive does not support the sanitization feature.

Supported RAID Configurations - FAS8300 Single Chassis HA Pair, FC Bundle

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NL-SAS	0 TB	8 TB	3	7	7
SAS	0 TB	5.999 TB	3	8	14
SATA	0 TB	5.999 TB	3	7	7
SSD	0 TB	30.6 TB	3	8	14
RAID-DP
MSATA	0 TB	5.999 TB	5	14	20
MSATA	6 TB	8 TB	5	14	14
NL-SAS	0 TB	5.999 TB	5	14	20
NL-SAS	6 TB	10 TB	5	14	14
SAS	0 TB	5.999 TB	5	16	28
SATA	0 TB	5.999 TB	5	14	20
SSD	0 TB	30.6 TB	5	24	28
RAID-TEC
MSATA	0 TB	10 TB	7	21	29
NL-SAS	0 TB	16 TB	7	21	29
SAS	0 TB	8 TB	7	24	29
SATA	0 TB	8 TB	7	21	29
SSD	0 TB	30.6 TB	7	25	29
Root Aggregate
RAID4
NL-SAS	0 TB	8 TB	2	-	7
SAS	0 TB	5.999 TB	2	-	14
SATA	0 TB	5.999 TB	2	-	7
SSD	0 TB	30.6 TB	2	-	14
RAID-DP
MSATA	0 TB	5.999 TB	3	-	20
MSATA	6 TB	8 TB	3	-	14
NL-SAS	0 TB	5.999 TB	3	-	20
NL-SAS	6 TB	16 TB	3	-	14
SAS	0 TB	5.999 TB	3	-	28
SATA	0 TB	5.999 TB	3	-	20
SSD	0 TB	30.6 TB	3	-	28
RAID-TEC
MSATA	0 TB	10 TB	7	-	29
NL-SAS	0 TB	16 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	30.6 TB	7	-	29
Footnote:
[1] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS8300 Single Chassis HA Pair, FC Bundle

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	Performance Acceleration	M.2 PCIe	X3311A	111-03066		111-03066	Flash Cache,1.0TB,NVMe			N/A		9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
2	Block Access (Target)	PCIe3	X1135A	111-03648	Fibre Channel 8/16/32 Gb,NVMe/FC 16/32 Gb	111-03648	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb,NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
3	Networking	PCIe3	X1148A	111-04025	Ethernet 40/100 Gb	111-04025	2p 100GbE RoCE QSFP28	QSFP28	Ethernet 40/100 Gb	View	Ethernet 40/100 Gb	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
4	Networking	PCIe3	X1122A	111-04027	Ethernet 10/25Gb,Ethernet 10Gb,Ethernet 25Gb	111-04027	2p 25GbE RoCE SFP28 Cu\|Op	SFP28	Ethernet 10/25Gb,Ethernet 10Gb,Ethernet 25Gb	View	Ethernet 10/25Gb,	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
5	Networking	PCIe3	X1147A	111-03854	Ethernet 10Gb	111-03854	4p 10GbE SFP+ Cu\|Op	SFP+	Ethernet 10Gb	View	Ethernet 10Gb	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
6	Networking	PCIe3	X1149A	111-04451	Ethernet 1/10 Gb	111-04451	2p 10GBASE-T NIC Cu	RJ45	Ethernet 1/10 Gb	View	Ethernet 1/10 Gb	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
7	Storage (Initiator)	PCIe3	X2072A	111-04226	SAS 6/12 Gb	111-04226	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
8	Storage (Initiator)	PCIe3	X2071A	111-03801		111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD		View		9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
9	Storage (Initiator)	PCIe3	X1135A	111-03648	Fibre Channel 8/16/32 Gb,NVMe/FC 16/32 Gb	111-03648	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb,NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.7, 9.8, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
10	Tape (Initiator)	PCIe3	X2072A	111-04226	SAS 6/12 Gb	111-04226	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
11	Tape (Initiator)	PCIe3	X2071A	111-03801		111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD		View		9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
12	Tape (Initiator)	PCIe3	X1135A [2]	111-03648	Fibre Channel 8/16/32 Gb,NVMe/FC 16/32 Gb	111-03648	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb,NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
[2] Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.

Supported Connections for FAS8300 Single Chassis HA Pair, FC Bundle

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect
2-node Switchless Cluster	Default	View Image	2	None
Switched 100GbE or 40GbE	Supported	View Image	2	2
Switched 10GbE Interconnect	Supported	View Image	4	4
Switched 40GbE Interconnect (10GbE breakout)	Supported	View Image	4	1
HA Interconnect
HA Interconnect Switchless	HA Interconnect Switchless	N/A	2	2

Platform Mixing Rules - FAS8300 Single Chassis HA Pair

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T	24 Nodes	12 Nodes	9.7RC1
FAS2720A 2-port UTA2	24 Nodes	12 Nodes	9.7RC1
FAS2720A UTA2	24 Nodes	12 Nodes	9.7RC1
FAS2750A 10GBASE-T	24 Nodes	12 Nodes	9.7RC1
FAS2750A 2-port UTA2	24 Nodes	12 Nodes	9.7RC1
FAS2750A UTA2	24 Nodes	12 Nodes	9.7RC1
FAS500fA	24 Nodes	12 Nodes	9.8RC1
FAS8300A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8300A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS9000A	24 Nodes	12 Nodes	9.7RC1
FAS9500A	24 Nodes	12 Nodes	9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A	24 Nodes	12 Nodes	9.8RC1
AFF A250A 100V	24 Nodes	12 Nodes	9.8P4
AFF A400A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A400A FC Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A700A	24 Nodes	12 Nodes	9.7RC1
AFF A800A	24 Nodes	12 Nodes	9.7RC1
AFF A900A	24 Nodes	12 Nodes	9.10.1
AFF C190A 10GBASE-T	24 Nodes	12 Nodes	9.7RC1
AFF C190A 2-port UTA2	24 Nodes	12 Nodes	9.7RC1
AFF C190A UTA2	24 Nodes	12 Nodes	9.7RC1
FAS - Legacy EOA Configuration(s)
FAS8200A	24 Nodes	12 Nodes	9.7RC1
AllFlashFAS - Legacy EOA Configuration(s)
AFF A220A 10GBASE-T	24 Nodes	12 Nodes	9.7RC1
AFF A220A UTA2	24 Nodes	12 Nodes	9.7RC1
AFF A300A	24 Nodes	12 Nodes	9.7RC1
AFF A320A	24 Nodes	12 Nodes	9.7RC1
AFF A700s	24 Nodes	12 Nodes	9.7RC1
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS8300 Single Chassis HA Pair, FC Bundle

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
UKCA DoC	UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024	EMC standard for Great Britain
BS-EN55035	EMC standard for Great Britain
CISPR 32	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN55032	EMI Standard fo European Union
EN55035	EMC Standard for European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-003	EMI Standard for Canada
KS C 9832	EMI Standard for South Korea
KS C 9835	EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1	Safety standard for United States
ANSI/UL62368-1	Safety standard for United States
BS-EN62368-1	Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1	Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1	Safety Standard for Canada
CNS 14336	Safety Standard for Taiwan
EN60825-1	Laser Safety standard for European Union
EN62368-1	Safety standard for European Union
IEC 62368-1	Safety Standard for International
IEC60950-1	Safety standard for International
IS 13252(part 1)	Safety Standard for India

Supported OS Version - FAS8300 Single Chassis HA Pair, FC Bundle

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1
ONTAP 9.10.1	9.10.1P5, 9.10.1P7, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030	9.10.1P7, 9.10.1P6
ONTAP 9.9.1	9.9.1P11, 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029	9.9.1P11, 9.9.1P10, 9.9.1P9
ONTAP 9.8	9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028	9.8P13, 9.8P12
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS8300 Single Chassis HA Pair, FC Bundle

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS8300 Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
0a	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0b	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0c	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0d	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0e [1] [2]	Fibre Channel	Fibre Channel 4/8/16 Gb	Fibre Channel	SFP+
0f [1] [2]	Fibre Channel	Fibre Channel 4/8/16 Gb	Fibre Channel	SFP+
0g [1] [2]	Fibre Channel	Fibre Channel 4/8/16 Gb	Fibre Channel	SFP+
0h [1] [2]	Fibre Channel	Fibre Channel 4/8/16 Gb	Fibre Channel	SFP+
e0a	HA Interconnect	Ethernet 25Gb	Ethernet	SFP28
e0b	HA Interconnect	Ethernet 25Gb	Ethernet	SFP28
e0c	Ethernet (RoCE)	Ethernet 40/100 Gb	Ethernet	QSFP28
e0d	Ethernet (RoCE)	Ethernet 40/100 Gb	Ethernet	QSFP28
e0m/BMC	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
Serial Interface	USB Serial Console	RS-232 115200bps	USB 3.0	USB 2.0 Micro-B
Serial Interface Icon	Serial Console	RS-232 115200bps	Serial Interface	RJ45
USB/2	Storage Host Port	USB 2.0	USB 3.0	USB Type A
Footnote:
[1] Ports 0e – 0h are provided by the 4-port 16GB FC mezzanine module (X1162A)
[2] Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch.

Supported Platform Configurations - FAS8300 Single Chassis HA Pair, FC Bundle

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
FAS8300A Ethernet Bundle	FAS8300 Single Chassis HA Pair, Ethernet Bundle	CC	1	2	0	4	108.47 lb (49.2 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300A FC Bundle	FAS8300 Single Chassis HA Pair, FC Bundle	CC	1	2	0	4	108.47 lb (49.2 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
MetroCluster
FAS8300-2NBSMC Ethernet Bundle	FAS8300 2-Node Stretch MetroCluster, Fiber Bridge, Ethernet Bundle	Cb-HA	2	1	0	8	81.57 lb (37 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-2NBSMC FC Bundle	FAS8300 2-Node Stretch MetroCluster, Fiber Bridge, FC Bundle	Cb-HA	2	1	0	8	81.57 lb (37 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-2NDSMC Ethernet Bundle	FAS8300 2-Node Stretch MetroCluster, Optical SAS, Ethernet Bundle	Cb-HA	2	1	0	8	81.57 lb (37 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-2NDSMC FC Bundle	FAS8300 2-Node Stretch MetroCluster, Optical SAS, FC Bundle	Cb-HA	2	1	0	8	81.57 lb (37 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-2NFMC Ethernet Bundle	FAS8300 2-Node Fabric MetroCluster, Ethernet Bundle	Cb-HA	2	1	0	8	81.57 lb (37 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-2NFMC FC Bundle	FAS8300 2-Node Fabric MetroCluster, FC Bundle	Cb-HA	2	1	0	8	81.57 lb (37 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-4NFMC Ethernet Bundle	FAS8300 4-Node Fabric MetroCluster, Ethernet Bundle	CC-CC	2	2	0	8	108.47 lb (49.2 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-4NFMC FC Bundle	FAS8300 4-Node Fabric MetroCluster, FC Bundle	CC-CC	2	2	0	8	108.47 lb (49.2 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-4NMCIP Ethernet Bundle	FAS8300 4-Node MetroCluster IP, Ethernet Bundle	CC-CC	2	2	0	8	108.47 lb (49.2 kg)	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-4NMCIP FC Bundle	FAS8300 4-Node MetroCluster IP, FC Bundle	CC-CC	2	2	0	8	108.47 lb (49.2 kg)	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-8NFMC Ethernet Bundle	FAS8300 8-Node Fabric MetroCluster, Ethernet Bundle	2x(CC-CC)	4	2	0	16	108.47 lb (49.2 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-8NFMC FC Bundle	FAS8300 8-Node Fabric MetroCluster, FC Bundle	2x(CC-CC)	4	2	0	16	108.47 lb (49.2 kg)	9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-8NMCIP Ethernet Bundle	FAS8300 8-Node MetroCluster IP, Ethernet Bundle	2x(CC-CC)	4	2	0	16	108.47 lb (49.2 kg)	9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8300-8NMCIP FC Bundle	FAS8300 8-Node MetroCluster IP, FC Bundle	2x(CC-CC)	4	2	0	16	108.47 lb (49.2 kg)	9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - FAS8300 Single Chassis HA Pair, FC Bundle

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X93144A	32GB RDIMM	107-00215	no	8	32		256
X93143A	16GB NVDIMM	107-00216	yes	2	16	32	-
X93145A	16GB NVDIMM	107-00237	yes	2	16	32	-

Supported Rail Kit for FAS8300 Single Chassis HA Pair, FC Bundle

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail

Field Replacement Unit Parts - FAS8300 Single Chassis HA Pair, FC Bundle

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X1122A	111-04027	NIC 2-Pt Bare Cage 25GbE RoCE SFP28 PCIe
X1122A-C	111-04027	NIC 2-Pt Bare Cage 25GbE RoCE SFP28 PCIe,-C
X1122A-N-C	111-04027	NIC 2-Pt Bare Cage 25GbE RoCE SFP28 PCIe,-C
X1135A [1]	111-03648	HBA,4-port FCP Targt-Init 32Gb PCIe w/SFP+
X1135A-C [1]	111-03648	HBA,4-port FCP Targt-Init 32Gb PCIe w/SFP+,-C
X1135A-N-C [1]	111-03648	HBA,4-port FCP Targt-Init 32Gb PCIe w/SFP+,-C
X1147A	111-03854	NIC 4-Port Bare Cage 10GbE SFP+ PCIe
X1147A-C	111-03854	NIC 4-Port Bare Cage 10GbE SFP+ PCIe,-C
X1147A-N-C	111-03854	NIC 4-Port Bare Cage 10GbE SFP+ PCIe,-C
X1148A	111-04025	NIC 2-Pt BareCage 100GbE RoCE QSFP28 PCIe
X1148A-C	111-04025	NIC 2-Pt BareCage 100GbE RoCE QSFP28 PCIe,-C
X1148A-N-C	111-04025	NIC 2-Pt BareCage 100GbE RoCE QSFP28 PCIe,-C
X1149A	111-04451	NIC 2-Pt 10G Base-T,HBA
X1149A-N-C	111-04451	HBA 10GBASE-T,2 PORT,INTEL,-C
X2071A	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe
X2071A-C	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
X2071A-N-C	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
X2072A	111-04226	HBA,4x12Gb miniSAS HD,PCIe
X2072A-N-C	111-04226	HBA,4x12Gb miniSAS HD,PCIe gen3x16,-C
X3311A	111-03066	SUB ASSY,NVME,FLASH,1.0TB
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
X3156A	111-04057	Batt,LI-ION,7.2V,2-CELL,CYL,GEN5
Bezel
X80115A	111-04202	Bezel,FAS8300
Blank
X3119	111-04262	Blanking Panel,SYS CNTRL,8300,8700,A400
X3119-N-C	111-04262	Blanking Panel,SYS CNTRL,8300,8700,A400,-C
Boot Media
X3323A	111-04228	M.2,SATA,FLASH,480GB
Chassis
X3164A	111-04200	Chassis,W/MIDPLANE/FAN,A400,8300/8700
X3165A	111-04200, 111-04203	Chassis,W/MIDPLANE,NO FAN,A400,8300/8700
Data Cable
X-QSFP-4SFP10G-CU3M	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m
X-QSFP-4SFP10G-CU3M-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU3M-N-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU5M	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m
X-QSFP-4SFP10G-CU5M-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-QSFP-4SFP10G-CU5M-N-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6	112-00210	Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6	112-00211	Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6	112-00212	Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X65420	112-00508	Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66100-1	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-C	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m,-C
X66100-1-K-N	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-N	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-N-C	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m,-C
X66100-3	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-3-K-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-5	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66100-5-K-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-N-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66200-15	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m
X66200-15-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-15-N-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-2	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m
X66200-2-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-2-N-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-30	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m
X66200-30-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-30-N-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-5	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m
X66200-5-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66200-5-N-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66211A-05	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-05-K-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-1	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-K-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-2	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-K-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-5	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-K-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211B-1-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-1-N-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-2-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-2-N-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-5-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66211B-5-N-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66220A-15	112-00586	Cable,100GbE,QSFP28-QSFP28,AOC,15m
X66220A-15-N-C	112-00586	Cable,100GbE,QSFP28-QSFP28,AOC,15m,-C
X66220A-30	112-00589	Cable,100GbE,QSFP28-QSFP28,AOC,30m
X66220A-30-N-C	112-00589	Cable,100GbE,QSFP28-QSFP28,AOC,30m,-C
X66240A-05	1111455002, 112-00639, NDCCGF-0006	Cable,25GbE,SFP28-SFP28,Cu,0.5m
X66240A-05-N-C	1111455002, 112-00639, NDCCGF-0006	Cable,25GbE,SFP28-SFP28,Cu,0.5m,-C
X66240A-2	1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102	Cable,25GbE,SFP28-SFP28,Cu,2m
X66240A-2-N-C	1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102	Cable,25GbE,SFP28-SFP28,Cu,2m,-C
X66240A-5	1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105	Cable,25GbE,SFP28-SFP28,Cu,5m
X66240A-5-N-C	1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105	Cable,25GbE,SFP28-SFP28,Cu,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-30-N-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5	112-00344	Cable,LC-LC,OM4,5m
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66260-30	112-00354	Cable,LC-LC,OPT,OS2,30M
X66260-30-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-30-N-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-5	112-00353	Cable,LC-LC,OPT,OS2,5M
X66260-5-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
X66260-5-N-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X309A-R6 [2]	108-00301	DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4
X315A-R6 [2]	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X316A-R6	108-00389	Disk Drive,6TB 7.2k,DS4246,FAS2554
X317A [2]	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X319A	108-00687	SSD,7.6TB,12G,DS224C

Supported Firmware Matrix - FAS8300 Single Chassis HA Pair, FC Bundle

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1RC1	16.7*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6	16.7*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1	16.7, 16.6 Loader 6.4.12*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11*
ONTAP 9.9.1	9.9.1P11	16.7*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7	16.7, 16.6 Loader 6.4.12*
ONTAP 9.9.1	9.9.1P4-P6	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4*
ONTAP 9.8	9.8P13	16.7*
ONTAP 9.8	9.8P11-P12	16.7, 16.6 Loader 6.4.12*
ONTAP 9.8	9.8P10, 9.8P9	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11*
ONTAP 9.8	9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4*
ONTAP 9.8	9.8P3, 9.8P2	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3*
ONTAP 9.8	9.8P1	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3, 16.2.1*
ONTAP 9.8	9.8, 9.8RC1	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3, 16.2.1, 16.2*
ONTAP 9.7	9.7P19	16.7, 16.6 Loader 6.4.12*
ONTAP 9.7	9.7P17-P18	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11*
ONTAP 9.7	9.7P16, 9.7P15, 9.7P14	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4*
ONTAP 9.7	9.7P13, 9.7P12	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3*
ONTAP 9.7	9.7P11	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3, 16.2.1*
ONTAP 9.7	9.7P10, 9.7P9, 9.7P8	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3, 16.2.1, 16.2*
ONTAP 9.7	9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3, 16.2.1, 16.2, 16.1.1, 16.1*
ONTAP 9.7	9.7, 9.7RC1	16.7, 16.6 Loader 6.4.12, 16.6 Loader 6.4.11, 16.4, 16.3, 16.2.1, 16.2, 16.1.1, 16.1, 16.0*
BMC
ONTAP 9.11.1	9.11.1	13.6P1
ONTAP 9.11.1	9.11.1RC1	13.6P1, 13.6*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6, 9.10.1P3-P4, 9.10.1P2, 9.10.1P1	13.6P1, 13.6, 13.5P1*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	13.6P1, 13.6, 13.5P1, 13.5*
ONTAP 9.9.1	9.9.1P11, 9.9.1P10, 9.9.1P8-P9, 9.9.1P7	13.6P1, 13.6, 13.5P1*
ONTAP 9.9.1	9.9.1P4-P6	13.6P1, 13.6, 13.5P1, 13.5*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2*
ONTAP 9.8	9.8P13, 9.8P11-P12	13.6P1, 13.6, 13.5P1*
ONTAP 9.8	9.8P10, 9.8P9, 9.8P8	13.6P1, 13.6, 13.5P1, 13.5*
ONTAP 9.8	9.8P7, 9.8P6, 9.8P5	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2*
ONTAP 9.8	9.8P4	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2, 13.4P1*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2, 13.4P1, 13.4*
ONTAP 9.8	9.8, 9.8RC1	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2, 13.4P1, 13.4, 13.3, 13.2P1*
ONTAP 9.7	9.7P19	13.6P1, 13.6, 13.5P1*
ONTAP 9.7	9.7P17-P18	13.6P1, 13.6, 13.5P1, 13.5*
ONTAP 9.7	9.7P16, 9.7P15, 9.7P14	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2*
ONTAP 9.7	9.7P13, 9.7P12	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2, 13.4P1, 13.4*
ONTAP 9.7	9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2, 13.4P1, 13.4, 13.3, 13.2P1, 13.2*
ONTAP 9.7	9.7P1, 9.7, 9.7RC1	13.6P1, 13.6, 13.5P1, 13.5, 13.4P2, 13.4P1, 13.4, 13.3, 13.2P1, 13.2, 13.1P1*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS8300 Single Chassis HA Pair, FC Bundle

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
Declaraion of Similarity NAF-1901	Global	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 60950-CB	CB - International	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 62368-CB	CB - International	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 BIS	BIS - India	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 BSMI	BSMI - Taiwan	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 CE DoC	CE - European Union DoC	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 CSA	CSA - United States, Canada	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 FCC	FCC - United States	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 IRAM	IRAM - Argentina	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 KC	KC - South Korea	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 Morocco	Morocco	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 NOM	NOM - Mexico	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 NRCS SABS	NRCS - South Africa (Safety)	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 SONCAP	SONCAP - Nigeria	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 TBS	TBS - Tanzania	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 UKRSepro	UKRSepro - Ukraine	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 VCCI	VCCI - Japan	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
NAF-1901 UKCA DOC	UKCA -United Kingdom	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
PSU 80+ Platinum Certificates
NAF-1901 UKCA DOC	UKCA -United Kingdom	Platforms : AFF A400, ASA AFF A400, FAS8300, FAS8700
DPS-1600AB-18 B Energy Star Report	Global	PSU : X735A, X736A, X737A
PS-2162-8F Energy Star Report	Global	PSU : X735A, X736A, X737A
Voluntary Product Accessibility Template
PS-2162-8F Energy Star Report	Global	PSU : X735A, X736A, X737A
VPAT - AFF A400, FAS8300, FAS8700	Global	Platforms : AFF A400, FAS8300, FAS8700

Size, Weight, Acoustic, Power FAS8300 Single Chassis HA Pair, FC Bundle

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
FAS8300
FAS8300A Ethernet Bundle	FAS8300 2 PCM	4	108.5 lb (49.2 kg)	8.5 Bels	67.2 dBA	100 (100 to 120)	12.09	15.43	1184	1512	4041	5161
FAS8300A Ethernet Bundle	FAS8300 2 PCM	4	108.5 lb (49.2 kg)	8.5 Bels	67.2 dBA	200 (200 to 240)	6.02	7.5	1179	1470	4024	5017
FAS8300A FC Bundle	FAS8300 2 PCM	4	108.5 lb (49.2 kg)	8.5 Bels	67.2 dBA	100 (100 to 120)	12.09	15.43	1184	1512	4041	5161
FAS8300A FC Bundle	FAS8300 2 PCM	4	108.5 lb (49.2 kg)	8.5 Bels	67.2 dBA	200 (200 to 240)	6.02	7.5	1179	1470	4024	5017

Category: 10-pcie-slots, 4u, bus-pci-e, controller_amount_dual, drive-capacity-15pb, drive-count-720, dual, fas8300, fas8300-series, FAS8300A, memory-256gb, netapp, protocol-fibre-channel, protocol-sas, speed-12gb, speed-16gb

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

Online Now

NetApp FAS8300 Dual Controller FC Bundle Filer Head (HA)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS8300 Dual Controller FC Bundle Filer Head (HA)

Product Specs

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits -

Consistency Groups - All Maximums

Platform LED for FAS8300 Single Chassis HA Pair, FC Bundle

Supported Shelves Drives for FAS8300 Single Chassis HA Pair, FC Bundle

Supported RAID Configurations - FAS8300 Single Chassis HA Pair, FC Bundle

Supported Adapter Cards - FAS8300 Single Chassis HA Pair, FC Bundle

Supported Connections for FAS8300 Single Chassis HA Pair, FC Bundle

Platform Mixing Rules - FAS8300 Single Chassis HA Pair

Product Standard Compliance - FAS8300 Single Chassis HA Pair, FC Bundle

Supported OS Version - FAS8300 Single Chassis HA Pair, FC Bundle

Supported Power Cords for FAS8300 Single Chassis HA Pair, FC Bundle

Onboard Ports Configuration: FAS8300 Single Chassis HA Pair

Supported Platform Configurations - FAS8300 Single Chassis HA Pair, FC Bundle

Platform Memory Specifications - FAS8300 Single Chassis HA Pair, FC Bundle

Supported Rail Kit for FAS8300 Single Chassis HA Pair, FC Bundle

Field Replacement Unit Parts - FAS8300 Single Chassis HA Pair, FC Bundle

Supported Firmware Matrix - FAS8300 Single Chassis HA Pair, FC Bundle

Product Certificates - FAS8300 Single Chassis HA Pair, FC Bundle

Size, Weight, Acoustic, Power FAS8300 Single Chassis HA Pair, FC Bundle

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
