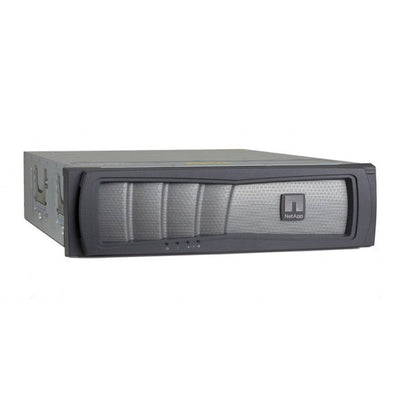

    NetApp FAS3210 Single Controller Filer Head (Stand Alone)


    Price: Request a Quote

    Brand:
    MPN:
    FAS3210
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    NetApp FAS3210 Single Controller Filer Head (Stand Alone)

    The NetApp FAS3210 is a compact, 3U storage system designed for mid-sized enterprise deployments. Its dual-controller, high-availability architecture ensures continuous access to data, while up to 10GB of shared memory helps maintain responsive performance for critical workloads.

    Equipped with two 2.33GHz 64-bit processors and built-in 1GbE and 4Gb FC ports, the FAS3210 supports flexible network integration. Its RAID 4 and RAID-DP options enhance data protection, and four PCIe slots enable additional network or storage interface expansions.

    With support for up to 240 drives and a maximum capacity of 1.4PB, the FAS3210 scales to meet growing demands. Compatible with various NetApp disk shelves—including DS14, DS2246, and DS424x models—it offers multiple drive interfaces (FC, SAS, SATA, SSD) to accommodate diverse performance and capacity requirements.


    System Config
    • Model: NetApp FAS3210
    • Chassis: Single Chassis
    • Total Rack Height: 3U
    • Controllers: Single Controller (Stand Alone)
    • Memory (HA): 5GB
    • Ethernet Ports: 2 x RJ45 (1Gb)
    • Fibre Channel Ports: 2 x SFP (4Gb)
    • SAS Ports: 2 x QSFP (6Gb)
    • PCIe Expansion Slots: 2 x PCIe
    • Max Drives (total): 240
    • Max Capacity: 1,440TB (1.4PB)
    • Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 3U
    • Chassis Heights: 5.12" (13 cm)
    • Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
    • Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
    • Chassis Weight: up to 79.4 lb (36.0 kg)
    Controller Specs
    • Max Controllers: 2 (Per Chassis)
    • PCI Slot (per): 2 x PCIe
    • Ethernet Ports (per): 2 x RJ45 (1Gb)
    • Fibre Channel Ports (per): 2 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): 2 x QSFP (6Gb)
    • Remote Management: Yes
    • Processor Model (per):1x 64-bit 2-core 2.33 Ghz
    • Memory (Single/HA): 5GB/10GB
    • NVRAM (Single/HA): 0GB/1GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 240
    • Max Capacity: 1,440TB (1.4PB)
    • Max Number of FC Drives: 240
    • Max Number of NL-SAS Drives: 240
    • Max Number of SAS Drives: 240
    • Max Number of SATA Drives: 840
    • Max Number of SSD Drives: 240
    • Drive Interface: FC, NL-SAS, SAS, SATA, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP)
    • Max # of DS14-Mk2-AT Shelves: 18 external
    • Max # of DS14-Mk2-FC Shelves: 18 external
    • Max # of DS14-Mk4-FC Shelves: 18 external
    • Max # of DS2246 Shelves: 10 external
    • Max # of DS4243 Shelves: 10 external
    • Max # of DS4246 Shelves: 10 external

    FAS3210 Parts Lists

    Ask about our NetApp Disk Shelves!
    We can create custom Turn-Key configurations based on your needs!
    Click here to view NetApp Disk Shelves

    This Product Is Compatible With The Following Systems:
