3 OU liquid-cooled compute node for the Dell IR7044 / IR7050 (IR7000) rack
Processor | Max: 192 Cores per CPU2x 5th Generation AMD EPYC 9005 Series
Memory | Max: 6TB (256GB DIMMs)24 DDR5 RDIMM slots, up to 6400 MT/s
GPU:8x AMD Instinct MI355X 288GB (1400W) OAM or
8x NVIDIA HGX B300 288GB (1100W) SXM6 or
8x NVIDIA HGX B200 180GB (1000W) SXM6
16 x EDSFF E1.S Gen5 NVMe or
8 x 2.5" U.2 NVMe
Embedded BOSS or BOSS-N1 (2 x M.2 NVMe, RAID 0/1)
Networking Options (NOC):1x OCP 3.0 (x16)
8x OSFP (ConnectX-8) with B300
2x dedicated iDRAC RJ45 ports
iDRAC10
PCIe Slots:MI355X / B200: 12x Gen5 x16 FHHL
B300: 4x Gen5 x16 FHHL
(Click to View)
- Artificial Intelligence (AI)
- Large Language Model Training
- Deep Learning (DL)
- High-Performance Computing (HPC)
The Dell PowerEdge XE9785L is the direct liquid-cooled version of the XE9785: a 3 OU, dual-socket compute node that slides into the Dell IR7044 or IR7050 ORv3 rack. It pairs two 5th Gen AMD EPYC 9005 processors (up to 192 cores each) with an 8-GPU board: AMD Instinct MI355X, NVIDIA HGX B300 or NVIDIA HGX B200. Liquid cooling for the CPUs, GPUs and NVLink switches fits 8-GPU performance into 3 OU. Power comes from the rack power shelf, so the node has no PSUs. You choose the chassis (E1.S or U.2), CPUs, memory, drives, boot, GPU board and networking.

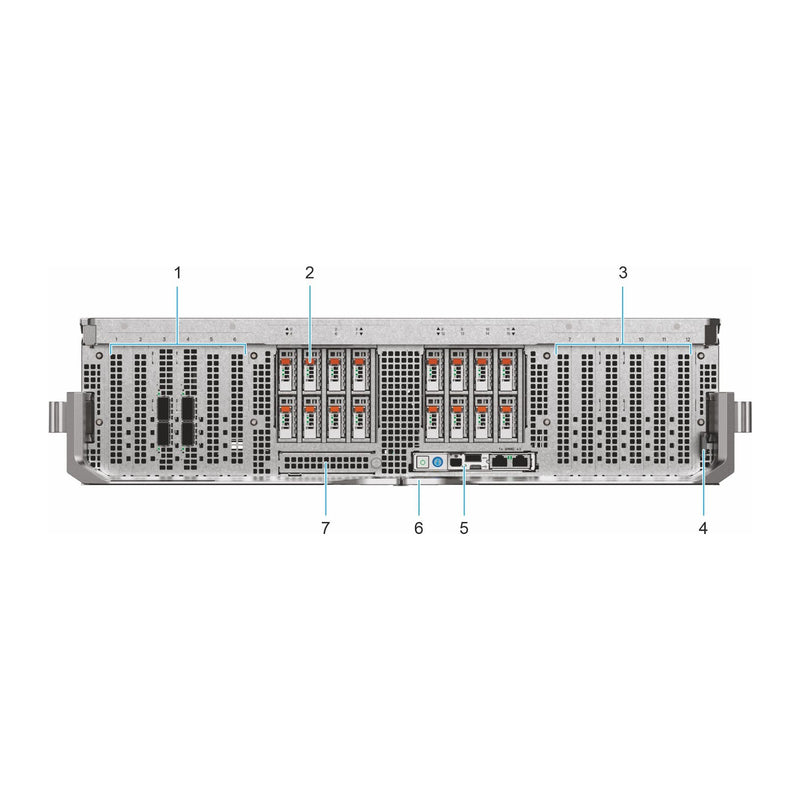

16 x E1.S NVMe

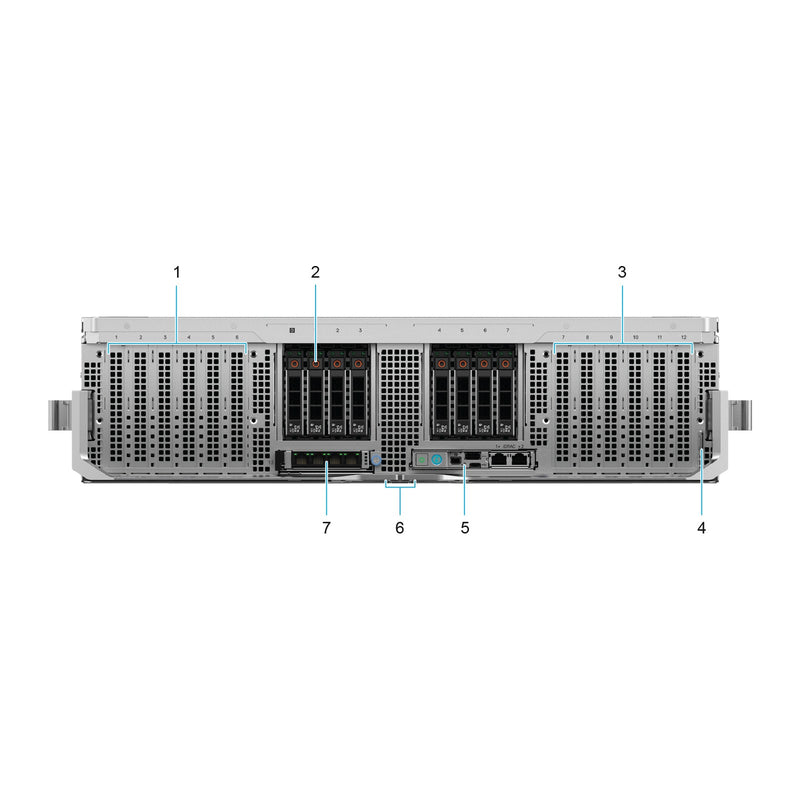

8 x 2.5" U.2 NVMeⓘ Drives Two chassis: 16 x E1.S Gen5 NVMe (up to 122.88 TB) for MI355X or B300, or 8 x 2.5" U.2 Gen4 NVMe for MI355X, B300 or B200. Drives attach directly; no PERC, SAS or SATA. The node installs only in an IR7000 rack.

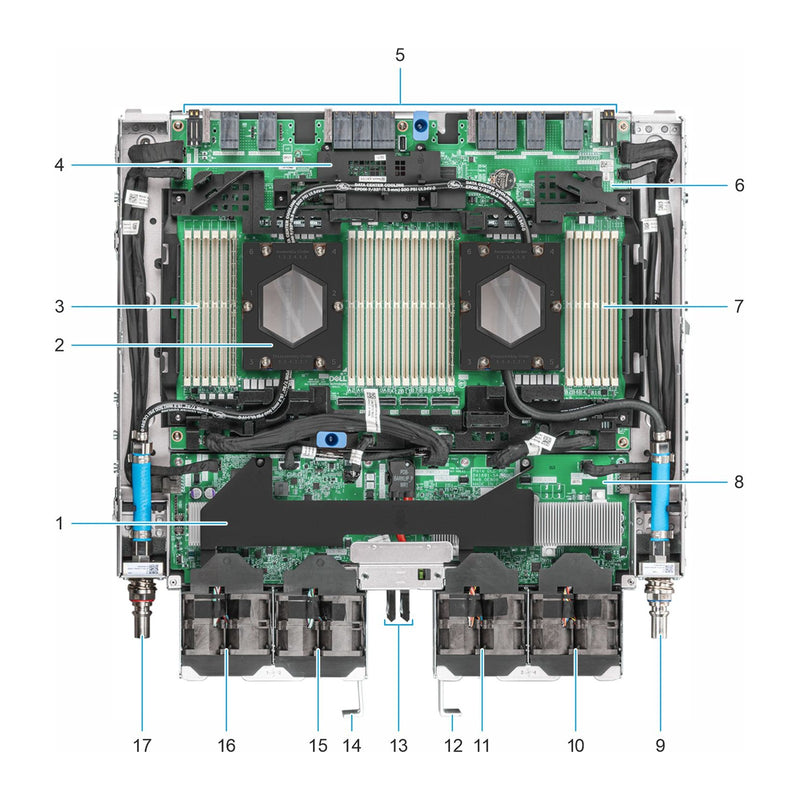

Two 5th Gen AMD EPYC 9005 Series processors (SP5, Zen 5), up to 192 cores each.
- Up to 192 cores / 384 threads per CPU
- Up to 500 W TDP
- PCIe Gen5 I/O, xGMI3 up to 32 Gbps
- AMD SME and SEV security
- 2 processors required; do not mix
- Supported: 9965, 9755, 9845, 9825, 9655, 9575F, 9475F, 9455
- Direct liquid-cooled CPU cold plates

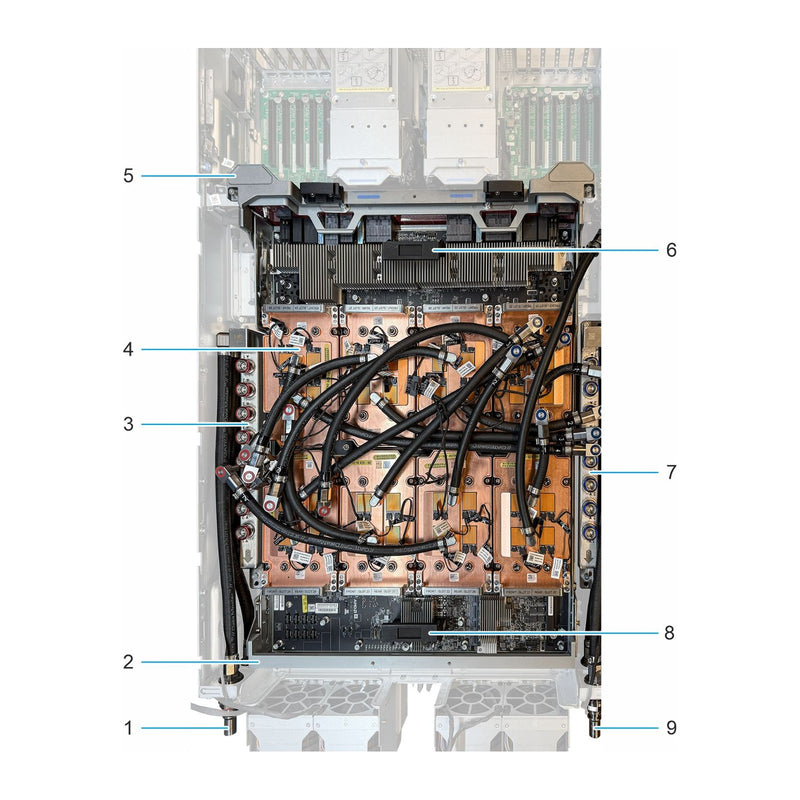

- 8 GPUs on one board: MI355X OAM (Infinity Fabric) or B300 / B200 SXM6 (NVLink)

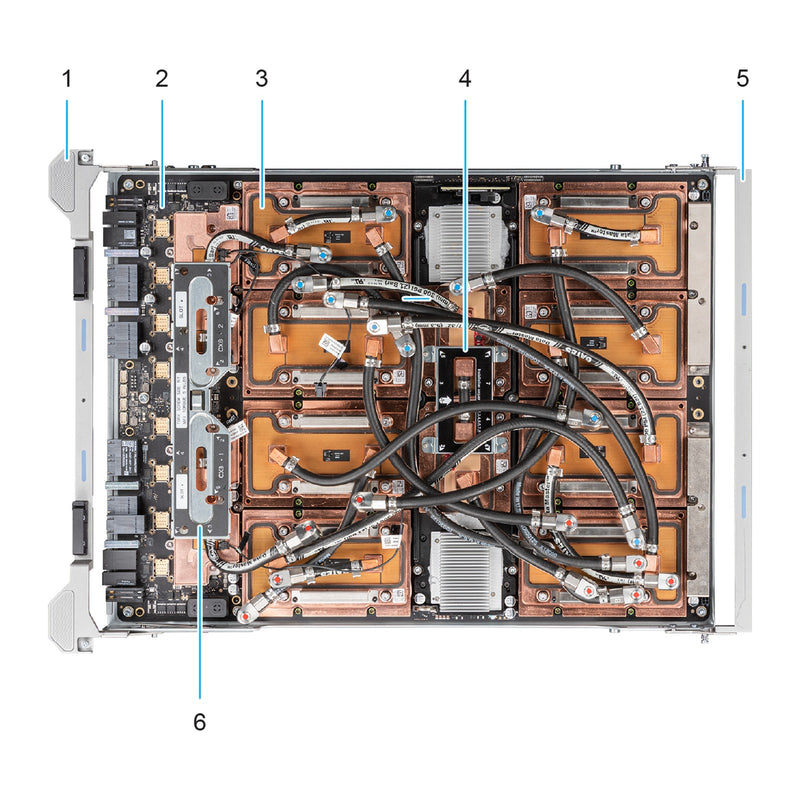

- Cold plates on the GPUs and NVLink switches, with leak sensors

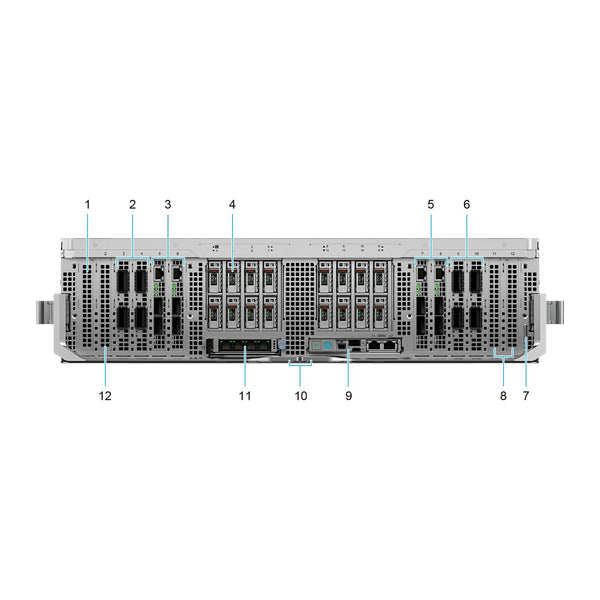

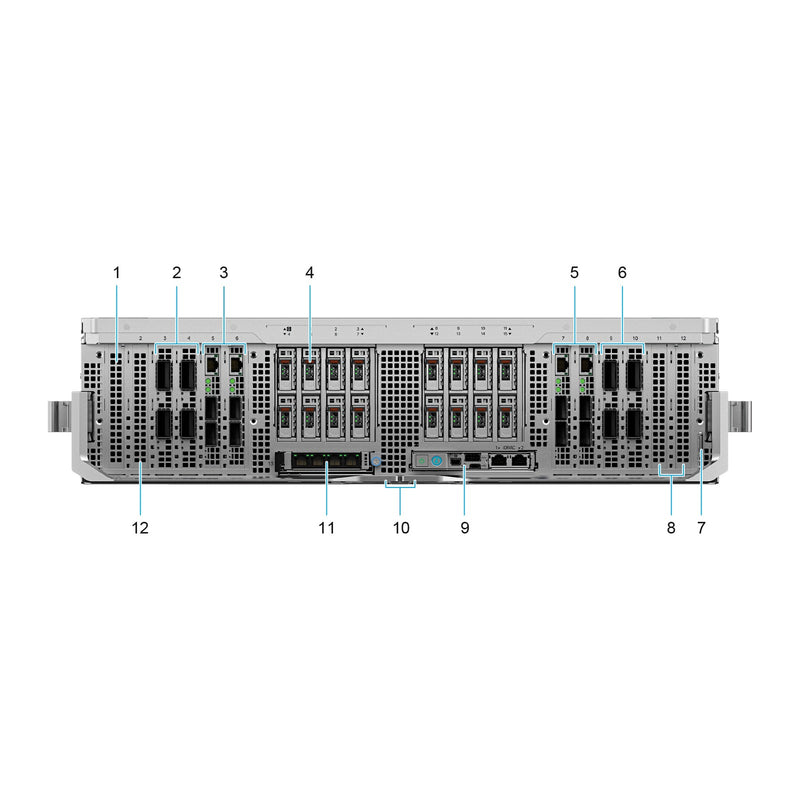

- B300: 8 integrated OSFP ports (ConnectX-8) for the GPU fabric
- One 8-GPU board per system; no partial GPU counts
- B200 ships with the 8 x U.2 chassis only
- Needs the IR7000 rack coolant manifold
| GPU | Memory per GPU | Power per GPU | PCIe NIC slots |
|---|---|---|---|
| 8x AMD Instinct MI355X OAM | 288 GB HBM3e | 1400 W | Up to 12 (slots 1-12) |
| 8x NVIDIA HGX B300 SXM6 | 288 GB HBM3e | 1100 W | Up to 4 (slots 5-8) |
| 8x NVIDIA HGX B200 SXM6 | 180 GB HBM3e | 1000 W | Up to 12 (slots 1-12) |
| DIMM type | Rank | Capacity | Rated speed | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2Rx4 | 96 GB | 6400 MT/s (1DPC) | 2.3 TB |
| 2Rx4 | 128 GB | 3 TB | ||
| 8Rx4 | 256 GB | 6 TB |
ⓘ Memory 12 DIMM slots per processor (1 DIMM per channel), 1.1 V RDIMM only; do not mix capacities.
- Hardware RAID 0/1 across 2 x M.2 NVMe SSDs
- M.2 SSDs: 480 GB or 960 GB
- B300: internal BOSS-N1 at the front; MI355X / B200: embedded BOSS
- 1 x OCP 3.0 SFF slot (x16), front of the system
- 10GbE to 100GbE: Broadcom, Intel, NVIDIA
- MI355X / B200: up to 12 cards, Gen5 x16 FHHL
- B300: up to 4 cards in slots 5-8
- NICs: 400GbE, 200GbE and 100GbE
- DPUs: BlueField-3 B3220 (2 x 200GbE) and B3240 (2 x 400GbE), up to 4
- Cold plates on the CPUs, GPUs and NVLink switches

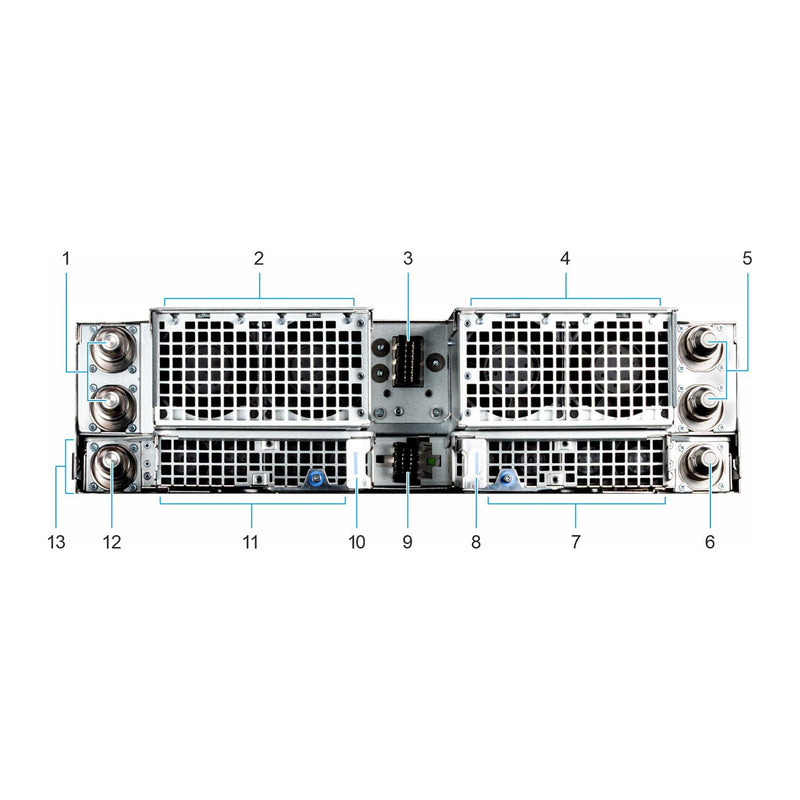

- 6 rear quick disconnects to the rack manifold
- 4 GPU fans + 8 HPM fans for the rest of the node
- Power from the IR7000 rack power shelf (6 x 5500 W, 33 kW)
- No PSUs in the node
- User power cap not supported
- iDRAC10 with 2 dedicated RJ45 iDRAC ports
- iDRAC Direct (front USB Type-C)
- iDRAC RESTful API with Redfish
- Soldered-down TPM 2.0, Secure Boot, Silicon Root of Trust
- AMD SME / SEV, System Lockdown, Secure Erase
- Secured Component Verification, Chassis Intrusion Detection
- Height: 140.5mm (5.53"), 3 OU
- Width: 537mm (21.14")
- Depth: 1047.95mm (41.26") with fan, 889.65mm (35.03") without
- Max 95.4 kg (210.3 lbs); use a server lift
- L-bracket ORv3 static rails only; no CMA or bezel
