10U rack server, air cooled
Processor | Max: 192 Cores per CPU2x 5th Generation AMD EPYC 9005 Series
Memory | Max: 6TB (256GB DIMMs, B300 only)24 DDR5 RDIMM slots, up to 6400 MT/s
GPU:8x AMD Instinct MI355X 288GB (1400W) OAM or
8x NVIDIA HGX B300 288GB (1100W) SXM6, NVLink
16 x EDSFF E3.S Gen5 NVMe (direct attached)
Boot Options:BOSS-N1 DC-MHS (2 x M.2 NVMe, RAID 1)
Networking Options (NOC):1x OCP 3.0 (x8)
8x OSFP (ConnectX-8) with B300
2x dedicated iDRAC RJ45 ports
iDRAC10
PCIe Slots:MI355X: 12x Gen5 x16 FHHL
B300: 4x Gen5 x16 FHHL
(Click to View)
- Artificial Intelligence (AI)
- Large Language Model Training
- Deep Learning (DL)
- High-Performance Computing (HPC)
The Dell PowerEdge XE9785 is a 10U, dual-socket, air-cooled AI training server. It pairs two 5th Gen AMD EPYC 9005 processors (up to 192 cores each) with an 8-GPU baseboard: AMD Instinct MI355X on Infinity Fabric or NVIDIA HGX B300 on NVLink. It adds 24 DDR5 DIMMs (up to 6TB), 16 E3.S Gen5 NVMe drives and up to 12 PCIe Gen5 slots for the cluster fabric.
- 16 front EDSFF E3.S Gen5 NVMe bays (direct attached)

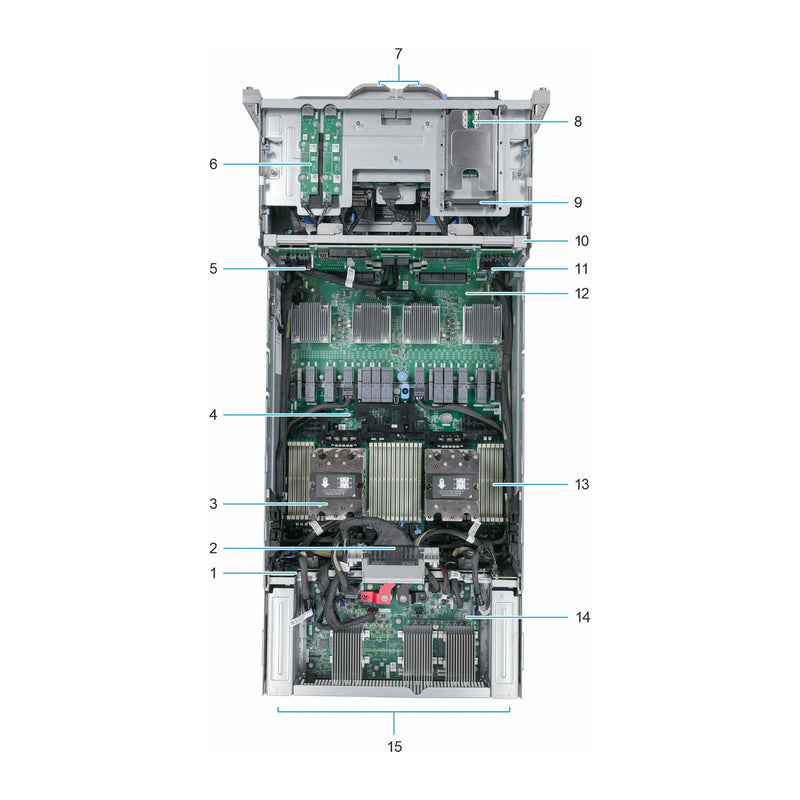

- GPU sled on top, HPM sled (CPUs, memory) slides out the front

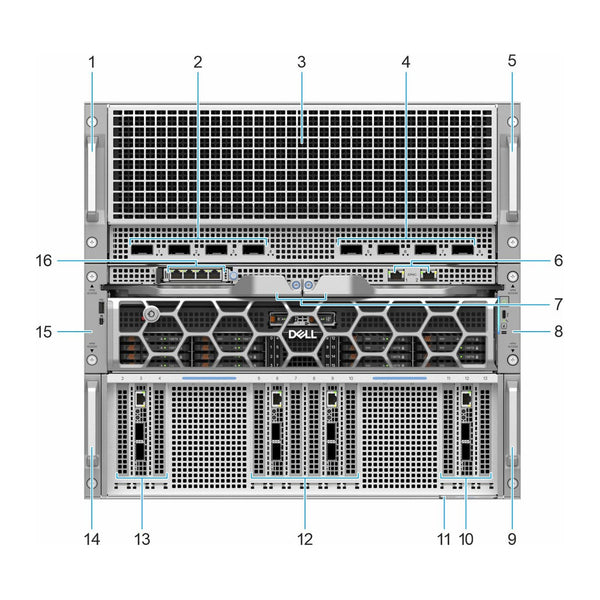

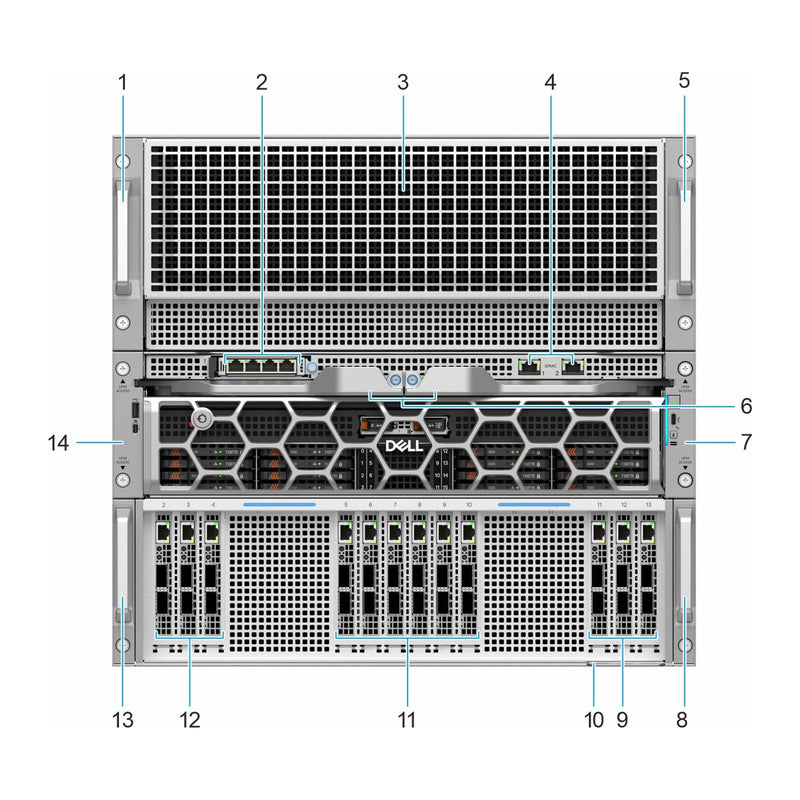

- Front: OCP 3.0, BOSS-N1, 2 x iDRAC RJ45, USB-C iDRAC Direct, USB-A, Mini-DP
- NVMe only with software RAID (S160): no PERC, SAS or SATA
- One chassis option for this server; air cooled only
- 1044.7 mm (41.12") deep with bezel: check rack depth and rear PDUs
Two 5th Gen AMD EPYC 9005 Series processors (SP5, Zen 5), up to 192 cores each.
- Up to 192 cores / 384 threads per CPU
- Up to 5.0 GHz boost (9575F)
- PCIe Gen5 I/O, xGMI3 up to 32 Gbps
- AMD SME and SEV security
- 2 processors required; do not mix
- Supported: 9965, 9755, 9655, 9575F, 9845, 9825, 9475F, 9455
- Standard heatsink and fans cover every supported CPU, up to 500 W

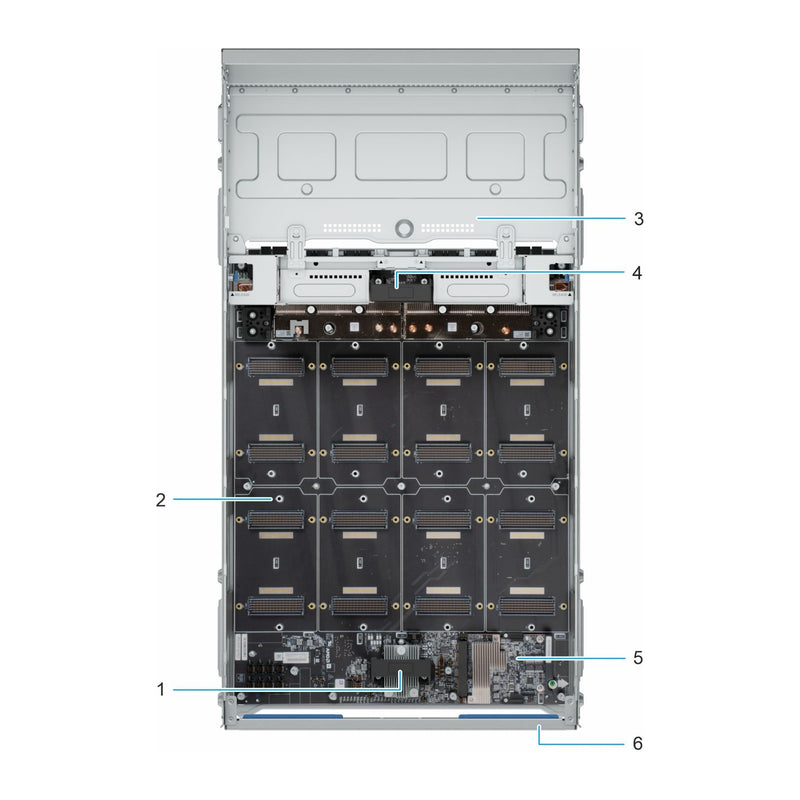

- 8 GPUs on one baseboard: MI355X OAM (Infinity Fabric) or B300 SXM6 (NVLink)
- B300: 8 integrated OSFP ports (ConnectX-8) for the GPU fabric
- 15 hot-swap fans at the rear cool the GPU sled
- One 8-GPU baseboard per system; no partial GPU counts
- 256GB DIMMs supported with B300 only
- MI355X can be factory power capped at 1 kW per GPU on request
| GPU | Memory per GPU | Power per GPU | PCIe NIC slots |
|---|---|---|---|
| 8x AMD Instinct MI355X OAM | 288 GB HBM3e | 1400 W | 12 x 75 W (slots 2-13) |
| 8x NVIDIA HGX B300 SXM6 | 288 GB HBM3e | 1100 W | 4 x 150 W (slots 3, 6, 9, 12) |
| DIMM type | Rank | Capacity | Rated speed | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2Rx4 | 96 GB | 6400 MT/s (1DPC) | 2.3 TB |
| 2Rx4 | 128 GB | 3 TB | ||
| 8Rx4 | 256 GB | 6 TB |
ⓘ Memory 12 DIMM slots per processor (1 DIMM per channel), 1.1 V RDIMM only; do not mix capacities. 256 GB DIMMs are supported with the B300 GPU configuration only.
- Hardware RAID 1 across 2 x M.2 NVMe SSDs
- M.2 SSDs: 480 GB or 960 GB
- Front-accessible carriers
- 1 x OCP 3.0 SFF slot (x8), front of the system
- 10GbE to 200GbE: Broadcom, Intel, NVIDIA
- MI355X: up to 12 cards, Gen5 x16 FHHL, 75 W each
- B300: up to 4 cards (150 W) in slots 3, 6, 9, 12
- NICs: 1 x 400GbE, 2 x 200GbE, 2 x 100GbE
- DPUs: BlueField-3 B3220 (2 x 200GbE) and B3240 (2 x 400GbE)

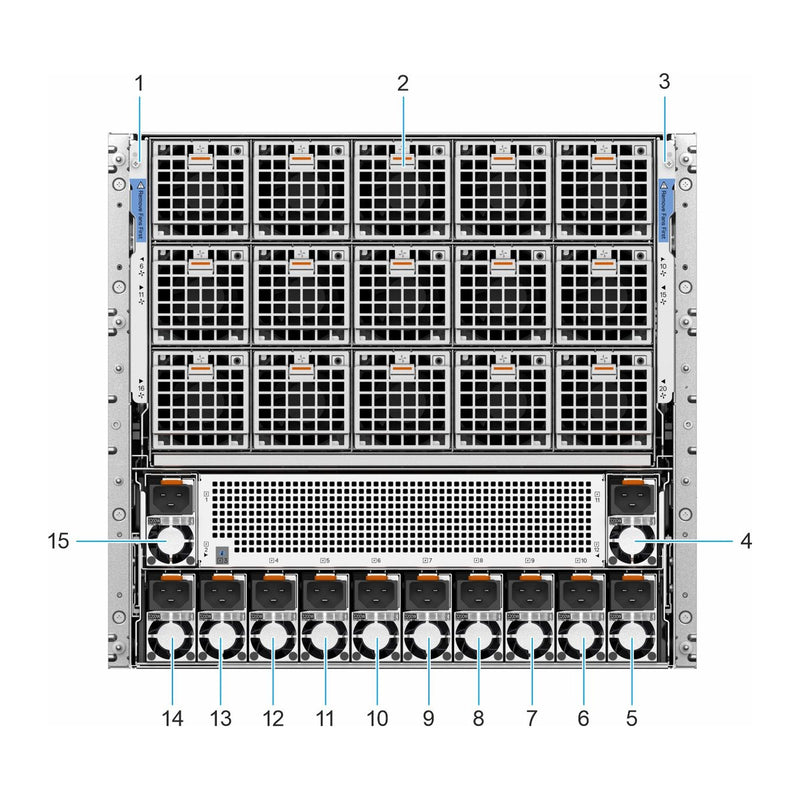

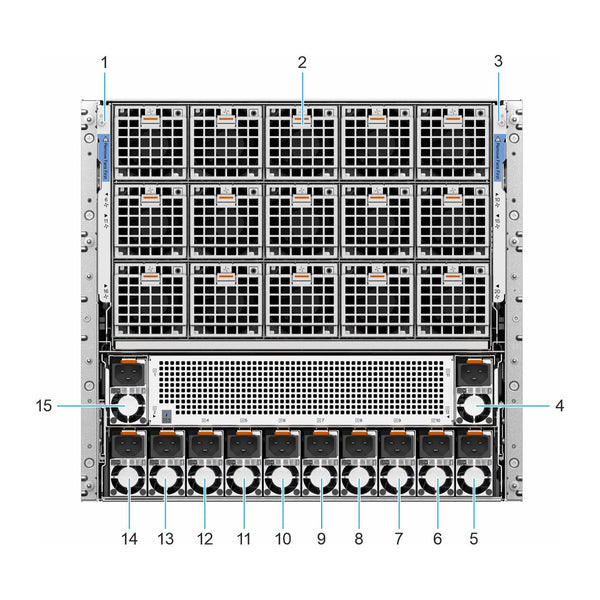

- 15 hot-swap GPU fans in the rear fan sled
- 5 cold-swap CPU fans in the HPM sled
- N+1 fan redundancy
- Air cooled only; no liquid-cooling option
- 10°C to 35°C ambient; ASHRAE A3/A4 not supported
- GPU fans must be reinstalled within 30 seconds
- iDRAC10 with 2 dedicated RJ45 iDRAC ports
- iDRAC Direct (front USB Type-C)
- iDRAC RESTful API with Redfish
- Soldered-down TPM 2.0, Secure Boot, Silicon Root of Trust
- AMD SME / SEV, System Lockdown, Secure Erase
- Secured Component Verification, Chassis Intrusion Detection
| Form factor | Output | Power cord |
|---|---|---|
| Redundant 73.5 mm (12 PSUs) | 3200 W Titanium mixed mode | C19 |
ⓘ PSU 12 x 3200 W PSUs with 6+6 full redundancy or A/B grid redundancy. Output drops to 2900 W at 200-216 V AC. User power cap is not supported. Do not mix PSU vendors.
- Height: 439.5mm (17.30")
- Width: 448.0mm (17.63"), 482.3mm (18.98") with rack ears
- Depth: 1044.7mm (41.12") with bezel, 1023mm (40.27") without
- Max 172.3 kg (379.86 lbs) with MI355X, 163.65 kg (360.79 lbs) with B300
- Static rails only; cable management arm not supported
