Home / All / Dell PowerEdge T550 Tower Server Chassis (16x2.5")
SKU: DPE-T550-16x2.5-Chassis

Dell PowerEdge T550 Tower Server Chassis (16x2.5")

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Tower server 5U (Rackable)

Processor Max: 36 Cores

2x Gen 3 Intel Xeon Scalable Processors

Memory Max: 2TB

16 DDR4 RDIMM 3200Mhz

Storage Max: 360TB

16x 2.5" SAS/SATA (HDD/SSD) Max: 240TB

Boot Options

Boot Optimized Server Storage (BOSS-S2)
IDSDM
Internal USB

RAID Controller:

S150 (SW RAID)
PERC H345, H355, H745, H755, H755N, HBA355i, HBA355e (non-RAID), H840

OCP/LOM

1 x OCP 3.0
2 x 1GbE LOM

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 6 x PCIe Gen4 slots

GPU:

2x DW 300W NVIDIA A40, or 5x SW 70W NVIDIA T4

Other Versions

Ideal for:

  • Artificial Intelligence (AI)
  • Data Analytics
  • High-Performance Computing (HPC)
  • Machine Learning (ML)
  • Virtualization
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeaturePowerEdge T550 Technical specification
ProcessorUp to two 3rd Generation Intel Xeon Scalable processors with up to 36 cores per processor
Memory16 DDR4 DIMM slots, supports RDIMM 2 TB max, speeds up to 3200 MT/s
Supports registered ECC DDR4 DIMMs only
Storage controllersInternal controllers: HBA345, PERC H345, PERC H355, PERC H745, PERC H755, S150, H755N, HBA355i
External PERC (RAID): PERC H840
External HBAs (non-RAID): HBA355e
Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB

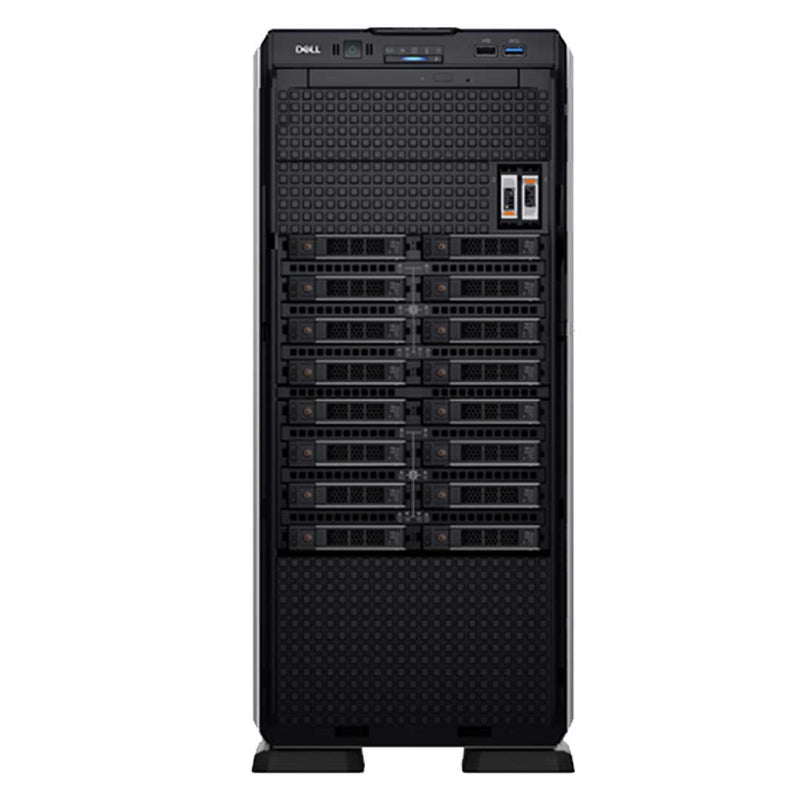

Drive baysFront bays:
  • Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB
  • Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB
  • Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB
  • Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB
  • Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB
Power supplies
  • 600 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 700 W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
  • 800 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100 W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
  • 1100 W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1400 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1800 W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
  • 2400 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
Cooling OptionsAir cooling
FansStandard (STD) fans/High performance (HPR) silver fans
Up to eight hot swap fans
DimensionsHeight – 459.0 mm (18.07 inches)
Width – 200.0 mm (7.87 inches)
Depth – 663.5 mm (26.12 inches) – without bezel
Depth – 680.5 mm (26.79 inches) – with bezel
Form Factor5U tower server
Embedded ManagementiDRAC9
iDRAC Direct
iDRAC RESTful with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
NOTE- iDRAC Direct and Quick Sync 2 are available only as an upsell on T550.
BezelOptional LCD bezel or security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
MobilityOpenManage Mobile
Integrations and connectionsOpenManage Integrations:
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager
OpenManage Connections:
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1 GbE LOM
Network Options1 x OCP 3.0
GPU OptionsUp to (2) Double-Wide (DW) 300 W NVIDIA A40,
or (5) Single-Wide (SW) 70 W NVIDIA T4 accelerators

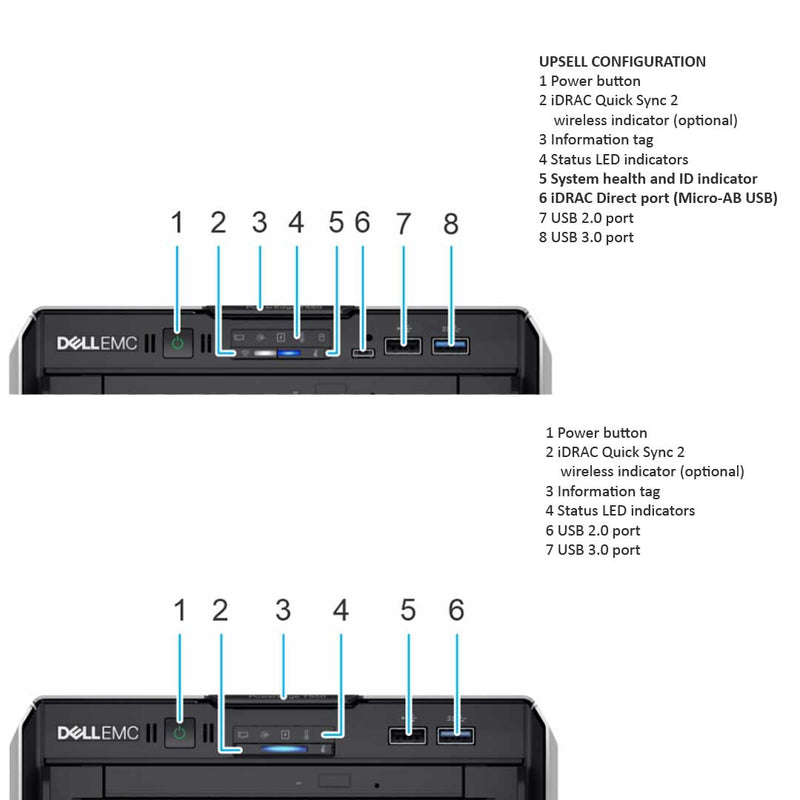

PortsFront Ports
  • 1 x Dedicated iDRAC (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x USB 3.0

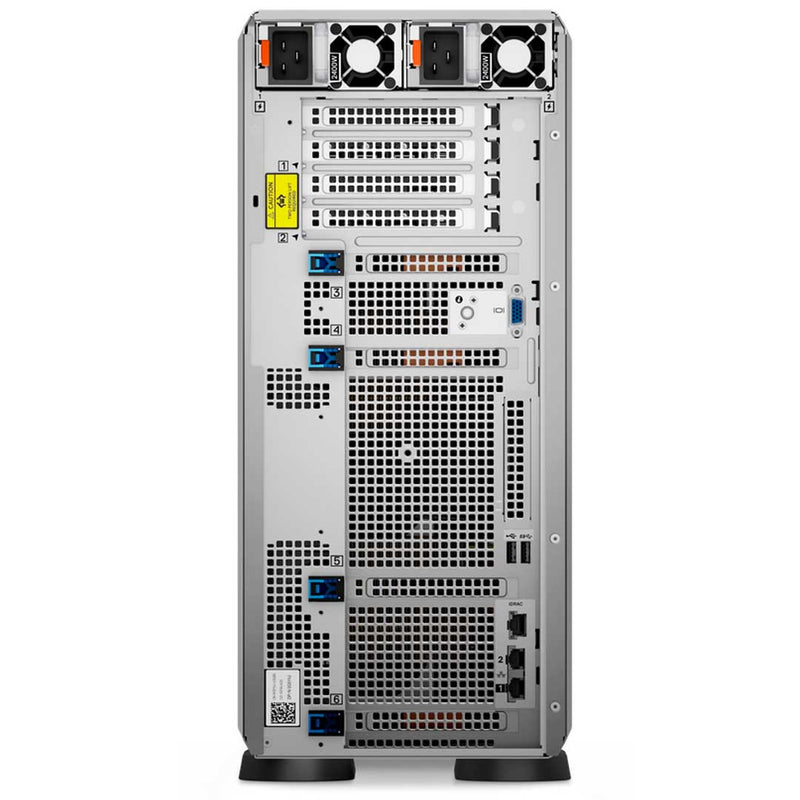

Rear Ports
  • 1 x USB 2.0
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 3.0
  • 1 x VGA
  • 2 x Ethernet
  • 1 x Serial (optional)
Internal Ports
1 x USB 3.0 (optional)
PCIe
  • Up to 6 x PCIe Gen4 slots
Operating System and HypervisorsCanonical Ubuntu Server LTS
Citrix Hypervisor
VMware ESXi
Microsoft Windows Server with Hyper-V
SUSE Linux Enterprise Server
Red Hat Enterprise Linux
