Home All Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height
Dell PERC H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height
Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height
-*Image may differ from actaul product
Dell PERC H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height
Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height

Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height


Price: Request a Quote

Brand:
Dell
MPN:
H350-FH
Type:
Storage Controllers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height

Quick Specs

Models

Adapter PERC

Drive Types

Gen3 (8 GT/s)
12 Gb/s SAS
6 Gb/s SAS/SATA
3 Gb/s SAS/SATA

PCI Support

PCI-e 4.0

SAS Connectors

2x4 External

Cache Memory

No Cache

Write Back Cache

No Cache

RAID Levels

0,1,10

Max Drive Support

N/A

RAID Support

Hardware

Part Numbers:

  • N/A
H350 PERC Series Options

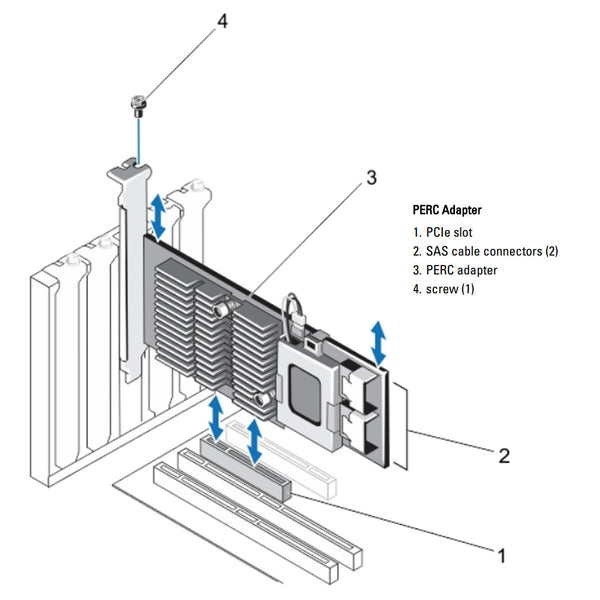

H350 Adapter View PERC

Enclosures per port 0
Cache: N/A
RAID Level: 0, 1, 10
Non-RAID: Yes
PCIe: Gen 4
Supported Drives:
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
Max SAS/SATA disks:
  • Up To 32 RAID
  • or 32 Non-RAID
Max NVMe drives:
  • Not Supported
Max physical disks:
  • N/A

H350 Mini Mono View PERC

Enclosures per port 0
Cache: N/A
RAID Level: 0, 1, 10
Non-RAID: Yes
PCIe: Gen 4
Supported Drives:
  • Gen3 (8 GT/s)
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
  • 3 Gb/s SAS/SATA
Max SAS/SATA disks:
  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:
  • Not Supported
Max physical disks:
  • N/A
Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

  • RAID 0

    Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.

  • RAID 1

    Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.

  • RAID 5

    Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.

  • RAID 6

    Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.

  • RAID 10

    Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.

  • RAID 50

    Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.

  • RAID 60

    Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

This Product Is Compatible With The Following Systems:

Product Specs

Spec Sheet 4

Feature PERC H355 adapter SAS PERC H355 front SAS PERC H350 adapter SAS PERC H350 Mini Monolithic SAS
RAID levels 0, 1, 10 0, 1, 10 0, 1, 10 0, 1, 10
Non–RAID Yes Yes Yes Yes
Enclosures per port Not applicable Not applicable Not applicable Not applicable
Processor Broadcom RAID-onchip, SAS3816 chipset Broadcom RAID-onchip, SAS3816 chipset Broadcom RAID-onchip, SAS3816 chipset Broadcom RAID-onchip, SAS3816 chipset
Battery backup unit No No No No
Local Key Management security No No No No
Controller queue depth 1536 1536 1536 1536
Secure enterprise key manager security No No No No
Non-volatile cache No No No No
Cache memory Not applicable Not applicable Not applicable Not applicable
Cache function Write through, no read ahead Write through, no read ahead write through, no read ahead write through, no read ahead
Max no of VDs in RAID mode 32 32 32 32
Max no of disk groups 32 32 32 32
Max no of VDs per disk group 16 16 16 16
Hot swap devices supported Yes Yes Yes Yes
Autoconfig Yes Yes Yes Yes
Hardware XOR engine Yes Yes Yes Yes
Online capacity expansion Yes Yes Yes Yes
Dedicated and global hot spare Yes Yes Yes Yes
Drives types 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)
VD strip size 64 KB 64 KB 64 KB 64 KB
PCIe support Gen 4 Gen 4 Gen 4 Gen 4
SAS/SATA maximum drive support
  • Without SAS Expander: 16
  • With SAS Expander: Limited by platform offering
  • Without SAS Expander: 16
  • With SAS Expander: Limited by platform offering
  • Without SAS Expander: 8 drives per controller
  • With SAS Expander: Limited by platform offering
  • Without SAS Expander: 8 drives per controller
  • With SAS Expander: Limited by platform offering
NVMe maximum drive support Not applicable Not applicable Not applicable Not applicable
Table 1.Technical specifications of PERC 11 cardsThe following tables list the technical specifications of PERC 11 cards.
Feature PERC H755 adapter PERC H755 front SAS PERC H755N front NVMe PERC H755 MX adapter PERC H750 adapter SAS
RAID levels 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50 ,60 0, 1, 5, 6, 10, 50 ,60
Non–RAID Yes Yes Yes Yes Yes
Enclosures per port Not applicable Not applicable Not applicable Not applicable Not applicable
Processor Broadcom RAID-on-chip, SAS3916 chipset Broadcom RAID-on-chip, SAS3916 chipset Broadcom RAID-on-chip, SAS3916 chipset Broadcom RAID-on-chip, SAS3916 chipset

Broadcom RAID-on-chip, SAS3916 chipset

Battery backup unit Yes Yes Yes Yes Yes
Local Key Management security Yes Yes Yes Yes Yes
Controller queue depth 5120 5120 5120 5120 5120
Secure enterprise key manager security Yes Yes Yes No Yes
Non-volatile cache Yes Yes Yes Yes Yes
Cache memory 8 GB DDR4 2666 MT/s cache 8 GB DDR4 2666 MT/s cache 8 GB DDR4 2666 MT/s cache 8 GB DDR4 2666 MT/s cache 8 GB DDR4 2666 MT/s cache
Cache function Write back, write through, no read ahead, and read ahead Write back, write through, no read ahead, and read ahead Write back, write through, no read ahead, and read ahead Write back, write through, no read ahead, and read ahead Write back, write through, no read ahead, and read ahead
Max no of VDs in RAID mode 240 240 240 240 240
Max no of disk groups 240 240 240 240 240
Max no of VDs per disk group 16 16 16 16 16
Hot swap devices supported Yes Yes Yes Yes Yes
Autoconfig Yes Yes Yes Yes Yes
Hardware XOR engine Yes Yes Yes Yes Yes
Online capacity expansion Yes Yes Yes Yes Yes
Dedicated and global hot spare Yes Yes Yes Yes Yes
Drives types 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s), and Gen4 (16 GT/s) NVMe 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s), and Gen4 (16 GT/s) NVMe 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
VD strip size 64 KB, 128 KB, 256 KB, 512 KB, 1 MB 64 KB, 128 KB, 256 KB, 512 KB, 1 MB 64 KB, 128 KB, 256 KB, 512 KB, 1 MB 64 KB, 128 KB, 256 KB, 512 KB, and 1 MB 64 KB, 128 KB, 256 KB, 512 KB, 1 MB
PCIe support Gen 4 Gen 4 Gen 4 Gen 4 Gen 4
SAS/SATA maximum drive support
  • Without SAS Expander: 16 drives per controller
  • With SAS Expander: Limited by platform offerings
  • Without SAS Expander: 16 drives per controller
  • With SAS Expander: Limited by platform offerings
 Not applicable Limited by platform: 8 drives per controller
  • Without SAS Expander: 8 drives per controller

  • With SAS Expander: Limited by platform offerings

NVMe maximum drive support
  • Without PCIe Switch Expander: 8 drives per controller
  • With PCIe Switch Expander: Limited by platform offerings
 Not applicable
  • Without PCIe Switch Expander: 8 drives per controller
  • With PCIe Switch Expander: Limited by platform offerings
 Limited by platform:8 drives per controller Not applicable

Category: 15g, dell, full-height, interface-type-sas, interface-type-sata, pci-e-x8, pcie-4, perc-11, perc-type-adapter, speed-12gb, speed-6gb
