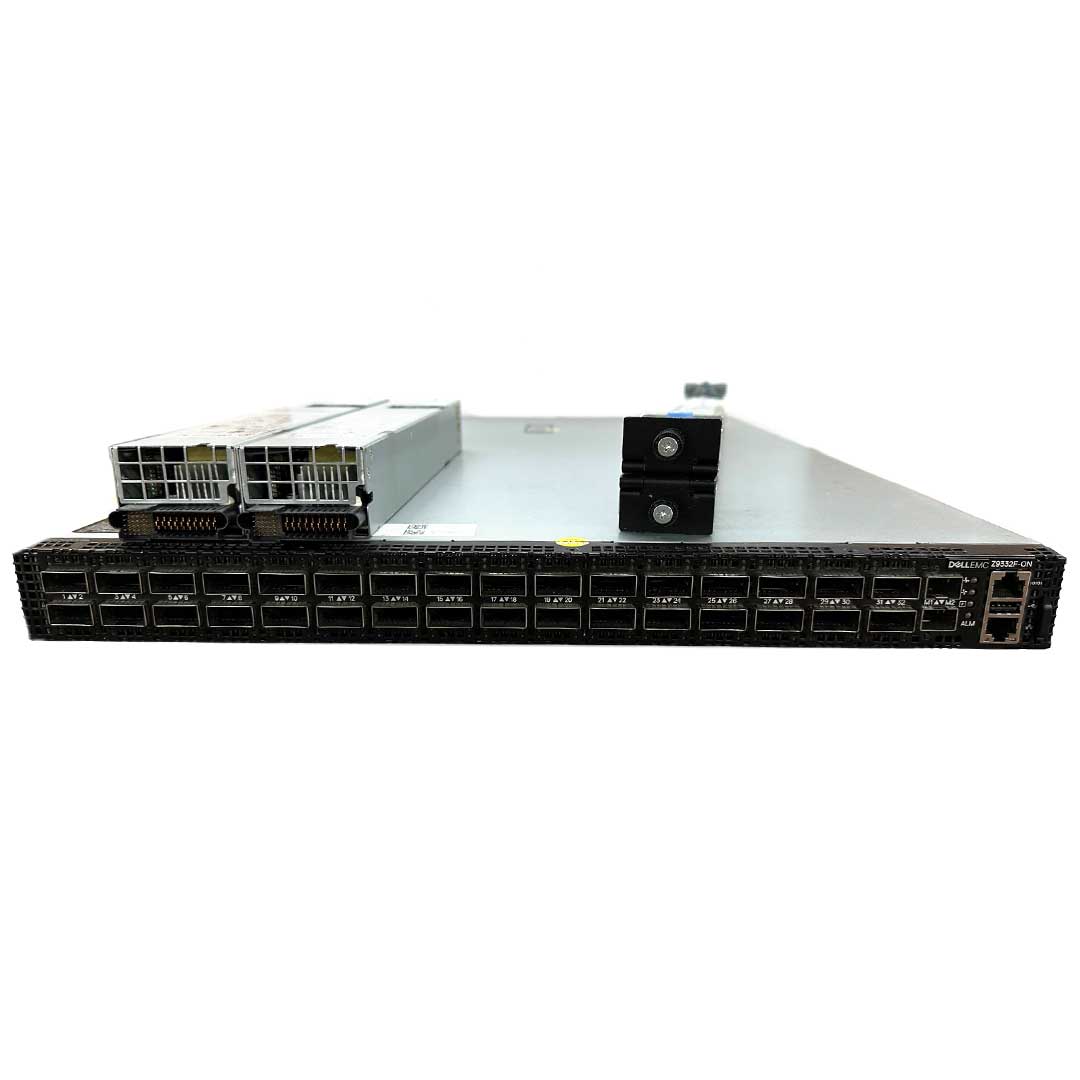

Dell EMC PowerSwitch Z9332F-ON 32x400GbE QSFP56-DD ports + 2xSFP+ 10GbE
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Specs
Switch Specs
Airflow - I/O to PSU (RED)
Airflow - PSU to I/O (BLUE "Reverse")
The Z9332F-ON 100/400GbE fixed switch comprises Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 100/400 GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. This innovative, next-generation open networking high-density aggregation switch offers optimum flexibility and cost-effectiveness for the web 2.0, enterprise, mid-market and cloud service providers with demanding compute and storage traffic environments.
The compact PowerSwitch Z9332F-ON provides industry-leading density of either 32 ports of 400GbE in QSFP56-DD form factor or 128 ports of 100 or up to 144 ports of 10/25/501 (via breakout), in a 1RU design.
Key features:
- 1RU high-density 100/400GbE aggregation switch with up to 32 ports of 400GbE (QSFP56-DD) or up to 128 ports of 100GbE or up to 144 ports of 10/25/50GbE1 (using breakout cable)
- Multi-rate 400GbE ports support 10/25/40/50/100GbE. 40GbE ports support 10/40GbE
- Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF and BGP routing support
- 25.6Tbps non-blocking (full duplex), switching fabric delivers line-rate performance under full load on Z9332F-ON
- L2 multipath support via Virtual Link Trunking (VLT) and Routed VLT support
- Supports Dell SmartFabric OS10
- Converged network support for DCB, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV support
- Supports Routable RoCE to enable convergence of compute and storage on Active Fabric

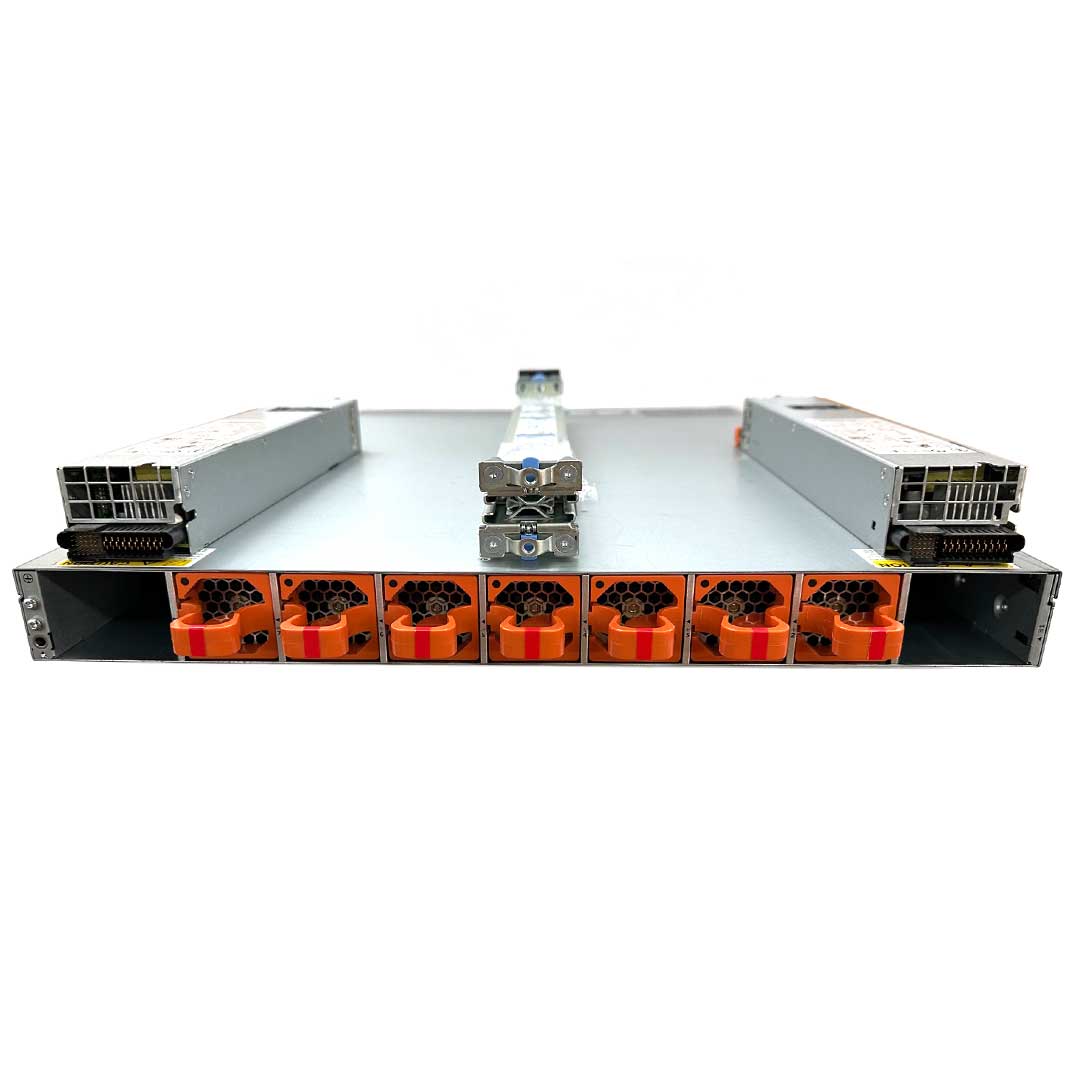

- IO panel to PSU airflow or PSU to IO panel airflow*
- Redundant, hot-swappable power supplies and fans
- Supports the open source Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems
- Accelerated mounting kits reducing time and resources for switch rack installation
Compatible With:
- Dell Z9332f
(Click to View)
Switch Capabilities
| S5212F-ON | S5224F-ON | S5248F-ON | S5296F-ON | S5232F-ON | |
|---|---|---|---|---|---|
| Ports | 12xSFP28 3xQSFP28 | 24xSFP28 4xQSFP28 | 48xSFP28 2xQSFP28-DD 4xQSFP28 | 96xSFP28 8xQSFP28 | 32xQSFP28 2xSFP+ |
| Max 10GbE density | 12 (SFP28) 12 (QSFP28 Breakout) | 24 (SFP28) 16 (QSFP28 breakout) | 48 (SFP28) 16 (QSFP28-DD breakout) 16 (QSFP28 breakout) | 96 (SFP28) 32 (QSFP28 breakout) | 124 (QSFP28 breakout) 2 (SFP+) |
| Max 25GbE density | 12 (SFP28) 12 (QSFP28 Breakout) | 24 (SFP28) 16 (QSFP28 breakout) | 48 (SFP28) 16 (QSFP28-DD breakout) 16 (QSFP28 breakout) | 96 (SFP28) 32 (QSFP28 breakout) | 124 (QSFP28 breakout) |
| Max 40GbE density | 3 (QSFP28) | 4 (QSFP28) | 6 (QSFP28) 4 (QSFP28-DD breakout) | 8 (QSFP28) | 32 (QSFP28) |
| Max 50GbE density | 6 (QSFP28 breakout) | 8 (QSFP28 breakout) | 16 (QSFP28 breakout) | 16 (QSFP28 breakout) | 64 (QSFP28 breakout) |
| Max 100GbE density | 3 (QSFP28) | 4 (QSFP28) | 4 (QSFP28) 4 (QSFP28-DD breakout) | 8 (QSFP28) | 32 (QSFP28) |
| Switching capacity | 1.08 Tbps (2.16 Tbps full duplex) | 1.08 Tbps (2.16 Tbps full duplex) | 2.0 Tbps (4.0 Tbps full duplex) | 3.2 Tbps (6.4 Tbps full duplex) | 3.2 Tbps (6.4 Tbps full duplex) |
| Throughput | 440 Mpps (880 Mpps full duplex) | 720 Mpps (1.42 Bpps full duplex) | 1.5 Bpps (3.0 Bpps full duplex) | 2.4 Bpps (4.8 Bpps full duplex) | 2.4 Bpps (4.8 Bpps full duplex) |
| Latency (nano sec) | 906 | 881 | 847 | 850 | 877 |
| 1588v2 PTP timing (hardware) | No | Yes | Yes | Yes | Yes |
| CPU Memory | 16GB | 16GB | 16GB | 16GB | 16GB |
| SSD | 64GB | 64GB | 64GB | 64GB | 64GB |
| Packet Buffer | 32MB | 32MB | 32MB | 32MB | 32MB |
| Maximum power | 304W | 455W | 647W | 893W | 635W |
| Typical power | 140W | 200W | 310W | 457W | 360W |
| Maximum current | 2.8A@110VAC / 1.4A@220VAC | 4.2A@110VAC / 2.1A@220VAC | 5.8A@110VAC / 2.9A@220VAC | 8.2A@110VAC / 4.1A@220VAC | 5.8A@110VAC / 2.9A@220VAC |
| Fan modules | Fixed | 4 | 4 | 4 | 4 |
| Form Factor | 1RU (half-width) | 1RU | 1RU | 2RU | 1RU |
| Dimensions | 8.2”Wx19.3”D x1.6”H 20.9Wx49.0D x4.1H (cm) | 17.1”Wx18.1”D x1.7”H 43.4Wx46.0D x4.4H (cm) | 17.1”Wx18.1”D x1.7”H 43.4Wx46.0D x4.4H (cm) | 17.4”Wx20.1”D x3.4”H 44.2Wx51.1D x8.7H (cm) | 17.1”Wx18.1”D x1.7”H 43.4Wx46.0D x4.4H (cm) |
| Weight | 4.5kg (10.05lbs) | 9.7kg (21.4lbs) | 9.7kg (21.4lbs) | 15.1kg (33.2lbs) | 9.8kg (21.6lbs) |
| Max thermal output | 1037 BTU/h | 1552 BTU/h | 2208 BTU/h | 3047 BTU/h | 2167 BTU/h |
