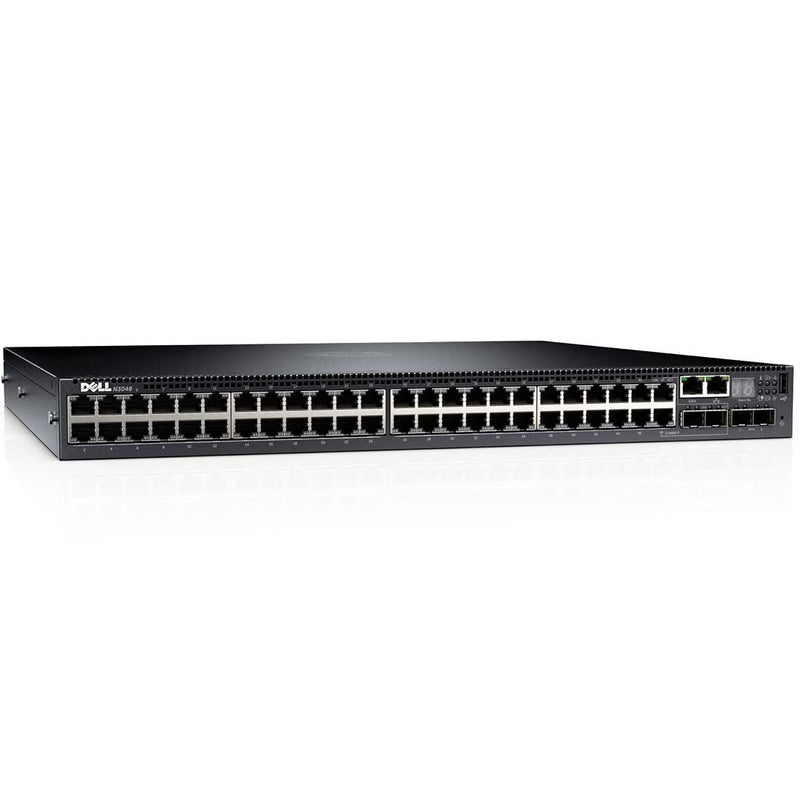

Dell EMC PowerSwitch N3048P 48-Port PoE+ L3 Switch

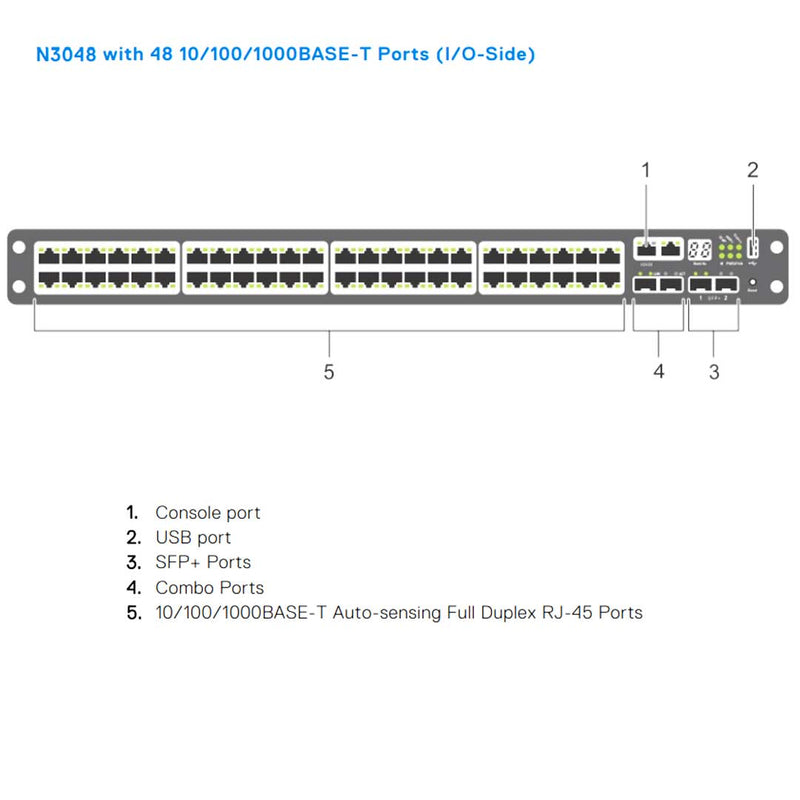

• 48x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto- sensing ports;
  first twelve RJ45 10/100/1000Mb PoE 60W auto-sensing ports,
• 2G memory and 1Gb of flash
• Two integrated 10GbE SFP+ ports
• Two GbE combo media ports for copper or fiber flexibility

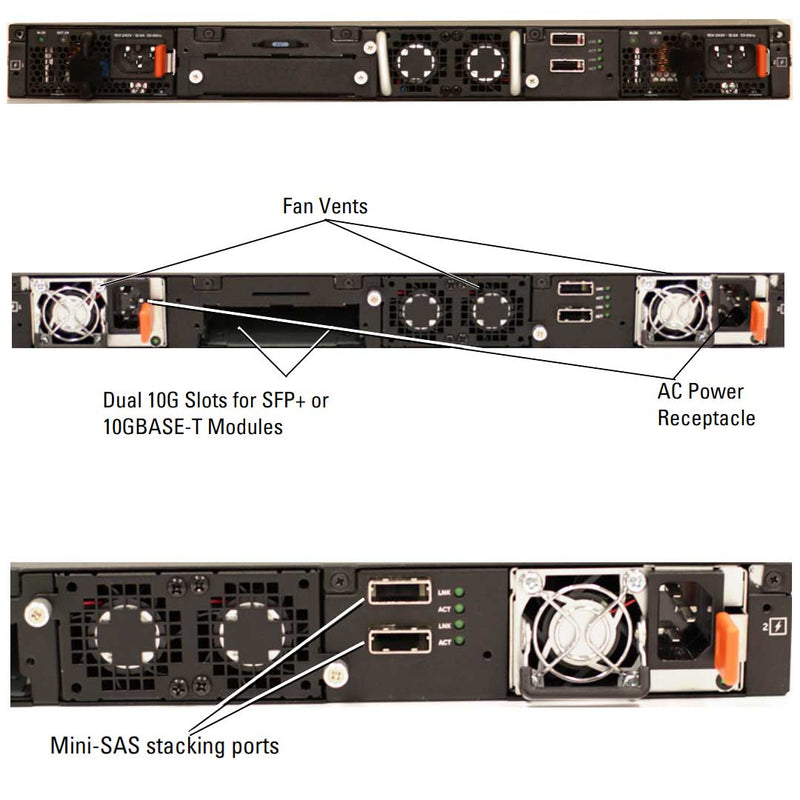

• 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
• 1x hot swap expansion module bay (Default comes with blank)
  • Options:
  • 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
  • 2-port 10 Gigabit SFP+ hot swappable uplink module
• 1x 1100W AC hot swappable ,
  (Dual hot-swap power supply bays (optional power supply available))
  • Power Cord Options:
  • C15 to NEMA 5-15, 2M (C15 for POE N-Series only)

Performance

• MAC addresses: 32K
• Comes with Auto-MDI/MDIX
• Static routes: 1,024 (IPv4)/1,024 (IPv6)
• Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
• Switch fabric capacity:260Gbps (full duplex)
• Forwarding rate: 193Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
• Flash memory: 2G memory and 1Gb of flash
• VLAN routing interfaces: 128
• VLANs supported: 4,094
• Max VLAN interfaces with ACLs applied: 24
• Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE+, or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST+ and devices using CDP.

Dell offers a range of Power over Ethernet (PoE) switches that provide both data connectivity and power to PoE-enabled devices such as IP phones, wireless access points, and security cameras. These switches are designed to simplify network deployment and management, and provide reliable and scalable power delivery to connected devices.

Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

The Dell N3048P is a powerful and flexible switch that is designed to meet the needs of modern networks. It features 48 RJ45 10/100/1000Mb auto-sensing ports that can automatically detect the speed and duplex of connected devices, providing fast and reliable connectivity for a variety of network devices.

The N3048P also includes two rear stacking ports (21Gbps) that support up to 84Gbps (full duplex) of stacking bandwidth. This allows multiple switches to be connected together to create a larger virtual switch, providing increased capacity and redundancy for critical network services. Overall, the Dell N3048 is a high-performance switch that offers a range of powerful features for modern networks.
