Dell EMC PowerSwitch N3024EF-ON 24-Port (ONIE) L3 Switch

• 24 1000-SX (up to 500m distance) or
  1000-LX (up to 10km distance) SFP GbE ports
• 2Gb memory and 1Gb of flash
• 2 integrated front 10GbE SFP+ dedicated ports
• Two GbE combo media ports for copper or fiber flexibility

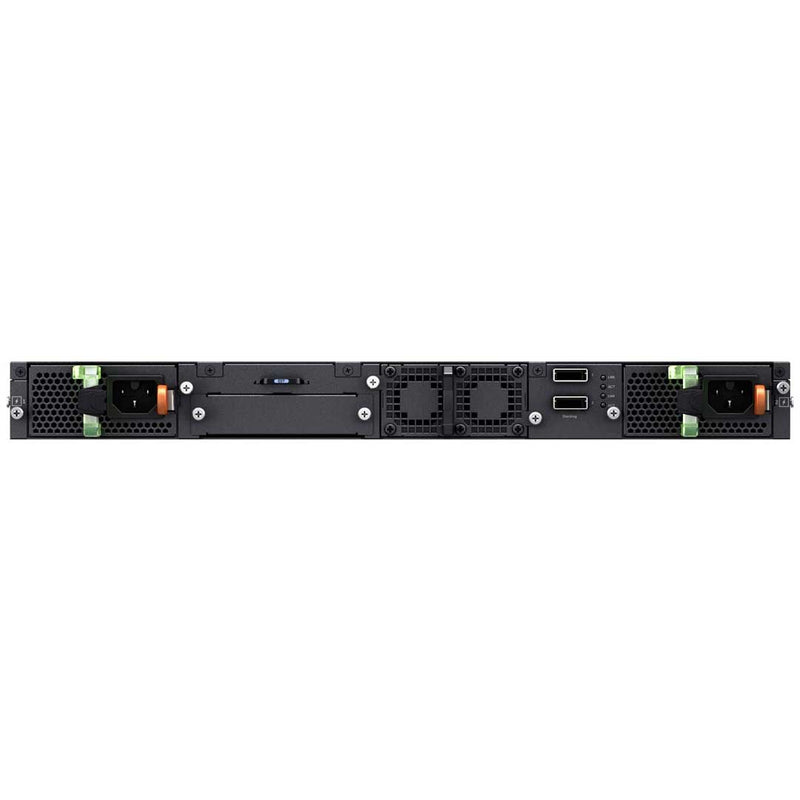

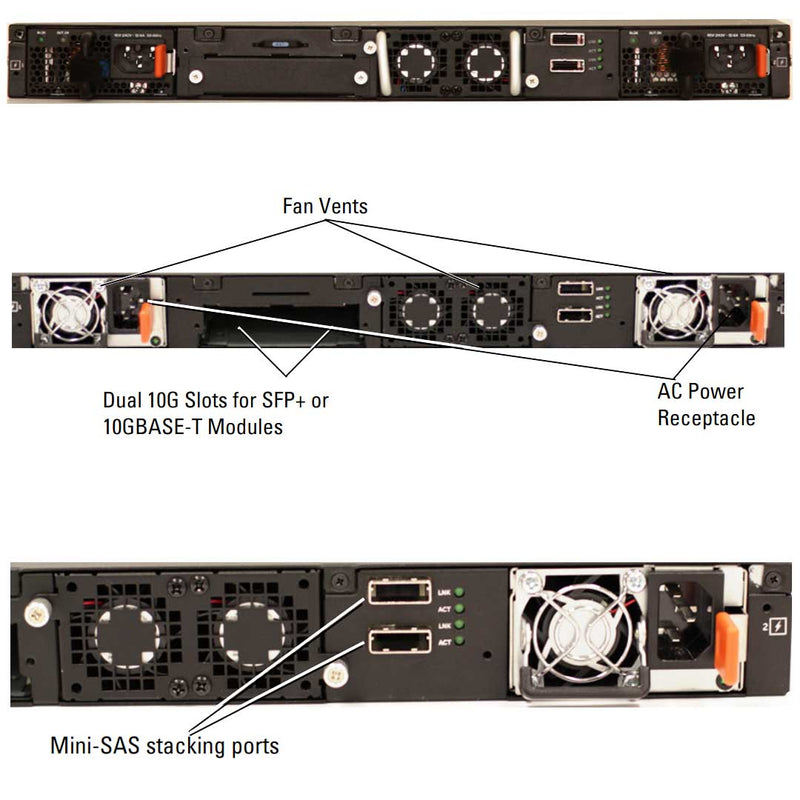

• 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
• 1x hot swap expansion module bay (Default comes with blank)
  • Options:
  • 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
  • 2-port 10 Gigabit SFP+ hot swappable uplink module
• 1x 200W PSU included (Dual hot-swap power supply bays (optional power supply available) )
  • Power Cord Options:
  • C13 to NEMA 5-15, 3M
  • C13 to C14, 2M

Performance

• MAC addresses: 32K
• Comes with: Auto-MDI/MDIX
• Static routes: 1,024 (IPv4)/1,024 (IPv6)
• Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
• Switch fabric capacity: 212Gbps (full duplex)
• Forwarding rate: 158Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
• Flash memory: 256MB
• VLAN routing interfaces: 128
• VLANs supported: 4,094
• Max VLAN interfaces with ACLs applied: 24
• Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE+, or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST+ and devices using CDP.

Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

The N3000 switch series offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address. Note: With OS 6.5.1.x and higher, max stack for N3000 series is 8; however, N3000E series and N3132PX-ON support max stack of 12 members. N3000 series can be stacked with N3000E series; however, stack size is limited to 8 and active VLANs to 1024.

ONIE stands for "Open Network Install Environment". It is an open-source initiative that provides a standard environment for installing network operating systems (NOS) onto bare-metal networking hardware.

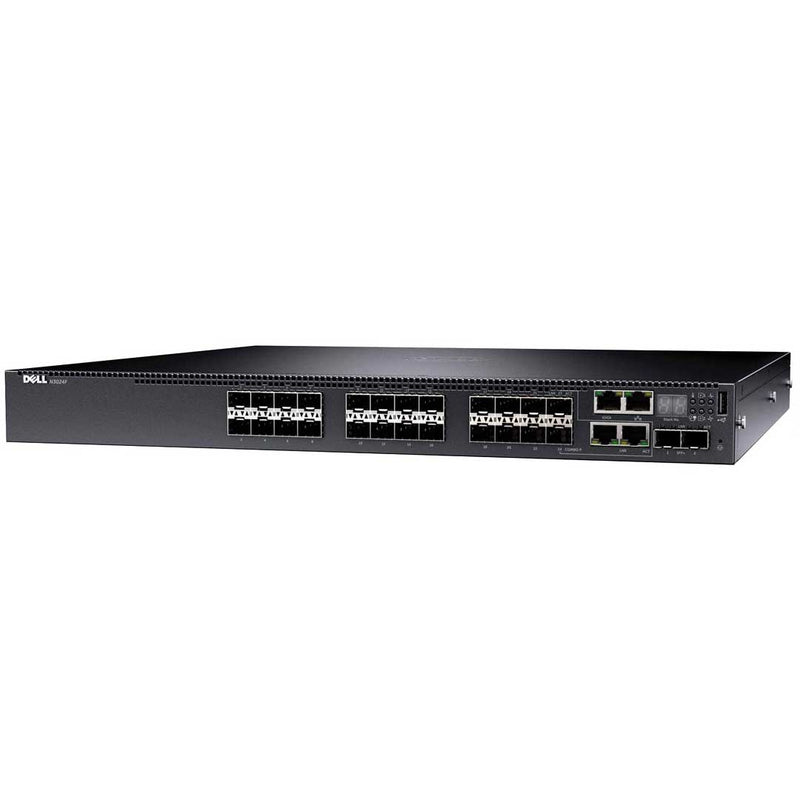

The N3024EF-ON I/O-side provides 24 Gigabit Ethernet 100BASEFX/1000BASE-X SFP ports plus 2 1000BASE-T combo ports. Dell-qualified SFP transceivers are sold separately.
