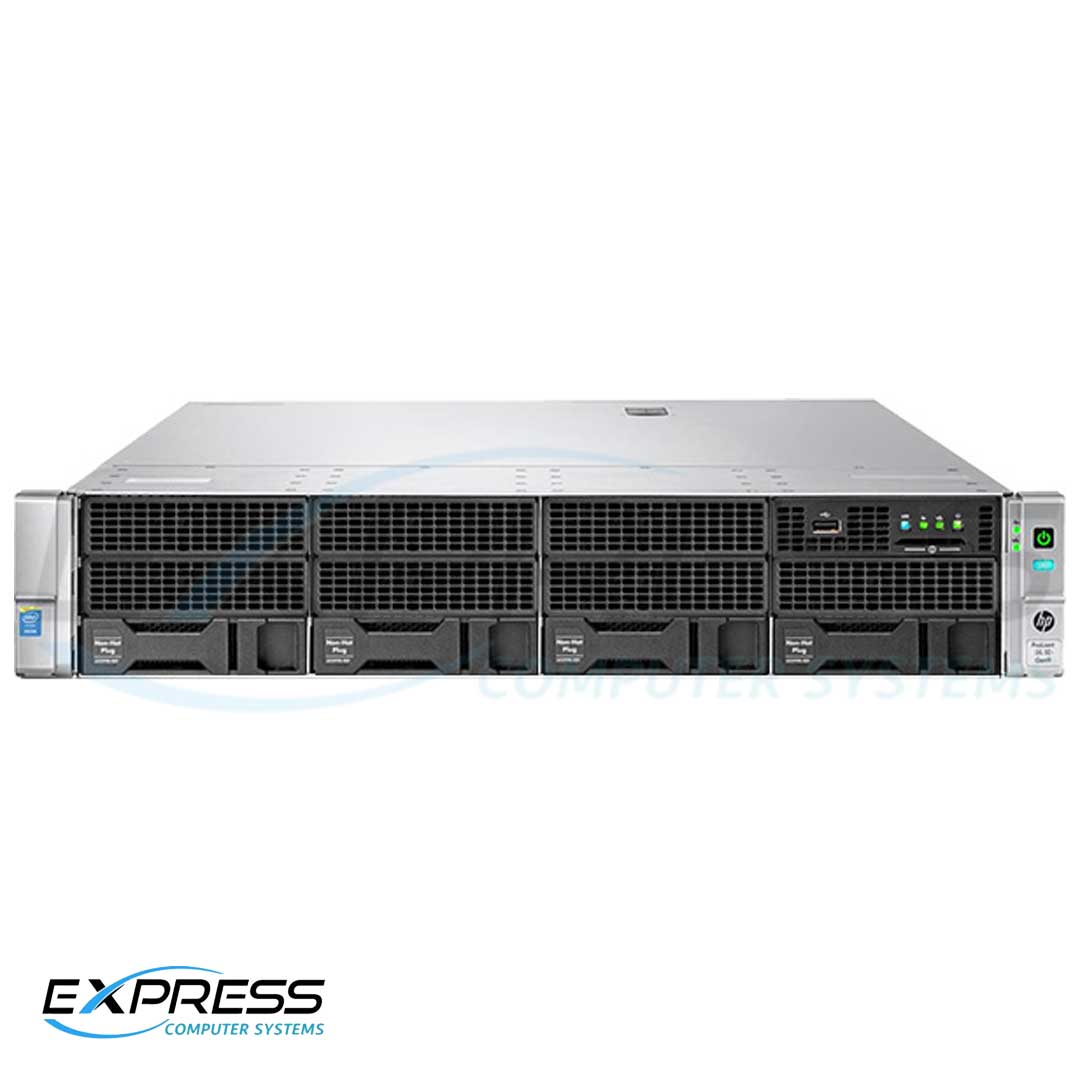

Hpe Proliant Dl80 Gen9 Non-Hot-Plug 4 Lff Server Chassis | 778686-B21

SKU: 778686-B21

Hpe Proliant Dl80 Gen9 Non-Hot-Plug 4 Lff Server Chassis | 778686-B21

Name: Hpe Proliant Dl80 Gen9 Non-Hot-Plug 4 Lff Server Chassis | 778686-B21
Brand: HPE
SKU: 778686-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

CTO Server [Chassis]	HP ProLiant DL80 Gen9 Non-hot Plug 4LFF Configure-to-order Server	HP ProLiant DL80 Gen9 8LFF Configure-to-order Server	HP ProLiant DL80 Gen9 12LFF Configure-to-order Server
SKU Number	778686-B21	778685-B21	787217-B21
Processor	2 (optional) x HPE Smart Socket Guides
DIMM Slots	8 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i
PCIe	5 Low Profile PCIe 3.0 slots
Drive Cage - included	4LFF Non Hot Plug	8LFF Hot Plug	12LFF Hot Plug
Network Controller	HPE Embedded Dual Port 361i Adapter Network Interface
Fans	2 hot swap fans, non-redundant
USB	1 front, 1 internal, 2 rear

Configure Now

HPE ProLiant DL80 Gen9 Non-Hot-Plug 4 LFF Server Chassis | 778686-B21

The refurbished HPE ProLiant DL80 Gen9 Server is designed with affordable storage, networking and processor scalability, and manageability in a 2U server for cost conscious service provider and SMBs. Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage, back-up due to compelling cost/GB that it offers.

What's New DL80 Gen9

HPE Smart
HPE Smart Memory 2400 MHz memory
Intel Xeon E5-2600v4 processor support
HPE Trusted Platform Module (TPM) 2.0
New 900 W ac/ 240 V dc power supply
New SATA Hot Plug Standard drives

Affordable Storage and IO Expandability for Service Providers and SMBs

The HPE ProLiant DL80 Gen9 Server provides ample storage capacity with up to (12) Large Form Factor (LFF) HPE SmartDrives, delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.

Up to (6) PCIe 3.0 riser slots to support one single-wide GPU or networking cards offering increased IO bandwidth and seamless expandability.

Comes standard with 2x1GbE and choice of HPE FlexibleLOM to provide you flexibility of networking bandwidth and fabric so you can adapt to changing business needs.

With support for Large Form Factor (LFF) hard disk drives (HDDs) with up to 10 TB capacity DL80 Gen9 offers maximum storage of up to 120 TB SAS/SATA.

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Technical specifications	HPE ProLiant DL80 Gen9 Server
Compute	Up to two Intel Xeon E5-2600 v3 Series; 4/6/8/10/12 cores PCIe 3.0; up to six available slots
Memory	HP SmartMemory (8) DDR4; up to 2,133 MHz (256 GB max)
Storage	HP Dynamic Smart Array B140i, optional HP Smart Array Controllers, and HP Smart host bus adapters (HBAs) via PCIe stand-up cards
HPE SmartDrives	12 LFF max, HDD/SSD, M.2 enabled
Networking	2 x 1GbE embedded Ethernet adapter with optional FlexibleLOM slot on riser
VGA/serial/USB ports/SD	One rear VGA or serial, three USB 3.0, one USB 2.0, one microSD, Dual microSD optional
System ROM	UEFI and Legacy BIOS
Converged management	HP OneView with HP iLO Advanced
Support management	HP Insight Online with enhanced mobile application
Embedded management	HP iLO 4, HP Intelligent Provisioning, HP System Update Manager (SUM), HP RESTful Interface Tool, and HP Scripting Tools for Microsoft ® Windows Server ® PowerShell
Power and cooling	Up to 92 percent efficient (Gold), 550 W multi-output, 800 W RPS/900 W non-RPS
Industry compliance	ASHRAE A3, 2 lower idle power
Form factor/chassis depth	Rack (2U) 23.9" (LFF)
Serviceability–Easy Install rails	Standard
