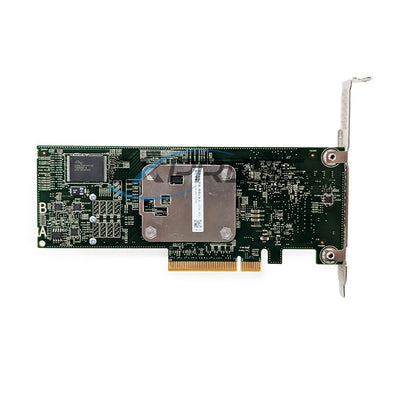

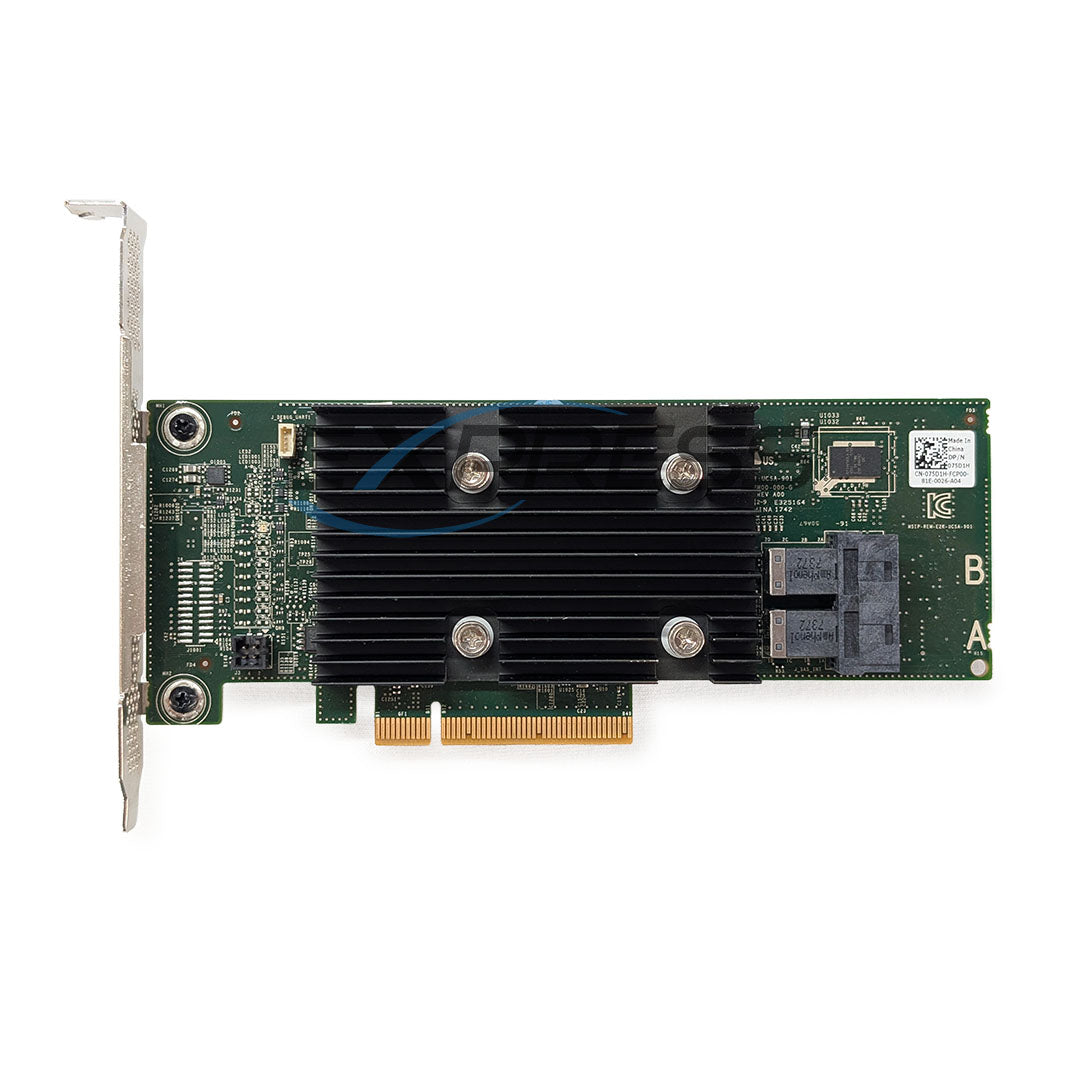

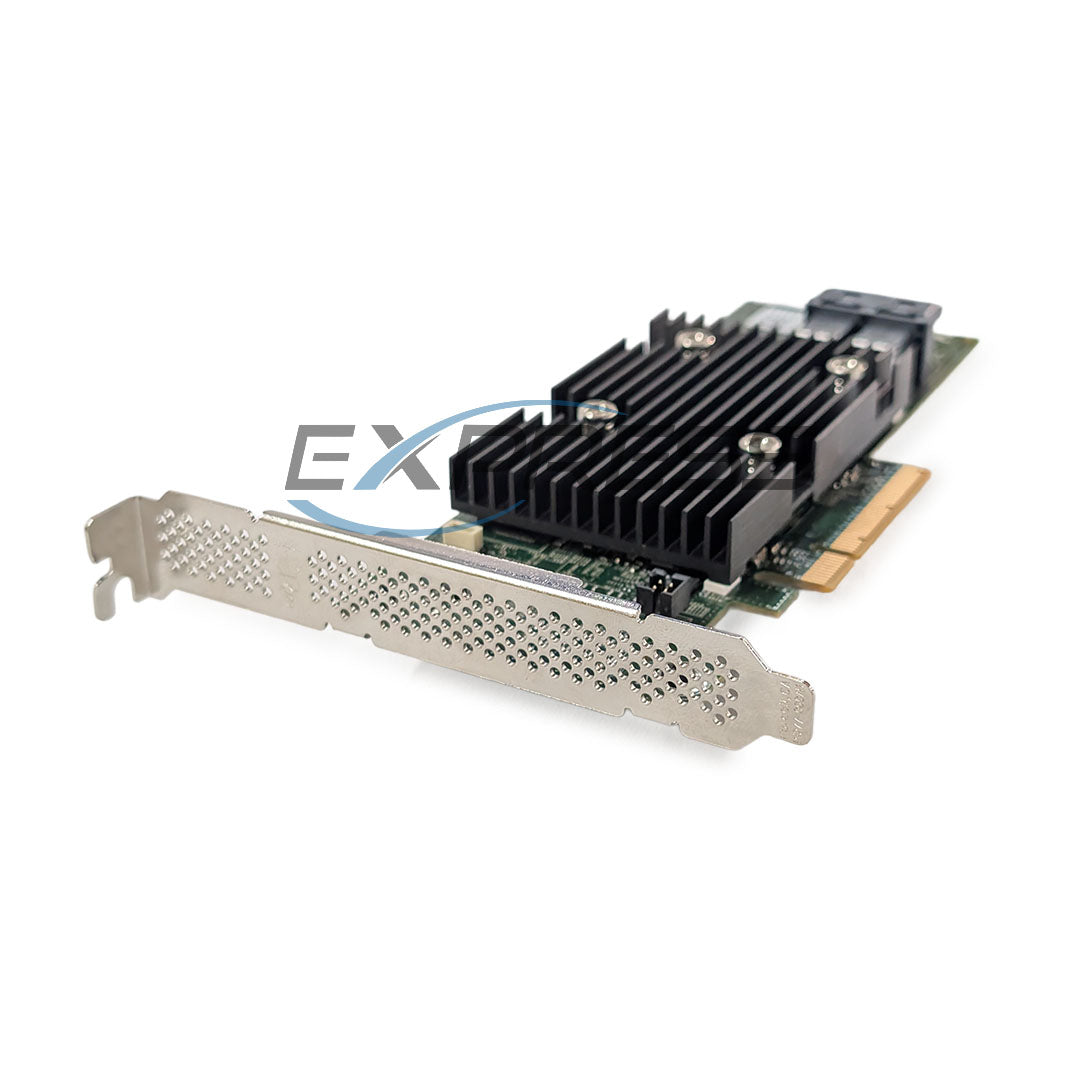

-*Image may differ from actaul product

Dell PERC 9 H330+ 12Gb SAS 2GB x8 PCI-e RAID Controller | 75D1H

Dell PERC 9 H330+ 12Gb SAS 2GB x8 PCI-e RAID Controller | 75D1H

Stock: 1
Price: $49.95

Brand:

Dell

MPN:

75D1H

Type:

Storage Controllers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

Total:- $49.95

Add to Cart

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PERC 9 H330+ 12Gb SAS 2GB x8 PCI-e RAID Controller | 75D1H

Quick Specs

Type: RAID Controller Adapter
Model: H330+
Drive Types: 12Gb/s SAS, 6Gb/s SATA
Interface: PCI Express 3.0
SAS Connectors: 2 x 4 External Ports
Cache Memory: No Cache
Write Back Cache: No Cache
RAID Levels: 0, 1, 5, 10, 50
Max Drive Support: 16 RAID / 32 Non-RAID
RAID Support: Hardware

Part Number:

75D1H
99T5J
TD2NM

The Dell PERC 9 H330+ RAID Controller is a hardware RAID solution supporting both SAS and SATA drives at 12Gb/s and 6Gb/s, respectively. This PCIe 3.0 adapter offers robust performance for standard RAID configurations without onboard cache memory.

Equipped with two external 4-port SAS connectors, the H330+ supports up to 16 drives in RAID mode and up to 32 in non-RAID mode. Its hardware-based architecture ensures reliability and compatibility across Dell PowerEdge platforms for entry-level to mid-tier storage needs.

This Product Is Compatible With The Following Systems:

Dell PERC 9 H330+ 12Gb SAS 2GB x8 PCI-e RAID Controller | 75D1H Spec Sheet

Manuals

Base Standard Capabilities

Table 1. PERC cardsThe table below lists and describes the different PERC cards that comprise the PERC 9 series and their specifications.
Feature	PERC H330	PERC H730	PERC H730P	PERC H730P MX	PERC H830	PERC FD33xD/FD33xS
RAID Levels	0, 1, 5, 10, 50	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60
Enclosures per port	Not applicable	Not applicable	Not applicable	Not applicable	8 (4 per port)	Not applicable
Processor	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset
Battery Backup Unit	No	Yes	Yes	Yes	Yes	Yes
Non-Volatile cache	None	Yes	Yes	Yes	Yes	Yes
Cache policy	No	1 GB DDR3 1333 Mhz cache	2 GB DDR3 1866 Mhz cache	2 GB DDR3 1866 Mhz cache	2 GB DDR3 1866 Mhz cache	2 GB DDR3 1866 Mhz cache
	NOTE: H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended.
Cache function	Write Through and No Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead
Maximum number of virtual disks	16	64	64	64	240	64
Maximum number of virtual disks per disk group	16	16	16	16	16	16
Hot swap devices supported	Yes	Yes	Yes	Yes	Yes	Yes
Hardware XOR Engine	No	Yes	Yes	Yes	Yes	Yes
Online capacity expansion	Yes	Yes	Yes	Yes	Yes	Yes
Dedicated and global hot spare	Yes	Yes	Yes	Yes	Yes	Yes
Drives Types	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	6 Gbps SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
PCIe Support	Gen 3	Gen 3	Gen 3	Gen 3	Gen 3	Gen 3
Non-RAID or pass through mode	Yes	Yes	Yes	Yes	Yes	Yes
Queue Depth	895	928	928	928	928	928

Compare Storage Controllers

Models	Drive Types	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H830 Adapter	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	255	Hardware
H730P Adapter FH - X4TTX	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730P Adapter LP - J14DC
H730P Adapter No Bracket - C9Y6K
H730P MX	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	-	Hardware
H730P Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730P Mini Blade - 3X31R	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730P Mini Blade - GD07N
H730P Mini Blade - YRPP6
H730 Adapter FH	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730 Adapter LP
H730 Adapter No Bracket
H730 Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730 Mini Blade	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	1x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H330 Adapter FH	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	16 RAID, 32 Non-RAID	Hardware
H330 Adapter LP	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	16 RAID, 32 Non-RAID	Hardware
H330 Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	16 RAID, 32 Non-RAID	Hardware
H330 Mini Blade	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	8	Hardware
S130 Software RAID	6 Gb/s SATA	N/A	N/A	No Cache	No Cache	0,1,5,10	10	Software - Windows and Linux
12 Gbps SAS Ext. HBA FH	12 Gb/s SAS	PCI-e 3.0	2x4 External	No Cache	No Cache	No RAID Pass-Thru Only	255	No RAID Pass-Thru Only
12 Gbps SAS Ext. HBA LP	12 Gb/s SAS	PCI-e 3.0	2x4 External	No Cache	No Cache	No RAID Pass-Thru Only	255	No RAID Pass-Thru Only
More HBA Gen 9 Controllers
	FD33XD Dual HBA (Split Host)	FD33XD Dual HBA (Dual Host)	FD33XD Dual PERC (Split Host)	FD33XD Dual PERC (Dual Host)	FD33XS Single HBA (Joined Mode)	FD33XS Single PERC (Joined Mode)	HBA330 + 12Gb SAS HBA	HBA330 MX 12Gb SAS Non-RAID
