Quick Specs
- Support for RAID levels 0, 1, 5, 6, 10, 50 and 60.
- PCI-Express Gen 2.0 x8 support
- 6Gb/s SAS (SAS 2.0) host interface
- Doubles throughput performance capability over 3Gb/s models
- Max hard drive support: 192 drives
- Backwards-compatible with 3Gb/s SAS (SAS 1.0) drives
- 512MB cache module
- Support for individual (logical) hard drives greater than 2TB
- Support for self-encrypting hard drives (SED)
- Support for solid-state drives (SSD)
The PERC H800 external host RAID controller is designed for expanding storage to the Dell PowerVault MD1200 and MD1220 6Gb/s SAS enclosures.
The PERC H800 external host-RAID product is supported with 11th Generation Dell PowerEdge servers for expanding storage to the Dell™ PowerVault™ MD1200 and MD1220 6Gb/s SAS enclosures.

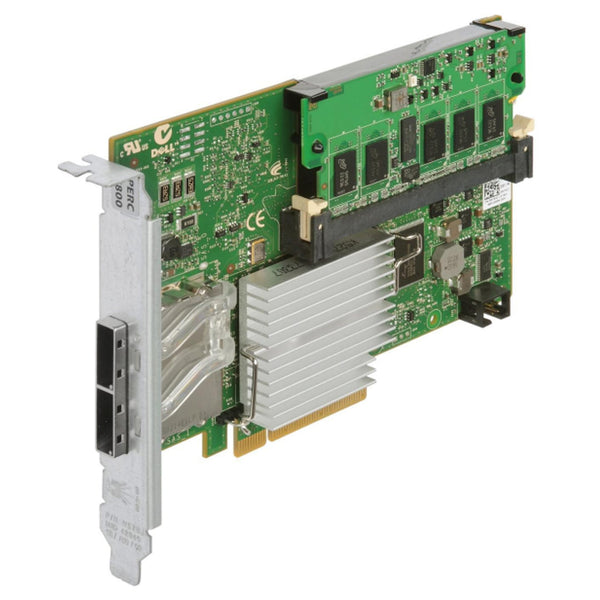

The PERC H800 Adapter with two x4 external mini-SAS ports supports the PCIe 2.0 x8 host interface. Cache options include the standard 512 MB transportable battery backup unit (TBBU) and the transportable 512 MB and 1 GB non-volatile cache. The PERC H800 Adapter is installed in a PCIe slot in the server. See Figure 3 for an angled view of the PERC H800 adapter.
Compatible With:
- Dell MD1200
- Dell MD1220
- Dell R210
- Dell R210ii
- Dell R220
- Dell R410
- Dell R510
- Dell R610
- Dell R710
- Dell R810
- Dell T310
- Dell T410
- Dell T610
- Dell T710
