HPE ProLiant ML30 Gen10 Entry Model Server E-2224 3.4GHz 4C 1P 16GB-U S100i 4LFF-NHP 1TB 350W PS | P16927-S01

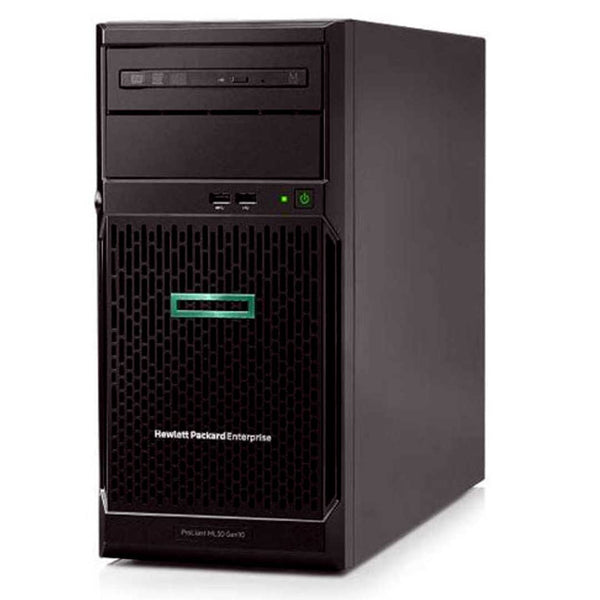

Refurbished HPE ProLiant ML30 Gen10 CTO Tower Server

HPE ProLiant ML30 Gen10 Entry Model Server E-2224 3.4GHz 4C 1P 16GB-U S100i 4LFF-NHP 1TB 350W PS | P16927-S01

Price: Request a Quote

Brand:

HPE

MPN:

P16927-S01

Type:

Server

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant ML30 Gen10 Entry Model Server E-2224 3.4GHz 4C 1P 16GB-U S100i 4LFF-NHP 1TB 350W PS | P16927-S01

Comes with:

Processors - 1 x Intel® Xeon® E-2224 (4-Core, 3.4 GHz, 71W)
Memory - 16 GB UDIMM DDR4 2666 MT/s (1x 16 GB)
Network Controller - Embedded 1Gb 2-Port 361i Ethernet Adapter
Storage Controller - Embedded S100i SW RAID with 4 SATA ports
Notes:
− Field upgradeable to 6 SATA ports by selecting 2pcs drive enablement kits (812248-B21).
− Does not support internal Smart Array controller.
Hard Drive - 1TB SATA 6G Midline 7.2K LFF RW HDD
Internal Storage - 4 LFF HDD Bays (Non Hot Plug) 1x M.2 PCIe 3.0 x2 slot
Optical Drive Bay - Optional Slimline ODD Bay Kit (P06309-B21) for SATA DVD-ROM/DVD-RW optical drive up to 1, Media drive bay for internal RDX or tape/LTO devices up to 1
Optical Drive - None ship as standard
PCIe Slots - 4 PCIe 3.0 slots
Power Supply - (1) 350W ATX Power Supply
Fans - 1 non-hot plug, non-redundant system fan
Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download),
HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)
Energy Start -N/A
Form Factor - Tower (4U)

The refurbished HPE ProLiant ML30 Gen10 server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premise and Hybrid Cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost. Just a small change can give you an extra edge.

Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust, making the HPE ProLiant ML30 Gen10 server one of the world's most secure industry-standard servers. Redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability allows you to upgrade with SAS controllers, networking cards, or graphics cards as your business grows. You will be surprised at how much benefit you can get with HPE ProLiant ML30 Gen10 server.

What’s New for ML30 Gen10

Supports Intel Xeon E-2100/2200 processor series with up to 6 cores and 83W, 8th/9th Core i3 and Pentium G processors.
HPE 361i 1Gb 2-Port network adapter on models with the new Intel Xeon E-2200, 9th Gen Core i3 and Pentium G processors.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
2666 MT/s HPE DDR4 Standard Memory UDIMM offering 8 GB, 16 GB. and a maximum of 64 GB memory capacity.
Four expansion slots for more flexible usage - two x16 and two x8 connectors.
Dedicated HPE iLO port and serial port option kit.

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

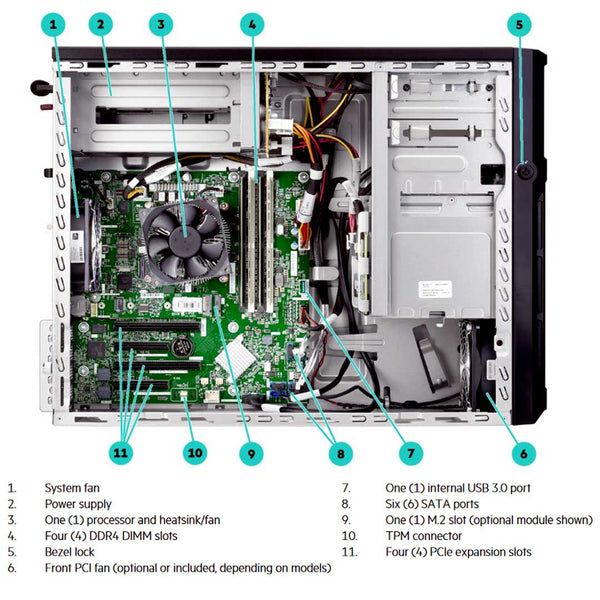

System Board (P19337-001)
Embedded with HPE 361i 1Gb 2-Port Network Adapter and only supports the Intel Xeon E-2200 Family/Intel Core i3-9100/Intel Pentium Gold G5420 processor.

Tower-to-Rack Conversion

The HPE ML30 Tower server can easily be converted into a Rack server by simply adding the HPE ML Gen10 Tower to Rack Conversion Kit (874578-B21). This kit is everything you need to get “Sliding”. This rail kit comes with the rail tray that the server sits on top of and is mounted to from the back. The server tray is that actual piece mounted to the rails that slide out for easy access to the server.

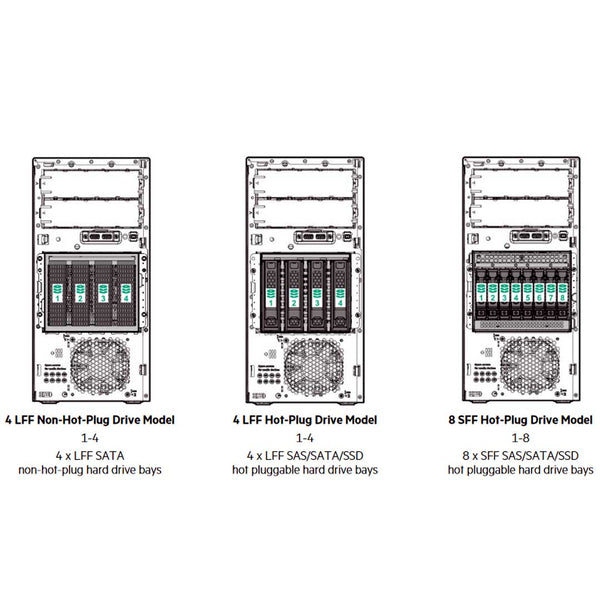

Which Chassis should I choose?
HPE has provided three different CTO models to choose from. Each comes with 4 PCIe 3.0 Slots, the stand Embedded S100i SW RAID with 4 SATA ports (can have support for 6 SATA drives with 2pcs drive enablement kits (812248-B21)), and an embedded HPE Ethernet 1Gb 2-Port 361i Adapter optional 1/10Gb standup card . Only the Hot-Plug Chassis can have the choice of a Smart Array along with or instead of the S100i. If you’re not sure what chassis would work best, contact us today.
Chassis Options:

4 LFF Non-Hot-Plug SATA HDD (P06760-B21)
4 LFF Hot-Plug SAS/SATA HDD (P06761-B21)
8 SFF Hot-Plug SAS/SATA HDD (P06762-B21)
*** Each server has a spot for 1xM.2 NVMe SSD for boot this also supports the dedicated iLO port.

We need more Power!
Starting March 1st, 2020, only the 350W Gold-level PSU (power supply) and the 500W PSU meet the European Union (EU) Lot 9 regulation requirement for CE marking. Do not order the Bronze-level 350W PSU (820303-B21) in countries that require CE marking, especially the EU countries.

Flex Hot-Plug Power Supply Enablement Kit
To go from the 300W Non-Hot-Plug Power Supply Unit (PSU) (P21652-B21) to the Flex Slot Platinum 500W Power Supply Unit (PSU) (865408-B21). You’ll need the enablement cage (686665-001) and the Flexible Slot power supply backplane (P07479-001) . If you only install one of the Hot-Plug Redundant Power Supplies, then you’ll also need the Flexible Slot Power Supply Blank (775423-001) to keep the airflow optimal.

What Graphics Accelerators Can Be Used?
First off the GPUs can only be used when a Xeon E processor is selected. These are not allowed with the Non-Hot-Plug Chassis system.

HPE NVIDIA Quadro P2200 75W Gen3 GPU Module (R2U55C)
HPE NVIDIA Quadro P1000 47W Gen3 GPU Module (R3K70C)
*** Must install the HPE 500W Flex Slot Power Supply Kit (865408-B21)
*** Must install the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21)

How to Keep Cool?
If you install the M.2 SSD dedicated iLO module (P06687-B21), any PCI-e Cards or you select the 4 LFF Hot-Plug or the 8 SFF Hot-Plug Chassis. Then the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21) is required. Except if you choose the Non-Hot-Plug Chassis with the E208e-p controller and 1Gb network adapters.

This Product Is Compatible With The Following Systems:

HPE Series ml30

HPE ProLiant ML30 Gen10 Entry Model Server E-2224 3.4GHz 4C 1P 16GB-U S100i 4LFF-NHP 1TB 350W PS | P16927-S01 Spec Sheet

Manuals

Base Standard Capabilities

Product features

Feature

Description

Processor ¹

Intel Xeon E Processor is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. This product also supports Intel Pentium and Intel Core i3 processors.

Intel Xeon E-2200 Series / 9th Gen Core i3 and Pentium G
Xeon E-2276G	CPU Frequency	Cores	L3 Cache	Power	DDR4	SGX
Xeon E-2276G	3.8 GHz	6	12MB	80 W	2666 MT/s	Yes
Xeon E-2274G	4.0 GHz	4	8MB	83 W	2666 MT/s	Yes
Xeon E-2244G	3.8 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2236	3.4 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2234	3.6 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2226G	3.4 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2224	3.4 GHz	4	8MB	71 W	2666 MT/s	No
Core i3-9100	3.6 GHz	4	6MB	65 W	2400 MT/s	No
Pentium G5420	3.8 GHz	2	4MB	54 W	2400 MT/s	No

Intel Xeon E-2100 Series / 8th Gen Core i3 and Pentium G
Xeon E-2276G	CPU Frequency	Cores	L3 Cache	Power	DDR4	SGX
Xeon E-2176G	3.7 GHz	6	12MB	80 W	2666 MT/s	Yes
Xeon E-2174G	3.8 GHz	4	8MB	71 W	2666 MT/s	Yes
Xeon E-2144G	3.6 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2136	3.3 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2134	3.5 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2126G	3.3 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2124	3.3 GHz	4	8MB	71 W	2666 MT/s	No
Core i3-8300	3.7 GHz	4	8MB	62 W	2400 MT/s	No
Pentium G5400	3.7 GHz	2	4MB	58 W	2400 MT/s	No

Platform information

Form factor
4U Tower

Chassis types

8 SFF chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option.
4 LFF chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option.
4 LFF NHP chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option or up to 2 LFF NHP HDD cage kits.

System fans

1 Default system fan module (92 x 32 mm).
1 Default PCI fan module (92 x 32 mm) depending on models.

Chipset ²

Intel C246 chipset

On system management chipset ³

HPE iLO 5 ASIC

Memory ⁴

Type	HPE DDR4 Standard Memory, Unbuffered Dual In-Line Memory Module (UDIMM)
Dual In-Line Memory Module (DIMM) slots available	4	4 DIMMs (2 Channels/ 2 DIMMs per channel)
Maximum Capacity (UDIMM)	64GB	(4 x 16GB UDIMM - 2666 MT/s)

Memory protection

ECC

Network controller

Embedded HPE Ethernet 1Gb 2-port 361i network Adapter or
Embedded HPE Ethernet 1Gb 2-port 332i network Adapter

Expansion slots ⁵

Expansion Slots #	Technology	Bus Width	Connector Width	Form Factor	Notes
1	PCIe 3.0	x16	x16	Full height, full length	Processor
2	PCIe 3.0	X4	X8	Full height, half length	PCH
3	PCIe 3.0	X4	x16	Full height, full length	PCH
4	PCIe 3.0	X4	X8	Full height, half length	PCH

Storage controller ⁶

Essential RAID controller

Performance RAID controller
HPE Smart Array E208e-p SR Gen10 controller

Performance RAID controller

HPE Smart Array P408i-p SR Gen10 controller
HPE Smart Array P408e-p SR Gen10 controller

Internal storage devices

Optical drives

None ship standard
Optional: SATA 9.5 mm DVD-RW/DVD-ROM optical drive

Hard drives

None ship standard

None ship standard ⁷

Capacity

Configuration

Hot-Plug Large Form Factor (LFF) SAS

48TB

4 x 12TB

Hot-Plug LFF SATA

48TB

4 x 12TB

Hot-Plug Small Form Factor (SFF) SAS

19.2TB

8 x 2.4TB

Hot-Plug SFF SATA

16TB

8 x 2TB

Non Hot-Plug LFF SATA

24TB

4 x 4TB + 2 x 4TB (With additional optional LFF drive enablement kits)

Hot-Plug LFF SATA Solid State Drive (SSD)

7.68TB

4 x 1.92TB

Hot-Plug SFF SAS SSD

3.2TB

8 x 400GB

Hot-Plug SFF SATA SSD

61.44TB

8 x 7.68TB

M.2 Non-Volatile Memory express (NVMe) SSD

480GB

1 x 480GB

Maximum internal storage

Internal Storage	Capacity	Configuration
Hot Plug LFF SAS	56TB	4 x 14TB
Hot Plug LFF SATA	56TB	4 x 14TB
Hot Plug SFF SAS	19.2TB	8 x 2.4TB
Hot Plug SFF SATA	16TB	8 x 2TB
Non Hot Plug LFF SATA	24TB	4 x 4TB + 2 x 4TB (With additional optional LFF drive enablement kits)
Hot Plug LFF SATA SSD	7.68TB	4 x 1.92TB
Hot Plug SFF SAS SSD	3.2TB	8 x 400GB
Hot Plug SFF SATA SSD	61.44TB	8 x 7.68TB
M.2 NVMe SSD	480GB	1 x 480GB

Power supply ⁸

HPE 350 W E-star 1.0 power supply FIO kit
HPE 500 W Flex slot Platinum hot plug low halogen redundant power supply

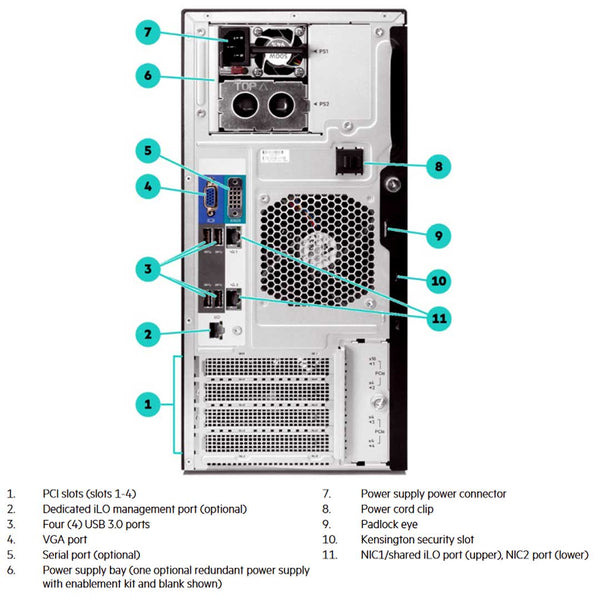

Interfaces

VGA port 1

Standard (Rear)

Serial port 1

Optional (Rear)

Network port (RJ-45)

2 x 1Gb ports as standard (Rear, 1 shared for HPE iLO)

Dedicated iLO management port (RJ-45)

1 optional (Rear)

USB 3.0 port

6 (1 Front, 4 rear, 1 internal)

USB 2.0 port

1 (1 Front)

Graphics

Integrated video standard

Video modes up to 1920 x 1200 @60 Hz (32 bpp)
16MB video memory

HPE iLO 5 On system management memory

32MB flash
4Gb Dual Data Rate (DDR 3) with ECC protection

Upgradeability

One of the following depending on model

Up to 4 DIMM slots available for higher memory capacity
Up to 4LFF (+2LFF optional) non hot-plug, 4LFF hot-plug, or 8SFF hot-plug drive bays
HPE Smart Array or Smart HBA controller
Redundant power supply
Dedicated iLO management port
M.2 NVMe SSDs for boot

HPE Server Unified Extensible Firmware Interface (UEFI)/legacy ROM ⁹

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security
Operating System (OS) specific functionality
Support for > 2.2TB (Using GUID partition table (GPT)) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant
Preboot Execution Environment (PXE) boot support for IPv6 networks
Workload profiles for simple performance optimization

UEFI boot mode only:

Trusted Platform Module (TPM) 2.0 support
iSCSI software initiator support
HTTP/HTTPs boot support as a PXE alternative
Boot support for option cards that only support a UEFI option ROM

Security ¹⁰

UEFI secure boot and secure start support
Immutable silicon root of trust
FIPS 140-2 validation
Common criteria certification
Configurable for PCI DSS compliance
Ability to rollback firmware
Secure erase of NAND/user data
TPM 1.2 option
TPM 2.0 option
Front bezel Key-Lock feature, standard
Padlock slot, standard
Kensington lock slot, standard
Intel SGX

Server management

iLO advanced
HPE iLO advanced premium security edition
One Config Simple (SCE)

Industry standard compliance

ACPI 6.1 compliant
PCIe 3.0 compliant
PXE support
WOL support
Microsoft logo certifications
VGA port
USB 3.0 compliant
USB 2.0 compliant
SMBIOS 3.1
UEFI 2.6
ASHRAE A3/A4¹¹
UEFI¹²

NOTE:

Check the below link for more information on Intel Xeon processors:
Check the below link for more information on Intel Xeon chipsets:
Check the below link to QuickSpecs for more information on HPE iLO:
Click here to access the QuickSpecs page for HPE iLO .
The maximum memory speed depends on processor model
Bus width indicates the number of physical electrical lanes running to the connector
Performance RAID controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately
M.2 SSD is applicable to all models
Available in 94% efficiency
- The UEFI system utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS
  Click here to access the page on Unified Extensible Firmware Interface (UEFI) .
- For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI
- Legacy FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for your HPE ProLiant Gen10 Server
Intel SGX is supported in selective processors
Check the below link for additional technical thermal details regarding ambient temperatures, humidity and features:
Click here to access the Hewlett Packard Enterprise Information Library .
UEFI is the default for the ML30 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22)

top

Specs 1

Software overview

Feature	Description
Software RAID ¹	HPE Smart Array Gen10 Software RAID
OS and virtualization software support for ProLiant Servers	Microsoft Windows Server 2016 and 2019² Red Hat Enterprise Linux (RHEL) 7.5 and 8.0² SUSE Linux Enterprise Server (SLES) 12 SP3 and 15³ VMware ESXi 6.5 U2 and 6.7⁴
NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for Configure-To-Order (CTO) orders please also select the legacy mode settings part, 758959-B22. For CTO orders, HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling please select HPE FIO Enable Smart Array SW RAID (784308-B21). For Build to Order (BTO) orders, HPE Smart Array S100i SR Gen10 SW RAID is on by default. The S100i supports 4 SATA ports for drive cage and additional 2 SATA ports for drives from media drive bays. The S100i only supports Windows. For Linux users, HPE offers a solution that uses In-Distro Open-Source software to create a Two-Disk RAID 1 boot volume. VMware supported only with Intel Xeon E processors, not supported with Intel core or pentium processors. ClearOS allows user to build a fully functional server that is just right for user at no upfront cost. CentOS not directly supported/community supported (Based on RHEL so RHEL testing and enablement applicable to CentOS) CentOS 7.5.

top

Physical specifications

Specification	Description
Dimensions (H x W x D)	36.83 x 17.50 x 47.50 cm (14.50 x 6.89 x 18.70 in)
Weight (Approximate)	Minimum: 4 NHP LFF chassis with 1x LFF HDD, 1x processor including heatsink, 1xDIMM, 1x ATX power supply, cables for the above: 10.1 kg (22.1 lb) Maximum: Fully loaded - 4 Hot-plug LFF chassis with 4x LFF HDDs, 1x DVD-RW, 1xtape drive, 1x processor including heatsink, 4x DIMMs, 2x power supplies,cables for the above: 17.6 kg (38.7 lb)

top

Electrical specifications

Specification	Description
Input requirements (Per power supply)	Rated line voltage 100 to 120 V ac 200 to 240 V ac
BTU rating	For 350 W power supply: 1452 BTU/hr (At 100 V ac), 1544 BTU/hr (At 200 V ac) For 500 W power supply: 1902 BTU/hr (At 100 V ac), 1840 BTU/hr (At 200 V ac), 1832 BTU/hr (At 240 V ac)
Power supply output (Per power supply)	Rated Steady-State power For 350 W power supply: 350 W (At 100 to 230 V ac) For 500 W power supply: 500 W (At 100 V ac), 500 W (At 240 V ac) Maximum peak power For 350 W power supply: 350 W (At 100 to 230 V ac) For 500 W power supply: 500 W (At 100 to 127 V ac), 500 W (At 200 to 240 V ac)

top

Environmental specifications

Specification	Description
Standard operating temperature	10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight Maximum rate of change is 10°C/hr (18°F/hr) The upper limit may be limited by the type and number of options installed System performance may be reduced if operating with a fan fault or above 30°C (86°F)
Extended ambient operating temperature	For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35°to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) The approved hardware configurations for this system are listed at the below link: Click here to access the Hewlett Packard Enterprise Information Library for hardware configuration . System performance may be reduced if operating in the extended ambient operating range or with a fan fault
Non-Operating temperature	-30° to 60°C (-22° to 140°F) Maximum rate of change is 20°C/hr (36°F/hr)
Relative Humidity (Rh) (Non-Condensing)	Operating: 8% to 90% - Rh, 28°C maximum wet bulb temperature, Non-Condensing Non-Operating: 5% to 95% Rh, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing
Altitude (Operating)	3048 m (10,000 ft) This value may be limited by the type and number of options installed Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Altitude (Non-Operating)	9144 m (30,000 ft) Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise¹	Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109) The listed sound levels apply to standard shipping configurations Additional options may result in increased sound levels HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below
	Idle
	LWAd	4.3 Bels (Entry) 3.6 Bels (Performance)
	LpAm	28 dBA (Entry) 23 dBA (Performance)
	Operating
	LWAd	4.3 Bels (Entry) 3.8 Bels (Performance)
	LpAm	28 dBA (Entry) 23 dBA (Performance)
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only. Product conformance to cited product specifications is based on sample (Type) testing,evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

top

Safety certifications

Specifications	Description
Emissions Classification (EMC)	To view the regulatory information for users product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: Click here to view the Enterprise Safety and Compliance for more information .

top

Spec Sheet 4

Technical specifications	HPE ProLiant ML30 Gen10 server
Processor family	Intel® Xeon® E-2100/2200 series, Intel® Core™ 8th/9th Gen i3 Processor, Intel® Pentium® Processor
Processor core available	2 to 6 core, depending on processor
Processor cache	4 to 12 MB L3, depending on processor
Processor speed	4.0 GHz, maximum depending on processor
Expansion slots	4, for detailed descriptions reference the QuickSpecs
Maximum memory	64 GB with 16 GB DDR4
Memory slots	4
Memory type	HPE DDR4 Standard Memory
Memory protection features	Unbufferred ECC
Network controller	HPE 1 Gb 332i Ethernet adapter 2-ports per controller or HPE 1 Gb 361i Ethernet adapter 2-ports per controller, depending on model
Storage controller	1 HPE Smart Array S100i
Product Dimensions (imperial)	14.5 x 6.89 x 18.7 in
Weight	22.1 lb minimum 38.7 lb maximum
Infrastructure management	Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download)
Drive supported	4 NHP LFF SATA HDD with optional 2 LFF SATA HDD or 4 LFF SAS/SATA HDD/SSD or 8 SFF SAS/SATA HDD/SSD, with 1 M.2 NVMe SSD, depending on model

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Leave a Message

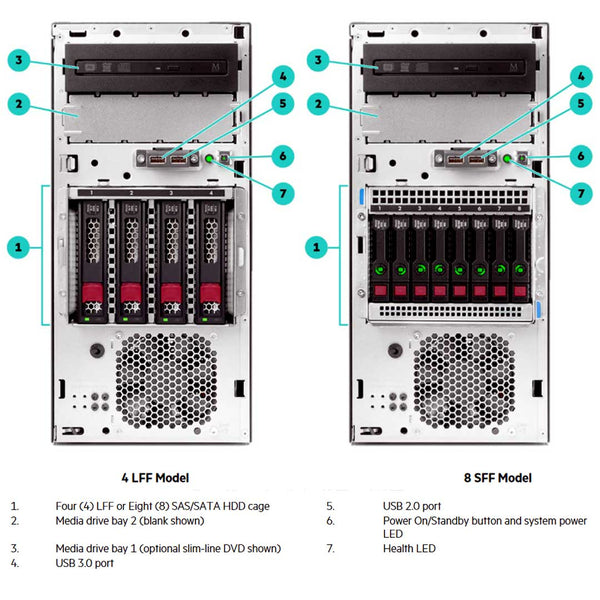

HPE ProLiant ML30 Gen10 Entry Model Server E-2224 3.4GHz 4C 1P 16GB-U S100i 4LFF-NHP 1TB 350W PS | P16927-S01

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
