Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

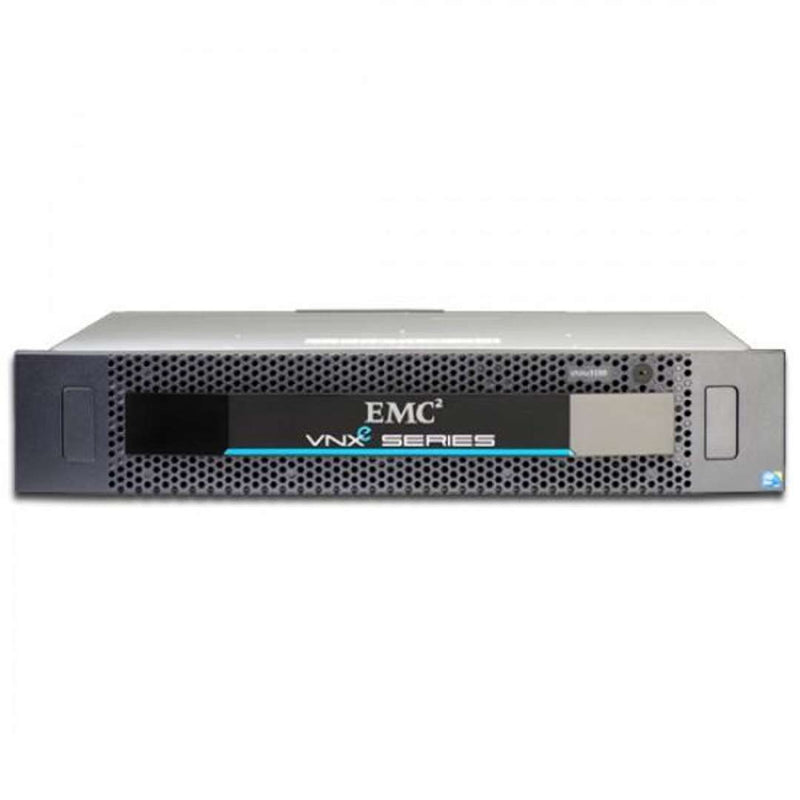

- Product Name: EMC VNXe3150 Disk Processor Enclosure (DPE)
- Form Factor: 2U
- Chassis Options: 12 LFF (3.5") or 25 SFF (2.5")

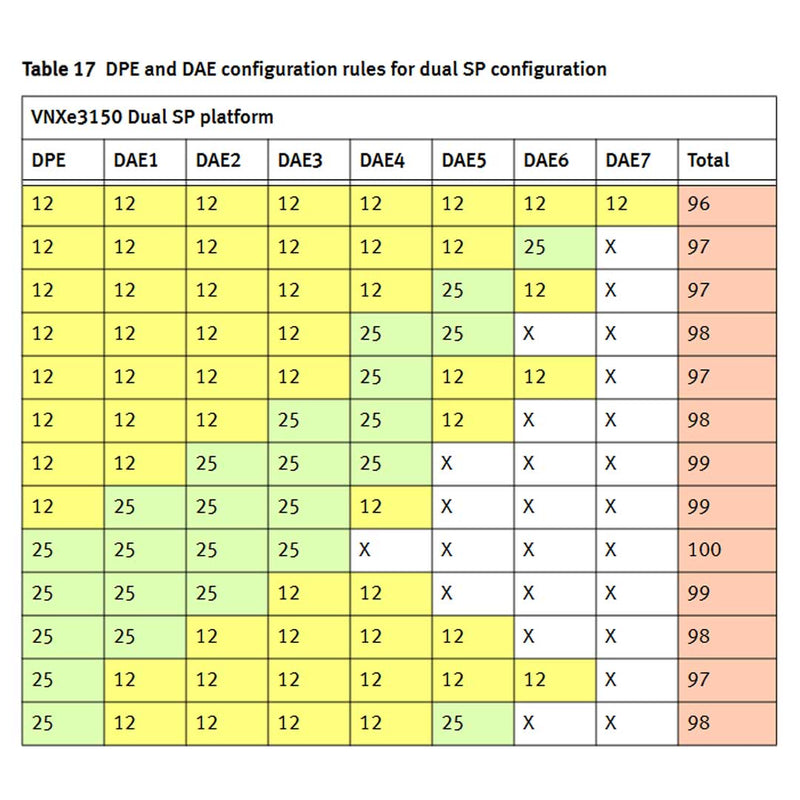

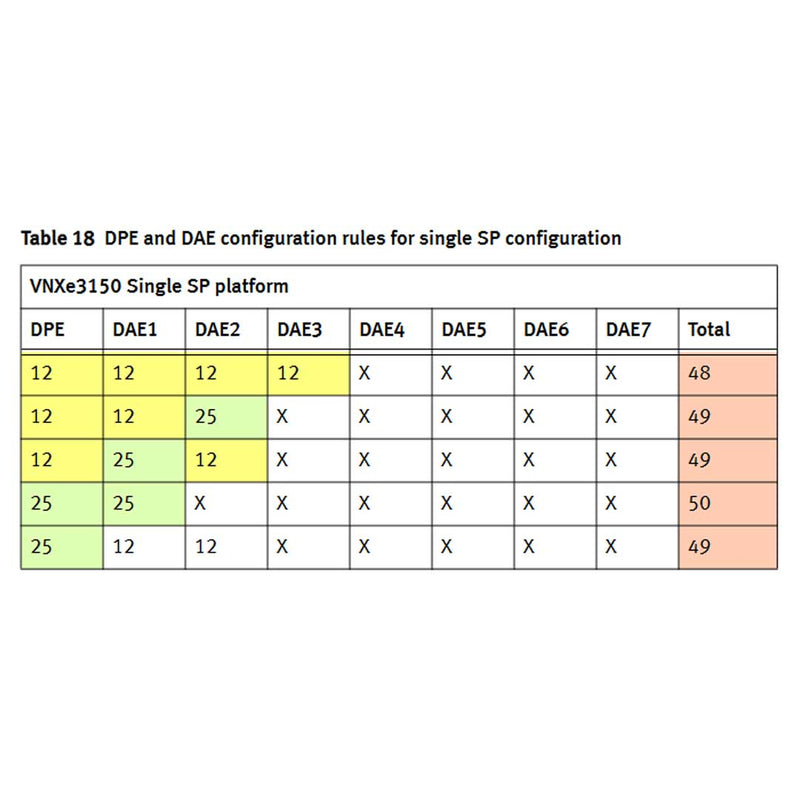

- Max Drives: Up to 100 (dual SP with SFF DPE/DAEs)
- Drive Types: SAS, NL-SAS
- Storage Processor: Intel Xeon Quad Core 2.13GHz, up to 16GB RAM (dual SP)

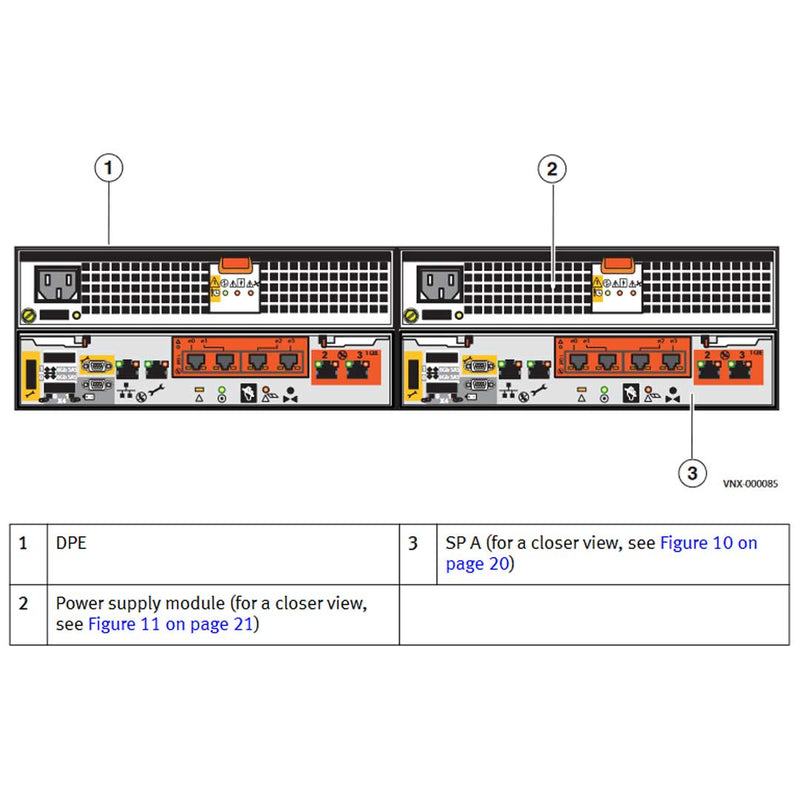

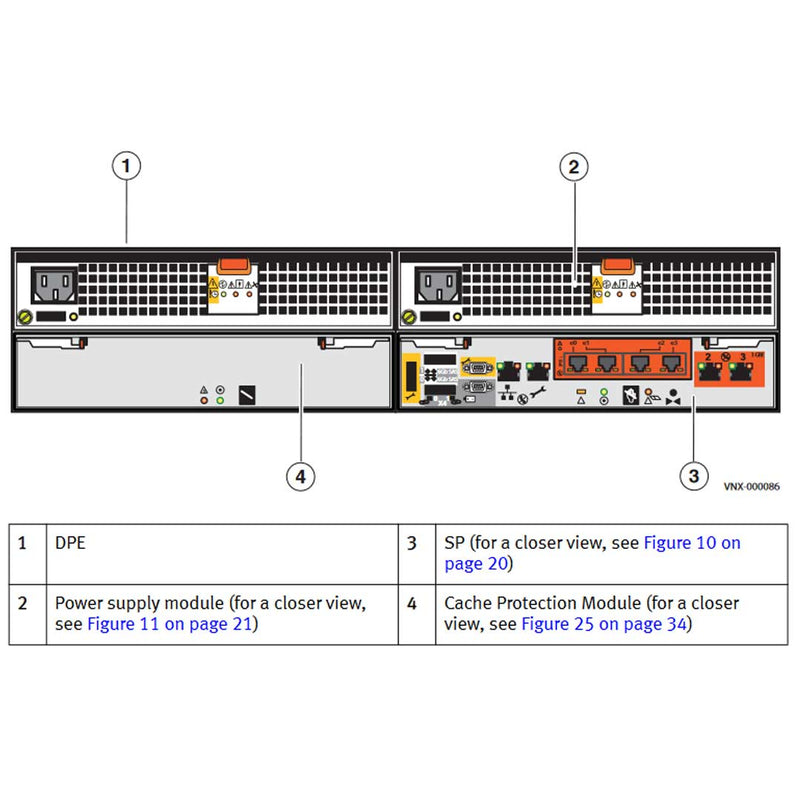

- SP Configurations: Single or Dual SP

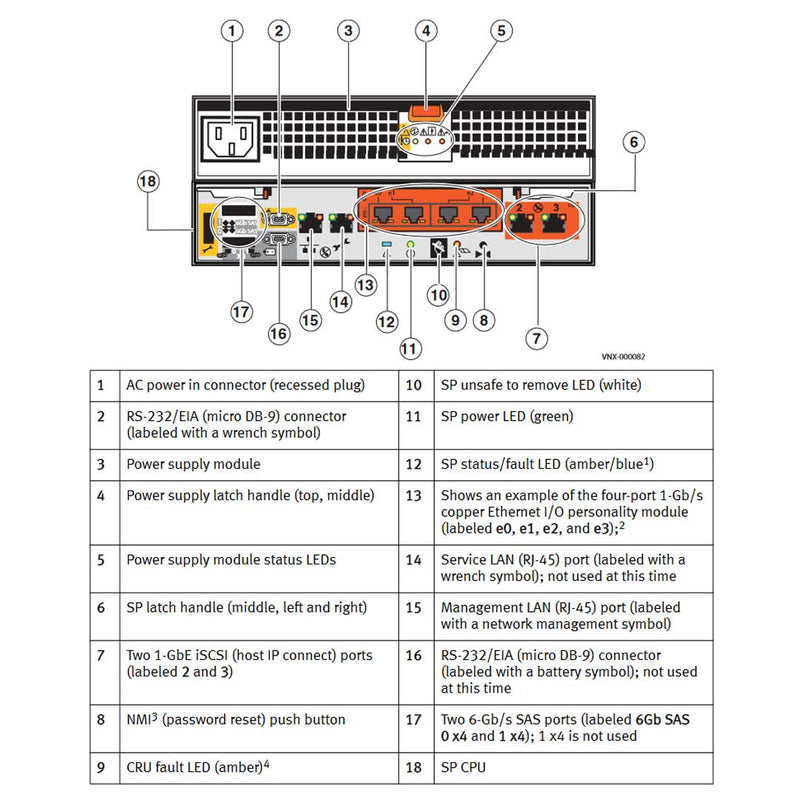

- SP Module Options: 4-Port 1GbE (Single/Dual SP), 2-Port 10GbE (Dual SP only)
- Unified Protocols: SAN (iSCSI) + NAS (CIFS/NFS)
- Supported DAEs: V2-DAE-12 (12x 3.5"), V2-DAE-25 (25x 2.5")
Model Identifier:
- VNXe3150
The EMC VNXe3150 Disk Processor Enclosure (DPE) is a compact, scalable 2U unified storage system designed for small to mid-sized businesses. It supports both NAS and iSCSI SAN access, providing flexibility for mixed workloads and virtualization environments. Chassis options include 12-bay 3.5" or 25-bay 2.5" configurations with support for SAS and NL-SAS drives.
With a modular design supporting either single or dual SP setups, the VNXe3150 features Intel Xeon quad-core processors and up to 16GB of memory. It offers flexible I/O configurations with 1GbE and 10GbE personality modules, and expands via compatible Gen 1 DAEs. This platform allows users to scale capacity and performance to meet growing storage demands efficiently.
Spec Sheet 4
EMC VNXe3150 Technical Specifications
| EMC VNXE3150 TECHNICAL SPECIFICATIONS | |
|---|---|
| Form Factor | 2U Rack |
| Storage Type | Unified |
| Maximum Raw Capacity (Single Controller | Dual Controller) | 150TB | 300TB |
| Dual Controllers (SPs) | Optional |
| Number of Drives | Single Controller: 50 (max) Dual Controller: 100 (max) |
| Min/Max Number of Drives (Single SP | Dual SP) | 6/50 | 6/100 |
| Drive Enclosure Options | 12x 3.5" SAS/NL-SAS (2U) 25x 2.5" Flash/SAS Drives (2U) |
| Drive Options | 3.5" Drive Enclosure (12 x 3.5") 300GB 15K SAS (V2-PS 15-300) 300GB 10K SAS (V2-PS 10-300) 600GB 15K SAS (V2-PS 15-600) 600GB 10K SAS (V2-PS 10-600) 900GB 15K SAS (V2-PS 15-900) 900GB 10K SAS (V2-PS 10-900) 1TB 7.2K NL-SAS (V2-PS07-010) 2TB 7.2K NL-SAS (V2-PS07-020) 3TB 7.2K NL-SAS (V2-PS07-030) 2.5" Drive Enclosure (25 x 2.5") 300GB 10K SAS 600GB 10K SAS 900GB 10K SAS SSD Enterprise Flash Drives (EFD) 100GB 6Gbps SAS 2.5" SSD 200GB 6Gbps SAS 2.5" SSD |
| CPU/Memory Per Controller | Single Controller: 1x Xeon Quad Core/4GB Dual Controllers: 1x Xeon Quad Core/8GB |
| Base 1GBps IP Ports per Controller | 2 |
| Max Flex IO Modules per Controller | 1 |
| Management Ports | Single Controller: 1x 10/100 or 1GbE Dual Controller: 2x 10/100 or 1GbE |
| Interconnect | Four 6Gbps x 4 SAS Ports |
| RAID Options | 1/0, 5, 6 |
| Limits and Support | |
| Maximum Number of Supported LUNs (Single SP | Dual SP) | 128 | 256 |
| Maximum LUN Size | 2TB |
| Maximum File System Size | 16TB |
| Max Raw Capacity | Single Controller: 144TB Dual Controller: 288TB |
| Maximum File Systems | Single Controller: 128 Dual Controller: 256 |
| Copper 10/100/1000 G-BASET Ethernet Module | NAS/iSCSI, 4 Ports per module |
| Compatible Disk Arrays | V2-DAE-12 V2-DAE-N-25-A V2-DAE-R-25-A |
| ECS Warranty | 1-Year Parts Replacement Warranty |
