Quick Specs

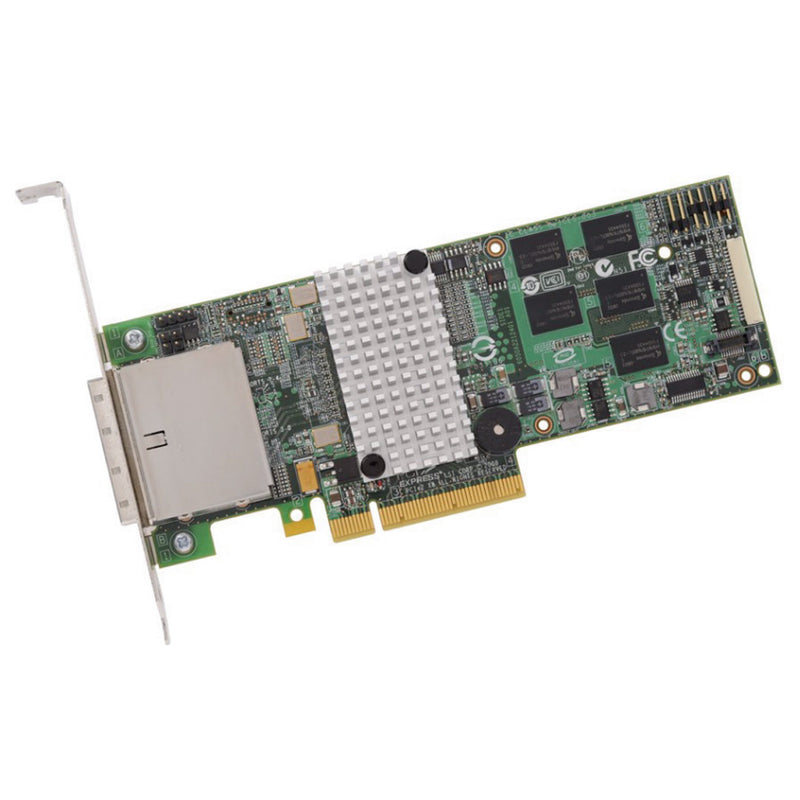

The SAS (Serial-attached SCSI/SATA) 9280-8e RAID controllers are PCI-Express 2.0, low-profile RAID controllers based on the SAS2108, which is a SAS/ SATA RAID On-a-Chip device. These RAID controllers control eight external 6-Gb/s SAS/SATA ports through two SFF-8088 x4 Mini SAS internal connectors.
Compatible With:
- Dell C622
- Dell C6220
- Dell C6220ii
- Dell C8220
- Dell C8220x
(Click to View)
Base Standard Capabilities
| MegaRAID® SAS9265 - 8i | ||
|---|---|---|
| Solution Provided | Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs) | |
| Physical Dimensions | MD2 Low profile (6.6” X 2.536”) | |
| Internal Connectors | Two Mini-SAS SFF8087 internal connectors | |
| Device Support | Up to 128 SAS and/or SATA hard drives and SSDs | |
| Host Bus Type | x8 lane PCI Express 2.0 compliant | |
| Data Transfer Rates | Up to 6Gb/s per port | |
| I/O Processor/SAS Controller | LSISAS2208 Dual-Core RAID on Chip (ROC) | |
| Cache Memory | 1 GB 1333MHz DDRIII SDRAM | |
| Battery Backup Unit | LSIiBBU09, a heat-tolerant intelligent battery back-up module; remote mount | |
| Key RAID Data Protection Features | • RAID levels 0, 1, 5, and 6 • RAID spans 10, 50 and 60 • Online Capacity Expansion (OCE) • Online RAID Level Migration (RLM) • Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM) • Single controller Multipathing (failover) • Load Balancing• Configurable stripe size up to 1MB • Fast initialization for quick array setup • Check Consistency for background data integrity • SafeStore™ Encryption Services– Instant Secure Erase– (Full SafeStore Encryption key sold separately) • SSD Support with SSD Guard™ | • Patrol read for media scanning and repairing • 64 logical drive support • Up to 64TB LUN support • DDF compliant Configuration on Disk (COD) • S.M.A.R.T support • Global and dedicated Hot Spare with Revertible Hot Spare support – Automatic rebuild – Enclosure affinity – Emergency SATA hot spare for SAS arrays • Enclosure management – SES (inband) – SGPIO (sideband) |
| Operating Temperature | Maximum ambient: 60°C (55°C w/iBBU) | |
| Operating Voltage | +3.3V | |
| RAID Management | MegaRAID Management Suite • MegaRAID Storage Manager • MegaCLI (command-line interface) • WebBIOS | |
| Optional SSD Optimization | MegaRAID CacheCade Software provides 50x boost in READs from SSD Cache MegaRAID FastPath Software delivers up to 300,000 IOPs performance on SSD arrays | |
| Ordering Information | MegaRAID SAS 9265-8i • Single Pack: LSI00277 • Kit: LSI00278 LSIiBBU09 • Kit: LSI00279 | |
| OS Support | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. | |
