SKU: T774H

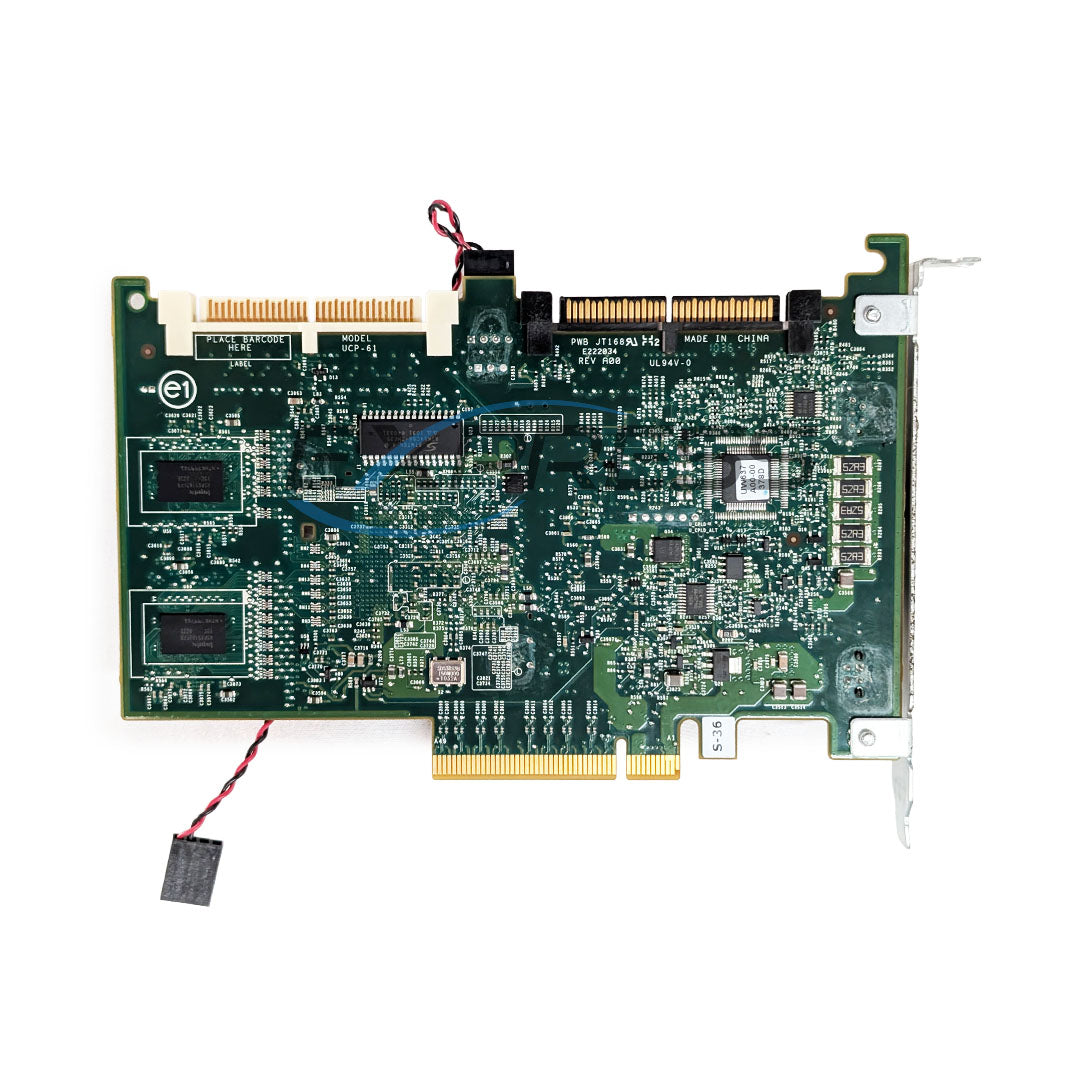

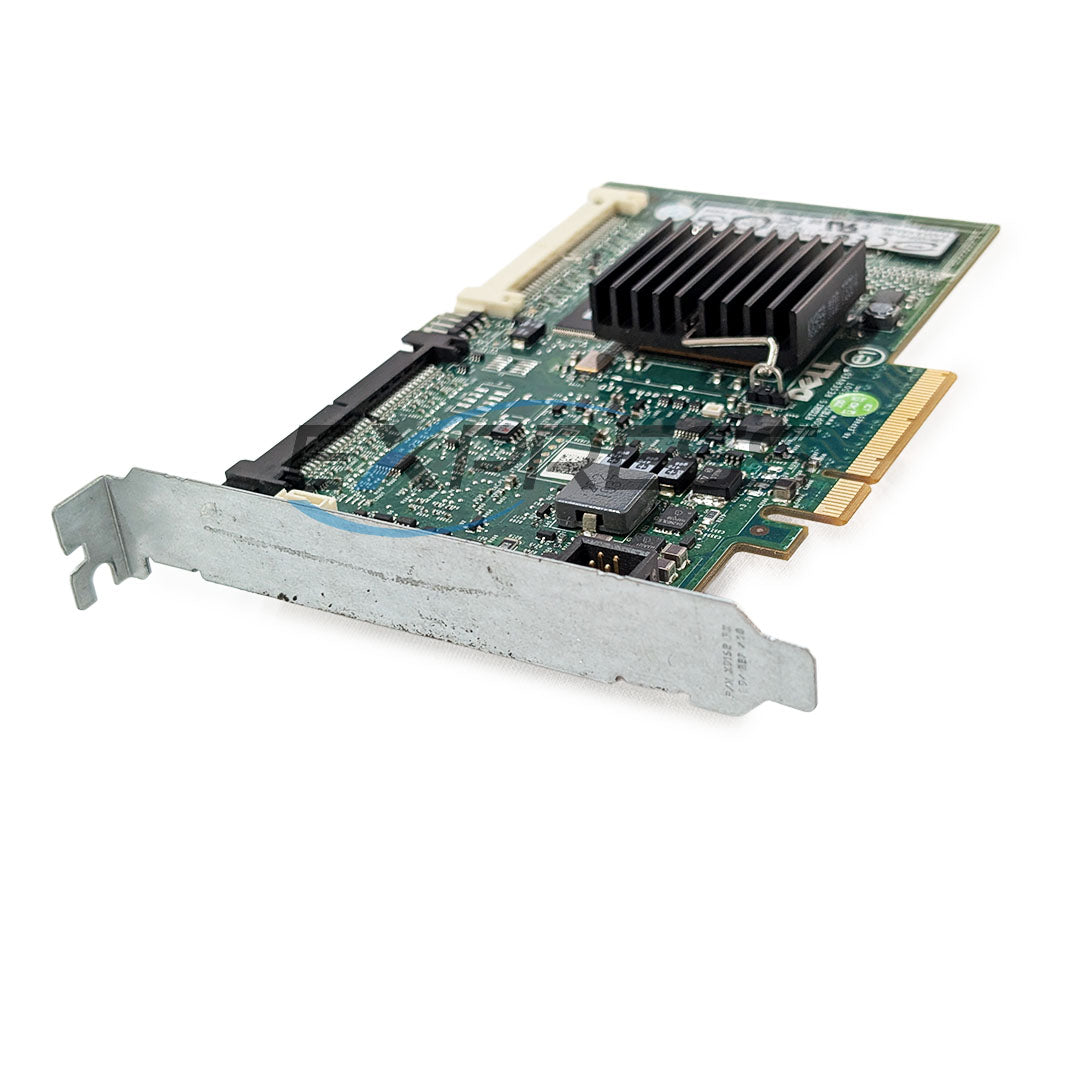

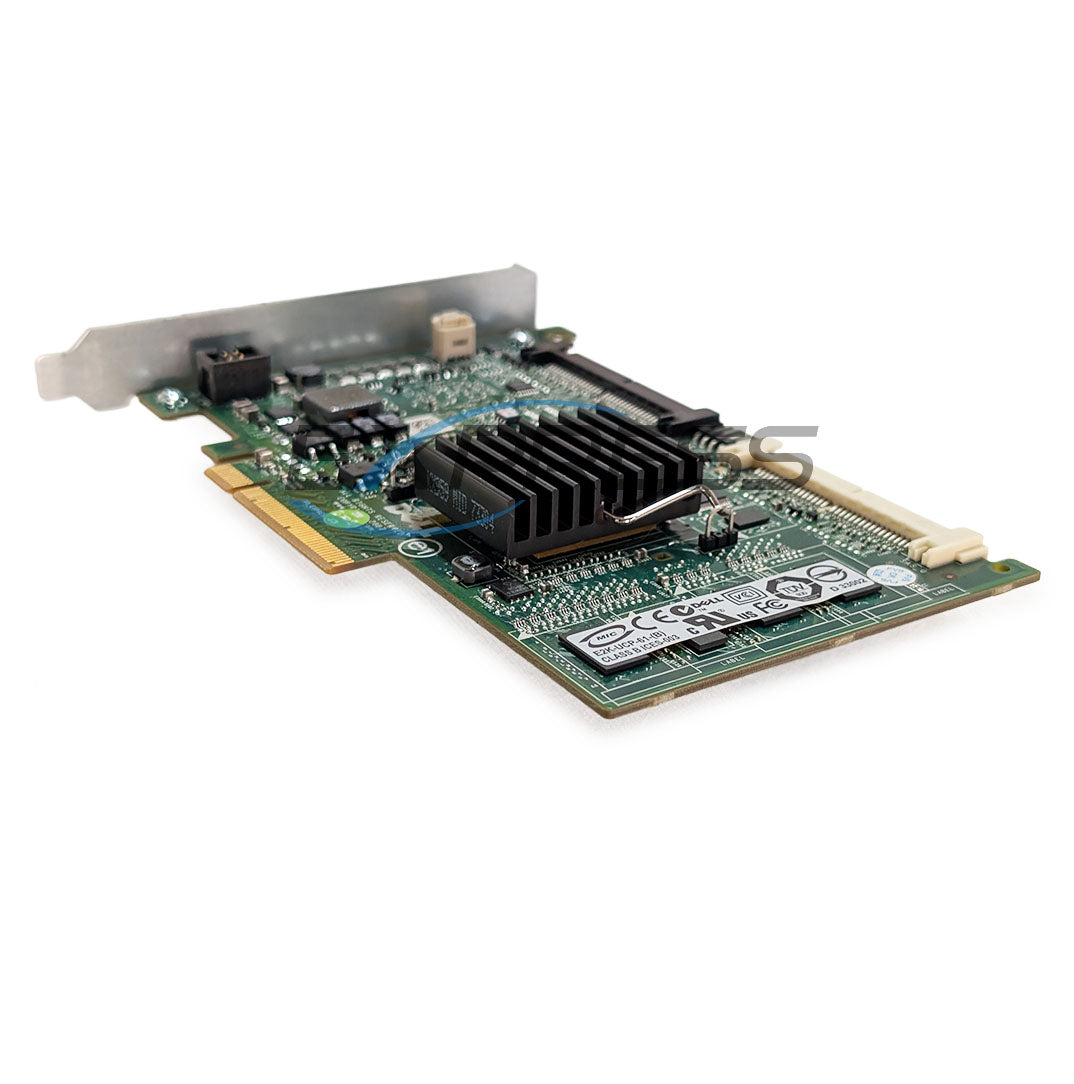

Dell PERC 6/i 256MB SAS RAID Controller | T774H

Adapter Specs

  • Type: RAID Controller Card
  • Interface: PCI Express x8
  • Controller Interface: Serial Attached SCSI (SAS)
  • Ports: 2 x Internal SAS
  • Cache: 256MB
  • Channels: 2
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Bracket: No Bracket Included

Part Number:

  • T774H

The Dell PERC 6/i RAID Controller (T774H) is a plug-in PCIe x8 card designed to manage SAS and SATA drives with 256MB of onboard cache. It supports up to two internal SAS connections and is ideal for entry-level to mid-range storage environments.

Supporting a full range of RAID levels—including RAID 0, 1, 5, 6, 10, 50, and 60—the PERC 6/i provides data redundancy and performance tuning. This version comes without a bracket, making it suitable for bracketless server configurations or custom installations.

Compatible With:
  • Dell M710
  • Dell R210
  • Dell R210ii
  • Dell R510
  • Dell R610
  • Dell R710
  • Dell R810
  • Dell T610
  • Dell T710

(Click to View)
