Dell PERC HBA330 12Gbps SAS FH RAID Controller

Name: Dell PERC HBA330 12Gbps SAS FH RAID Controller
Brand: Dell
Availability: InStock

Dell

| Pre-Configured

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Series: PowerEdge Series 9 Controllers
Cache Memory Size: No Cache
Write Back Cache: No Cache
RAID Support: SAS HBA
RAID Levels: No RAID - Pass-Thru Only
Max Drives Supported: 32
Bracket: Full Height
Form Factor: Adapter
PCI Support: PCI-Express 3.0
Connectors: 2x SFF-8644
Interface Support: 12Gbps SAS, 6Gbps SATA

Part Number:

Mini Mono (v2): 71H1J
Mini Mono: THN56
Mini Mono: P2R3R
MX: 71H1J

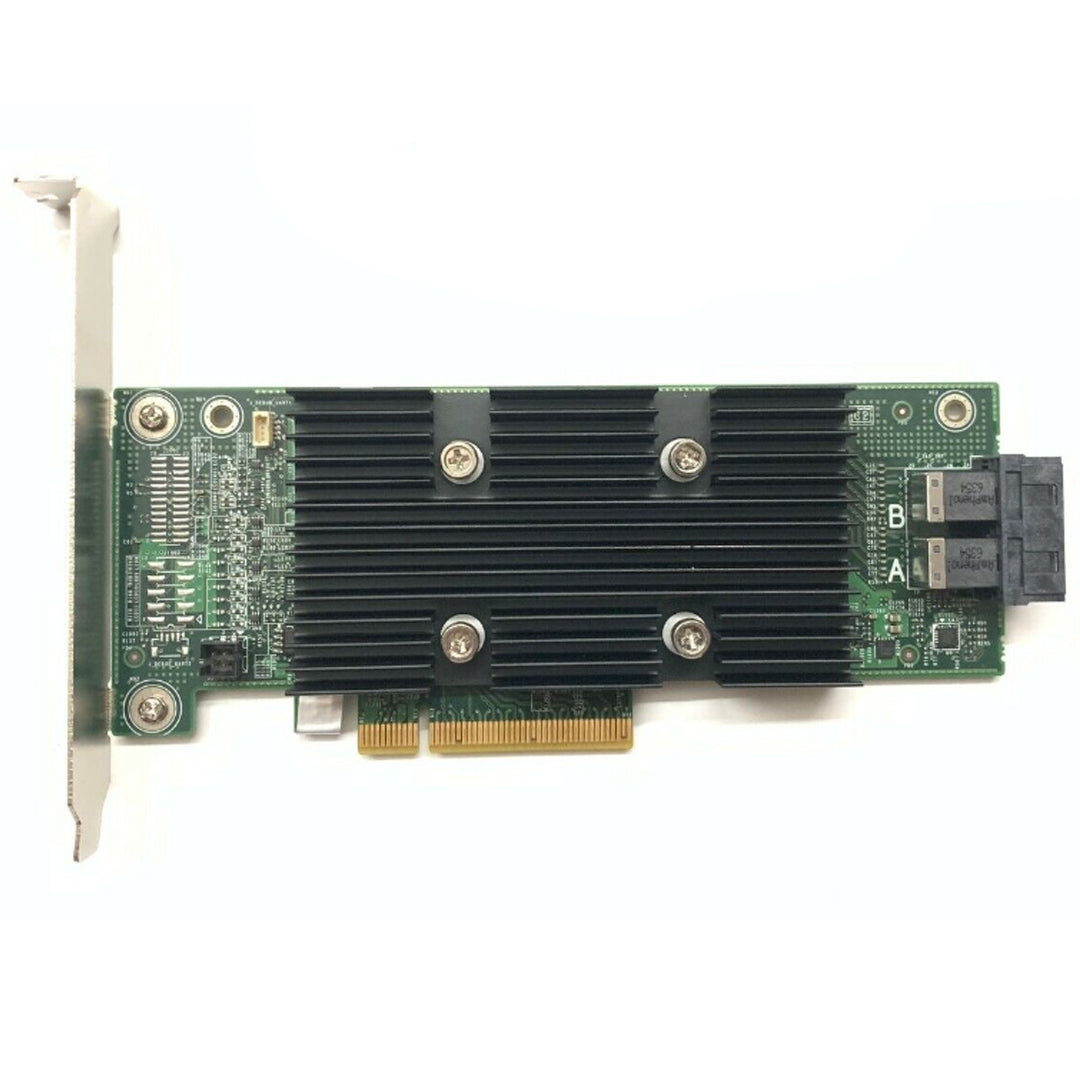

The Dell PERC HBA330 12Gbps SAS x8 PCI-e RAID Controller delivers high-performance connectivity for enterprise storage applications. Designed for PowerEdge Series 9 systems, this full-height adapter enables seamless SAS and SATA drive integration at speeds of up to 12Gbps.

Featuring no onboard cache and providing pass-through functionality without traditional RAID, the HBA330 supports up to 32 drives through dual SFF-8644 connectors. It ensures reliable, flexible storage expansion while maintaining compatibility with Dell's validated enterprise server environments.

Compatible With:

Dell R240
Dell R340
Dell R440
Dell R540
Dell R740xd2
Dell R7425
Dell R830
Dell R840
Dell R940
Dell R940xa
Dell T340
Dell T440
Dell T630
Dell T640

(Click to View)
