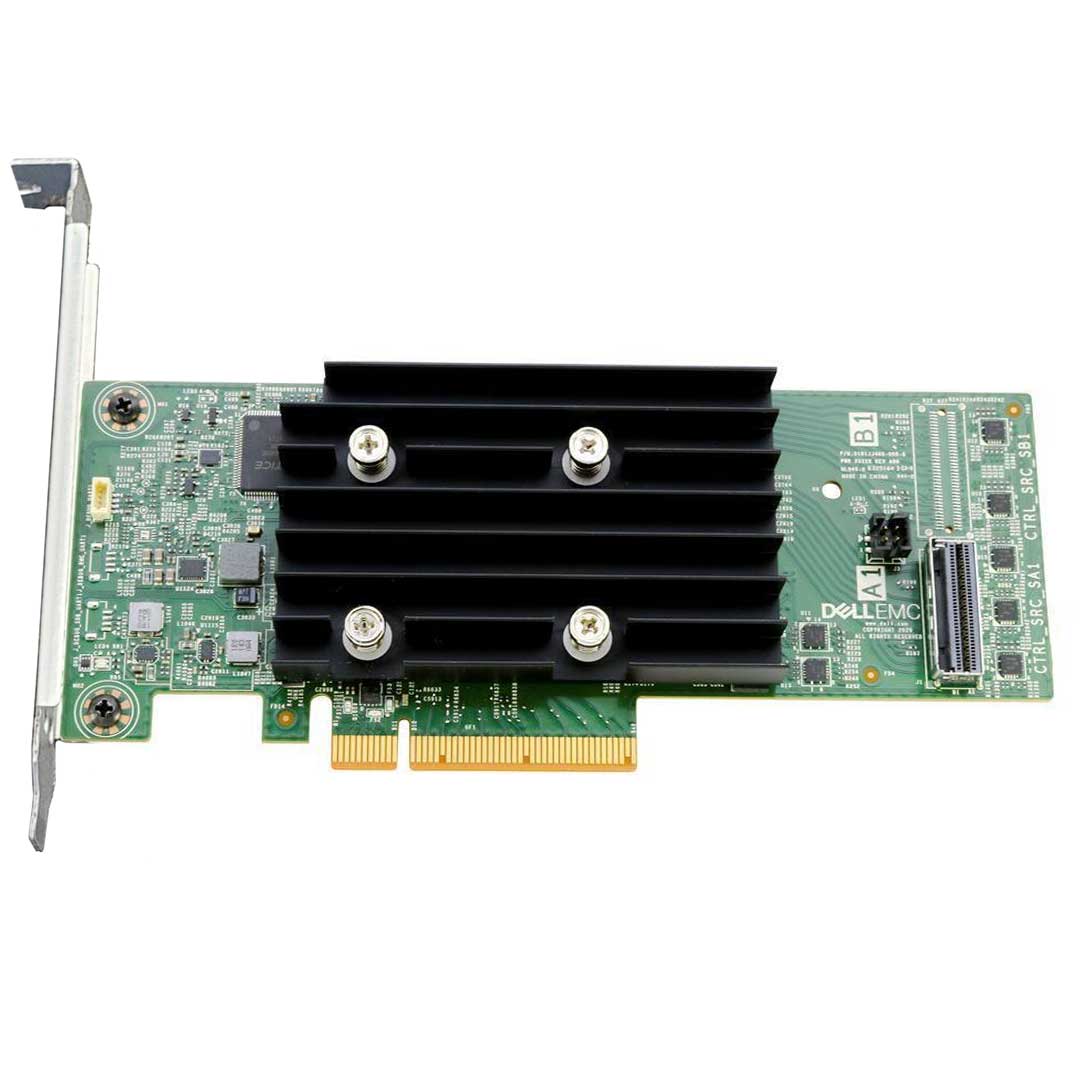

Dell PERC H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height

SKU: H350-FH

Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height

Name: Dell PERC 11 H350 6Gb SATA / 12Gb SAS - x8 PCIe 4.0 Full Height
Brand: Dell
SKU: H350-FH
Availability: OutOfStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Models

Adapter PERC

Drive Types

Gen3 (8 GT/s)
12 Gb/s SAS
6 Gb/s SAS/SATA
3 Gb/s SAS/SATA

PCI Support

PCI-e 4.0

SAS Connectors

2x4 External

Cache Memory

No Cache

Write Back Cache

No Cache

RAID Levels

0,1,10

Max Drive Support

N/A

RAID Support

Hardware

Part Numbers:

N/A

H350 PERC Series Options

H350 Adapter
View PERC

Enclosures per port

0

Cache:

N/A

RAID Level:

0, 1, 10

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:

12 Gb/s SAS
6 Gb/s SAS/SATA

Max SAS/SATA disks:

Up To 32 RAID
or 32 Non-RAID

Max NVMe drives:

Not Supported

Max physical disks:

N/A

H350 Mini Mono
View PERC

Enclosures per port

0

Cache:

N/A

RAID Level:

0, 1, 10

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:

Gen3 (8 GT/s)
12 Gb/s SAS
6 Gb/s SAS/SATA
3 Gb/s SAS/SATA

Max SAS/SATA disks:

8 drives per controller
w/ SAS Expander: Limited by platform offerings

Max NVMe drives:

Not Supported

Max physical disks:

N/A

Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

RAID 0 Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
RAID 1 Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
RAID 5 Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
RAID 6 Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
RAID 10 Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
RAID 50 Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
RAID 60 Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Compatible With:

Dell T440

(Click to View)

Spec Sheet 4


Feature	PERC H355 adapter SAS	PERC H355 front SAS	PERC H350 adapter SAS	PERC H350 Mini Monolithic SAS
RAID levels	0, 1, 10	0, 1, 10	0, 1, 10	0, 1, 10
Non–RAID	Yes	Yes	Yes	Yes
Enclosures per port	Not applicable	Not applicable	Not applicable	Not applicable
Processor	Broadcom RAID-onchip, SAS3816 chipset	Broadcom RAID-onchip, SAS3816 chipset	Broadcom RAID-onchip, SAS3816 chipset	Broadcom RAID-onchip, SAS3816 chipset
Battery backup unit	No	No	No	No
Local Key Management security	No	No	No	No
Controller queue depth	1536	1536	1536	1536
Secure enterprise key manager security	No	No	No	No
Non-volatile cache	No	No	No	No
Cache memory	Not applicable	Not applicable	Not applicable	Not applicable
Cache function	Write through, no read ahead	Write through, no read ahead	write through, no read ahead	write through, no read ahead
Max no of VDs in RAID mode	32	32	32	32
Max no of disk groups	32	32	32	32
Max no of VDs per disk group	16	16	16	16
Hot swap devices supported	Yes	Yes	Yes	Yes
Autoconfig	Yes	Yes	Yes	Yes
Hardware XOR engine	Yes	Yes	Yes	Yes
Online capacity expansion	Yes	Yes	Yes	Yes
Dedicated and global hot spare	Yes	Yes	Yes	Yes
Drives types	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)
VD strip size	64 KB	64 KB	64 KB	64 KB
PCIe support	Gen 4	Gen 4	Gen 4	Gen 4
SAS/SATA maximum drive support	Without SAS Expander: 16 With SAS Expander: Limited by platform offering	Without SAS Expander: 16 With SAS Expander: Limited by platform offering	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering
NVMe maximum drive support	Not applicable	Not applicable	Not applicable	Not applicable

Table 1. Technical specifications of PERC 11 cardsThe following tables list the technical specifications of PERC 11 cards.
Feature	PERC H755 adapter	PERC H755 front SAS	PERC H755N front NVMe	PERC H755 MX adapter	PERC H750 adapter SAS
RAID levels	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50 ,60	0, 1, 5, 6, 10, 50 ,60
Non–RAID	Yes	Yes	Yes	Yes	Yes
Enclosures per port	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
Processor	Broadcom RAID-on-chip, SAS3916 chipset	Broadcom RAID-on-chip, SAS3916 chipset	Broadcom RAID-on-chip, SAS3916 chipset	Broadcom RAID-on-chip, SAS3916 chipset	Broadcom RAID-on-chip, SAS3916 chipset
Battery backup unit	Yes	Yes	Yes	Yes	Yes
Local Key Management security	Yes	Yes	Yes	Yes	Yes
Controller queue depth	5120	5120	5120	5120	5120
Secure enterprise key manager security	Yes	Yes	Yes	No	Yes
Non-volatile cache	Yes	Yes	Yes	Yes	Yes
Cache memory	8 GB DDR4 2666 MT/s cache	8 GB DDR4 2666 MT/s cache	8 GB DDR4 2666 MT/s cache	8 GB DDR4 2666 MT/s cache	8 GB DDR4 2666 MT/s cache
Cache function	Write back, write through, no read ahead, and read ahead	Write back, write through, no read ahead, and read ahead	Write back, write through, no read ahead, and read ahead	Write back, write through, no read ahead, and read ahead	Write back, write through, no read ahead, and read ahead
Max no of VDs in RAID mode	240	240	240	240	240
Max no of disk groups	240	240	240	240	240
Max no of VDs per disk group	16	16	16	16	16
Hot swap devices supported	Yes	Yes	Yes	Yes	Yes
Autoconfig	Yes	Yes	Yes	Yes	Yes
Hardware XOR engine	Yes	Yes	Yes	Yes	Yes
Online capacity expansion	Yes	Yes	Yes	Yes	Yes
Dedicated and global hot spare	Yes	Yes	Yes	Yes	Yes
Drives types	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s), and Gen4 (16 GT/s) NVMe	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s), and Gen4 (16 GT/s) NVMe	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
VD strip size	64 KB, 128 KB, 256 KB, 512 KB, 1 MB	64 KB, 128 KB, 256 KB, 512 KB, 1 MB	64 KB, 128 KB, 256 KB, 512 KB, 1 MB	64 KB, 128 KB, 256 KB, 512 KB, and 1 MB	64 KB, 128 KB, 256 KB, 512 KB, 1 MB
PCIe support	Gen 4	Gen 4	Gen 4	Gen 4	Gen 4
SAS/SATA maximum drive support	Without SAS Expander: 16 drives per controller With SAS Expander: Limited by platform offerings	Without SAS Expander: 16 drives per controller With SAS Expander: Limited by platform offerings	Not applicable	Limited by platform: 8 drives per controller	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offerings
NVMe maximum drive support	Without PCIe Switch Expander: 8 drives per controller With PCIe Switch Expander: Limited by platform offerings	Not applicable	Without PCIe Switch Expander: 8 drives per controller With PCIe Switch Expander: Limited by platform offerings	Limited by platform:8 drives per controller	Not applicable
