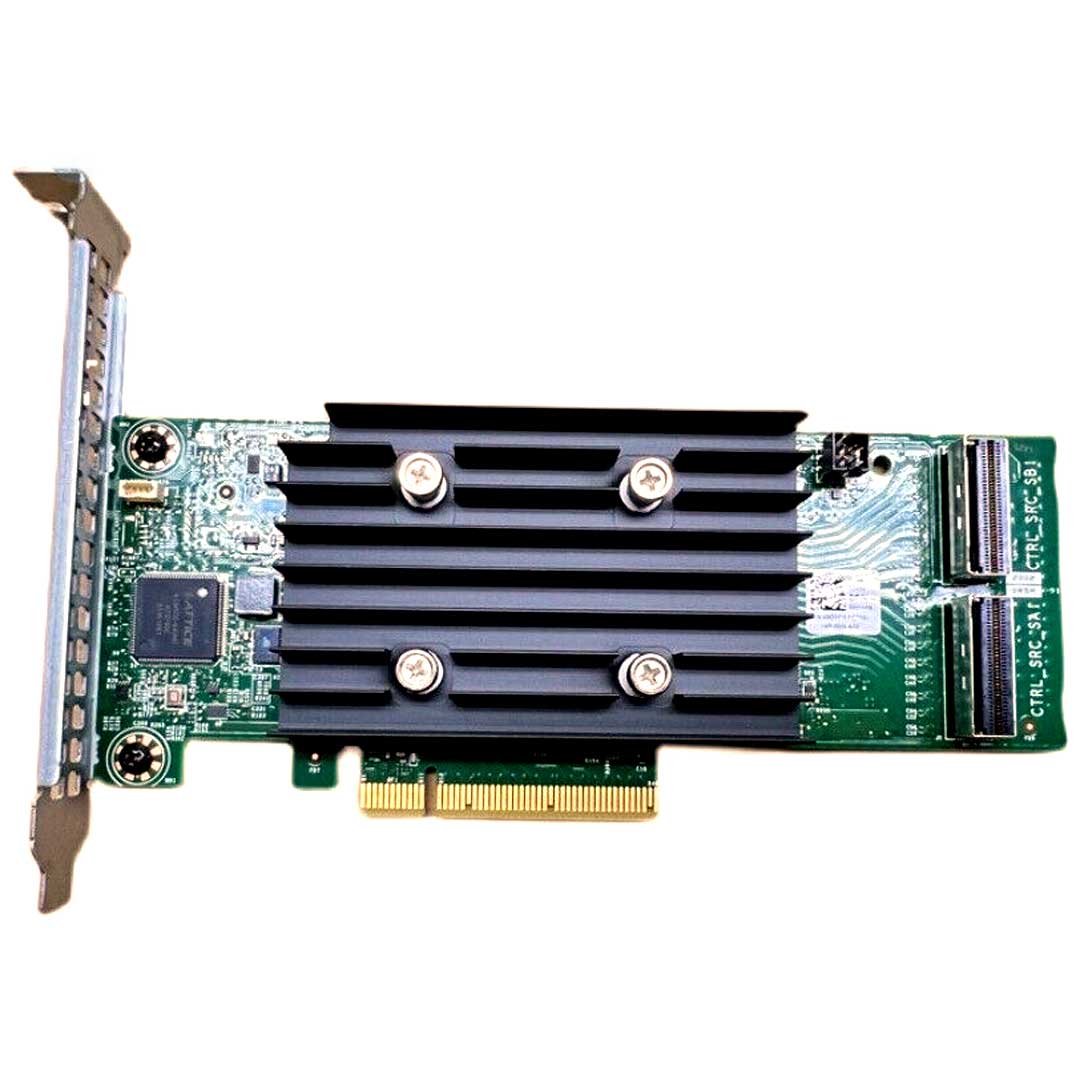

Dell PERC H345 12Gb SAS x8 PCI-E Full Height RAID Controller | SAS3416

SKU: 9DYP8 FH

Dell PERC 10 H345 12Gb SAS RAID Controller FH | 9DYP8

Name: Dell PERC 10 H345 12Gb SAS RAID Controller FH | 9DYP8
Brand: Dell
SKU: 9DYP8 FH
Availability: OutOfStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs

Models: Drive Types
Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3 Gb/s SAS/SATA
PCI Support: PCI-e 3.0
SAS Connectors: 2x8 External
Cache Memory: No Cache
Write Back Cache: No Cache
RAID Levels: 0, 1, 10
Max Drive Support: 63
RAID Support: Hardware

Part Number:

fPERC: FW25F
PCIe: 9DYP8

The Dell PERC 10 H345 12Gb SAS RAID Controller FH offers dependable RAID functionality for external storage environments needing SAS and SATA drive compatibility. Built on PCI-e 3.0 architecture, it connects through a 2x8 external SAS interface to deliver high-speed, reliable data access.

Supporting RAID levels 0, 1, and 10, the H345 manages up to 63 drives without the need for onboard cache. This full-height controller provides a scalable, hardware-based storage solution for enterprise systems that require performance, flexibility, and streamlined RAID management.

Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

RAID 0: Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
RAID 1: Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
RAID 5: Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
RAID 6: Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
RAID 10: Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
RAID 50: Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
RAID 60: Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Compatible With:

Dell R350
Dell T350

(Click to View)

Spec Sheet 4

Models	Drive Types	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H840 Adapter FH	12 Gb/s SAS 6 Gb/s SATA	PCIe 3.1	2x4 External	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	255	Hardware
H840 Adapter LP	12 Gb/s SAS 6 Gb/s SATA	PCIe 3.1	2x4 External	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	255	Hardware
H745P MX Adapter	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCIe 3	Modular Enclosure	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	-	Hardware
H740P FH	12 Gb/s SAS 6 Gb/s SATA	PCIe 3.1	2x4 External	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H740P LP	12 Gb/s SAS 6 Gb/s SATA	PCIe 3.1	2x4 External	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H740P Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCIe 3.1	2x4 External	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
S150 Software RAID	6 Gb/s SATA/NVMe	PCIe	N/A	No Cache	No Cache	0,1,5,10	30*	Software RAID Windows and Linux
S140 Software RAID	6 Gb/s SATA/NVMe	N/A	N/A	No Cache	No Cache	0,1,5,10	16*	Software RAID Windows and Linux
12 Gbps SAS Ext. HBA	12 Gb/s SAS	PCIe 3.0	2x4 External	No Cache	No Cache	No RAID Pass-Thru Only	255	No RAID Pass-Thru Only
H745 Adapter	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCIe 3	2x8 Internal	4 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	240	Hardware
H745 Front	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCIe 3	2x8 Internal	4 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	240	Hardware
H345 FH	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCIe 3	2x8 Internal	No Cache	No Cache	0,1,10	63	Hardware
H345 LP	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCIe 3	2x8 Internal	No Cache	No Cache	0,1,10	63	Hardware
H345 Front	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCIe 3	2x8 Internal	No Cache	No Cache	0,1,10	63	Hardware
*The S150 controller supports up to 8 SATA disks (HDD and SSD) depending on system backplane configuration, supports up to 30 NVMe PCIe SSDs.
*The S140 controller supports up to 16 physical disks (SATA + NVMe) depending on system backplane configuration except the PowerEdge R840 and PowerEdge R940xa supports up to 30 (SATA + NVMe).
