Quick Specs
- Support for RAID levels 0, 1, 5, 6, 10, 50 and 60.
- PCI-Express Gen 2.0 x8 support
- 6Gb/s SAS (SAS 2.0) host interface
- Doubles throughput performance capability over 3Gb/s models
- Max hard drive support: 192 drives
- Backwards-compatible with 3Gb/s SAS (SAS 1.0) drives
- 512MB cache module
- Support for individual (logical) hard drives greater than 2TB
- Support for self-encrypting hard drives (SED)
- Support for solid-state drives (SSD)
The PERC H800 external host RAID controller is designed for expanding storage to the Dell PowerVault MD1200 and MD1220 6Gb/s SAS enclosures.
The PERC H800 external host-RAID product is supported with 11th Generation Dell PowerEdge servers for expanding storage to the Dell™ PowerVault™ MD1200 and MD1220 6Gb/s SAS enclosures.

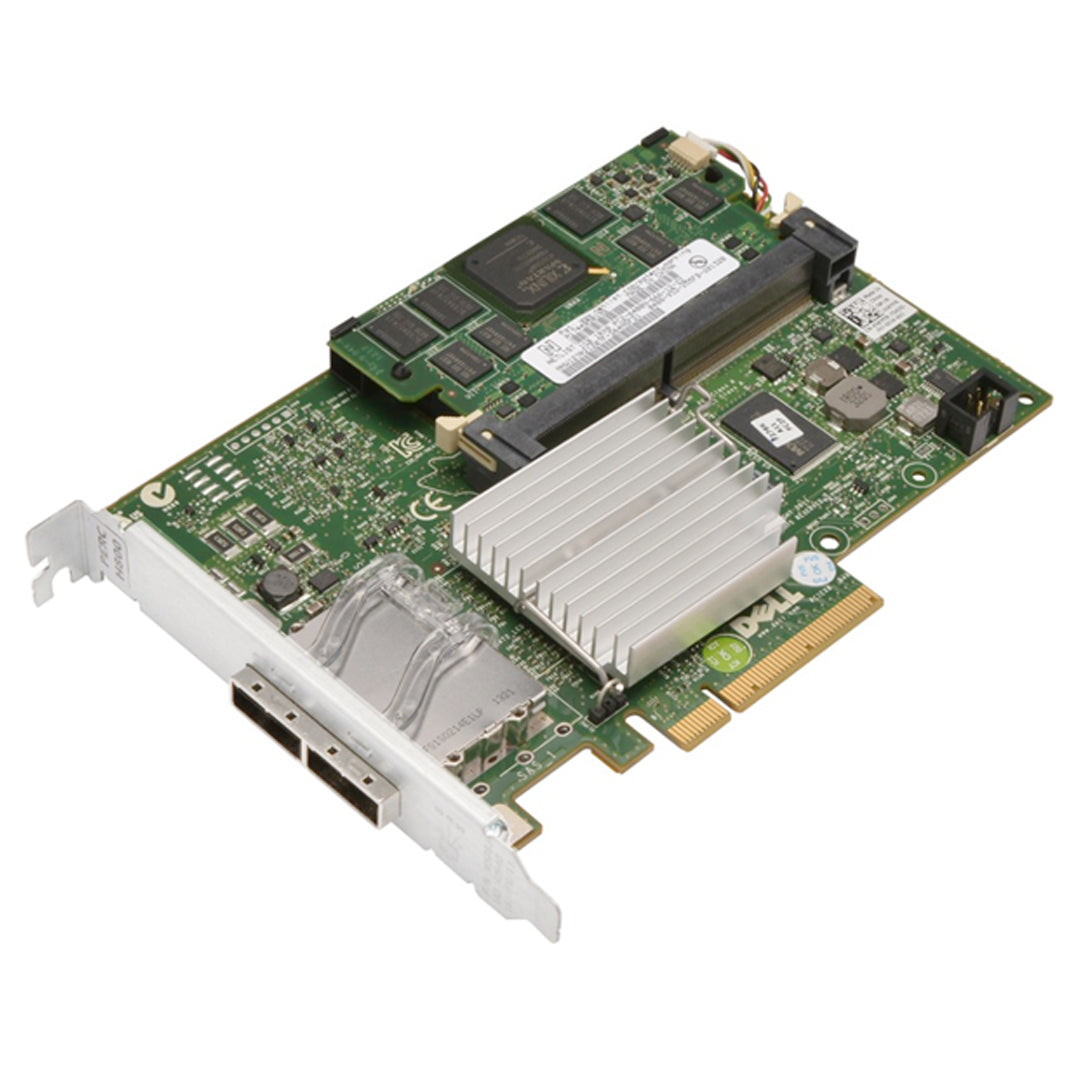

The PERC H800 Adapter with two x4 external mini-SAS ports supports the PCIe 2.0 x8 host interface. Cache options include the standard 512 MB transportable battery backup unit (TBBU) and the transportable 512 MB and 1 GB non-volatile cache. The PERC H800 Adapter is installed in a PCIe slot in the server. See Figure 3 for an angled view of the PERC H800 adapter.
Compatible With:
- Dell MD1200
- Dell MD1220
- Dell R210
- Dell R210ii
- Dell R220
- Dell R410
- Dell R510
- Dell R610
- Dell R710
- Dell R810
- Dell T310
- Dell T410
- Dell T610
- Dell T710
(Click to View)
Spec Sheet 4
| Feature/Spec | PERC H700 | PERC 6/I | PERC H800 | PERC 6/E |
|---|---|---|---|---|
| Interface | 6Gb (SAS 2.0) | 3Gb (SAS 1.1) | 6Gb (SAS 2.0) | 3Gb (SAS 1.1) |
| Bus support | x8 PCIe 2.0 | x8 PCIe 1.0 | x8 PCIe 2.0 | x8 PCIe 1.0 |
| Ports / Channels | 8 (2 x4) | 8 (2 x4) | 8 (2 x4) | 8 (2 x4) |
| Int/Ext Connectors | 2 internal | 2 internal | 2 external | 2 external |
| Cache Memory | 512MB BBU 512MB Non-Volatile Cache (800 MHz DDR2) | 256MB (667 MHz DDR2) | 512MB TBBU 512MB TNVC 1GB TNVC (800 MHz DDR2) | 256MB / 512MB (667 MHz DDR2) |
| Battery-Backed Cache | Yes | Yes | Yes Transportable | Yes Transportable |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Max physical drives in Large RAID volume (R10, R50, R60) | 16 | 10 | 192 (8x MD1220) | 144 (6x MD1120) |
| HDD Support | SAS and SATA | SAS and SATA | SAS only | SAS and SATA |
| SSD Support | SAS and SATA | SATA | SAS only | Not Supported |
| SED Support | Yes (Local Key Management) | Not Supported | Yes (Local Key Management) | Not Supported |
| Controller Firmware (latest rev) | 7.1 | 6.2 | 7.1 | 6.2 |
| Redundant Path | No | No | Yes | Yes |
| I/O Load Balancing | No | No | Yes | Yes |
| Cluster Support | No | No | No | No |
| Storage Management | OpenManage™ 6.2 (minimum rev) | OpenManage™ 5.4 (minimum rev) | OpenManage™ 6.2 (minimum rev) | OpenManage™ 5.4 (minimum rev) |
