R750 Riser Config 1

Name: R750 Riser Config 1
Brand: Dell
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Riser Config Specs

Config No.	Expansion card risers	PCIe Slots	Controlling Processor	PERC type supported	Rear storage possible	Height	Length	Slot width

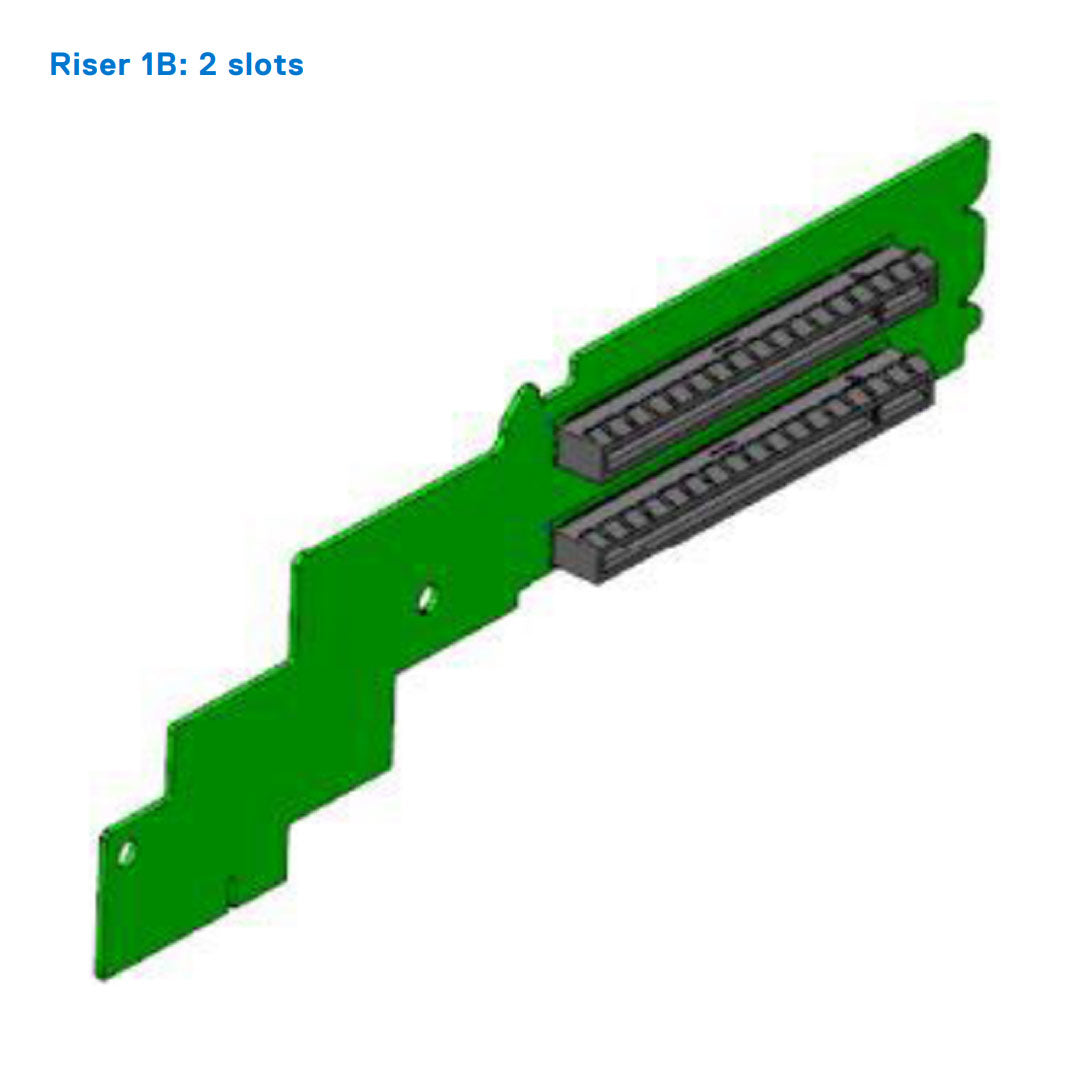

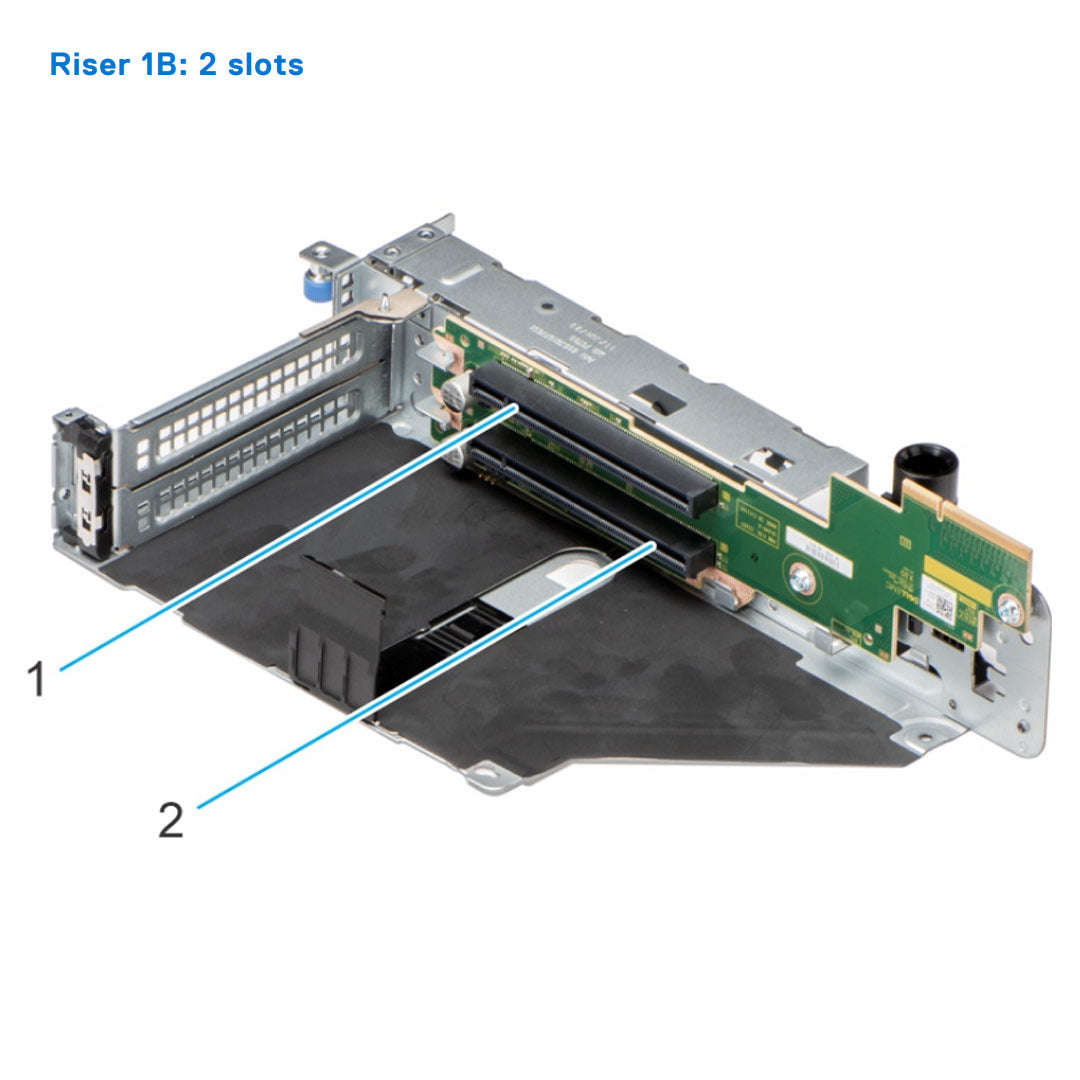

Config 1. 6x FH and 2x LP	R1b	1 and 2	Processor 1	fPERC / Adapter	No	Full height	Half length	x8 + x8

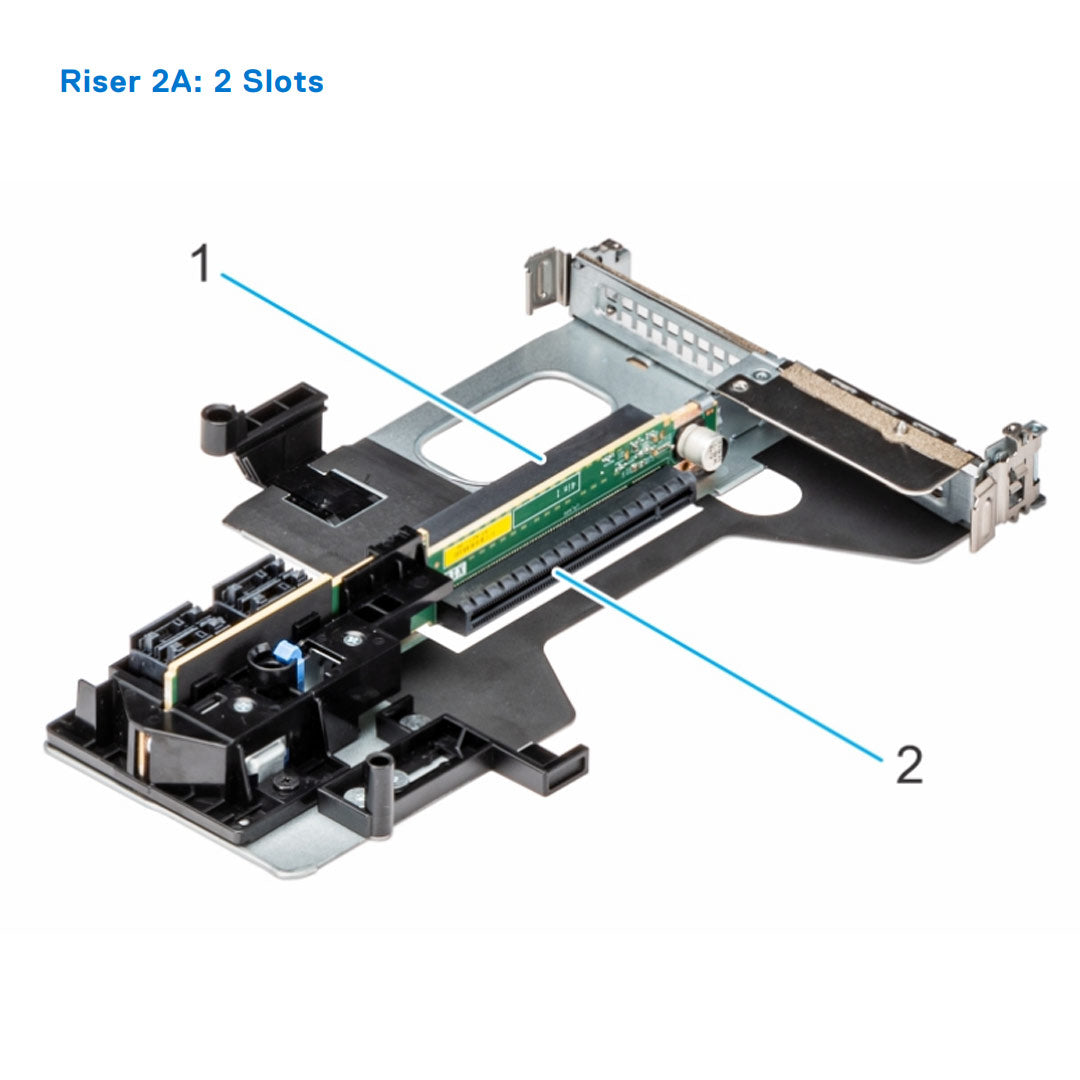

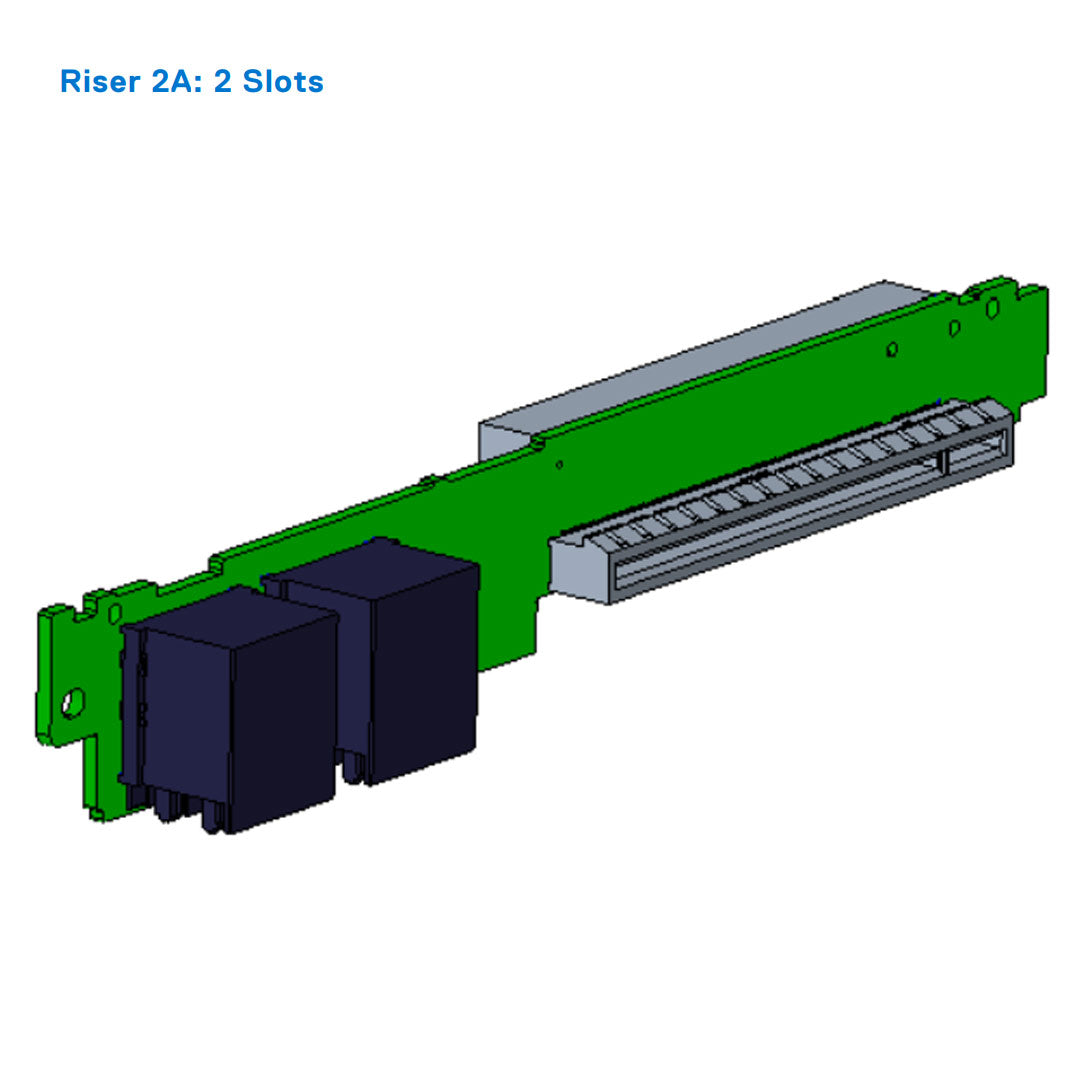

	R2a	3 and 6	Processor 1 and 2	fPERC / Adapter	No	Low profile	Half length	x16 + x16

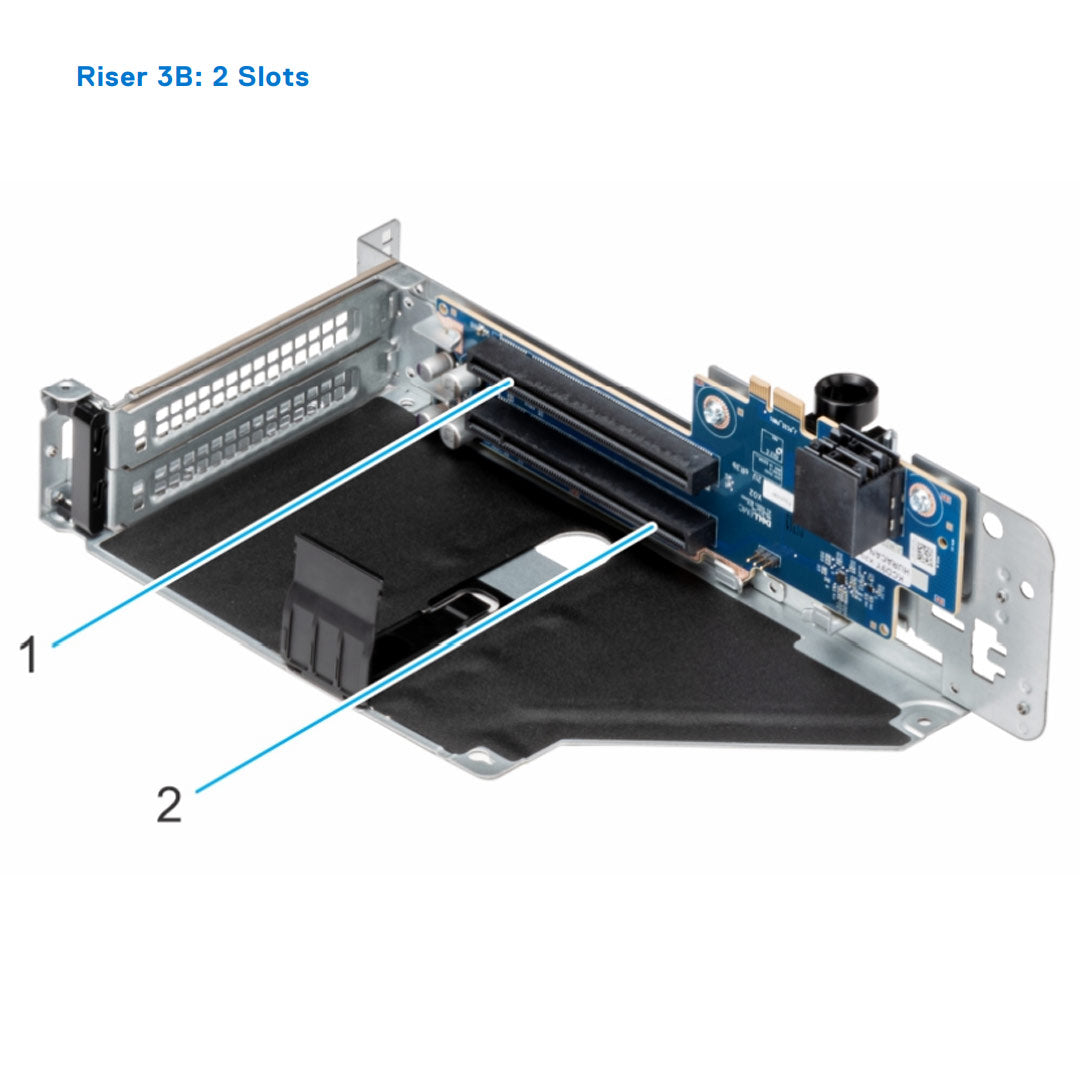

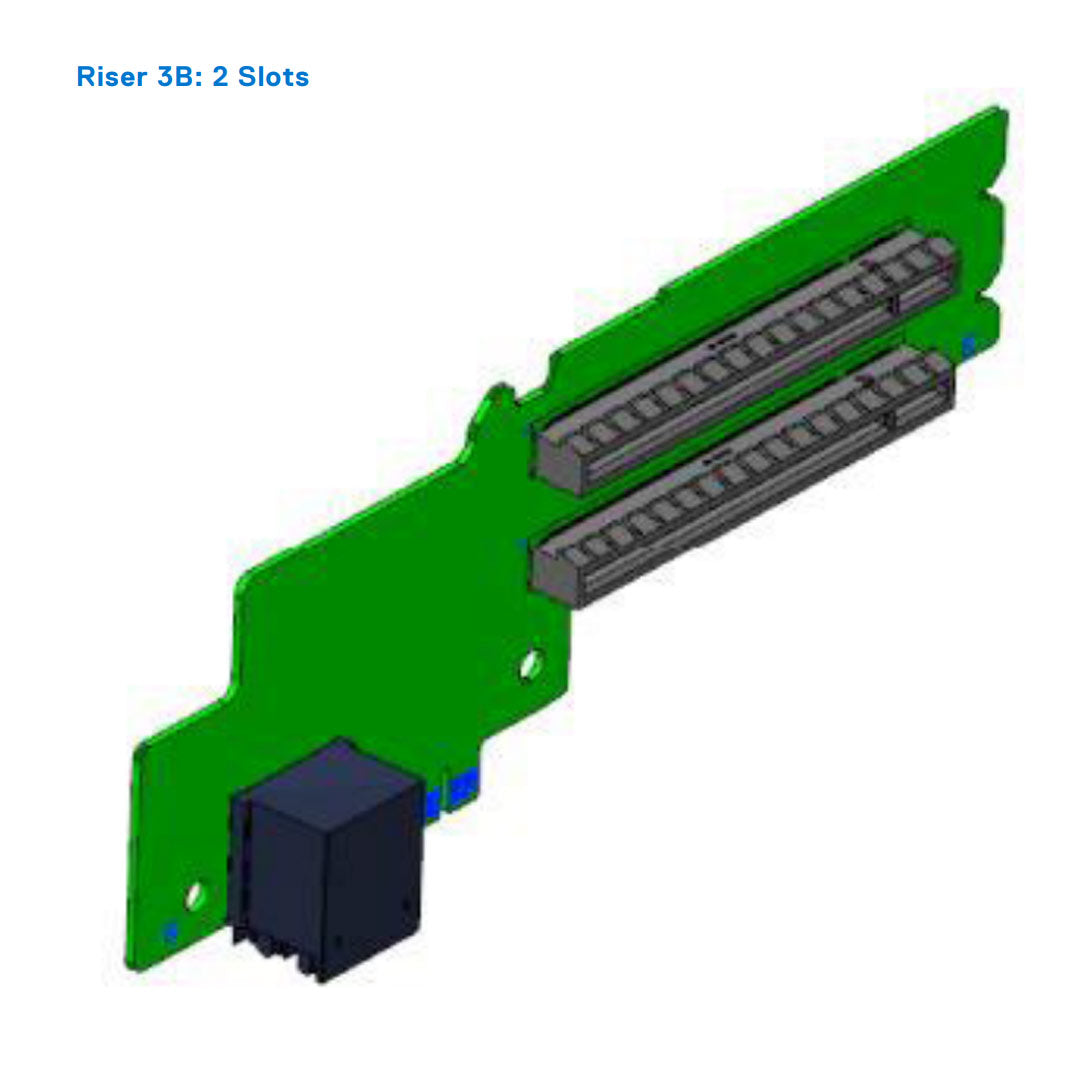

	R3b	4 and 5	Processor 2	fPERC / Adapter	No	Full height	Half length	x8 + x8

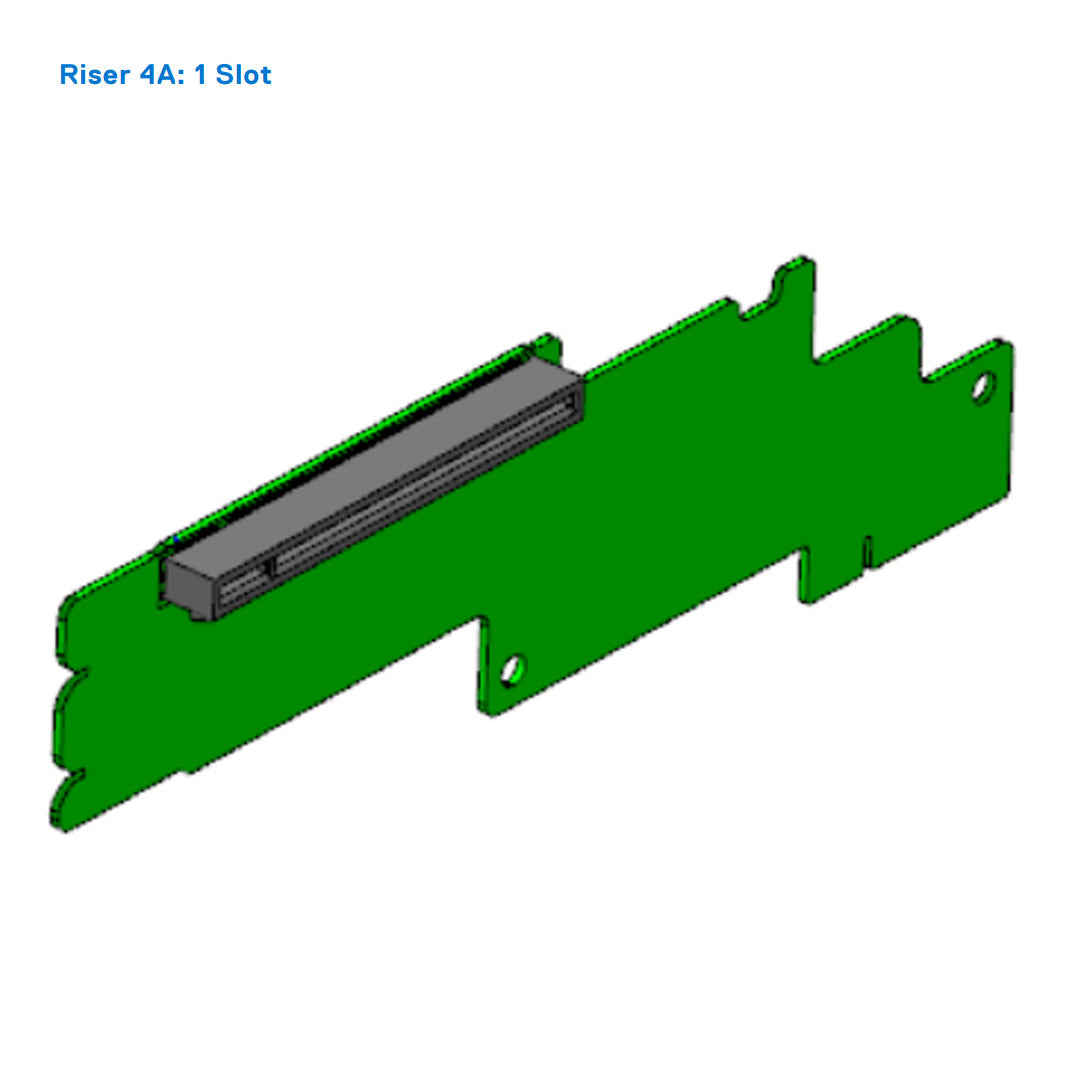

	R4b	7 and 8	Processor 2	fPERC / Adapter	No	Full height	Half length	x8 + x8
