    NetApp FAS6030 Single Controller Filer Head (Stand Alone)


    Price: Request a Quote

    Brand:
    MPN:
    FAS6030
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

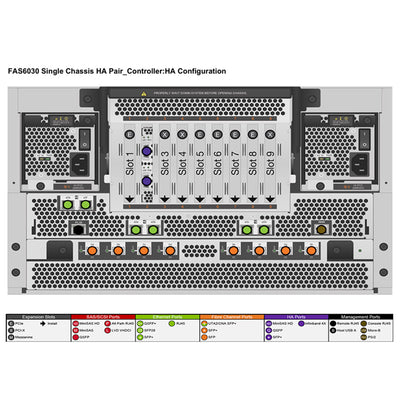

    NetApp FAS6030 Single Controller Filer Head (Stand Alone)

    The NetApp FAS6030 is a 6U, single-chassis storage system designed for mid-tier enterprise environments. Featuring a single controller with dual 64-bit, 2.80GHz processors, it delivers reliable performance for critical workloads. Its architecture supports up to 16GB of system memory and RAID 4 or RAID-DP, providing a dependable framework for data protection.

    Connectivity options include six 1Gb Ethernet ports and eight Fibre Channel ports, making it adaptable to diverse network infrastructures. With a mix of PCI-X and PCIe expansion slots (three PCI-X + five PCIe), administrators have the flexibility to add additional network or storage interfaces as needed. Remote management capabilities simplify setup, monitoring, and maintenance.

    Supporting up to 840 drives and a maximum raw capacity of 3.36PB, the FAS6030 scales to accommodate expanding data demands. It works seamlessly with various NetApp disk shelves—DS14 series, DS2246, DS424x, and DS4486—offering a range of drive interfaces (FC, MSATA, NL-SAS, SAS, SATA, SSD) for tailored performance and capacity. This combination of expandability and reliability makes the FAS6030 a solid choice for organizations seeking a single-controller storage solution.


    System Config
    • Model: NetApp FAS6030
    • Chassis: Single Chassis
    • Total Rack Height: 6U
    • Controllers: Single Controller (Stand Alone)
    • Memory (HA): 16GB
    • Processor Model: 2x 64-bit 1-core 2.80 Ghz
    • Ethernet Ports: 6 x RJ45 (1Gb)
    • Fibre Channel Ports: 8 x SFP (2Gb)
    • PCIe Expansion Slots: 3 x PCI-X + 5 x PCIe
    • Max Drives (total): 840
    • Max Capacity: 3,360TB (3.36PB)
    • Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 6U
    • Chassis Heights: 10.32" (26.21 cm)
    • Chassis Width w/o Mounting Flanges: 17.53" (44.52 cm)
    • Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
    • Chassis Weight: up to 121.9 lb (55.3 kg)
    Controller Specs
    • Max Controllers: 1 (Per Chassis)
    • PCI Slot (per): 3 x PCI-X + 5 x PCIe
    • Ethernet Ports (per): 6 x RJ45 (1Gb)
    • Fibre Channel Ports (per): 8 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): N/A
    • Remote Management: Yes
    • Processor Model (per): 2x 64-bit 1-core 2.80 Ghz
    • Memory (Single/HA): 16GB/32GB
    • NVRAM (Single/HA): 0GB/1GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 840
    • Max Capacity: 3,360TB (3.36PB)
    • Max Number of FC Drives: 840
    • Max Number of MSATA Drives: 840
    • Max Number of NL-SAS Drives: 840
    • Max Number of SAS Drives: 840
    • Max Number of SATA Drives: 840
    • Max Number of SSD Drives: 240
    • Drive Interface: FC, MSATA, NL-SAS, SAS, SATA, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP)
    • Max # of DS14-Mk2-AT Shelves: 60 external
    • Max # of DS14-Mk2-FC Shelves: 60 external
    • Max # of DS14-Mk4-FC Shelves: 60 external
    • Max # of DS2246 Shelves: 35 external
    • Max # of DS4243 Shelves: 35 external
    • Max # of DS4246 Shelves: 35 external
    • Max # of DS4486 Shelves: 18 external

    FAS6030 Parts Lists

    Ask about our NetApp Disk Shelves!
    We can create custom Turn-Key configurations based on your needs!
    Click here to view NetApp Disk Shelves
