Maximum Raw Capacity (HA): 1680TB
Maximum Disk Drives: 840
Controller Form Factor: 6U
Max Memory: 32GB
Maximum Flash Cache (HA): 2TB
Disk Type: Fibre Channel, SSD/Flash, NL-SAS, SATA, SAS
Disk Form Factor: 2.5" & 3.5"
Host Connectivity: 4Gb Fibre Channel (FC), 1 GbE
Storage Protocols Supported: CIFS (NAS), Fibre Channel (FC), Fibre Channel over Ethernet (FCoE), iSCSI (IP SAN), NFS (NAS), HTTP
Supported RAID: RAID 4, RAID 6 (RAID-DP)
*Available in Single or Dual Controller ('C' Cluster / 'A' Active-Active / 'HA' High-Availability). Call for Details and Pricing

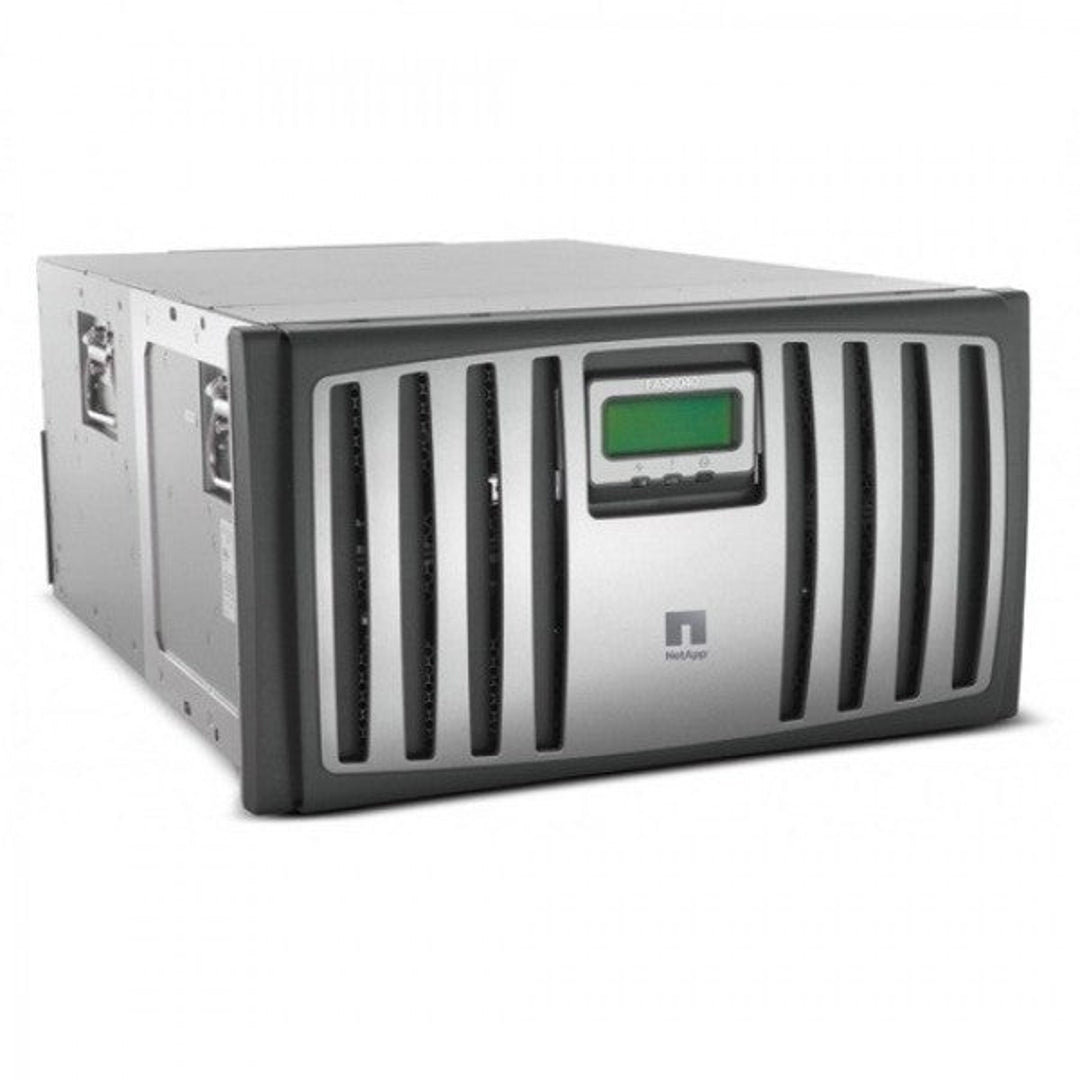

The FAS6040 provides easy to use platforms for managing your NAS or SAN without having to manage them separately. You can easily manage both in a single system with the concurrent support for block and file protocols using Ethernet and Fibre Channel interfaces, found in all of the FAS series systems. The FAS6040 uses Data ONTAP which includes FlexShare quality-of-service software. FlexShare allows your storage administrators to set and dynamically adjust workload priorities.
All FAS systems support Windows, UNIX and Linux host operating systems, as well as VMware server virtualization. The FAS6040 uses redundant, hot-swappable components, and with our patented dual-parity RAID-DP (High-Performance RAID 6), you get superior data protection with little or no performance loss. FAS6040 includes Snapshot technology you get near-instantaneous file-level or full data set recovery, while using a very small amount of storage. Snapshot creates up to 255 data-in-place, point-in-time images per LUN or file system.
The FAS6040 can utilize up to 840 disk drives and supports a maximum raw capacity of 840TB. The FAS6040 has 32GB of memory and can support a maximum of 80 4Gbps FC Ports as well as support for 8Gbps Fibre Channel and 10GbE.
| TECHNICAL SPECIFICATIONS FOR SINGLE AND ACTIVE-ACTIVE (HA) CONFIGURATIONS | |
|---|---|
| Maximum Raw Capacity (HA) | 1680TB |
| Recommended Min Raw Capacity Array LUNs (GB) | N/A |
| Absolute Min Raw Capacity Array LUNs (GB) | N/A |
| Maximum Storage Devices (HA) | 840 Disks |
| Max DS2246 Shelves (HA) | 35 |
| Max DS4243 Shelves (HA) | 35 |
| Max DS4246 Shelves (HA) | 35 |
| Max DS4486 Shelves (HA) | Not Supported |
| Max DS14-Class Shelves (HA) | 60 |
| Max Nodes per Cluster (NAS) | Not Supported |
| Max Nodes per Cluster (SAN) | Not Supported |
| Aggregate Size 32 bit (TiB) | 16 |
| Aggregate Size 64 bit (TiB) | N/A |
| Min Size for an Array LUN Aggregate (GB) | N/A |
| Flex Volume Size 32 bit (TiB) | 16 |
| Flex Volume Size 64 bit (TiB) | N/A |
| Max Infinite Volume Data Constituent Size (TiB) | Not Supported |
| Max Volume Count (Single) | N/A |
| Max Array LUN Size (GB) | N/A |
| Min Array LUN Size (GB) | N/A |
| Min Array LUN Size - Root Volume (GB) | N/A |
| Min Root Volume Size (Single/HA) | 37GB / 37GB |
| Spare Core Array LUN Min Size (GB) | N/A |
| Max RAID Groups in an Aggregate | N/A |
| Block Size (Bytes) | N/A |
| Chassis Height | 10.32" |
| Chassis Width | 17.53" |
| Chassis Depth | 29.00" |
| Rack Units (Single/HA) | 6U/12U |
| Operating Temperature Range | 50°F to 104°F |
| Storage Temperature Range | -40° to 158°F |
| Input Power Voltage | 100v to 120v, 200v to 240v |
| Processor (Single) | 2x 64-bit 2.80Ghz |
| Memory (Single/HA) | 16GB/32GB |
| NVRAM (Single) | 512MB Adapter Card |
| Ethernet Ports (Single) | 6x RJ45 (1Gbps) |
| Fibre Channel Ports (Single) | 8x SFP (4Gbps) |
| UTA2 Ports (Single) | N/A |

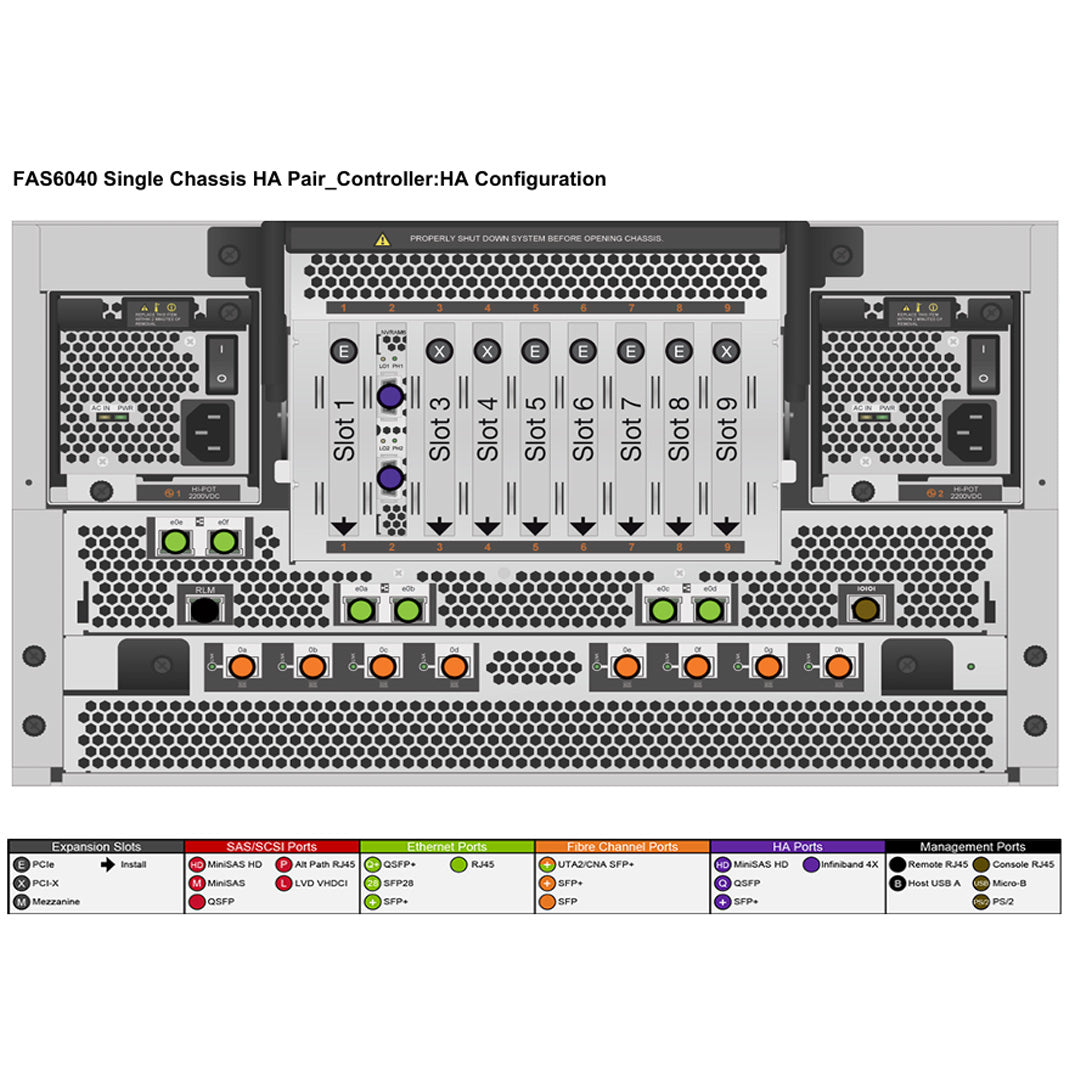

| Expansion Slots (Single) | 3x PCI-X 6x PCIe |
| SAS Ports (Single) | N/A |
| Max Back-End FC Loops (HA) | 10 |
| Min Version of Data ONTAP 7 | 7.2.4 |
| Min Version of Data ONTAP 8 (both modes) | 8.0, 8.1, 8.2RC1 |
| Max Version of Data ONTAP 8 (both modes) | 8.0.5, 8.1.4, 8.2.4 |
Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!
