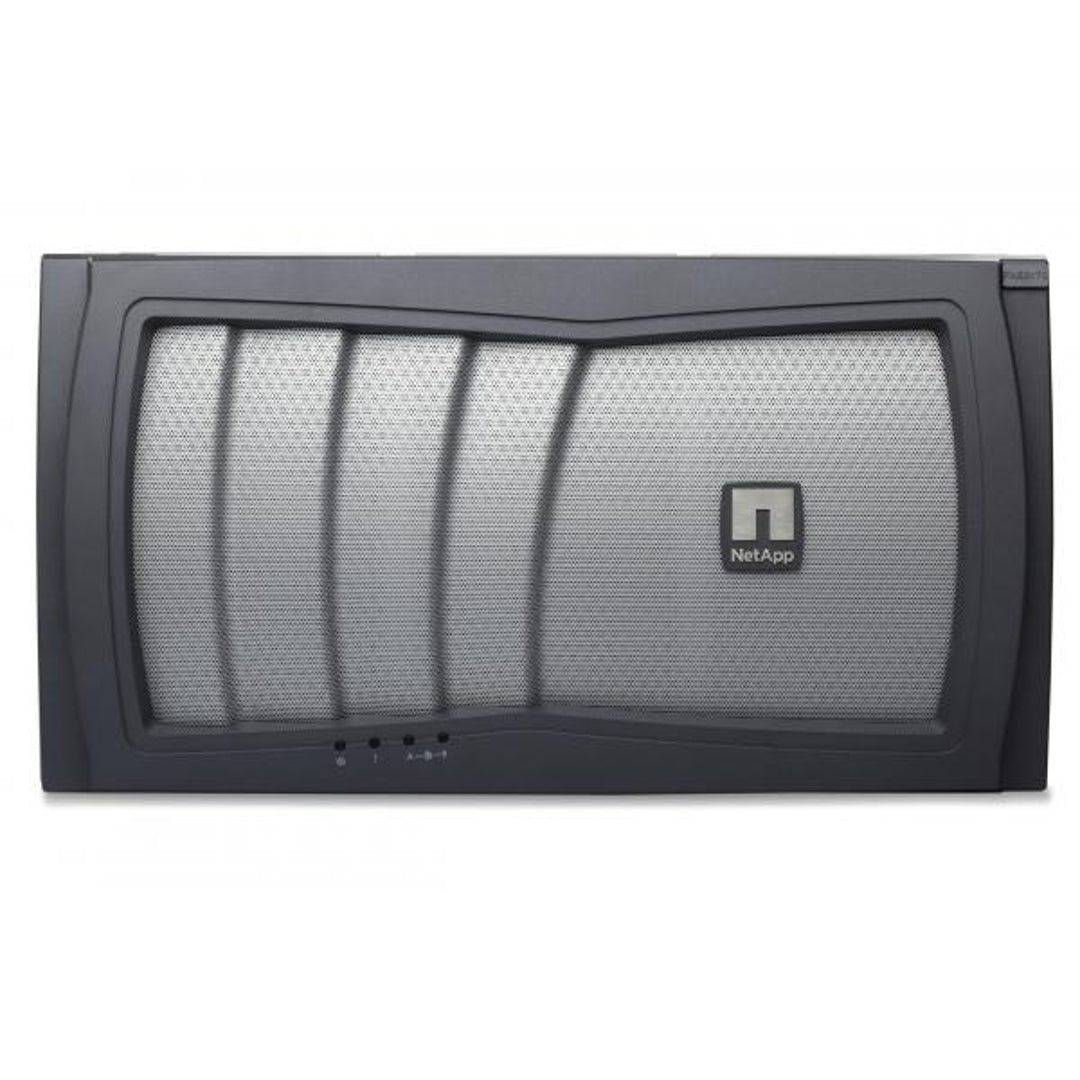

NetApp FAS3170A / FAS3170C Dual Controller

SKU: FAS3170A

NetApp FAS3170 Dual Controller Filer Head (HA)

Name: NetApp FAS3170 Dual Controller Filer Head (HA)
Brand: NetApp
SKU: FAS3170A
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS3170 is a mid-range storage system engineered for efficient data management in a compact 6U chassis. It features dual active-active controllers with up to 32GB of shared memory, providing reliable performance for mission-critical workloads. Integrated remote management ensures streamlined deployment and maintenance in diverse IT environments.

Each controller is powered by a 64-bit, dual-core 2.60GHz processor, supported by four 1GbE and four 4Gb FC ports for flexible connectivity. RAID 4 and RAID-DP options safeguard data while maximizing throughput, and eight PCIe expansion slots enable additional network or storage interfaces.

With support for up to 840 drives and a maximum capacity of over 2PB, the FAS3170 scales seamlessly to accommodate growing data demands. It works with various NetApp disk shelves—DS14, DS2246, DS4243, and DS4246—allowing organizations to mix FC, SAS, SATA, or SSD media for tailored performance and capacity.

System Config

Model: NetApp FAS3170
Chassis: Single Chassis
Total Rack Height: 6U
Controllers: Dual Controller (HA)
Memory (HA): 32GB
Ethernet Ports: 4 x RJ45 (1Gb)
Fibre Channel Ports: 8 x SFP (4Gb)
PCIe Expansion Slots: 8 x PCIe
Max Drives (total): 840
Max Capacity: 2,520TB (2.5PB)
Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 6U
Chassis Heights: 10.75" (27.3 cm)
Chassis Width w/o Mounting Flanges: 17.72" (45 cm)
Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
Chassis Weight: up to 121.0 lb (54.9 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 4 x PCIe
Ethernet Ports (per): 2 x RJ45 (1Gb)
Fibre Channel Ports (per): 4 x SFP (4Gb)
UTA2 Ports (per): N/A
SAS Ports (per): N/A
Remote Management: Yes
Processor Model (per):1x 64-bit 2-core 2.60 Ghz
Memory (Single/HA): 16GB/32GB
NVRAM (Single/HA): 2GB/4GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 840
Max Capacity: 2,016TB (2PB)
Max Number of FC Drives: 840
Max Number of NL-SAS Drives: 840
Max Number of SAS Drives: 840
Max Number of SATA Drives: 840
Max Number of SSD Drives: 240
Drive Interface: FC, NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP)
Max # of DS14-Mk2-AT Shelves: 60 external
Max # of DS14-Mk2-FC Shelves: 60 external
Max # of DS14-Mk4-FC Shelves: 60 external
Max # of DS2246 Shelves: 35 external
Max # of DS4243 Shelves: 35 external
Max # of DS4246 Shelves: 35 external
