Netapp DS4243 Expansion Shelf 24X 600Gb 15K Sas Hdd (X412A-R5) | DS4243-1514-24S-QS-R5

NetApp

| Disk Shelves
$1,595.00

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Parts Included:
  • 1X DS4243 NetApp Disk Shelf
  • 24x 600GB 15K SAS HDD 3.5" (X412A-R5)
  • 2x IOM6 Controller Module (X5713A-R5)
  • 4x Power Supplies with Fans - 580W, AC (X518A-R6)
  • 2x .5 QSFP to QSFP SAS Cables (X6557A-R6) (longer cables available please ask for custom order)
  • 1x Rail Kit (X-02654-00)
  • 4x Power Cables (X800E-R6)

NetApp DS4243 - DS4243-1514-24S-QS-R5, has 24 drive bays with 24 X412A-R5 (600GB 15K SAS) Disk Shelf achieves both storage and performance in a 4U (Rack Unit) 3.5" form factor, at speeds of . This DS4243 comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Netapp Ds4243 Expansion

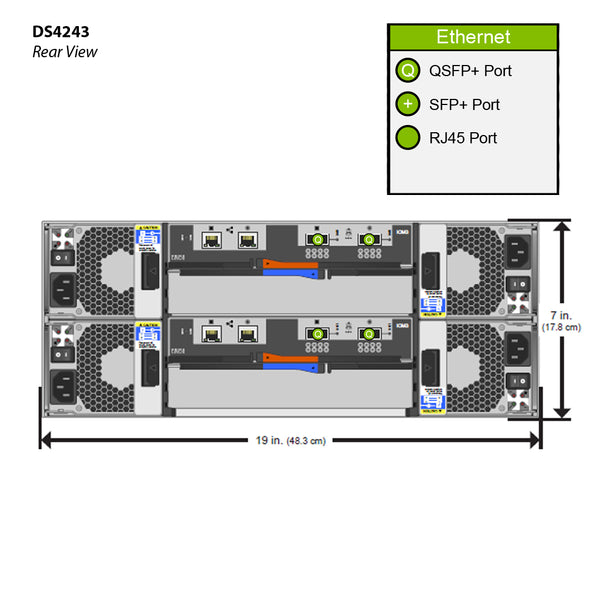

Technical Specifications Physical Characteristics
  • Weight: 44.09 lb (20 kg)
  • Height: 6.89'' (17.5 cm)
  • Width: 17.68'' (44.9 cm)
  • Depth: 19.8'' (50.3 cm)
  • Width w/ Mounting Flanges: 19.02'' (48.3 cm)
  • Depth w/ Cable Management: 23.78'' (60.4 cm)
Environmental Requirements Clearance Dimensions
  • Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C
  • Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Operating Relative Humidity: 20 to 80 %
  • Storage Relative Humidity: 10 to 95 %
  • Transit Relative Humidity: 10 to 95 %
  • Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m
  • Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Acoustic Noise - Sound Power: 7 bels
  • Acoustic Noise - Sound Pressure: -
  • Input Power Voltage: 100 to 120, 200 to 240
  • Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm)
  • Rear Clearance (Cooling / Maintenance): 12.01'' (30.5 cm) / 12.01'' (30.5 cm)
