Home / $500 to $2,000 / Netapp Ds224C Expansion Shelf 12X 1.2Tb 10K Sas 12Gbps Hdd (X342A-R6) | DS224C-10-1.2-12S-0P-CQ

Refurbished
Netapp Ds224C Expansion Shelf 12X 1.2Tb 10K Sas 12Gbps Hdd (X342A-R6) | DS224C-10-1.2-12S-0P-CQ

NetApp

| Disk Shelves
$1,795.00

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

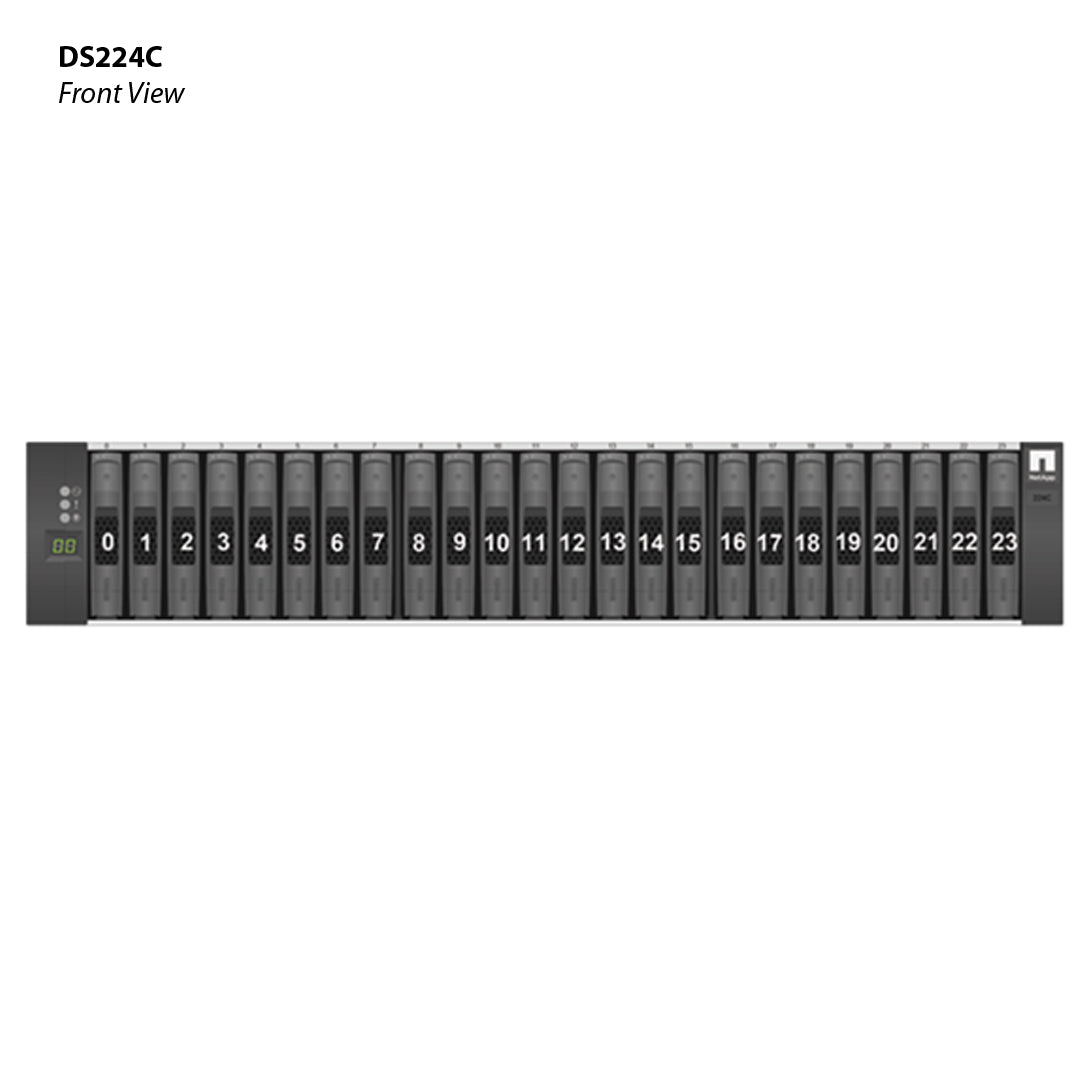

NetApp DS224C - DS224C-10-1.2-12S-0P-CQ, has 24 drive bays with 12x 1.2TB 10K SAS 12Gbps HDD (X342A-R6). Disk Shelf achieves both storage and performance in a 2U (Rack Unit) 2.5" form factor, at speeds of 12 Gbps. This DS224C comes with all the necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:
  • 1X DS224C NetApp Disk Shelf
  • 12x 1.2TB 10K SAS 12Gbps 2.5" HDD (X342A-R6)

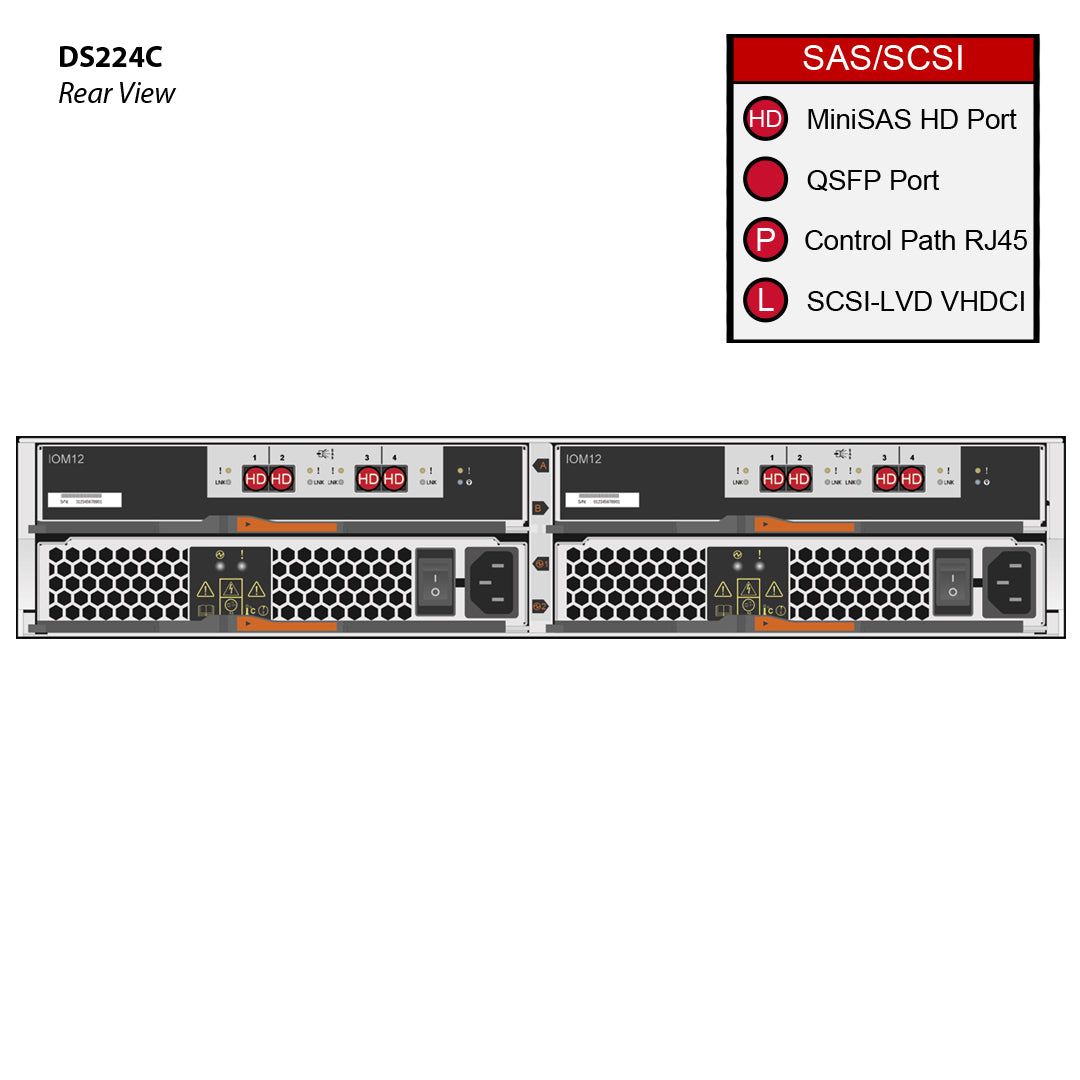

  • 2x IOM12 Controller Module (X5720A)
  • 2x Power Supply Unit (X5726A)
  • 2x Data Cables (X66030A) MiniSAS HD / MiniSAS HD (longer cables available please ask for custom order)
  • 1x Rail Kit (X-02654-00)
  • 2x Power Cables (X800E-R6)
Technical Specifications Physical Characteristics
  • Rack Unit(s): 2
  • Port(s): N/A
  • Drive Count: 24
  • Drive Speed(s): 12 Gbps
  • Drive(s):
    12 X342A-R6 (1.2TB 10K SAS)
  • Supported Controller(s):
    AFF A800, AFF A700, AFF A700s, AFF A400, AFF A300, AFF A220, AFF A250, AFF A200, AFF 8000 series, FAS9500, FAS9000, FAS8700, FAS8300, FAS8200, FAS8000 series, FAS2700, FAS2600
  • Weight: 35.27 lb (16 kg)
  • Height: 3.35'' (8.5 cm)
  • Width: 17.6'' (44.7 cm)
  • Depth: 19.06'' (48.4 cm)
  • Width w/ Mounting Flanges: 18.9'' (48 cm)
  • Depth w/ Cable Management: 20.2'' (51.3 cm)
Environmental Requirements Clearance Dimensions
  • Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C
  • Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Operating Relative Humidity: 20 to 80 %
  • Storage Relative Humidity: 10 to 95 %
  • Transit Relative Humidity: 10 to 95 %
  • Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m
  • Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Acoustic Noise - Sound Power: -
  • Acoustic Noise - Sound Pressure: -
  • Input Power Voltage: 100 to 120, 200 to 240
  • Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm)
  • Rear Clearance (Cooling / Maintenance): 12.01'' (30.5 cm) / 12.01'' (30.5 cm)
Compatible With:

(Click to View)
