Storage Array Specs
EMC VNX5700 Technical Specifications
| EMC VNX5700 TECHNICAL SPECIFICATIONS | |
|---|---|

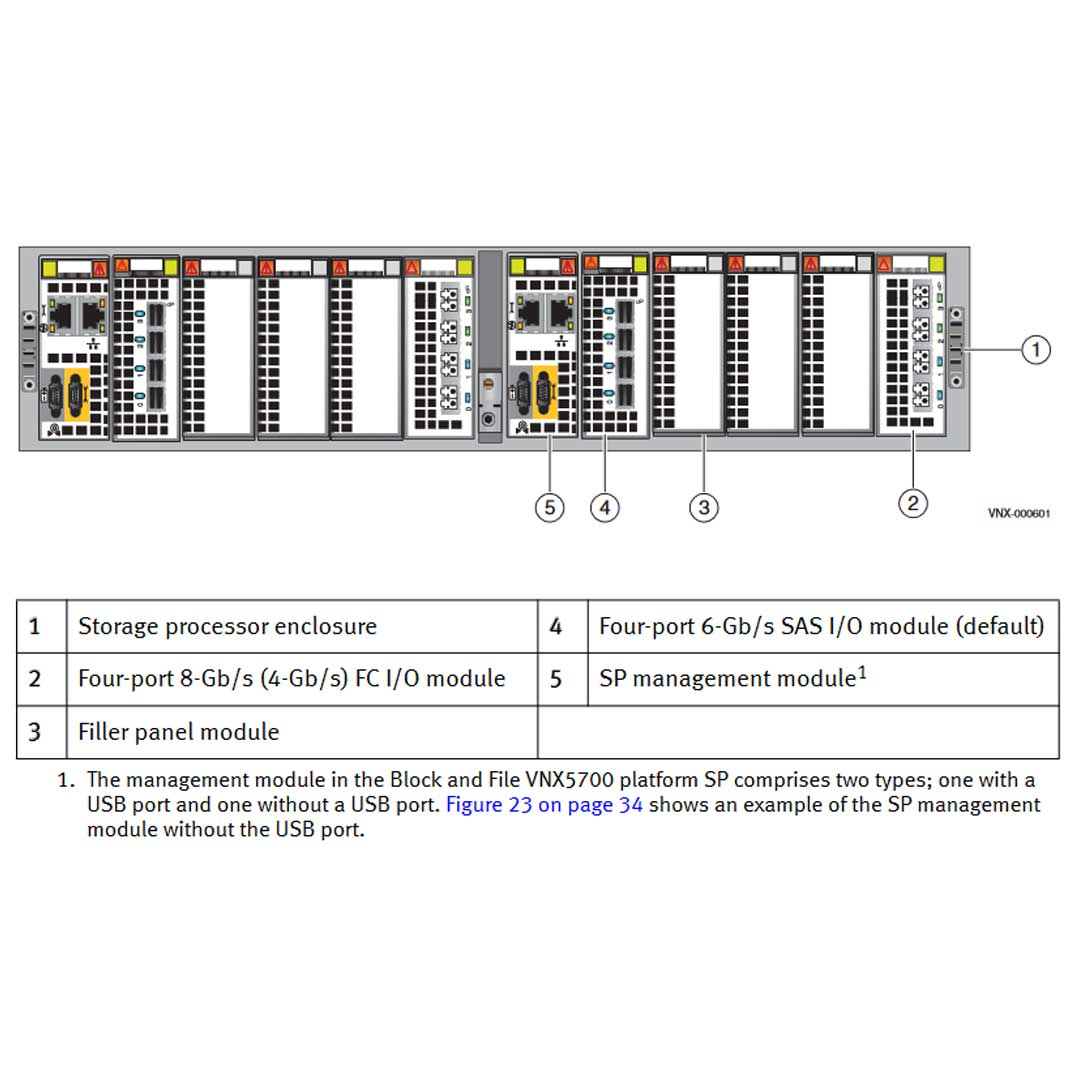

| Form Factor | 2U Storage Processor Enclosure (SPE) (No Drives) |
| Storage Type | Unified |
| Maximum Raw Capacity | 1485 TB |
| Max SAN Hosts | 4,096 |
| Max Number of Pools | 40 |
| Max Number of LUNs | 4,096 |
| Max LUN Size | 16TB (Virtual Pool LUN) |
| Max File System Size | 16 TB |
| Maximum Usable File Capacity per X-Blade | 256 TB |
| Dual Controllers (SPs) | Standard |
| Number of Drives (Min/Max) | 4/500 |
| Drive Enclosure Options | 15x 3.5" SAS/Flash (3U) 25x 2.5" Flash/SAS Drives (2U) 60 x 3.5" SAS/Flash (4U) |
| Drive Options |
3.5" Drive Enclosures (15 x 3.5") & (60 x 3.5") 300GB 10K 6Gbps SAS (VX-VS10-300) (15-Disk DAE) 300GB 15K 6Gbps SAS (VX-VS15-300) (15-Disk DAE) 600GB 10K 6Gbps SAS (VX-VS10-600) (15-Disk DAE) 600GB 15K 6Gbps SAS (VX-VS15-600) (15-Disk DAE) 900GB 10K 6Gbps SAS (VX-VS10-900) (15-Disk DAE) 1TB 7.2K 6Gbps SAS (VX-VS07-010) (15-Disk DAE) 2TB 7.2K 6Gbps SAS (VX-VS07-020) (15-Disk DAE) 3TB 7.2K 6Gbps SAS (VX-VS07-030) (15-Disk DAE) 600GB 10K 6Gbps SAS (VX-DS10-600) (60-Disk DAE) 900GB 10K 6Gbps SAS (VX-DS10-900) (60-Disk DAE) 1TB 7.2K 6Gbps SAS (VX-DS07-010) (60-Disk DAE) 2TB 7.2K 6Gbps SAS (VX-DS07-020) (60-Disk DAE) 3TB 7.2K 6Gbps SAS (VX-DS07-030) (60-Disk DAE) 100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXVS6F-100) (15-Disk DAE) 100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-VS6F-100) (15-Disk DAE) 200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXVS6F-200) (15-Disk DAE) 200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-VS6F-200) (15-Disk DAE) 100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXDS6F-100) (60-Disk DAE) 100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-DS6F-100) (60-Disk DAE) 200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXDS6F-200) (60-Disk DAE) 200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-DS6F-200) (60-Disk DAE) 2.5" Drive Enclosure (25 x 2.5") 300GB 10K 6Gbps SAS (VX-2S10-300) (25-Disk DAE) 600GB 10K 6Gbps SAS (VX-2S10-600) (25-Disk DAE) 900GB 10K 6Gbps SAS (VX-2S10-900) (25-Disk DAE) 100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLVX2S6F-100) (25-Disk DAE) 100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (VX-2S6F-100) (25-Disk DAE) 200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLVX2S6F-200) (25-Disk DAE) 200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (VX-2S6F-200) (25-Disk DAE) |
| Block Components | |
| CPU / Memory Per Controller | Intel Xeon 5600 Series / 36GB |

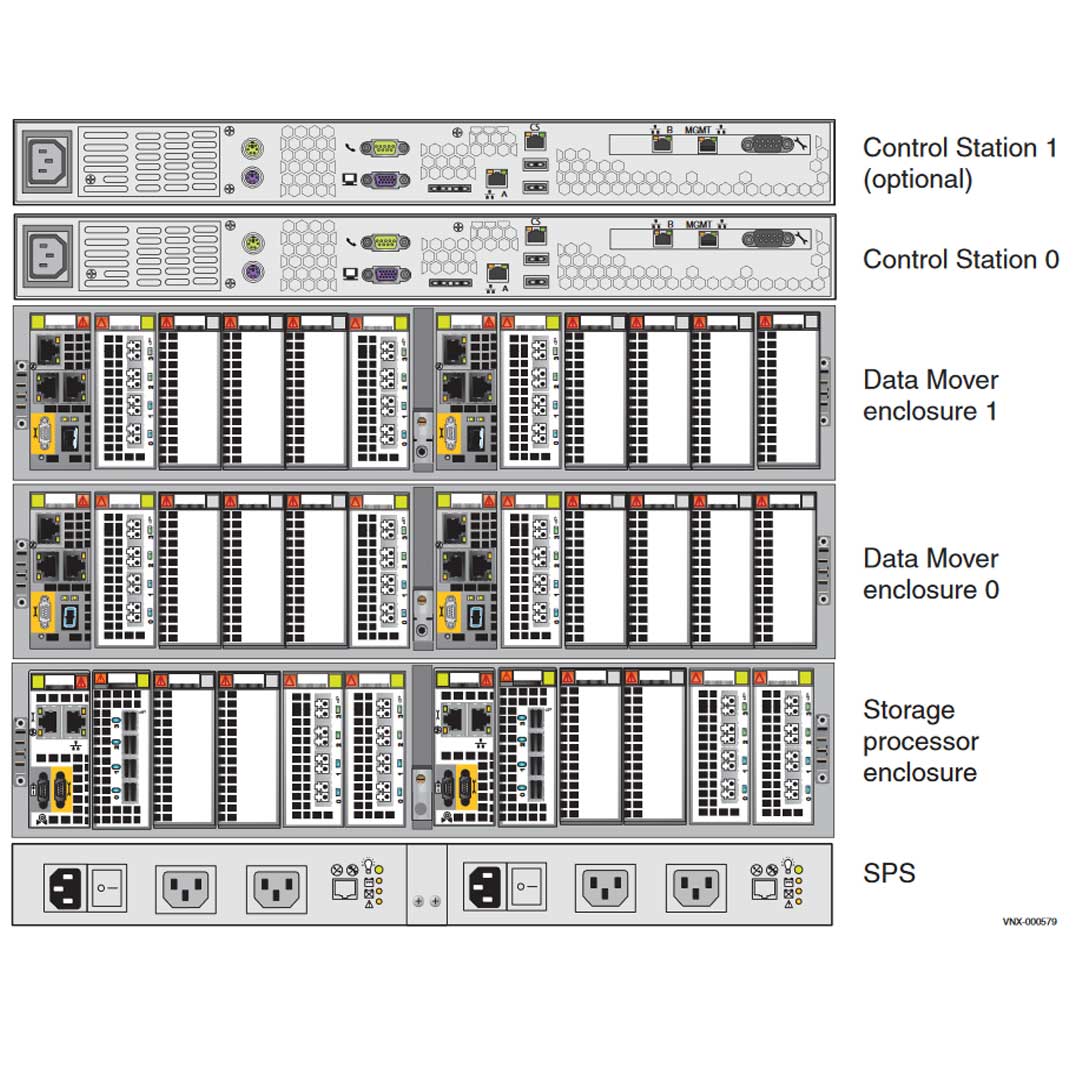

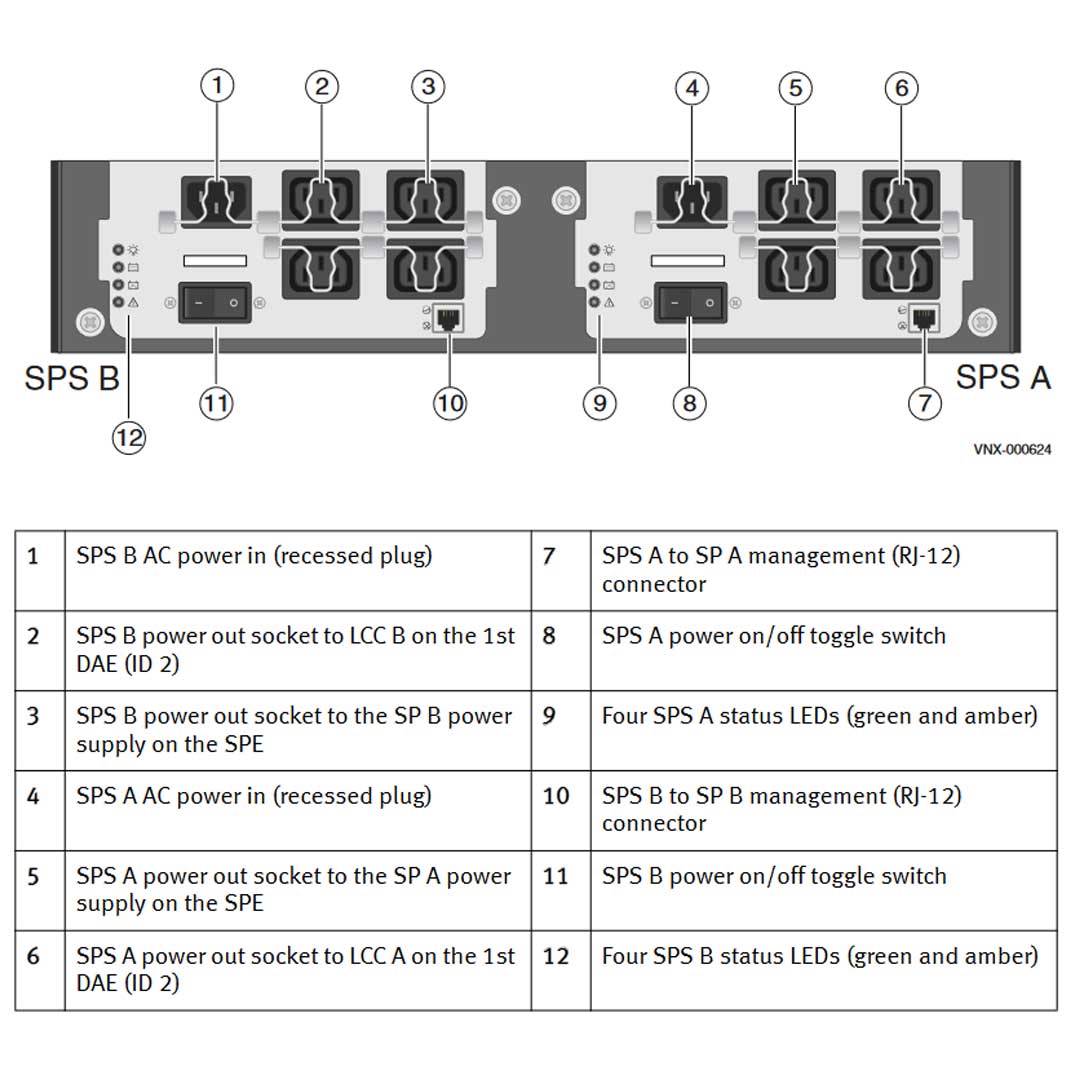

| Standby Power System | 1U 1.2KW 2U 2.2KW required for 60-Disk Array |
| Max Block UltraFlex IO Modules per Array | 10 |
| Embedded IO Ports per Array | 0 |
| Max Total Ports per Array | 24 |
| RAID Options | 0, 1, 10, 3, 5, 6 |
| 2/4/8 Gbps FC Max Ports per Array | 24 |
| 1 GBaseT iSCSI Max Total Ports per Array | 16 |
| 10GbE iSCSI Max Total Ports per Array | 12 |
| Max FCoE Total Ports per Array | 12 |
| 6 Gbps SAS Buses (4 Lanes per Bus) for DAE Connections | 4 |
| File Components | |
| # File X-Blades | 2-4 |

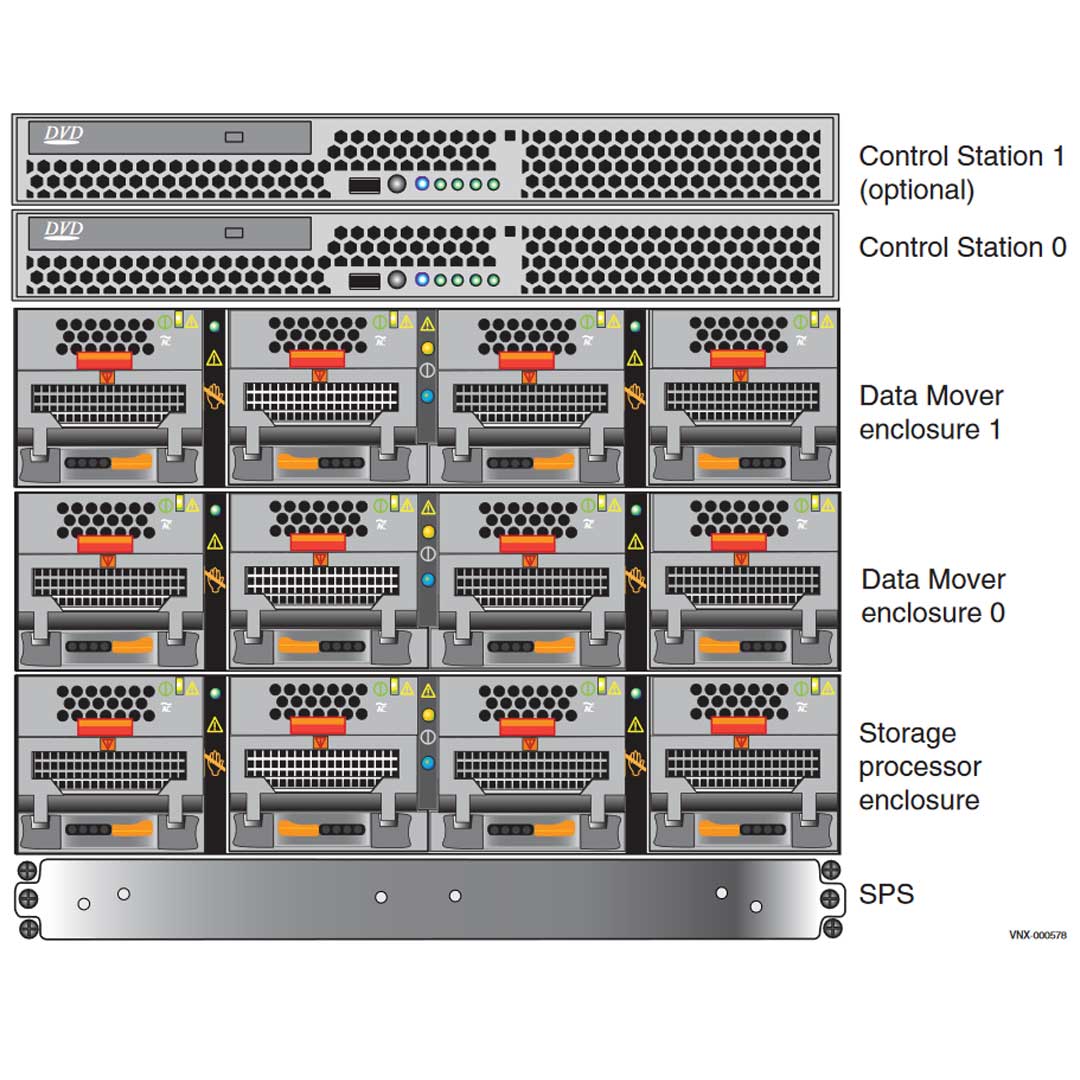

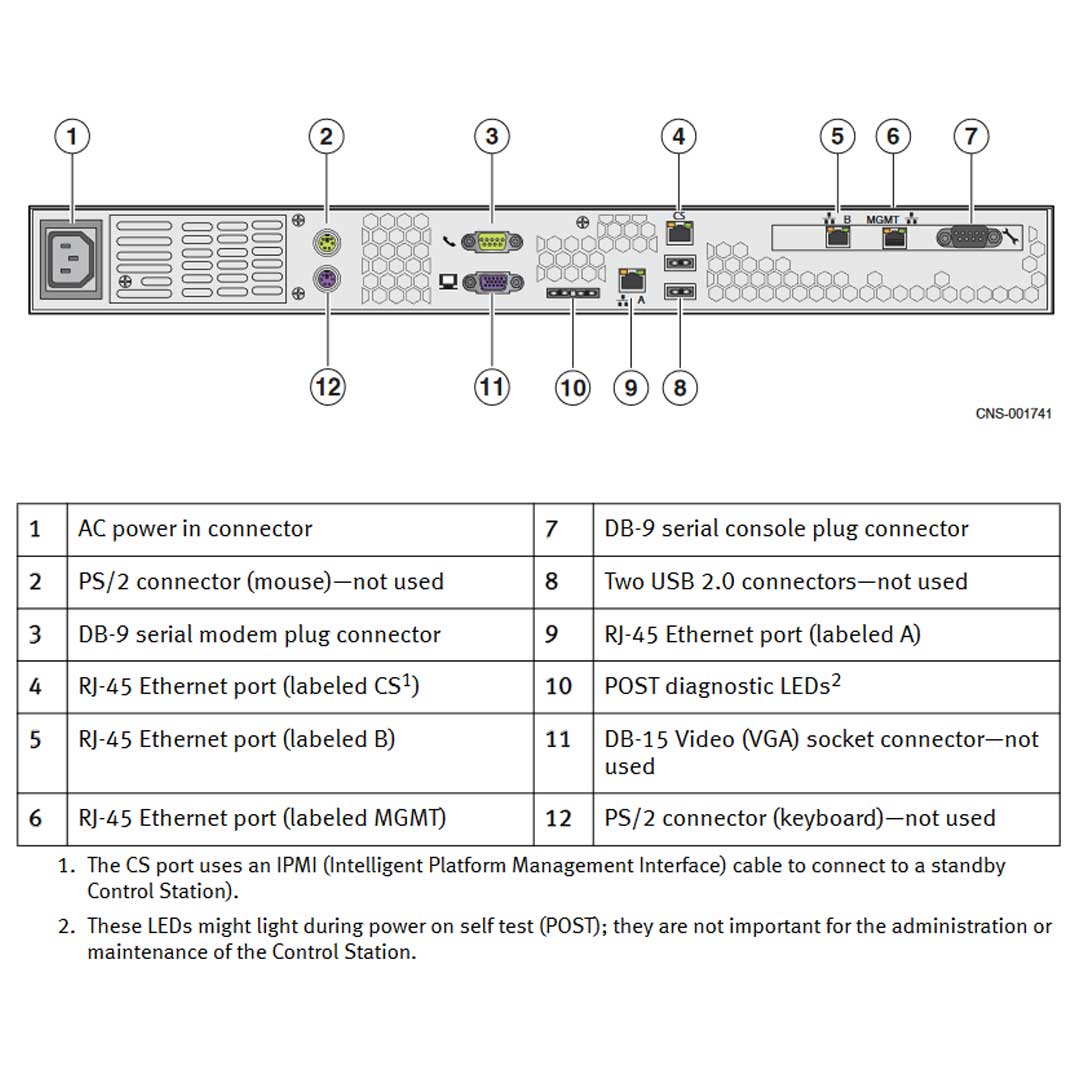

| # Control Stations | 1-2 x 1U Server |
| X-Blade: CPU/Memory | Intel Xeon 5600 Series / 12GB |
| Max File UltraFlex IO Modules per X-Blade | 4 |
| Min/Max 2/4/8 Gbps FC Ports per X-Blade | 4 |
| Max IP Ports per X-Blade | 12 |
| Max 1GBaseT Ports per X-Blade | 12 |
| Max 10GbE Ports per X-Blade | 6 |
| Management | LAN 2x 10/100/1000 Copper GbE |
| Compatible Disk Arrays | VNX6GSDAE60 VNX6GSDAE60P VNX6GSDAE15 VNX6GSDAE15F VNX6GSDAE15P VNX6GSDAE15PF VNX6GSDAE25 VNX6GSDAE25F VNX6GSDAE25P VNX6GSDAE25PF |
| Chassis Part Number | 100-562-178 SPE & DME Chassis Assembly, 2U SPE4 Empty Enclosure -CR 100-562-440 Chassis Assembly, 2U CX4 SPE Empty Chassis Enclosure 100-562-558 DAE Chassis D15 LF DAE Chassis with M/R 100-562-964 DAE Chassis 25 Slot Empty DAE Chassis 100-563-109 Chassis Assembly, 2U SPE4 Empty Enclosure Gen2 AC Only |
| Host Connections | 2Gbps Fibre Channel 4Gbps Fibre Channel 8Gbps Fibre Channel 1Gbps iSCSI 10Gbps iSCSI 10Gbps FCoE |
| ECS Warranty | 1-Year Parts Replacement Warranty |
