NetApp DS4246 (DS4246-0724-12A-0P-R6-C) 12x 2TB 7.2K SATA HDD X306A-R5 6G

NetApp DS4246 Expansion Shelf (DS4246-0724-12A-0P-R6-C) 12x 2TB 7.2K SATA HDD X306A-R5 6 G

Stock: 20
Price: $795.00

Brand:

NetApp

MPN:

DS4246-0724-12A-0P-R6-C

Type:

Disk Shelves

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

Total:- $795.00

Add to Cart

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp DS4246 Expansion Shelf (DS4246-0724-12A-0P-R6-C) 12x 2TB 7.2K SATA HDD X306A-R5 6 G

NetApp DS4246 - DS4246-0724-12A-0P-R6-C, has 24 drive bays with 12 X306A-R5 (2TB 7.2K SATA) Disk Shelf achieves both storage and performance in a 4U (Rack Unit) 3.5" form factor, at speeds of 6 Gbps. This DS4246 comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:

1X DS4246 NetApp Disk Shelf
12x 2TB 7.2K SATA HDD 3.5" (X306A-R5) 6 G
2x IOM6 Controller Module (X5713A-R5)
2x Power Supplies with Fans - AC (X519A-R6)
2x .5 QSFP to QSFP SAS Cables (X6557A-R6) (longer cables available please ask for custom order)
1x Rail Kit (X-02654-00)
2x Power Cables (X800E-R6)

Technical Specifications	Physical Characteristics
Rack Unit(s): 4 Port(s): N/A Drive Count: 24 Drive Speed(s): 6 Gbps Drive(s): 12 X306A-R5 (2TB 7.2K SATA) Supported Controller(s): N/A	Weight: 44.09 lb (20 kg) Height: 6.89'' (17.5 cm) Width: 17.68'' (44.9 cm) Depth: 19.8'' (50.3 cm) Width w/ Mounting Flanges: 19.02'' (48.3 cm) Depth w/ Cable Management: 23.78'' (60.4 cm)
Environmental Requirements	Clearance Dimensions
Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C Operating Relative Humidity: 20 to 80 % Storage Relative Humidity: 10 to 95 % Transit Relative Humidity: 10 to 95 % Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m Acoustic Noise - Sound Power: 6.9 bels Acoustic Noise - Sound Pressure: 49.6 dBA Input Power Voltage: 100 to 120, 200 to 240	Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm) Rear Clearance (Cooling / Maintenance): 12.01'' (30.5 cm) / 12.01'' (30.5 cm)

Supported Drives

Part Number	Encryption	Capacity	RPM	Checksum
Drive Type: NL-SAS
X309A-R6[1]	Yes	3TB	7.2k	BCS
X315A-R6[1]	Yes	4TB	7.2k	BCS
X316A-R6	No	6TB	7.2k	BCS
X317A[1]	Yes	6TB	7.2k	BCS
X318A-R6	No	8TB	7.2k	BCS
X322A[1]	Yes	10TB	7.2k	BCS
X336A-R6	No	4TB	7.2k	BCS
X380A	No	10TB	7.2k	BCS
X477A-R6	No	4TB	7.2k	BCS
Drive Type: SAS
X488A-R5	No	900GB	10k	BCS
X489A-R6	No	1.2TB	10k	BCS
X490A-R6	No	1.8TB	10k	BCS
Drive Type: SATA
X302A-R5	No	1TB	7.2k	BCS
X306A-R5	No	2TB	7.2k	BCS
X308A-R5	No	3TB	7.2k	BCS
Drive Type: SSD
X363A-R6	No	3.84TB	N/A	BCS
X366A-R6[1]	Yes	1.6TB	N/A	BCS
X374A	No	960GB	N/A	BCS
X441A-R5	No	100GB	N/A	BCS
X442A-R5[2]	No	100GB	N/A	BCS
X448A-R6	No	200GB	N/A	BCS
X449A-R6	No	800GB	N/A	BCS
X575A-R6	No	400GB	N/A	BCS
X576A-R6	No	1.6TB	N/A	BCS
X577A-R6[1]	Yes	800GB	N/A	BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported. [2] This drive does not support the sanitization feature.

Supported Shelf Modules for NetApp DS4246

Module	Part Number	Interface	Max Data Rate	Min ONTAP
IOM12	X5720A	IN: miniSAS HD, OUT: miniSAS HD	12 Gbps	9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Module	Part Number	Interface	Max Data Rate	Min ONTAP

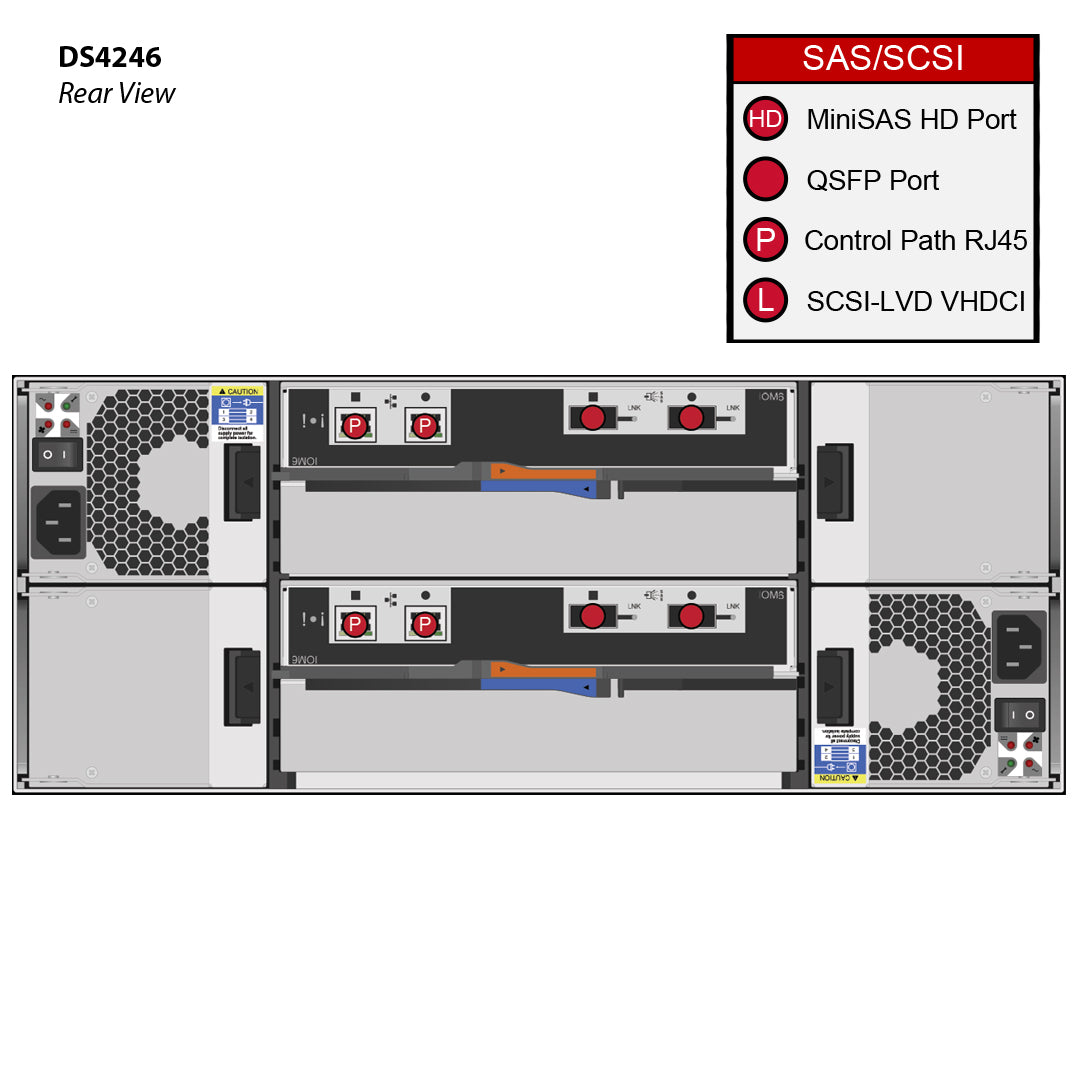

IOM6	X5713A-R6	IN: QSFP, OUT: QSFP	6 Gbps	9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.4

Cables Compatibility for Module IOM12

Cables Compatibility for Module IOM6

Mktg Part No	Mfg Part No	Length	End 1 / End 2	Description	Supported Speed(s)	Min OS
SAS 6/12 Gbps (Copper Cables)
NetApp Cable X66030A	112-00435	0.5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,0.5m	6/12 Gbps	-
NetApp Cable X66020A-R6	112-00429	1m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,1m	6/12 Gbps	-
NetApp Cable X66031A	112-00436	1m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,1m	6/12 Gbps	-
NetApp Cable X66021A-R6	112-00430	2m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,2m	6/12 Gbps	-
NetApp Cable X66032A	112-00437	2m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,2m	6/12 Gbps	-
NetApp Cable X66033A	112-00438	3m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,3m	6/12 Gbps	-
NetApp Cable X66022A-R6	112-00431	5m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,5m	6/12 Gbps	-
NetApp Cable X66034A	112-00439	5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,5m	6/12 Gbps	-
SAS 6/12 Gbps (Optical Cable)
Optical Cables
NetApp Cable X66040A	112-00449	1m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,1m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66041A	112-00450	2m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,2m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66042A	112-00451	3m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,3m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66043A	112-00452	5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,5m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66047A	112-00456	5m	MiniSAS HD / 4xLC	Cable,Opt,miniSAS HD/LC,OM4,5m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66044A	112-00453	15m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,15m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66045A	112-00454	30m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,30m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66048A	112-00457	30m	MiniSAS HD / 4xLC	Cable,Opt,miniSAS HD/LC,OM4,30m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66046A	112-00455	50m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,50m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Mktg Part No	Mfg Part No	Length	End 1 / End 2	Description	Supported Speed(s)	Min OS
Ethernet 10/100 Mbps (Copper Cables)
NetApp Cable X6560-R6	112-00194	0.5m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,0.5m		-
NetApp Cable X6584-R6	112-00290	1m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,1m		-
NetApp Cable X6561-R6	112-00195	2m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,2m		-
NetApp Cable X6585-R6	112-00291	3m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,3m		-
NOFRU_ETH_CAT6_RJ45_5M
NetApp Cable X6562-R6	112-00196	5m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,5m		-
NetApp Cable X6592-R6	112-00246	10m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,10m		-
NetApp Cable X6593-R6	112-00247	20m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,20m		-
NetApp Cable X6577-R6	112-00238	30m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,30m		-
SAS 3/6 Gbps (Copper Cables)
NetApp Cable X6557-R6	112-00176	0.5m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m	3/6 Gbps	-
NetApp Cable X66020A-R6	112-00429	1m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,1m	6 Gbps	-
NetApp Cable X6594-R6	112-00256	1m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,1m	3/6 Gbps	-
NetApp Cable X66021A-R6	112-00430	2m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,2m	6 Gbps	-
NetApp Cable X6558-R6	112-00177	2m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m	3/6 Gbps	-
NetApp Cable X6595-R6	112-00255	3m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m	3/6 Gbps	-
NetApp Cable X66022A-R6	112-00431	5m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,5m	6 Gbps	-
NetApp Cable X6559-R6	112-00178	5m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m	3/6 Gbps	-
NetApp Cable X6590-R6	112-00242	10m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,10m	3/6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1
NetApp Cable X6591-R6	112-00243	20m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,20m	3/6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1
SAS 3/6 Gbps (Optical Cables)
Optical Transceiver X65400A-R6 with Supported Cables
NetApp Cable X65400A-R6	332-00335, AFBR-79EQDZ-NA1, FTL410QE2C-N1, FTL410QE4C-N1, FTL410QL1C-N1	XCVR	QSFP / MPO	XCVR,QSFP,Opt,6Gb,SAS	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
Optical Cables
NetApp Cable X66000A-R6	112-00265	1m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,1m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66001A-R6	112-00266	2m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,2m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66002A-R6	112-00267	3m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,3m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66003A-R6	112-00268	5m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66008A-R6	112-00260	5m	QSFP / 4xLC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,5m	6 Gbps	-
NetApp Cable X66010A-R6	112-00263	5m	QSFP / 2xSC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,5m	6 Gbps	-
NetApp Cable X66012A-R6	112-00278	5m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,5m	6 Gbps	-
NetApp Cable X66014A-R6	112-00272	5m	QSFP / 8x Simplex LC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66016A-R6	112-00274	5m	QSFP / 8x Simplex SC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66018A-R6	112-00281	5m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66004A-R6	112-00269	7m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,7m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66005A-R6	112-00270	15m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,15m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66011A-R6	112-00264	30m	MPO / 4xSC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,30m	6 Gbps	-
NetApp Cable X66006A-R6	112-00271	30m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66009A-R6	112-00261	30m	QSFP / 4xLC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,30m	6 Gbps	-
NetApp Cable X66013A-R6	112-00279	30m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,30m	6 Gbps	-
NetApp Cable X66015A-R6	112-00273	30m	QSFP / 8x Simplex LC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66017A-R6	112-00276	30m	QSFP / 8x Simplex SC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66019A-R6	112-00282	30m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66007A-R6	112-00280	50m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,50m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1

Supported Power Cords for NetApp DS4246

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp DS4246

Footnote: DS4243/4246 2-post Telco mid-mount bracket is only available in X5525A-R6

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 [1]	111-00232	Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5525A-R6 [1]	111-00583	Kit,2-Post,Round-Hole
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Marketing Part No.	Manufacturing Part No.	Description

Field Replacement Unit Parts for NetApp DS4246

Marketing Part No.	Manufacturing Part No.	Description
Cabinets
X870F-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C	-	Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A	111-03068	SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A	TBD	DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X322A	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6	108-00470	SSD,1.6TB,NSE,DS4246,FAS2554
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6	108-00375	SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6	-	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	-	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	-	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	-	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	-	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	-	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	-	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	-	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	-	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	-	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	-	Power Cable,Continental Europe,R6
X800B-R6-C	-	Power Cable,Continental Europe,-C,R6
X800C-R6	-	Power Cable,UK and Ireland,R6
X800C-R6-C	-	Power Cable,UK and Ireland,-C,R6
X800D-R6	-	Power Cable,Japan,R6
X800D-R6-C	-	Power Cable,Japan,-C,R6
X800E-R6	-	Power Cable,North America,R6
X800E-R6-C	-	Power Cable,North America,-C,R6
X800F-R6	-	Power Cable,Australia/New Zealand,R6
X800F-R6-C	-	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	-	Power Cable,Switzerland,R6
X800G-R6-C	-	Power Cable,Switzerland,-C,R6
X800H-R6	-	Power Cable,Argentina,R6
X800H-R6-C	-	Power Cable,Argentina,-C,R6
X800I-R6	-	Power Cable,China,R6
X800I-R6-C	-	Power Cable,China,-C,R6
X800J-R6	-	Power Cable,Denmark,R6
X800J-R6-C	-	Power Cable,Denmark,-C,R6
X800K-R6	-	Power Cable,India,South Africa,R6
X800K-R6-C	-	Power Cable,India,South Africa,-C,R6
X800L-R6	-	Power Cable,Israel,R6
X800L-R6-C	-	Power Cable,Israel,-C,R6
X800M-R6	-	Power Cable,Italy,R6
X800M-R6-C	-	Power Cable,Italy,-C,R6
X800N	-	POWER CABLE,INDIA BIS
X800N-C	-	Power Cable,India BIS,-C
X800P-R6	-	Power Cable,North America,250V,R6
X800P-R6-C	-	Power Cable,North America,250V,-C,R6
X800T-R6	-	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	-	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	-	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	-	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	-	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	-	Power Cable,Japan,250V/15A
X800Y-R6-C	-	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A	114-00148	PSU,913W
RailKit
X-02654-00	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A	-	IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp DS4246

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
Empty Shelf (with AC PSU)
X5561A-R6	shelf empty with 4x AC PSU	-	-	-	-	-	-	-	-	-	-	-
X556B-R6	shelf empty with 2x AC PSU	-	-	-	-	-	-	-	-	-	-	-
Quickship Half Populated
DS4246-07-8-12B-QS	12x8TB 7.2K NL-SAS	4	66.4 lb (30.1 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	2.18	2.52	213	246	727	840
DS4246-07-8-12B-QS	12x8TB 7.2K NL-SAS	4	66.4 lb (30.1 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.07	1.24	209	242	714	826
DS4246-0712-12A-QS-R6	12x1.0TB 7.2K SATA	4	61.7 lb (28.0 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	2.06	2.4	201	235	686	803
DS4246-0712-12A-QS-R6	12x1.0TB 7.2K SATA	4	61.7 lb (28.0 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.01	1.18	197	231	673	789
DS4246-0724-12A-QS-R6	12x2.0TB 7.2K SATA	4	61.7 lb (28.0 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	1.83	2.74	179	268	611	915
DS4246-0724-12A-QS-R6	12x2.0TB 7.2K SATA	4	61.7 lb (28.0 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	0.9	1.35	176	263	601	898
DS4246-0736-12A-QS-R6	12x3.0TB 7.2K SATA	4	62.6 lb (28.4 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	2.06	2.4	201	235	686	803
DS4246-0736-12A-QS-R6	12x3.0TB 7.2K SATA	4	62.6 lb (28.4 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.01	1.18	197	231	673	789
DS4246-0748-12A-QS-R6	12x4.0TB 7.2K NL-SAS	4	63.9 lb (29.0 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	2.14	2.48	209	243	714	830
DS4246-0748-12A-QS-R6	12x4.0TB 7.2K NL-SAS	4	63.9 lb (29.0 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.05	1.22	205	239	700	816
DS4246-0772-12A-QS-R6	12x6.0TB 7.2K NL-SAS	4	66.6 lb (30.2 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	2.16	2.49	211	244	721	833
DS4246-0772-12A-QS-R6	12x6.0TB 7.2K NL-SAS	4	66.6 lb (30.2 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.06	1.23	207	240	707	820
Quickship Fully Populated
DS4246-07-.8-6-24M-QS	20x6.0TB,NSE,4x800GB,NSE,Mixed	4	85.1 lb (38.6 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.43	3.78	336	370	1147	1263
DS4246-07-.8-6-24M-QS	20x6.0TB,NSE,4x800GB,NSE,Mixed	4	85.1 lb (38.6 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.69	1.86	330	363	1127	1239
DS4246-07-.8-8-24M-QS	20x8TB,NL-SAS,4x800GB,SSD,Mixed	4	87.7 lb (39.8 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.47	3.82	340	374	1161	1277
DS4246-07-.8-8-24M-QS	20x8TB,NL-SAS,4x800GB,SSD,Mixed	4	87.7 lb (39.8 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.71	1.88	334	367	1140	1253
DS4246-07-6-24N-QS	24x6.0TB,NSE	4	92.8 lb (42.1 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.8	4.14	372	405	1270	1383
DS4246-07-6-24N-QS	24x6.0TB,NSE	4	92.8 lb (42.1 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.87	2.03	365	397	1246	1355
DS4246-07-8-24B-QS	24x8TB 7.2K NL-SAS	4	92.2 lb (41.8 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.85	4.19	377	410	1287	1400
DS4246-07-8-24B-QS	24x8TB 7.2K NL-SAS	4	92.2 lb (41.8 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.89	2.06	370	402	1263	1372
DS4246-0724-24A-QS-R6	24x1.0TB 7.2K SATA	4	110.0 lb (49.9 kg)	6.7 Bels	-	100 (100 to 120)	4.42	4.41	438	439	1495	1499
DS4246-0724-24A-QS-R6	24x1.0TB 7.2K SATA	4	110.0 lb (49.9 kg)	6.7 Bels	-	200 (200 to 240)	2.27	2.21	424	429	1448	1465
DS4246-0724-24A-QS-R6	24x1.0TB 7.2K SATA	4	110.0 lb (49.9 kg)	6.7 Bels	-	215 (200 to 240)	1.9	2.1	409	452	1396	1543
DS4246-0748-24A-QS-R6	24x2.0TB 7.2K SATA	4	101.0 lb (45.8 kg)	6.7 Bels	-	100 (100 to 120)	4.62	4.72	458	469	1561	1599
DS4246-0748-24A-QS-R6	24x2.0TB 7.2K SATA	4	101.0 lb (45.8 kg)	6.7 Bels	-	200 (200 to 240)	2.42	2.42	456	470	1554	1602
DS4246-0772-24A-QS-R6	24x3.0TB 7.2K SATA	4	99.2 lb (45.0 kg)	6.7 Bels	-	100 (100 to 120)	4.6	4.95	456	495	1557	1690
DS4246-0772-24A-QS-R6	24x3.0TB 7.2K SATA	4	99.2 lb (45.0 kg)	6.7 Bels	-	200 (200 to 240)	2.38	2.5	448	483	1529	1649
DS4246-0772-24N-QS-R6	24x3.0TB 7.2K NSE	4	99.2 lb (45.0 kg)	6.7 Bels	-	100 (100 to 120)	4.6	4.95	456	495	1557	1690
DS4246-0772-24N-QS-R6	24x3.0TB 7.2K NSE	4	99.2 lb (45.0 kg)	6.7 Bels	-	200 (200 to 240)	2.38	2.5	448	483	1529	1649
DS4246-0796-24A-QS-R6	24x4.0TB 7.2K NL-SAS	4	87.5 lb (39.7 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.77	4.12	369	403	1260	1376
DS4246-0796-24A-QS-R6	24x4.0TB 7.2K NL-SAS	4	87.5 lb (39.7 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.85	2.02	362	395	1236	1349
DS4246-0796-24N-QS-R6	24x4.0TB 7.2K NSE	4	87.5 lb (39.7 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.77	4.12	369	403	1260	1376
DS4246-0796-24N-QS-R6	24x4.0TB 7.2K NSE	4	87.5 lb (39.7 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.85	2.02	362	395	1236	1349
DS4246-07A1-24A-QS-R6	24x6.0TB 7.2K NL-SAS	4	92.8 lb (42.1 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.8	4.14	372	405	1270	1383
DS4246-07A1-24A-QS-R6	24x6.0TB 7.2K NL-SAS	4	92.8 lb (42.1 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.87	2.03	365	397	1246	1355
DS4246-18TB-24M-QS-R6	18x1.0TB,6x100GB,Mixed	4	92.2 lb (41.8 kg)	6.7 Bels	-	100 (100 to 120)	3.41	3.91	335	386	1144	1318
DS4246-18TB-24M-QS-R6	18x1.0TB,6x100GB,Mixed	4	92.2 lb (41.8 kg)	6.7 Bels	-	200 (200 to 240)	1.84	2.11	331	388	1130	1325
DS4246-40TB-24M-QS-R6	20x2.0TB,4x200GB,Mixed	4	80.3 lb (36.4 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.23	3.58	316	350	1079	1195
DS4246-40TB-24M-QS-R6	20x2.0TB,4x200GB,Mixed	4	80.3 lb (36.4 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.59	1.75	310	343	1058	1171
DS4246-54TB-24M-QS-R6	18x3.0TB,6x100GB,Mixed	4	92.2 lb (41.8 kg)	6.7 Bels	-	100 (100 to 120)	3.72	4.11	368	406	1256	1386
DS4246-54TB-24M-QS-R6	18x3.0TB,6x100GB,Mixed	4	92.2 lb (41.8 kg)	6.7 Bels	-	200 (200 to 240)	2.14	2.25	397	418	1355	1427
DS4246-80TB-24M-QS-R6	20x4.0TB,4x200GB,Mixed	4	83.8 lb (38.0 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.37	3.71	330	363	1127	1239
DS4246-80TB-24M-QS-R6	20x4.0TB,4x200GB,Mixed	4	83.8 lb (38.0 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.66	1.82	324	356	1106	1215
DS4246-S-1.6-6-24N-QS	20x6TB,NL-SAS,NSE,4x1.6TB,SSD,NSE,Mixed	4	88.2 lb (40.0 kg)	6.9 Bels	49.6 dBA	100 (100 to 120)	3.41	3.75	334	367	1140	1253
DS4246-S-1.6-6-24N-QS	20x6TB,NL-SAS,NSE,4x1.6TB,SSD,NSE,Mixed	4	88.2 lb (40.0 kg)	6.9 Bels	49.6 dBA	200 (200 to 240)	1.68	1.84	328	360	1120	1229
DS4246-SL001-24M-QS-R6	20x2.0TB,4x400GB,Mixed	4	92.2 lb (41.8 kg)	-	-	100 (100 to 120)	3.2	3.5	315	353	1075	1204
DS4246-SL001-24M-QS-R6	20x2.0TB,4x400GB,Mixed	4	92.2 lb (41.8 kg)	-	-	200 (200 to 240)	1.61	1.67	302	312	1030	1064
DS4246-SL002-24M-QS-R6	20x4.0TB,4x400GB,Mixed	4	92.2 lb (41.8 kg)	-	-	100 (100 to 120)	3.5	3.6	340	360	1160	1228
DS4246-SL002-24M-QS-R6	20x4.0TB,4x400GB,Mixed	4	92.2 lb (41.8 kg)	-	-	200 (200 to 240)	1.7	1.8	311	345	1061	1177
DS4246-SL003-24M-QS-R6	20x6.0TB,4x400GB,Mixed	4	95.7 lb (43.4 kg)	-	-	100 (100 to 120)	3.4	3.71	338	367	1153	1251
DS4246-SL003-24M-QS-R6	20x6.0TB,4x400GB,Mixed	4	95.7 lb (43.4 kg)	-	-	200 (200 to 240)	1.72	1.83	333	357	1136	1217

Category: 4u, 500-2000, drive-capacity-2tb, drive-count-24, drive-rpm-7-2k, ds4246, interface-type-sata, lff, netapp, speed-6gb

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Leave a Message

NetApp DS4246 Expansion Shelf (DS4246-0724-12A-0P-R6-C) 12x 2TB 7.2K SATA HDD X306A-R5 6 G

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
