Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF)

SKU: DPE-XE8640-8EDSFF-Chassis

Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF)

Name: Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF)
Brand: Dell
SKU: DPE-XE8640-8EDSFF-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

4U Rack Server

Processor Max: 56 Cores (PP)

2x 4th Gen Intel Xeon Scalable Processors

Memory Max: 4TB

32 DDR5 RDIMM 4800Mhz

Storage Max: 122.88TB

8x E3.S NVMe SSD

Boot Options

BOSS-N1

RAID Controller:

S160 (SW RAID)
H965i

NIC/OCP

2 x 1GbE LOM
1 x OCP 3.0 (x8 PCIe lanes)

Remote Management:

iDRAC9

PCIe Slots:

4 PCIe slots (4 x16 Gen5)

GPU:

4 NVIDIA HGX H100 80GB 700W SXM5 GPUs
fully interconnected with NVIDIA NVLink technology
Liquid Assisted Air Cooling for GPU
Note: No facility water to rack required

Other Versions:

Ideal for:

Artificial Intelligence (AI)
Deep Learning (DL)
High Performance Computing (HPC)
Machine Learning (ML)
Virtualization

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications** (Additional features Coming Soon.)

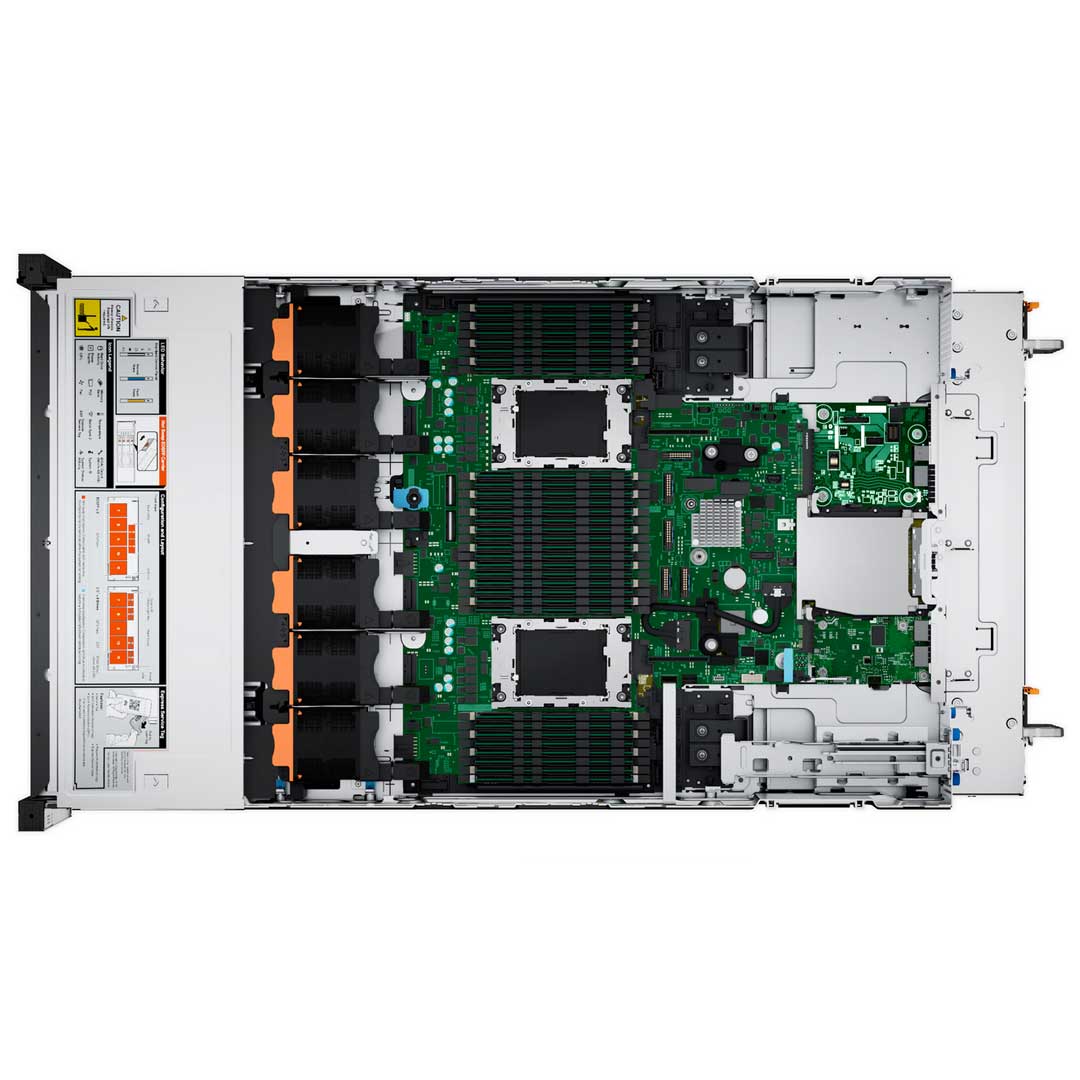

Processor	Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Memory	• 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only

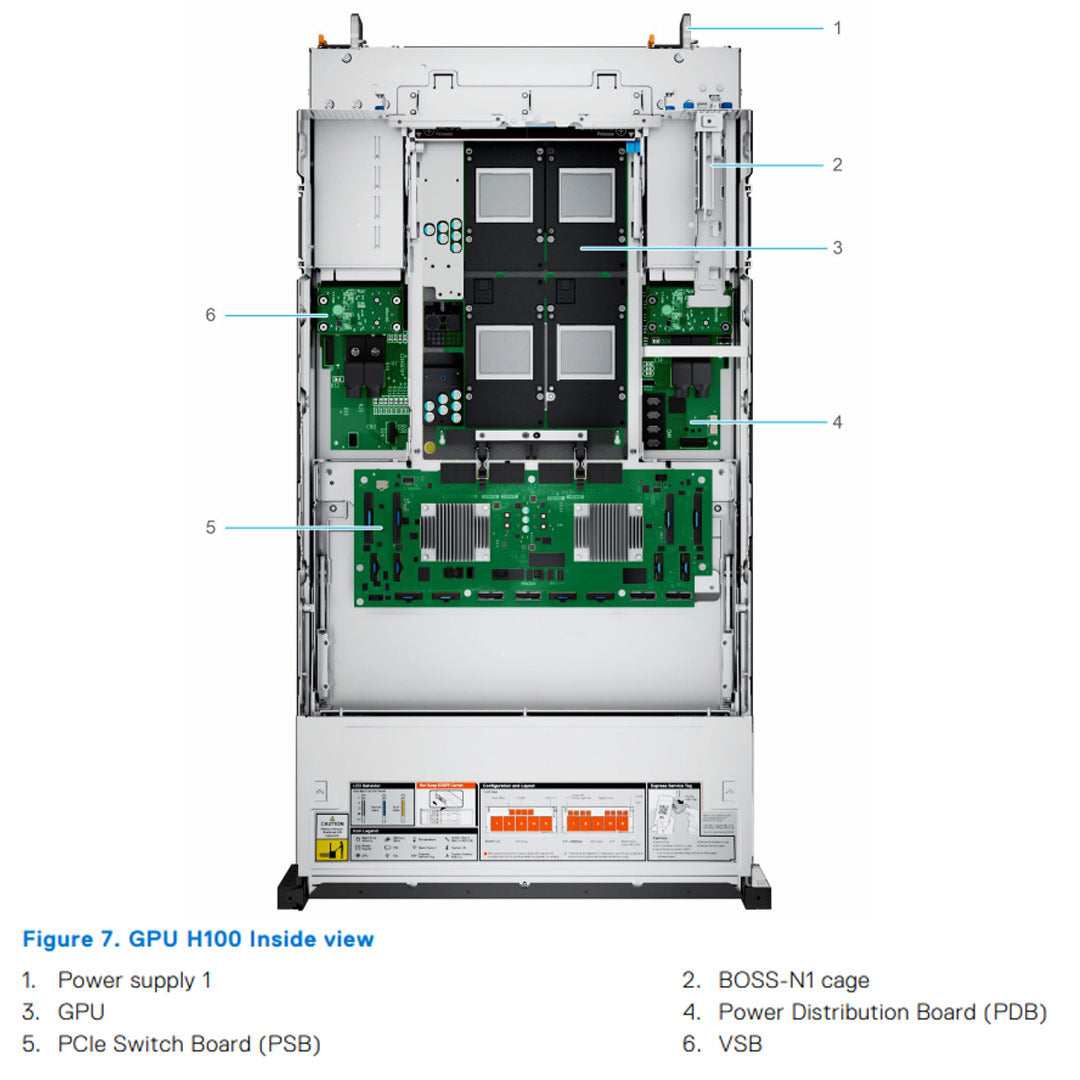

GPU	• 4 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
Storage controllers	• Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Software RAID: S160

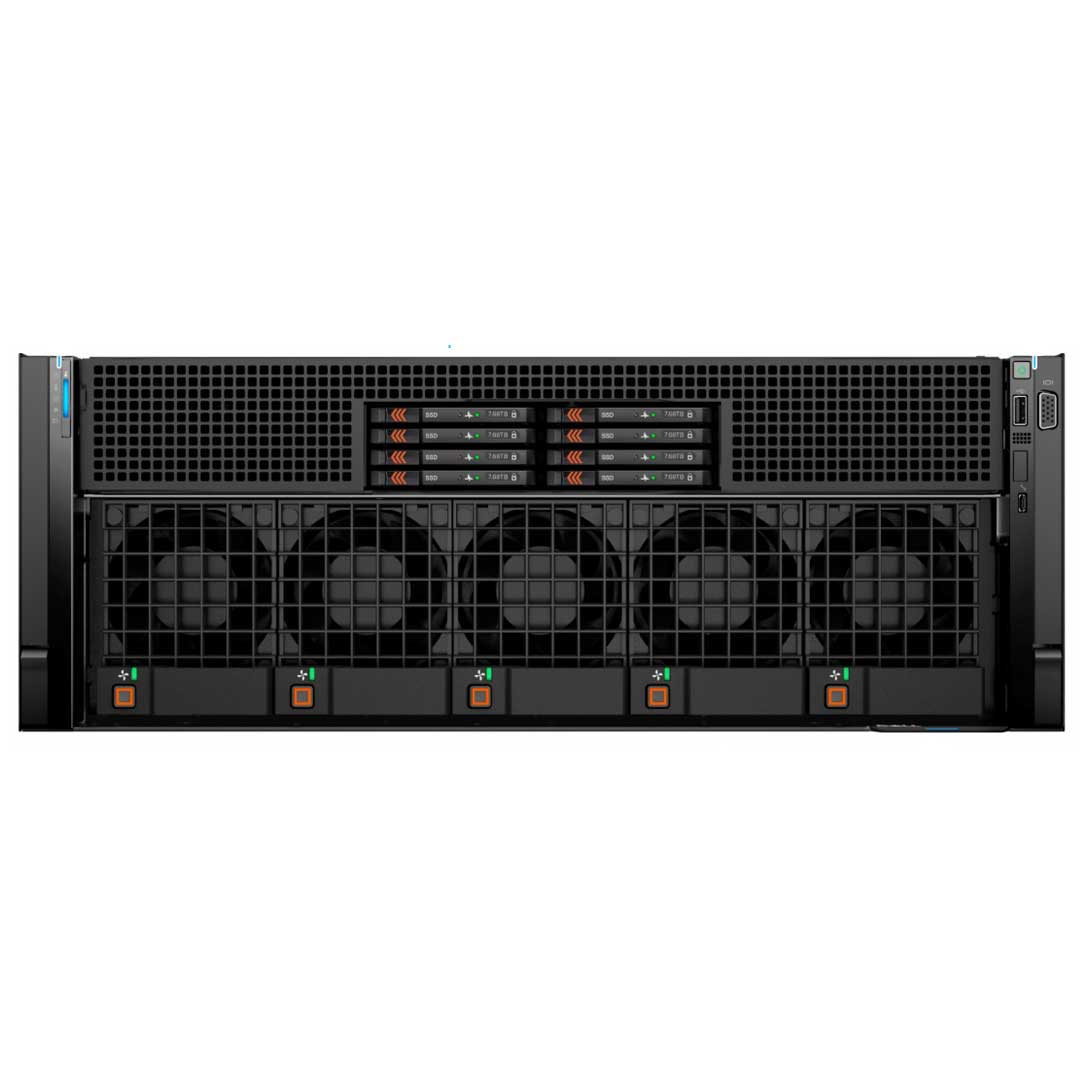

Drive bays	Front Bays • Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB
Power Supplies	2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant

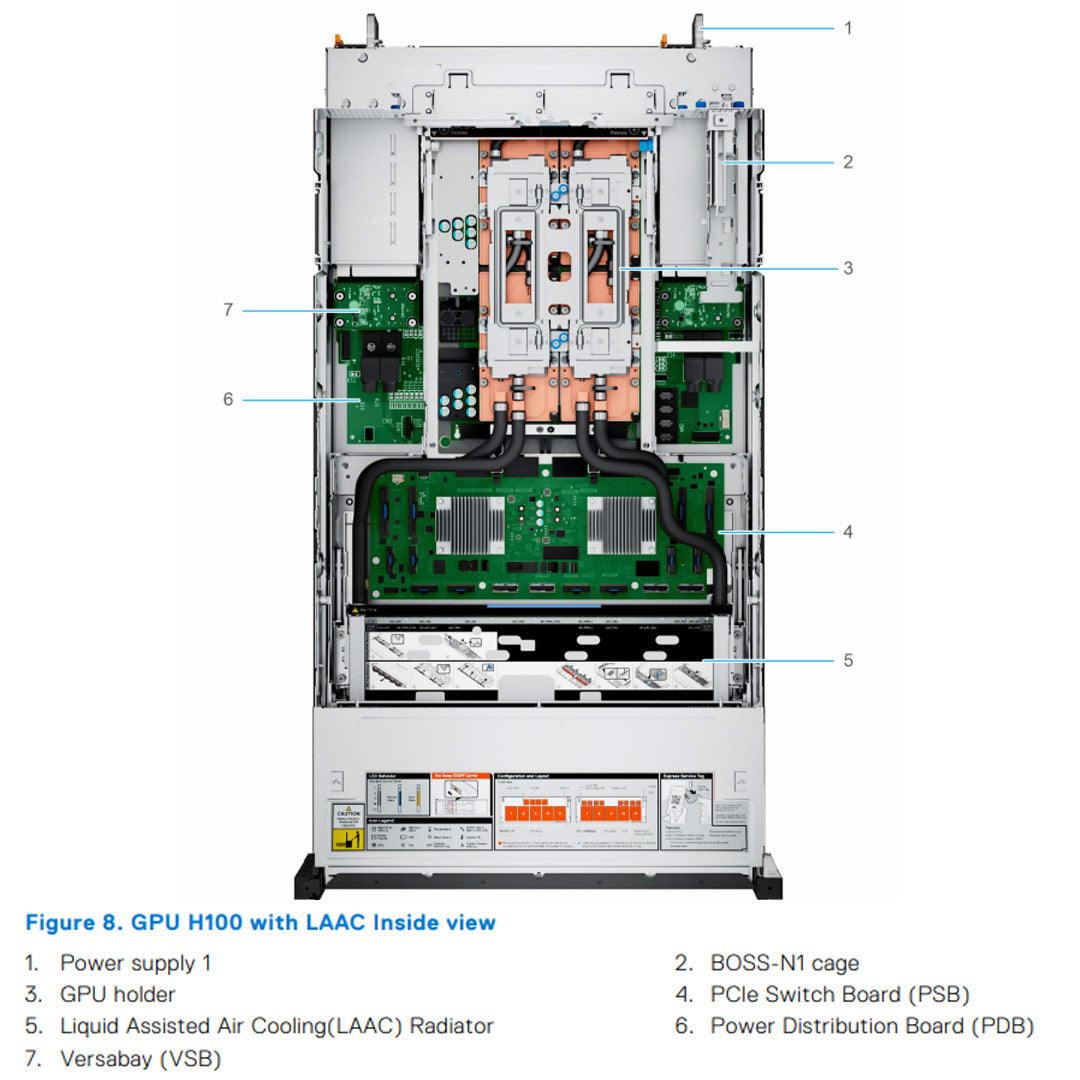

Cooling Options	• Air cooling for Processors • Liquid Assisted Air Cooling for GPU Note: No facility water to rack required.
Chipset	Intel® C741 chipset
PCIe	2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)
Embedded NIC	2 x 1 GbE
Network Options	1 x OCP 3.0 (x8 PCIe lanes)
Fans	• Up to 6 Standard (STD) fans installed in mid tray • Up to 5 High performance (HPR) gold grade fans installed on the front of the system • All are hot swap fans
Dimensions and weight	• Height — 174.3 mm (6.86 inches) • Width — 481.91 mm (18.97 inches) • Depth — 901.4 mm (35.48 inches) with bezel — 865.54 mm (34.07 inches) inch without bezel • Weight — 61.4 kg (135.36 pounds)

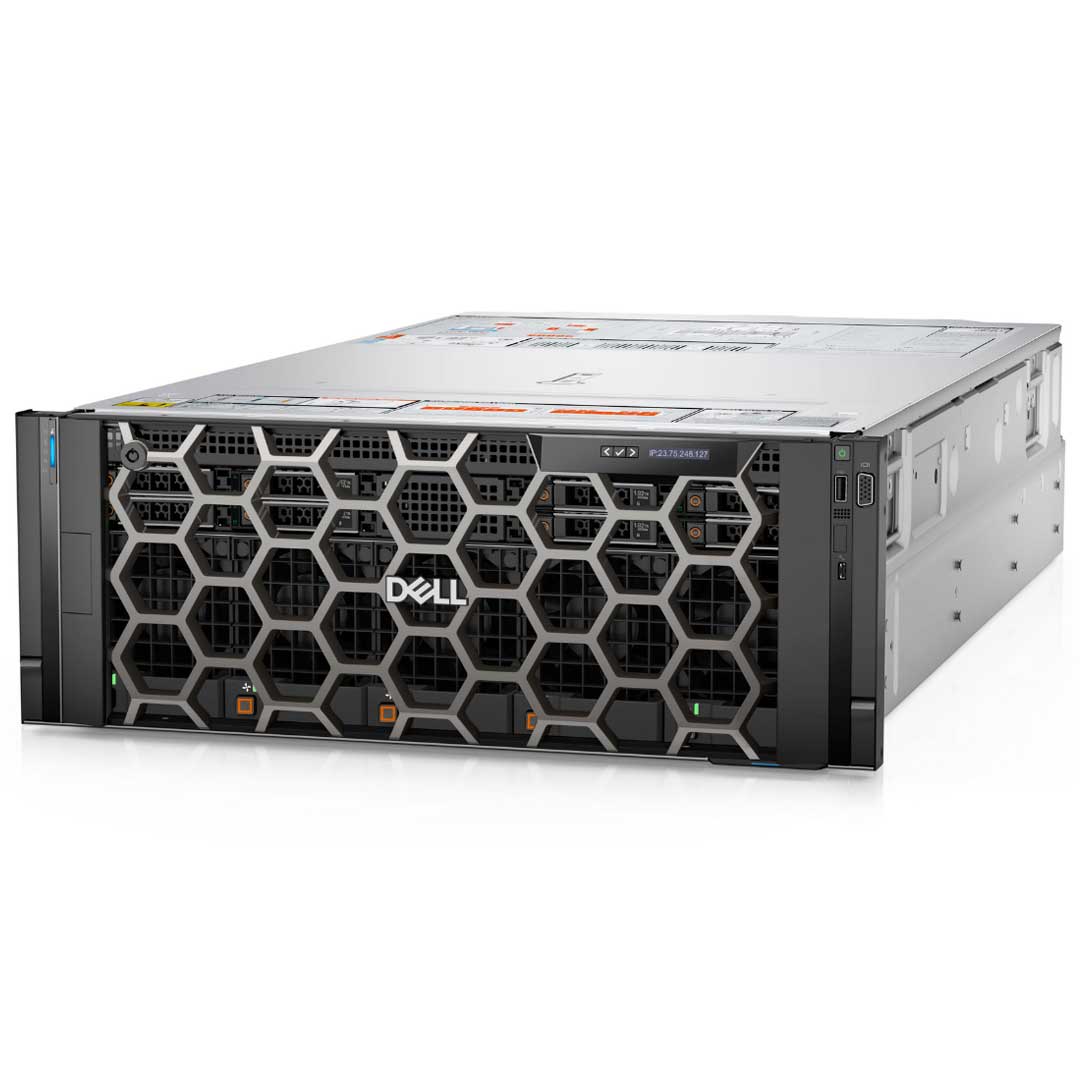

Form Factor	4U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow	• Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check)	• Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

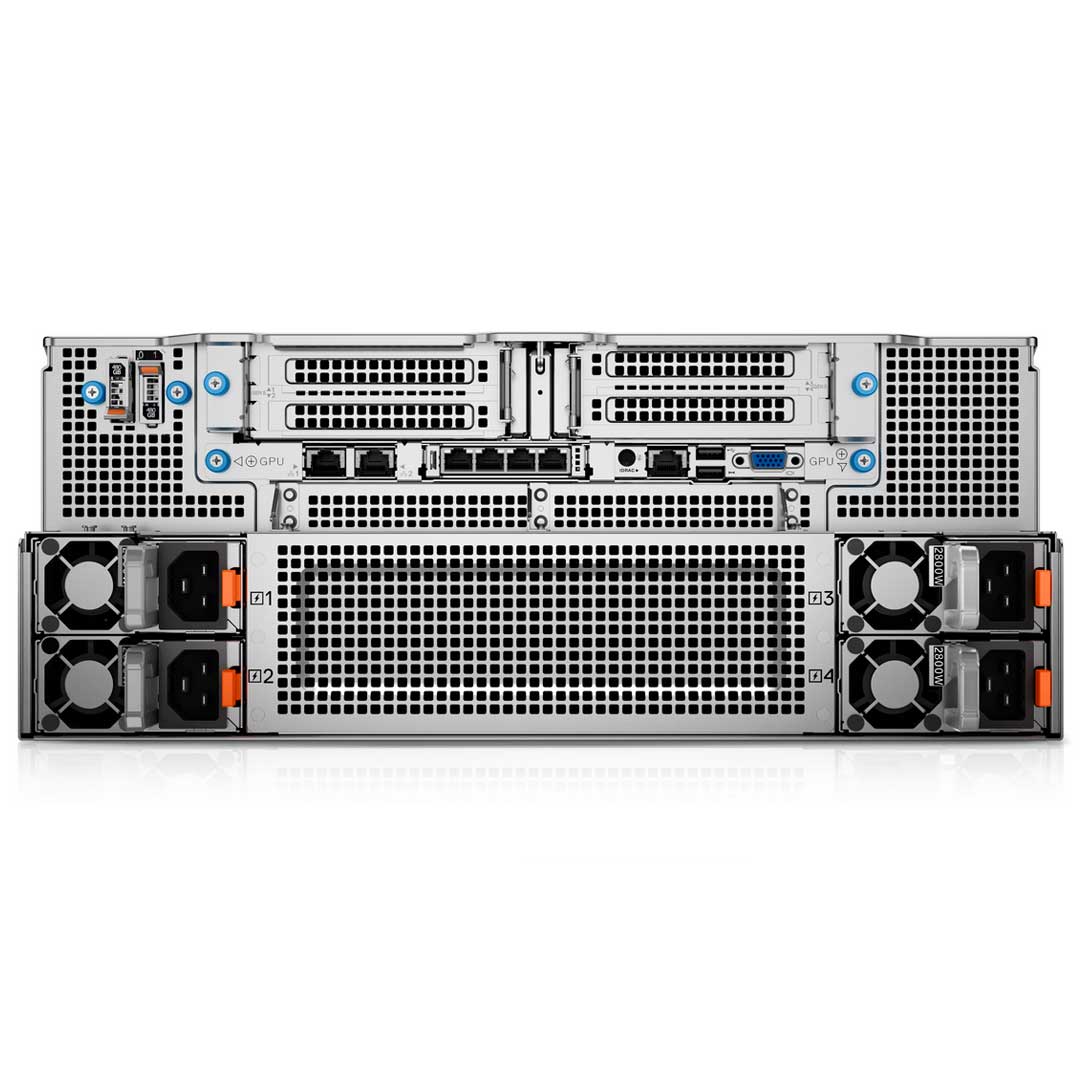

Ports	Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x RJ45 iDRAC9 ethernet port
Operating Systems and Hypervisors	• Canonical Ubuntu Server LTS • Red Hat Enterprise Linux

Spec Sheet 4

Feature	PowerEdge XE8545	PowerEdge XE8640
Processor	● 2x AMD Milan Processor (SP3) processor ● Interchip global memory interconnect (xGMI2).	2x 4th Generation Intel Xeon Scalable processors with up to 56 cores
Accelerators/GPUs	● 4x NVIDIA GPUs w/ NVLINK HGX A100 4-GPU 40GB/400W or HGX A100 4-GPU 80GB/500W	● 4x NVIDIA GPUs w/ NVLINK ● HGX H100 4-GPU 80 GB/700 W
Memory	● 32x RDIMM, DDR4 with ECC, bandwidth up to 3200 MT/S	● 32x RDIMM, DDR5 with ECC, bandwidth up to 4800 MT/S
Disk Drives	● 10x 2.5 inches 12 Gb SAS SSD or 12 Gb SATA SSD - or mixed, with up to 8x NVMe SSD	● 8x 2.5 inches U.2 NVMe SSD ● 8x 2.5 inches U.2 SAS/ SATA,SSD ● 8x E3.S NVMe SSD
Storage Controllers	● BOSS S1.5, H745,H755	● BOSS N1, H965i
NVMe PCIe SSD	● Up to 8x NVMe SSD	● Up to 8x NVMe SSD
PCIe Slots	● Up to 4x PCIe Gen4 slots (3x 16 or 2 x16 + 2 x8)	● Up to 4x 16 PCIe Gen5 slots
LOM	● 2x 1 GbE	● 2x 1 GbE
OCP 3.0	● Max 1 x OCP 3.0	● Max 1 x OCP 3.0 (PCIe x8)
USB Ports	● Front: 1 port (USB 2.0), dedicated for iDRAC ● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 + Bison)	● Front: 1 port (USB 2.0), dedicated for iDRAC ● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 )
Rack Height	● 4U	● 4U
Power Supplies	● Platinum: 2400 W (Mixed Mode: AC 100 V~240 V input) ● Titanium: 2800 W (Mixed Mode: AC 200 V~240 V input) ● 2800 W (Mixed Mode: DC 240 V input)	● Titanium: 2800 W (Mixed Mode: 200-240 VAC or 240 HVDC input)
System Management	● iDRAC9 with Lifecycle Controller with feature additions. ● Front: 1 dedicated Micro USB for iDRAC ● Rear: 1 dedicated RJ45 for iDRAC	● iDRAC9 with Lifecycle Controller with feature additions. ● Front: 1 dedicated Micro USB for iDRAC
Availability	● Hot-plug drives ● Hot-plug redundant cooling. ● Hot-plug redundant power supplies. ● BOSS-S1V5	● Hot-plug drives ● Hot-plug redundant cooling. ● Hot-plug redundant power supplies. ● BOSS-N1
Security	● TPM 2.0	● TPM 2.0
