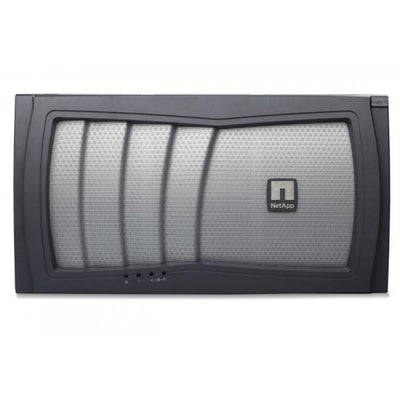

    NetApp FAS3170 Single Controller Filer Head (Stand Alone)


    Price: Request a Quote

    Brand:
    MPN:
    FAS3170
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    NetApp FAS3170 Single Controller Filer Head (Stand Alone)

    The NetApp FAS3170 is a mid-range storage system engineered for efficient data management in a compact 6U chassis. It features dual active-active controllers with up to 16GB of shared memory, providing reliable performance for mission-critical workloads. Integrated remote management ensures streamlined deployment and maintenance in diverse IT environments.

    Each controller is powered by a 64-bit, dual-core 2.60GHz processor, supported by two 1GbE and four 4Gb FC ports for flexible connectivity. RAID 4 and RAID-DP options safeguard data while maximizing throughput, and eight PCIe expansion slots enable additional network or storage interfaces.

    With support for up to 840 drives and a maximum capacity of over 2PB, the FAS3170 scales seamlessly to accommodate growing data demands. It works with various NetApp disk shelves—DS14, DS2246, DS4243, and DS4246—allowing organizations to mix FC, SAS, SATA, or SSD media for tailored performance and capacity.


    System Config
    • Model: NetApp FAS3170
    • Chassis: Single Chassis
    • Total Rack Height: 6U
    • Controllers: Single Controller (Stand Alone)
    • Memory (Stand Alone): 16GB
    • Ethernet Ports: 2 x RJ45 (1Gb)
    • Fibre Channel Ports: 4 x SFP (4Gb)
    • PCIe Expansion Slots: 4 x PCIe
    • Max Drives (total): 840
    • Max Capacity: 2,520TB (2.5PB)
    • Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 6U
    • Chassis Heights: 10.75" (27.3 cm)
    • Chassis Width w/o Mounting Flanges: 17.72" (45 cm)
    • Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
    • Chassis Weight: up to 121.0 lb (54.9 kg)
    Controller Specs
    • Max Controllers: 2 (Per Chassis)
    • PCI Slot (per): 4 x PCIe
    • Ethernet Ports (per): 2 x RJ45 (1Gb)
    • Fibre Channel Ports (per): 4 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): N/A
    • Remote Management: Yes
    • Processor Model (per):1x 64-bit 2-core 2.60 Ghz
    • Memory (Single/HA): 16GB/32GB
    • NVRAM (Single/HA): 2GB/4GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 840
    • Max Capacity: 2,016TB (2PB)
    • Max Number of FC Drives: 840
    • Max Number of NL-SAS Drives: 840
    • Max Number of SAS Drives: 840
    • Max Number of SATA Drives: 840
    • Max Number of SSD Drives: 240
    • Drive Interface: FC, NL-SAS, SAS, SATA, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP)
    • Max # of DS14-Mk2-AT Shelves: 60 external
    • Max # of DS14-Mk2-FC Shelves: 60 external
    • Max # of DS14-Mk4-FC Shelves: 60 external
    • Max # of DS2246 Shelves: 35 external
    • Max # of DS4243 Shelves: 35 external
    • Max # of DS4246 Shelves: 35 external
