Hpe Proliant Ml30 Gen9 Tower Server 4 Lff Chassis | 823402-B21

SKU: 823402-B21

Hpe Proliant Ml30 Gen9 Tower Server 4 Lff Chassis | 823402-B21

Name: Hpe Proliant Ml30 Gen9 Tower Server 4 Lff Chassis | 823402-B21
Brand: HPE
SKU: 823402-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML30 Gen9

(1) Intel E3-1200 v5 or v6
(4) DDR4 UDIMM Slots
Broadcom 5720 Dual-port 1GbE
4 PCIe 3.0 slots
iLO Management (standard),
Intelligent Provisioning (standard)
1 non hot plug, non-redundant

The HPE Tower server ML30 is a high-performance server that comes equipped with one CPU and four DIMMs, providing ample processing power and memory to handle a range of workloads. This server also features support for two form factor drives, allowing you to choose between either four LFF HDDs or eight SFF SSD/HDDs.

This flexibility makes it easy to customize the server to meet your specific storage needs. Additionally, the HPE Tower server ML30 features a compact tower design, making it easy to deploy and manage in a variety of environments. Whether you're running a small business or a larger enterprise, the HPE Tower server ML30 is a versatile and reliable choice for all of your computing needs.

Other Versions:

Ideal for:

Corporate IT
Database

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

[Chassis]
	HPE ProLiant ML30 Gen9 Non-hot Plug 4LFF Configure-to-order Server	HPE ProLiant ML30 Gen9 Hot Plug 4LFF Configure-to-order Server	HPE ProLiant ML30 Gen9 Hot Plug 8SFF Configure-to-order Server
SKU Number	823401-B21	823402-B21	823403-B21
Processor	1
DIMM Slots	4 DIMM slots for UDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i with 4 SATA ports support	HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA
PCIe	4 PCIe 3.0 slots
Drive Cage	4LFF Non Hot Plug	4LFF Hot Plug	8SFF Hot Plug
Network Controller	Broadcom 5720 Dual-port 1GbE
Fans	1 non hot plug, non-redundant
Management	iLO Management (standard), Intelligent Provisioning (standard)
USB	4 front, 4 rear, 2 internal

4 Non Hot-Plug Drive Cage

Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support

Max Capacity

SATA | 4 x 4TB = 16TB

4 Hot-Plug Drives Cage / Backplane

Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA

Max Capacity

SAS | 4 x 12TB = 48TB

SATA | 4 x 12TB = 48TB

SATA | 4 x 1.92GB = 7.68TB

8 Hot-Plug Drives Cage / Backplane

Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA

Max Capacity

SAS | 8 x 2.4TB = 19.2TB

SATA | 8 x 2TB = 16TB

SATA | 8 x 3.84TB = 30.72TB

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor (One of the following depending on model)

Model	CPU Frequency	Cores	L3 Cache	Power	DDR4 Hz
G4560	3.5 GHz	2	3MB	54 W	2400
G4600	3.6 GHz	2	3MB	51 W	2400
i3-7100	3.9 GHz	2	3MB	51 W	2400
i3-7300	4.0 GHz	2	3MB	51 W	2400
E3-1220v6	3.0 GHz	4	8MB	72 W	2400
E3-1230v6	3.5 GHz	4	8MB	72 W	2400
E3-1240v6	3.7 GHz	4	8MB	72 W	2400
E3-1270v6	3.8 GHz	4	8MB	72 W	2400
E3-1280v6	3.9 GHz	4	8MB	72 W	2400

Cache memory (One of the following depending on model)

8MB (1 x 8MB) level 3 cache (For quad-core intel xeon processors)
3MB (1 x 3MB) level 3 cache (For dual-core intel pentium core i3 processors)

Chipset

Intel C236 chipset

On system management chipset

HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND

Memory protection

ECC

Memory

Type	DDR4 unbuffered (UDIMM)
DIMM Slots available	4 (4 DIMM slots per processor; 2 channels per processor, 2 DIMMs per channel)
Maximum capacity (UDIMM)	64GB (4 x 16GB UDIMM 2133 MHz)

Network controller

HPE Ethernet 1Gb 2-port NC332i adapter

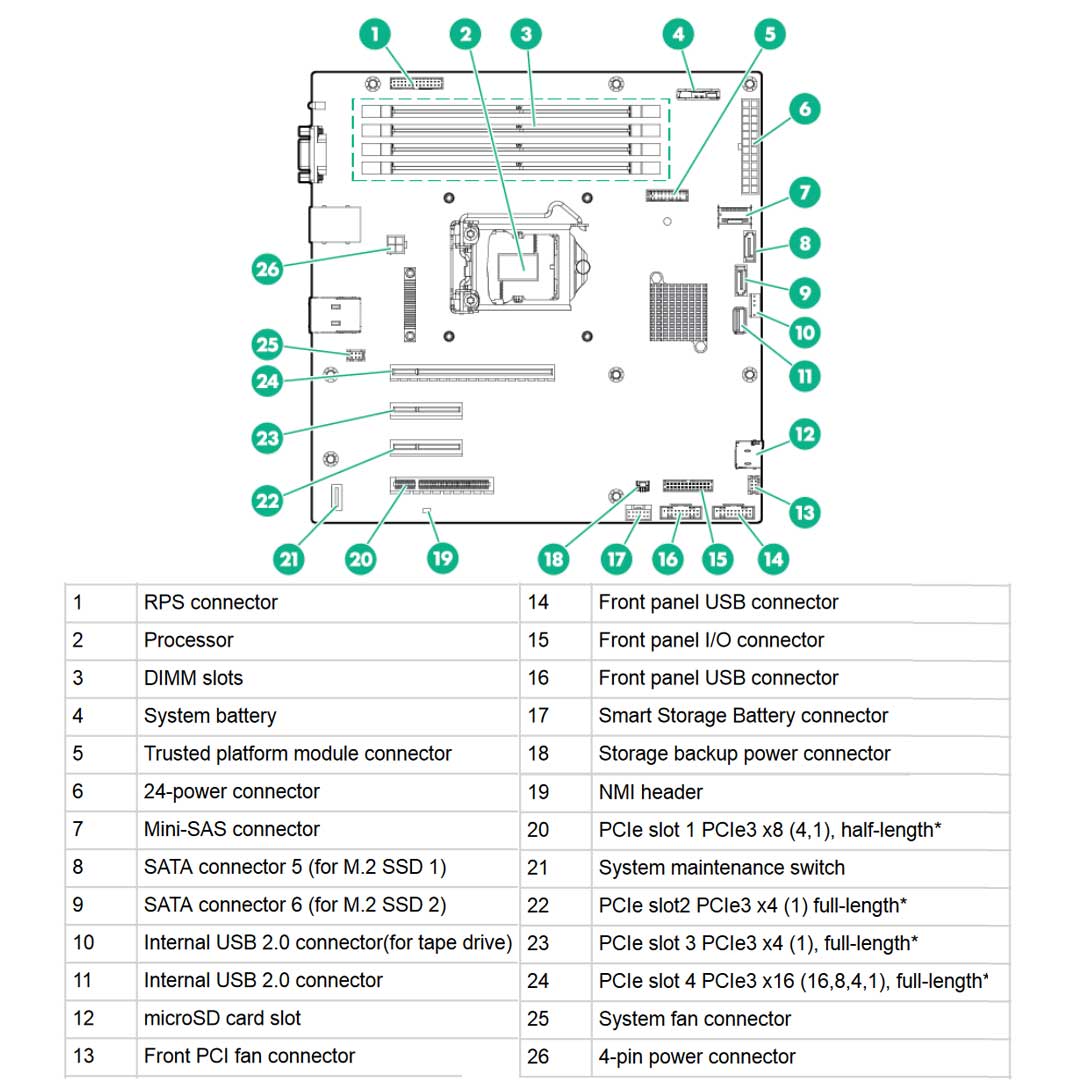

Expansion slots

Expansion Slots Number	Technology	Bus Width	Connector Width	Form Factor
4	PCIe 3.0	x16	x16	Full length/full height
3	PCIe 3.0	x1	x4	Full length/full height
2	PCIe 3.0	x1	x4	Full length/full height
1	PCIe 3.0	x4	x8	Half length/full height

NOTE: Bus width indicates the number of physical electrical lanes running to the connector

Storage controller (One of the following depending on model)

Base models	HPE Dynamic smart array B140i controller
Performance models	HPE Dynamic smart array B140i controller

NOTE: B140i can not mix with any standup internal controller

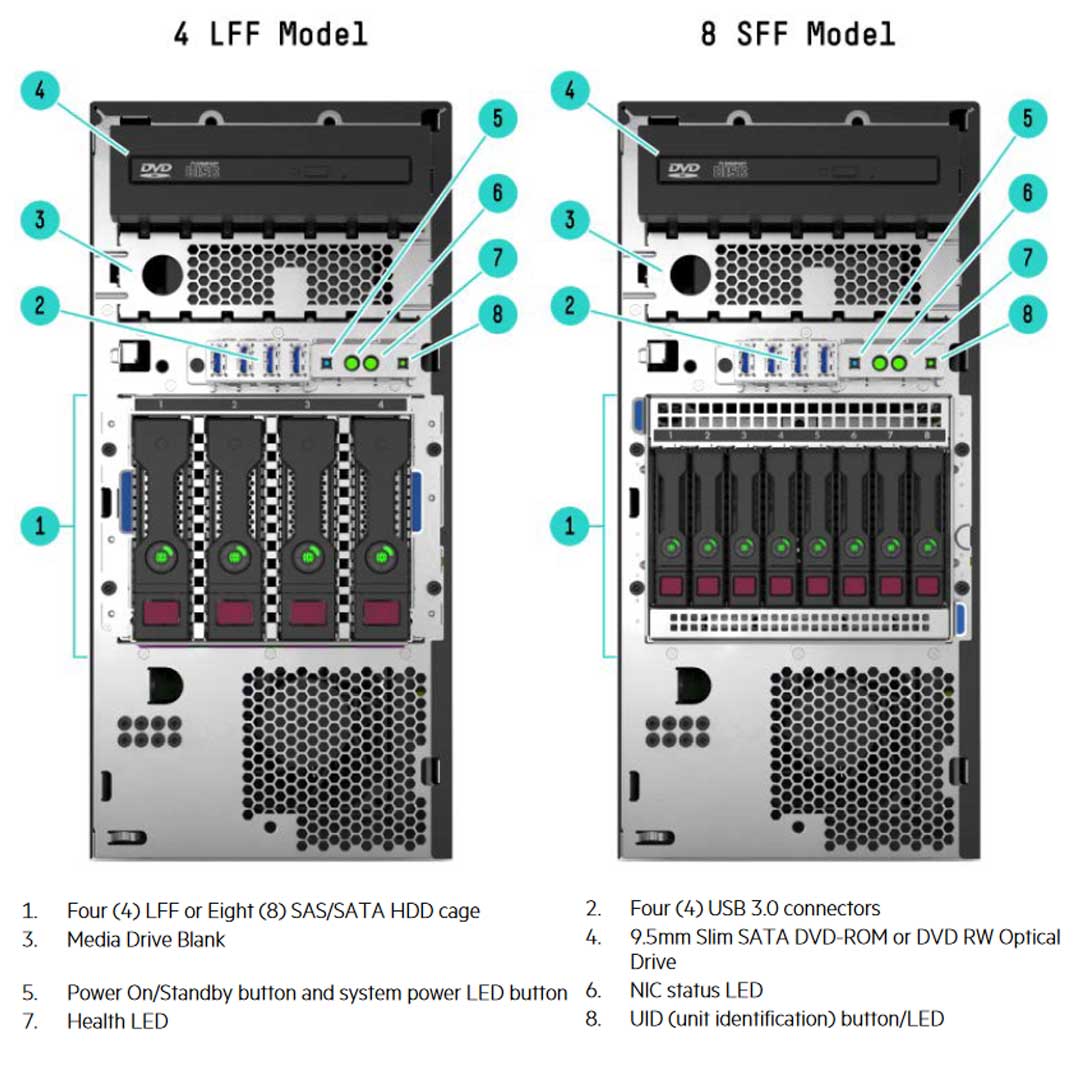

Internal storage devices (One of the following depending on model)

Optical drives	Optional SATA 9.5 mm DVD-ROM optical drive Optional SATA 9.5 mm DVD RW optical drive
Hard drives	None ship standard
Hard drive bays	4 LFF drive bays (Non-hot-plug and hot-plug) 8 SFF hot-plug drive bays
NOTE: HPE ProLiant ML30 Series servers offer both SFF and LFF versions in CTO. All pre-configured models come populated with some hard drive blanks installed. Should the end user need additional hard drive blanks, they can order more using either Part Number (P/N) 666987-B21: HPE SFF HDD blank kit or P/N 666986- B21: HPE LFF HDD blank kit

Maximum internal storage

Drives	Capacity	Configuration
Hot plug LFF SAS	48TB	4x12TB
Hot plug SFF SAS	19.2TB	8x24TB
Hot plug LFF SATA	48TB	4x812TB
Hot plug SFF SATA	16TB	8x2TB
Non-hot plug LFF SATA	16TB	4x4TB
Hot plug SFF SATA SSD	30.72TB	8x3.84GB
Hot plug LFF SATA SSD	7.68TB	4x1.92GB

System fans

Non-redundant		Redundant
1P model system fan	One (1) Non-redundant system fan	NA
1P model PCIe fan	One (1) Non-redundant PCIe fan	NA

Power supply

HPE 350 W ATX-Gen9 power supply FIO kit
HPE 460 W redundant power supply
HPE Entry-Level power supplies provide lower-cost options for users trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs

System fans

Model	Non-redundant	Redundant
1P model system fan	One (1) non-redundant system fan	NA
1P model PCIe fan	One (1) non-redundant PCIe fan	NA

Upgradeability

Upgradeable to 4 cores (Total 2 or 4 cores)
Up to 4 DIMM slots available for higher memory capacity
Up to 8 SFF hard drive bays; or 4 LFF hard drive bays
All PCIe 3.0 I/O slots for additional communications and storage expansion
Redundant power supply
Optical drive bay (Up to 2.)

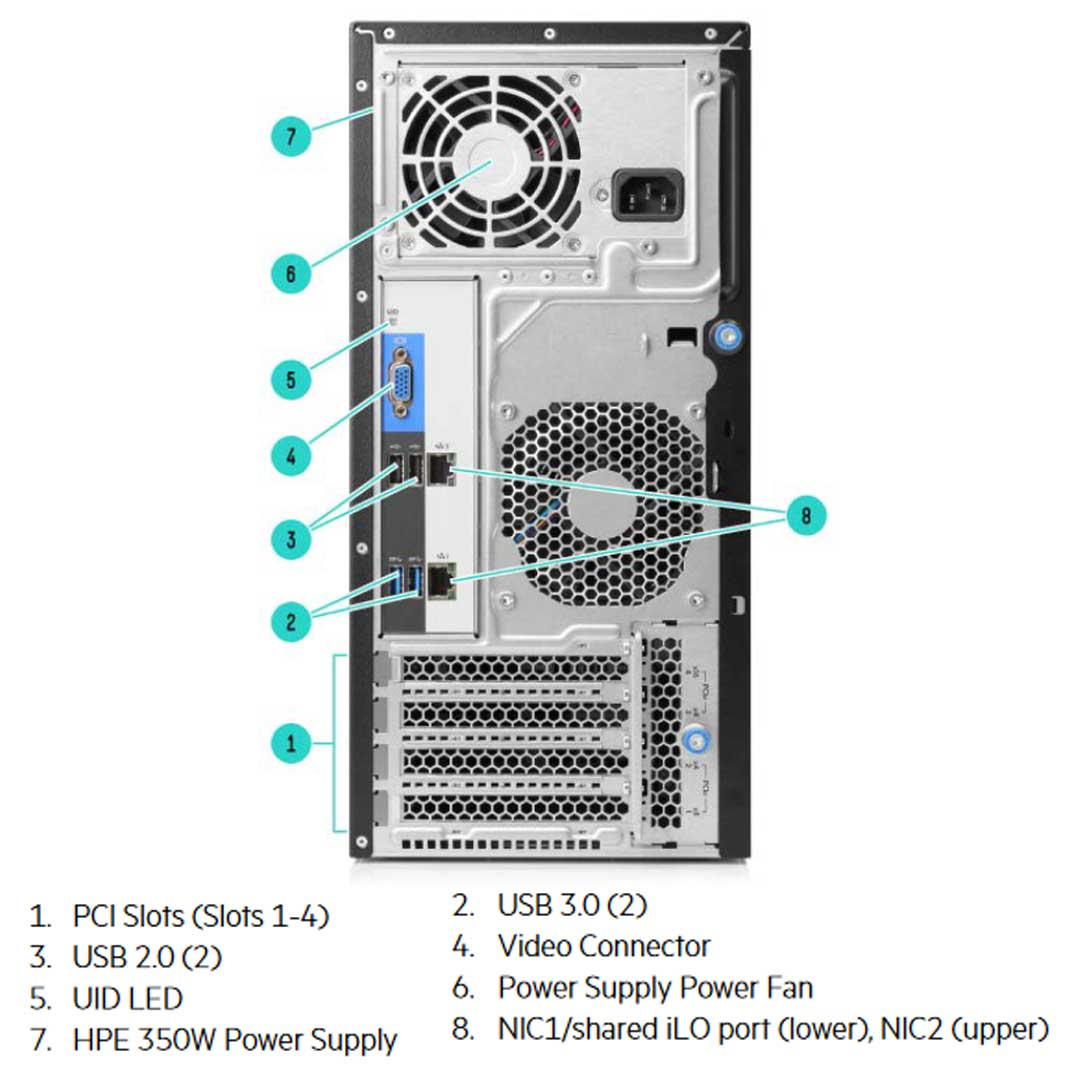

Interfaces

Video	1 (Rear)
USB 3.0	6 (4 front, 2 rear)
USB 2.0	4 (2 rear, 1 internal standard USB, 1 internal USB header)
Micro SD slot	1 Internal NOTE: The Micro-SD slot is not a hot-pluggable device. End users should not attempt to plug a Micro-SD card into the Micro-SD slot while the server is powered.
Network RJ-45 (Ethernet)	2 (1 shared for HPE integrated lights-out)

Industry standard compliance

ACPI 2.0b compliant
PCIe 3.0 compliant
PXE support
WOL support
Microsoft logo certifications
USB 2.0 /3.0 support

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 b/p)
1920 x 1200 (16 b/p)

HPE iLO 4 on system management memory

16MB flash
256MB DDR 3 with ECC (112MB after ECC and video)

HPE NVIDIA Quadro M2000 GPU Module

Security

Power-ON password
Setup password
Power switch security
Administrator's password
TPM 1.2
TPM 2.0
UEFI

Form factor

Micro ATX Tower (4U) chassis with feet/bezel:

36.82 x 17.5 x 47.52 cm (14.5 x 6.89 x 18.71 in)

8 SFF drive bay cage:

11.74 x 14.57 x 12.15 cm (4.6 x 5.74 x 4.79 in)

4 LFF drive bay cage:

11.72 x 14.57 x 17.54 cm (4.6 x 5.74 x 6.90 in)

HPE Server UEFI / legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot
OS specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using RESTful API for iLO 4
PXE boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM
Network stack configurations

Embedded management

HPE IntegratedLights-Out(HPE iLO)
UEFI
RESTful API
Intelligent provisioning
Embedded remote support

Server utilities

Smart update
HPE Systems Insight Manager(HPE SIM)
Scripting ToolKit and Windows PowerShell
RESTful interface tool
HPE iLO mobile application
HPE Insight online

Storage software

Data protection and recovery software
Data archive and migration software
Storage Resource Management Software (SRM)
Data replication software
Storage device management software
HPE StoreVirtual VSA

top

Specs 1

Software overview

Feature	Description
Operating systems and virtualization software support	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ClearOS

top

Physical specifications

Specification	Description
Dimensions (H x W x D):	36.82 x 17.5 x 47.52 cm (14.50 x 6.89 x 18.7 in)
Weight	Maximum: 15.4 kg (30.8 Ib) Minimum: 13.56 kg (27.1 lb)

top

Electrical specifications

Specification	Description
Rated line voltage	100 - 120 V ac
Rated input current	2.5 - 6 A
Rated input frequency	47 - 63 Hz
Rated input power	412 W - 526 W at 115 V ac 412 W - 523 W at 230 V ac
BTU rating	460 W - 1773 BTU/hr (At 120 V ac), 1715 (At 240 V ac)
Rated steady-state power	350 W (At 115 V ac) 350 W (At 230 V ac)
Peak power	350 W (At 115 V ac) 350 W (At 230 V ac)

top

Environmental specifications

Specification	Description
Operating temperature	10°C to 35°C (50°F to 95°F)
Non-operating temperature	-30°C to 60°C (-22°F to 140°F)
Operating relative humidity	10% to 90% non-condensing
Non-operating relative humidity	5% to 95% non-condensing
Operating altitude	3048 m (10,000 ft)
Non-operating altitude	9144 m (30,000 ft)
Acoustic noise	Idle	Operating
	LWAd 4.2 Bels (1P LFF base) 3.7 Bels (1P LFF performance) LpAm 27 dBA (1P LFF base) 23 dBA (1P LFF performance)	LWAd 4.2 Bels (1P LFF base) 3.8 Bels (1P LFF performance) LpAm 27 dBA (1P LFF base) 23 dBA (1P LFF performance)
	NOTE: Configurations tested for 1P LFF base models include one (1) 1TB LFF SATA Midline (MDL) HDD and Windows 2012 Enterprise 64-bit Configurations tested for 1P LFF performance models include one (1) 1TB LFF SATA MDL HDD and Windows 2012 Enterprise 64-bit The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels Levels presented do not account for non-Hewlett Packard Enterprise installed hardware

top

Safety certifications

Specification	Description
Emissions Classificatio (EMC)
FCC rating	Class B
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003;CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (Type) testing, evaluation or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
