Dell PowerEdge R340 Rack Server | Configurable

Dell

| CTO Servers



READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Intel Xeon E-2100

Supports (1) processor

Intel Xeon E-2200

Supports (1) processor

Bezel (Optional)

Memory

Supports up to 4 UDIMMs
Up to 64 GB of UDIMM memory (4 x 16GB UDIMM)

RAID Controllers (Optional)

Embedded S140 software RAID installed by default

Boot Optimized Storage Subsystem (BOSS) (Optional)

Supports up to (2) M.2 SSD Drives

LFF (3.5") Drives (Optional)

Supports up to (4) Drives

SFF (2.5") Drives (Optional)

Supports up to (4) Drives
2.5" drives in the 4x HDD Chassis will be installed with a 3.5" Drive Carrier.

Riser Options (Optional)

LP SLOT 1 Half Height Half Length x4 x8
FH SLOT 2 Full Height Half Length x8 x16

Internal Dual SD Module (IDSDM) (Optional)

Optical Drive (Optional)

Rail Kits (Optional)

Trusted Platform Module (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express

Power Supplies

Supports (2) Hot-Swap PSU

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs
Form Factor:

1U rack server

Processor | Max: N/A

1x Intel® Xeon® E-2200 product family

Memory | Max: 64GB

4 DDR4 UDIMM 2666Mhz
Supports ECC

Storage | Max N/A:

8x 2.5" hot-plug SATA, SAS or SSD
4x 3.5 hot-plug SATA, SAS or SSD

Rear Storage:

None

PCIe Slots:

2x PCIe 4.0
One x8 slot LP, HL with x4 slot width
One x16 slot (LP or FH), HL with x8 bandwith

Boot Options:

BOSS
IDSDM w/ vFlash
Internal USB

Networking Options:

2x 1GbE

Storage Controller:

S140 (SW RAID)
PERC H730P, H330, HBA330, HBA355e, 12Gbps SAS HBA

Remote Management:

iDRAC9 with Lifecycle Controller & vFlash

Other Versions

Built for remote office and branch office use, the Dell EMC PowerEdge R340 is a single-socket 1U rack server suited to productivity and data-intensive applications.

Memory Options
DIMM type DIMM rank DIMM capacity Minimum RAM Maximum RAM
UDIMM Single rank 8 GB 8 GB 32 GB
16 GB 16 GB 64 GB
Dual rank 8 GB 8 GB 32 GB
16 GB 16 GB 64 GB
Storage Controllers
Internal controllers External controllers
  • PERC H730P
  • PERC H330
  • S140
  • HBA330
  • 12 Gb/s Ext SAS HBA
  • HBA355e
Note:

A dedicated PCIe slot on the system board houses the storage controller, installed directly under the Butterfly PCIe riser.

Image of the Storage Controller Placement in the Dell R340 Rack Server
Boot Options
Image of the IDSDM with vFlash Placement in the Dell R340 Rack Server.
IDSDM

The Internal Dual SD Module (IDSDM) accommodates 2 SD cards and 1 vFlash card, with the vFlash reserved for remote management via iDRAC8 Enterprise. While well suited for loading a hypervisor OS in virtualization setups, the IDSDM can't handle a full system OS — that role belongs to the BOSS card instead.

Image of a BOSS PCIe Adapter
BOSS Card

The Boot Optimized Storage Subsystem (BOSS) provides an efficient way to load the OS without dedicating a drive bay for it, supporting 2 M.2 drives capable of hosting the full operating system.

Image of the Internal USB Placement
Internal USB

An internal USB slot, embedded on the system board beneath the butterfly riser, supports loading the OS or other management software.

PCIe Expansion Options
PCIe slot Riser PCIe slot height PCIe slot length Link width Slot width
Slot 1 x8 PCIe Low-profile Half-length x4 x8
Slot 2 x16 PCIe Low-profile/Full-height Half-length x8 x16
Internal PERC x8 PCIe Low-profile Half-length x8 x8
Image of the butterfly riser for the Dell R340 Rack Server
Power Supply Unit (PSU)
PSU Class Heat dissipation (maximum) Frequency Voltage AC Current
High line 100–240 V Low line 100–120 V
350 W AC Platinum Redundant - 1356 BTU/hr 50/60 Hz 100–240 V AC, autoranging 350 W NA 4.8 A–2.4 A
550 W AC Platinum 2107 BTU/hr 50/60 Hz 100–240 V AC, autoranging 550 W NA 7.4 A–3.7 A

Current Configuration

(List below serves as quick links to each section)

Server Chassis

Processors

Bezel

Memory

RAID Controllers

Boot Optimized Storage Subsystem (BOSS)

LFF (3.5") Drives

SFF (2.5") Drives

Riser Options

Internal Dual SD Module (IDSDM)

Optical Drive

Rail Kits

Trusted Platform Module

iDRAC9

Power Supplies

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

FeatureTechnical Specification
Processor1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Memory4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
Storage controllers
  • Internal controllers: PERC H730P, H330, HBA330
  • Software RAID: PERC S140
  • External controllers: 12Gbps SAS HBA
Internal boot
  • Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)
  • Internal Dual SD Module3: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)

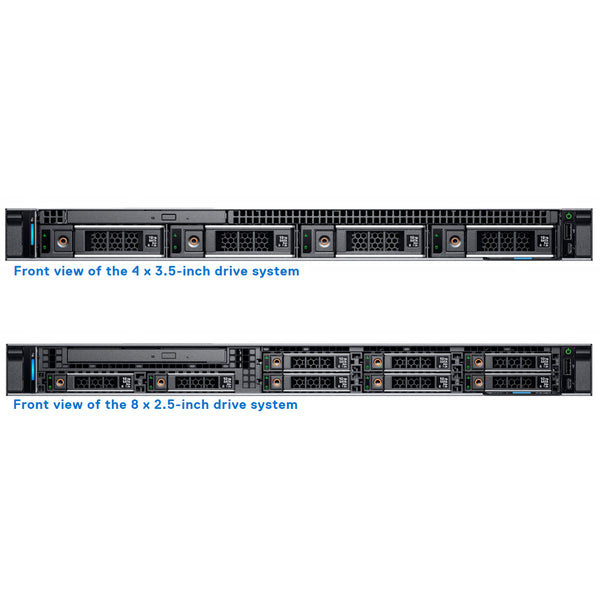

Drive baysFront bays:
  • Up to 4 x 3.5 hot-plug SATA, SAS (optional) or SSD
  • Up to 8 x 2.5 hot-plug SATA, SAS (optional) or SSD
Power supplies
  • Single or dual
  • 350W (Platinum) hot-plug
  • 550W (Platinum) hot-plug
DimensionsForm factor: Rack (1U)
Chassis width: 434.00mm (17.08 in)
Chassis depth: 595.63mm (23.45 in) (3.5” HDD config)
Chassis depth: 544.836mm (21.45 in) (2.5” HDD config)
Note: These dimensions do not include: bezel, redundant PSU Chassis weight: 13.6 kg (29.98 lb.)
Embedded management
  • iDRAC9
  • iDRAC Direct
BezelOptional security bezel
OpenManage™ SoftwareOpenManage Enterprise
OpenManage Power Manager
OpenManage Mobile
Integrations & ConnectionsIntegrations:
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
Connections:
  • IBM Tivoli Netcool/OMNIbus
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Tools
  • iDRAC Service Module
  • iDRAC RESTful API with Redfish
  • OpenManage Server Administrator
  • Dell EMC Repository Manager
  • Dell EMC System Update
  • Dell EMC Server Update Utility
  • Dell EMC Update Catalogs
  • Dell EMC RACADM CLI
  • IPMI Tool
Security
  • TPM 1.2/2.0 optional
  • Cryptographically signed firmware
  • Silicon Root of Trust
  • Secure Boot
  • System Lockdown (requires iDRAC Enterprise or Datacenter)
  • System Erase
I/O & PortsNetworking Options:
  • 2 x 1GbE LOM Network Interface Controller (NIC) ports
Front ports:
  • 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port

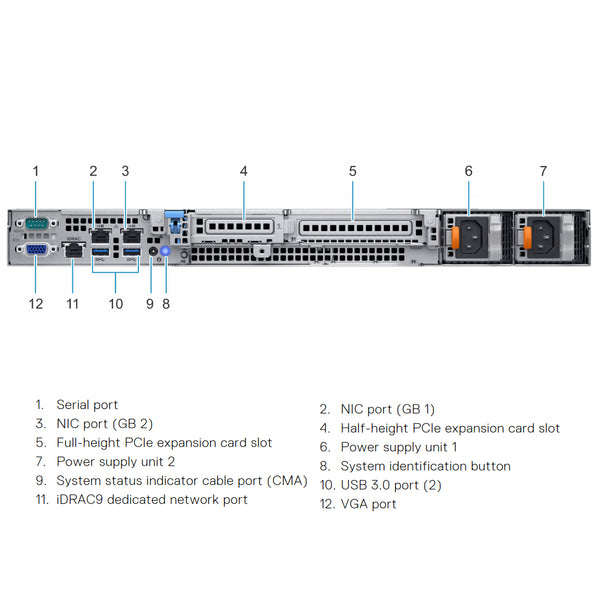

Rear ports:
  • 2 x USB 3.0, VGA, serial connector
2 x PCIe Gen 3.0 slots:
  • One x8 slot low-profile, half-length with x4 slot width
  • One x16 slot low-profile/full-height, half-length with x8 bandwith
Supported operating systems
  • Citrix® XenServer®
  • Microsoft® Windows Server® with Hyper-V (2016 and 2019)
  • Red Hat® Enterprise Linux
  • Ubuntu® Server LTS
  • SUSE® Linux Enterprise Server
  • VMware® ESXi
