Dell PowerEdge R240 Rack Server | Configurable

Dell

| CTO Servers



READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Intel Xeon E-2100

Supports (1) processor

Intel Xeon E-2200

Supports (1) processor

Bezel (Optional)

Optional LCD or Security bezel

Memory

Supports up to 4 UDIMMs
Up to 64 GB of UDIMM memory (4 x 16GB UDIMM)

RAID Controllers (Optional)

Embedded S140 software RAID installed by default

Boot Optimized Storage Subsystem (BOSS) (Optional)

Supports up to (2) M.2 SSD Drives

HDD (3.5") Drives (Optional)

Supports up to (4) Drives

2.5" Drives (Optional)

Supports up to (4) Drives
All 2.5" drives will be installed with a 3.5" Drive Carrier
SSD are only supported in the hot-plug Chassis

Riser Options (Optional)

Slot 1: Low-Profile Half length x8
Slot 2: Low-Profile/Full height Half length x16

Internal Dual SD Module (IDSDM) (Optional)

Optical Drive (Optional)

Rail Kits (Optional)

Trusted Platform Module (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express
The IDSDM holds the vFlash microSD Slot. Supports only 1 microSD Card.

Power Supply Units

Supports (1) Cabled PSU

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs
Form Factor:

1U rack server

Processor | Max: 8 Cores

1 x Intel Xeon E-2200

Memory | Max: 64TB

4 DDR4 UDIMM 2666Mhz

Storage | Max: N/A

4 LFF SAS/SATA (HDD) Cabled
4 LFF SAS/SATA (HDD/SSD) Hot-Swappable

Storage Controllers:

S140 (SW RAID)
H330, H730p, HBA330, 12Gbps SAS HBA

Boot Options:

BOSS
IDSDM (Micro SD)
USB

PCIe Slots:

2x PCIe 3.0
One x8 slot low-profile, half-length with x4 slot width
One x16 slot low-profile/full-height, half-length with x8 bandwith

Remote Management:

iDRAC9 with Lifecycle Controller and vFlash

Other Versions

The Dell EMC PowerEdge R240 offers an affordable single-socket 1U rack server built for small businesses and service providers.

PCIe Expansion Slots
Image of the IDSDM Riser for the Dell R240 Rack Server
IDSDM w/ vFlash

The Internal Dual SD Module with vFlash houses 2 microSD cards for hypervisor OS use — not a full OS install — alongside a separate vFlash slot for iDRAC management on the reverse side.

Image of the BOSS Riser for the Dell R240 Rack Server
BOSS

The Boot Optimized Storage Subsystem (BOSS) card holds 2 M.2 SSDs and handles OS loading on the rack server — skipping BOSS means dedicating one of the 4 available drives to boot duty instead.

PCIe Expansion Slots
PCIe Slot Riser PCIe Slot Height PCIe Slot Lenght Slot Width
Slot 1 x8 PCIe Low-Profile Half-Height x8
Slot 2 x16 PCIe Low-Profile/Full-Height Half-Length x16

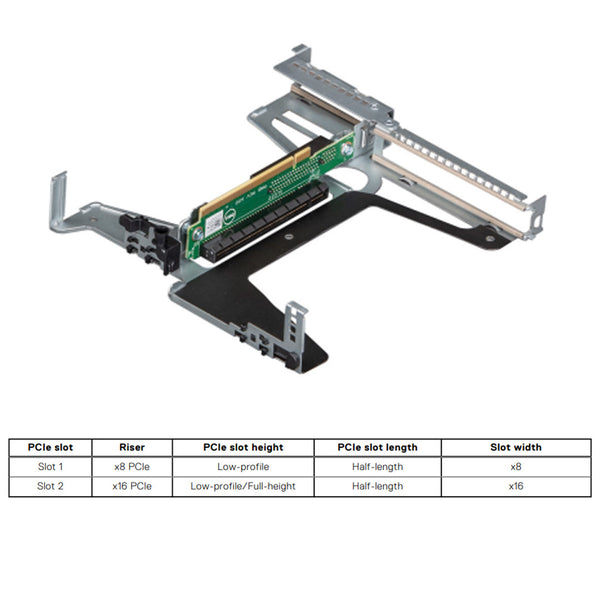

Image of the PCIe ButterFly Riser for the Dell R240 Rack Server

Current Configuration

(List below serves as quick links to each section)

Server Chassis

Processors

Bezel

Memory

RAID Controllers

Boot Optimized Storage Subsystem (BOSS)

HDD (3.5") Drives

2.5" Drives

Riser Options

Internal Dual SD Module (IDSDM)

Optical Drive

Rail Kits

Trusted Platform Module

iDRAC9

Power Supply Units

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

FeatureTechnical Specification
Processor1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Memory4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
Storage controllers
  • Internal controllers: PERC H730P, H330, HBA330
  • Software RAID: PERC S140
  • External controllers: 12Gbps SAS HBA
Internal boot
  • Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)
  • Internal Dual SD Module3: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)
Drive baysFront bays:
  • Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD
  • Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD
Power supplies
  • Single 250W (Bronze)
  • 450W (Platinum) power supply
FansStandard/High Performance/Very High Performance
Hot Plug Fans
DimensionsForm factor: Rack (1U)
Chassis width: 434.00mm (17.08 in)
Chassis depth: 573.596mm (22.58 in) (3.5” HDD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 12.2 kg (26.89 lb.)
Embedded management
  • iDRAC9
  • iDRAC Direct
BezelOptional security bezel
OpenManage™ SoftwareOpenManage Enterprise
OpenManage Power Manager
OpenManage Mobile
Integrations & ConnectionsIntegrations:
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
Connections:
  • IBM Tivoli Netcool/OMNIbus
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Tools
  • iDRAC Service Module
  • iDRAC RESTful API with Redfish
  • OpenManage Server Administrator
  • Dell EMC Repository Manager
  • Dell EMC System Update
  • Dell EMC Server Update Utility
  • Dell EMC Update Catalogs
  • Dell EMC RACADM CLI
  • IPMI Tool
Security
  • TPM 1.2/2.0 optional
  • Cryptographically signed firmware
  • Silicon Root of Trust
  • Secure Boot
  • System Lockdown (requires iDRAC Enterprise or Datacenter)
  • System Erase

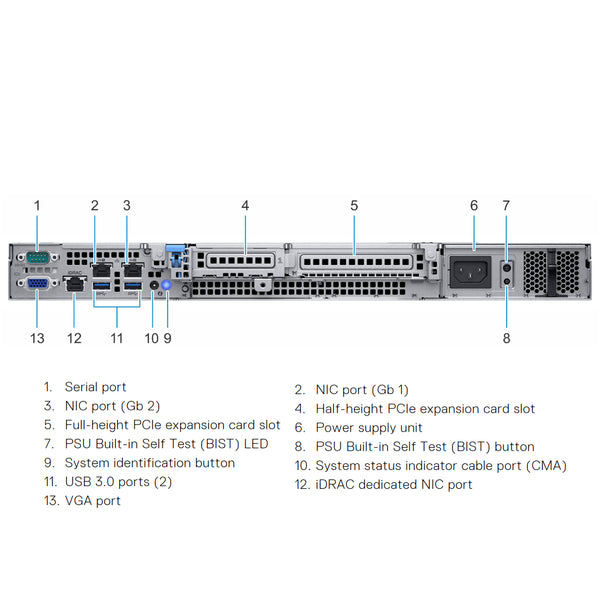

I/O & PortsNetworking Options:
  • 2 x 1GbE LOM Network Interface Controller (NIC) ports
Front ports:
  • 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port

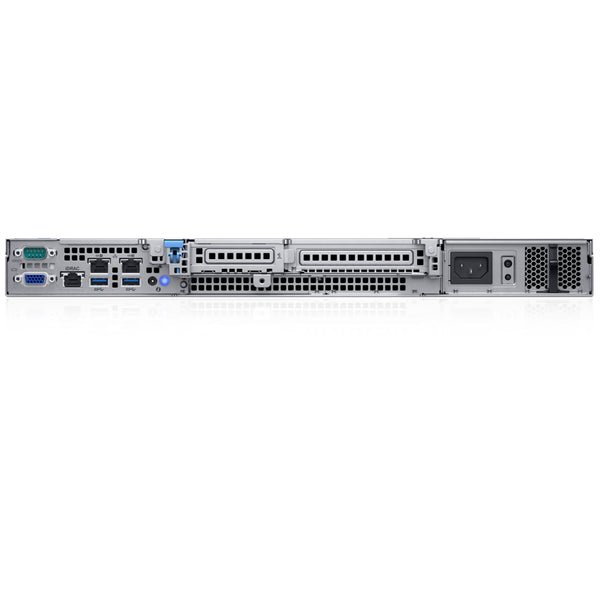

  • Rear ports: 2 x USB 3.0, VGA, serial connector
2 x PCIe Gen 3.0 slots:
  • One x8 slot low-profile, half-length with x4 slot width
  • One x16 slot low-profile/full-height, half-length with x8 bandwith
Supported operating systems
  • Citrix® XenServer®
  • Microsoft® Windows Server® with Hyper-V (2016 and 2019)
  • Red Hat® Enterprise Linux
  • Ubuntu® Server LTS
  • SUSE® Linux Enterprise Server
  • VMware® ESXi

Spec Sheet 4

Feature PowerEdge R240 PowerEdge R230
Processor ● Intel Xeon® E-2100 and E-2200 Processor family
● Intel Pentium®
● Intel Celeron®
● Intel Core i3® 		● Intel Xeon® E3-1200 v6 Processor family
● Intel Pentium®
● Intel Celeron®
● Intel Core i3®
Number or cores Up to 8 cores Up to 4 cores
L2/L3 cache ● 2.0 MB per core
● 8 MB or 12 MB 		● 2.0 MB per core
● 4 MB or 8 MB
Chipset Intel C246 Intel C236
Memory Module ● DDR4: 4 x UDIMMs with ECC
● Speed: Up to 2666MT/s
● Min RAM: 8GB
● Max RAM: 64 GB 		● DDR4: 4 x UDIMMs with ECC
● Speed: Up to 2400MT/s
● Min RAM: 4 GB
● Max RAM: 64 GB
Hard drive bays ● 2 x 3.5-inch cabled
● 4 x 3.5-inch cabled
● 4 x 3.5-inch or 2.5-inch hot plug		 ● 2 x 3.5-inch cabled
● 4 x 3.5-inch cabled
● 4 x 3.5-inch or 2.5-inch hot plug
Hard drive types ● Default SATA. Optional SAS
● Enterprise HDD
● Entry HDD		 ● Default SATA. Optional SAS
● Enterprise HDD
● Entry HDD
External hard drive bays 1x slim ODD 9.5mm 1x slim ODD 9.5mm
RAID Controller ● Chipset based SATA, PERC S140
● PERC H330
● PERC H730P 		● Chipset based SATA, PERC S130
● PERC H330
● PERC H730
● PERC H830
Host Bus Adapter (HBA) ● 12Gb SAS Exernal HBA
● HBA330 Internal adapter		 12Gb SAS External HBA
Boot optimized storage subsytem ● 2x M.2 240GB (RAID 1 or No RAID)
● 1x M.2 240GB (No RAID only)		 Not supported
Server management ● BMC
● IPMI 2.0 compliant; Full Open Manage suite
● Optional iDRAC9 Express
● Optional iDRAC9 Enterprise
● Vflash 		● BMC
● IPMI 2.0 compliant; Full Open Manage suite
● Optional iDRAC8 Express
● Optional iDRAC8 Enterprise
● Vflash
I/O slots ● 1 x16 slot PCIe Gen3 for HL/FH from CPU1(x8 lanes)
● 1 x 8 slot PCIe Gen3 for LP from CPU1(x4 lanes)		 ● 1 x16 slot PCIe Gen3 for HL/FH from CPU1(x8 lanes)
● 1 x 8 slot PCIe Gen3 for LP from CPU1(x4 lanes)
NIC/LOM 2x GbE LOM 2x GbE LOM
USB ● 2 rear USB 3.0
● 2 front USB 2.0
● 1 internal USB 3.0		 ● 2 rear USB 3.0
● 1 front USB 2.0
● 1 internal USB 3.0
Power supplies ● 250W AC 1U cable (Bronze)
● 450W AC 1U cable (Platinum)		 250W AC 1U cable (Bronze)
Fans 3 or 4 non-redundant, non-hot swappable fans 3 or 4 non-redundant, non-hot swappable fans
Form factor 1U 1U
Dimensions (HxWxD) ● 42.8 x 434.0 x 596 (mm) (w/o bezel)
● 1.67” x 17.09” x 23.5”(in)		 ● 42.8 x 434.0 x 551 (mm) (w/o bezel)
● 1.67” x 17.09” x 26.2”(in)
Weight Max 26.89 lb/12.2 Kg Max 20.96 lb/10.6 Kg
