SKU: 776935-B21

Hpe Proliant Ml110 Gen9 Tower Server 8 Sff Chassis | 776935-B21

HPE

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML110 Gen9
  • (1) Intel Xeon E5-2600v4
  • (8) 2133 MT/s HPE DDR4 RDIMM | Max 256GB
  • (5) PCIe3 expansion slots
  • (16) SFF Drives
  • Default HPE Dynamic Smart Array B140i
  • Broadcom 5717 Dual-port 1GbE
  • HPE iLO (Firmware HPE iLO4 2.0 or later) with NAND
  • GPU Supported
Other Versions:

(Click to View)

Ideal for:

  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • Edge Servers
  • Hyper-Converged infrastructure (HCI)
  • Retail Servers
  • Virtual Desktop Interface (VDI)
  • Web Tech

The refurbished HPE ProLiant ML110 Gen10 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the Intel Xeon Scalable processor, HPE DDR4 SmartMemory with a maximum capacity of 192 GB, five PCIe slots, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 4.5U of rack space.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature
Description
Processor (One of the following depending on Model)
Model
CPU frequency
Cores
L3 Cache
Power
QPI
DDR4 Hz
E5-1650v3
3.5 GHz
6
15MB
140 W
0.0 GT/s
2133
E5-1603v3
2.8 GHz
4
10MB
140 W
0.0 GT/s
1866
E5-1620v3
3.5 GHz
4
10MB
140 W
0.0 GT/s
2133
E5-2660v4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400
E5-2640v4
2.4 GHz
10
25MB
90 W
8.0 GT/s
2133
E5-2630Lv4
1.8 GHz
10
25MB
55 W
8.0 GT/s
2133
E5-2623v4
2.6 GHz
4
10MB
85 W
8.0 GT/s
2133
E5-2620v4
2.1 GHz
8
20MB
85 W
8.0 GT/s
2133
E5-2609v4
1.7 GHz
8
20MB
85 W
6.4 GT/s
1866
E5-2603v4
1.7 GHz
6
15MB
85 W
6.4 GT/s
1866
E5-1680v4
3.4 GHz
8
20MB
140 W
9.6 GT/s
2400
E5-1660v4
3.2 GHz
8
20MB
140 W
9.6 GT/s
2400
E5-1620v4
3.5 GHz
4
10MB
140 W
0.0 GT/s
2400
E5-1607v4
3.1 GHz
4
10MB
140 W
0.0 GT/s
2400
E5-1603v4
2.8 GHz
4
10MB
140 W
0.0 GT/s
2400
Chipset (One of the following depending on model)

  • Intel C610 series chipset

  • Intel E5-2600v4 processor family

  • Intel E5-2600v3 processor family

  • Intel E5-1600v4 processor

  • Intel E5-1600v3 processor family

NOTE: This is a 140 W processor which need to be ordered with the ML110 Gen9 System fan upgrade kit - 789654-B21
Server Unified Extensible Firmware Interface (UEFI)/Legacy ROM
UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with users server at boot time

  • Secure Boot

  • Operating system specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using RESTful API for iLO 4

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

  • Network stack configurations

NOTE:

  • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI

  • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for users HPE ProLiant Gen9 Server

Cache memory

  • 10MB (1 x 10MB) Level 3 cache1

  • 15MB (1 x 15MB) Level 3 cache2

  • 20MB (1 x 20MB) Level 3 cache3

  • 25MB (1 x 25MB) Level 3 cache4

  • 30MB (1 x 30MB) Level 3 cache4

  • 35MB (1 x 35MB) Level 3 cache5

NOTE:

  • 1. Four-core processors

  • 2. Six-core processors

  • 3. Eight-core processors

  • 4. Ten-core processors

  • 5. Fourteen-core processors

On system management chipset
HPE iLO (Firmware HPE iLO4 2.0 or later) with NAND
Memory
Type: HPE Smart Memory and Standard Memory
HPE SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM slots available
8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)
Maximum capacity (LRDIMM)
128GB(8 x 16GB LRDIMM - 2133 MHz)
Maximum capacity (RDIMM)
256GB (8 x 32GB RDIMM - 2133 MHz)
NOTE: This server does not support mixing LRDIMMs and RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation.
Memory protection
Advanced ECC
Online spare
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank
Storage controller (One of the following depending on model)
Entry models
HPE Dynamic Smart Array B140i Controller
Base models
HPE Dynamic Smart Array B140i Controller
NOTE: B140i can't mix with any standup internal controller
Network controller
Broadcom 5717C0 Dual-port 1GB
Internal storage devices (One of the following depending on model)
Optical Drive

  • Optional SATA 9.5 mm DVD-ROM optical drive

  • Optional SATA 9.5 mm DVD RW optical drive

Hard Drives

  • None ship standard

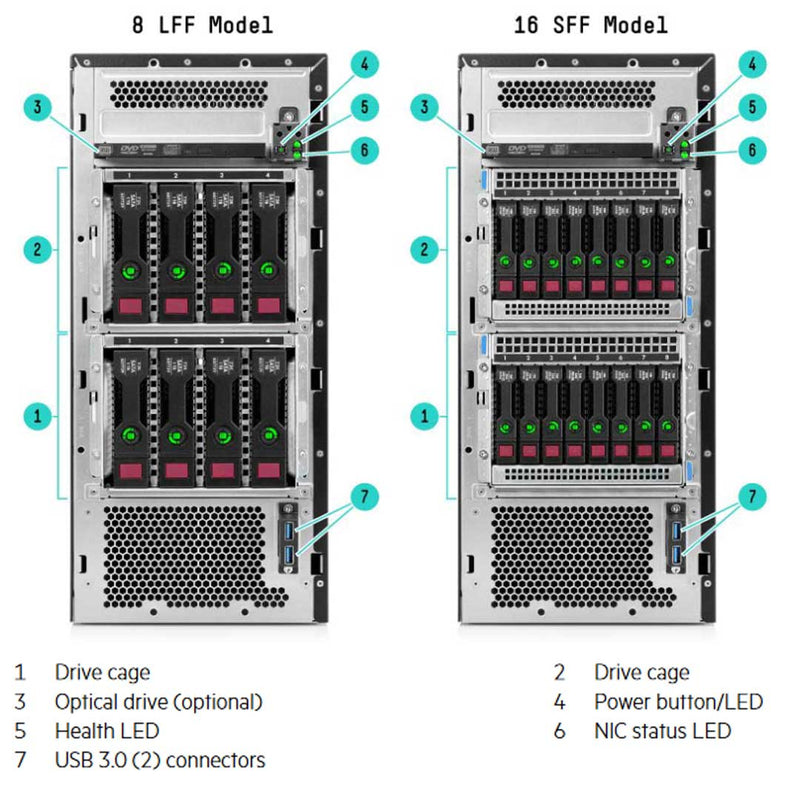

Hard Drive Bays

  • Up to 4 Non-hot plug SATA 3.5 in drives

  • 4 Hot plug LFF SAS/SATA HDD bays; upgradable to 8

  • 8 Hot plug SFF SAS/SATA HDD bays; upgradable to 16

NOTE:

  • Mixing drive cage types is not allowed

  • The 4LFF configurations includes 3 blanks and 8SFF includes 7 blanks. Additional hard drive blanks can be ordered using either P/N666986-B21 for the HPE LFF HDD blank kit or P/N 666987-B21 for the HPE SFF HDD blank kit

  • NHPE SATA is limited to B140i controller

  • 16SFF is limited to P840 controller

Maximum internal storage (One of the following depending on model)
Drives
Capacity
Configuration
Hot Plug LFF SAS
80TB
8 x 10TB
Hot Plug LFF SATA
80TB
8 x 10TB
Hot Plug SFF SAS
32TB
16 x 2TB
Hot Plug SFF SATA
32TB
16 x 2TB
Non-Hot Plug LFF SATA
16TB
4 x 4TB
Hot Plug LFF SATA SSD
15.36TB
8 x 1.92TB
Hot Plug SFF SAS SSD
6.4TB
16 x 400GB
Hot Plug SFF SATA SSD
30.72TB
16 x 1.92TB
Power supply

  • HPE 350 W ATX-Gen9 power supply FIO kit

  • HPE 550 W ATX-Gen9 power supply kit

  • HPE 750 W CS gold hot plug power supply kit

Specs 1

Expansion slots
Expansion Slots #
Technology
Bus Width
Connector Width
Bus Number
Form Factor
Notes
5
PCIe 3.0
x8
x8
-
Full-height, half length slot
For Processor 1
4
PCIe 3.0
x4
x4
-
Full-height, half length slot
For Processor 1
3
PCIe 3.0
x8
x8
-
Full-height, half length slot
For Processor 1
2
PCIe 3.0
x4
x4
-
Full-height, half length slot
For Processor 1
1
PCIe 3.0
x16
x16
-
Full-height, ¾ length (up to 9.5 in) slot
For Processor 1
6
HPE ML Gen9 Dedicated iLO port kit
-
x1
-
Dedicate for ML series
-
NOTE:

  • Bus number - Default bus assignment (In decimal). Inserting cards with PCI bridges may alter the actual bus assignment number

  • Five total expansion PCIe 3.0 slots. One PCIe 3.0 x16 (x16 speed); Two PCIe 3.0 x 8 (x8 speed); Two PCIe 3.0 x 4 (x4 speed)

System fans (One of the following depending on model)
Model
Non-redundant
Redundant
1P model
2 fans
N/A

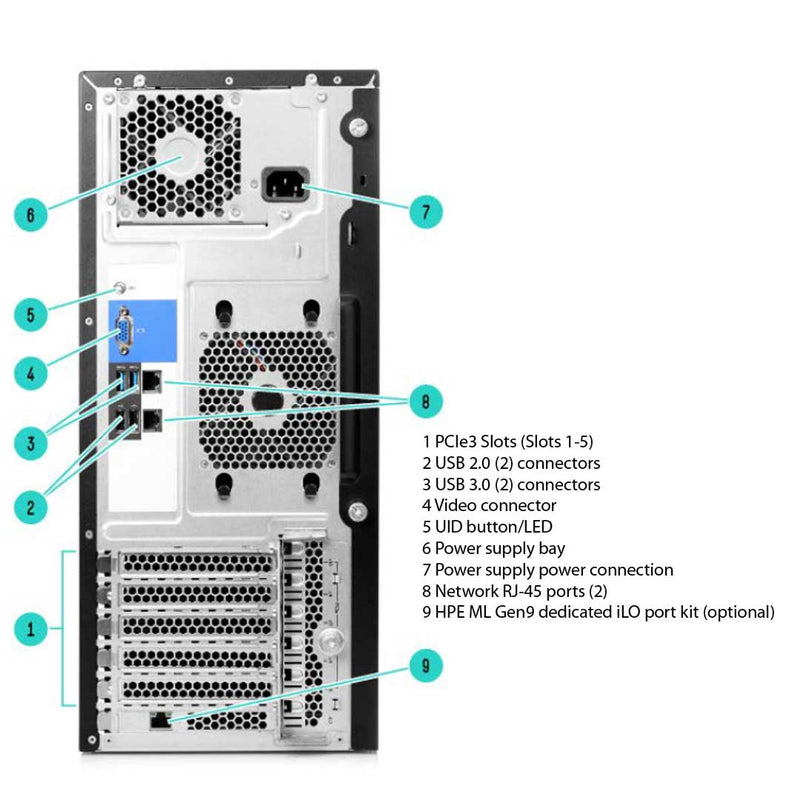

Interfaces
Video
1 (Rear)
Network RJ-45 (Ethernet)
2
HP iLO remote management network port
1 GbE optional port
Micro SD slot
1 (Internal)
USB 3.0
5 (2 Rear, 1 internal, 2 front)
USB 2.0
3 (2 Rear, 1 internal)
Upgradeability (One of the following depending on model)

  • Up to 16 SFF hard drive bays, Or 8 LFF hard drive bays

  • Up to 8 DIMM slots

  • Redundant power supply

  • Optional optical drive (Up to 1)

Industry standard compliance

  • ACPI 2.0b compliant

  • PCIe 3.0 compliant

  • PXE support

  • WOL support

  • Novell certified

  • Microsoft logo certifications

  • IPMI 2.0, SMASH CLP, DCMI 1.0 compliant

  • SMBIOS 2.7.1

  • USB 3.0 support

  • ASHRAE A3

Graphics

  • 16 bit color: Maximum resolution of 1600 x 1200

  • Integrated matrox G200 video standard

    • 16MB flash

    • 128MB DDR3

Security

  • Power-on password

  • Setup password

  • Serial interface control

  • Power switch security

  • Administrator's password

  • TPM 1.2

  • TPM 2.0

  • UEFI

Form factor
Tower (4.5 U)
Server utilities

  • Smart update

  • HPE Systems Insight Manager(HPE SIM)

  • Scripting toolkit and windows Power Shell

  • RESTful interface tool

  • HPE iLO mobile application

  • HPE Insight online

Embedded management

  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • RESTful API

  • Intelligent provisioning

  • Embedded remote support

Server management
HPE Insight Control, lets user deploy, migrate, monitor, remote control, and optimize users IT infrastructure through a single, simple management console. For more information Click here to access the "Insight Control" .
Education services
Keep users IT staff trained making sure they have the right skills to deliver on users business outcomes
Support services

  • HPE Technology Services delivers confidence, reduces risk and helps users realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster

  • HPE Support Services enable user to choose the right service level, length of coverage and response time as user purchase users new server, giving user full entitlement to the support for need for users IT and business

top

Specs 2

Software overview

Feature
Description
Operating systems and virtualization software support

  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

  • ClearOS

Storage software
Whether user need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than Hewlett Packard Enterprise storage software

  • Data Protection and Recovery Software

  • Data Archive and Migration Software

  • Storage Resource Management Software (SRM)

  • Data Replication Software

  • Storage Device Management Software

  • HPE StoreVirtual VSA

top

Physical specifications

Specification
Description
Tower dimensions (H x W x D)
44 x 19.5 x 48.05 cm (17.32 x 7.68 x 18.92 in)
Tower weight (Approximate)

  • Maximum: 24.9 kg (55 lb)

  • Minimum: 12.5 kg (27.56 lb)

top

Technical specifications

HPE Dynamic Smart Array B140i Controller
Number of PCI links
Four
PCI link rate
4 Gb/s
Storage protocol support
SATA
SAS/SATA peak data transfer rate
6 Gb/s
Number of SAS/SATA links
10 links
SAS/SATA connectivity
2 x 4 connectors; 2 x 1 connectors
Expander support
No
Drives supported (Max)
Up to 10 internal drives
RAID support
0, 1, 10, 5 SATA
Software management
HPE SSA, SMH, SIM
Warranty
Server warranty
HPE Secure Encryption license
Not supported
HPE Smart Cache license
Not supported
HPE Smart storage administrator
Supported
HPE Ethernet 1Gb2-port 330i Adapter
Network interface
10Base-T/100Base-TX/1000Base-TX
Data transfer method
PCI express, two lanes (x2)
Controller
BCM5717
Connector
RJ-45
Compatibility

  • IEEE 802.3 10Base-T

  • IEEE 802.3ab 1000Base-T

  • IEEE 802.3u 100Base-TX

Network transfer rate

  • 10Base-T (Half-Duplex) - 10 Mb/s per port, 40 Mb/s combined

  • 10Base-T (Full-Duplex) - 20 Mb/s per port, 80 Mb/s combined

  • 100Base-TX (Half-Duplex) - 100 Mb/s per port, 400 Mb/s combined

  • 100Base-TX (Full-Duplex) - 200 Mb/s per port, 800 Mb/s combined

  • 1000Base-TX(Half-Duplex) - 1000 Mb/s per port, 4000 Mb/s combined

  • 1000Base-TX(Full-Duplex) - 2000 Mb/s per port, 8000 Mb/s combined

Cable support
10 Base-T: Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000 Base-TX: Category 5 or higher UTP; up to 328 ft (100 m)

top

Electrical specifications

Specification
Description
Rated line voltage
100 to 240 V ac
Rated input current
For 350 and 550 W power supply: 8 A (At 100~240 V ac)
Rated input frequency
50 to 60 Hz
Rated input power

  • 550 W power supply:

    • < 639 W (At 100 V ac)

    • < 605 W (At 200 V ac)

  • 350 W power supply:

    • < 427 W (At 100 V ac)

    • < 427 W (At 200 V ac)

BTU rating

  • 550 W power supply:

    • 2204 BTU/hr (At 100 V ac)

    • 2113 BTU/hr (At 200 V ac)

  • 350 W power supply:

    • 1452 BTU/hr (At 100 V ac)

    • 1544 BTU/hr (At 200 V ac)

Rated steady - state power
For 550 W Power Supply:

  • 550 W (At 100 V ac)

  • 550 W (At 200 V ac)

Maximum peak power
For 350 W Power Supply:

  • 350 W (At 100 V ac)

  • 350 W (At 200 V ac)

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Extended ambient operating support
Minimum: 5° to 10°C (41° to 50°F)
Maximum: 35° to 40°C (95° to 104°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
8% to 90% non-condensing
Non-operating relative humidity
5% to 95% non-condensing
Operating altitude
3048 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)
Acoustics noise
Idle
L WAd

  • 3.6 Bels (LFF non hot-plug base)

  • 3.6 Bels (LFF hot-plug base)

  • 4.1 Bels (LFF hot-plug performance)

L pAm

  • 21 dBA (LFF Non hot-plug base)

  • 21 dBA (LFF Hot-plug base)

  • 27 dBA (LFF Hot-plug performance)

Operating
L WAd

  • 3.6 Bels (LFF non hot-plug base)

  • 3.7 Bels (LFF hot-plug base)

  • 4.2 Bels (LFF hot-plug performance)

L pAm

  • 21 dBA (LFF non hot-plug base)

  • 21 dBA (LFF hot-plug base)

  • 25 dBA (LFF hot-plug performance)

top

Safety certifications

Specification
Description
FCC rating
Class B
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

top

You may also like
