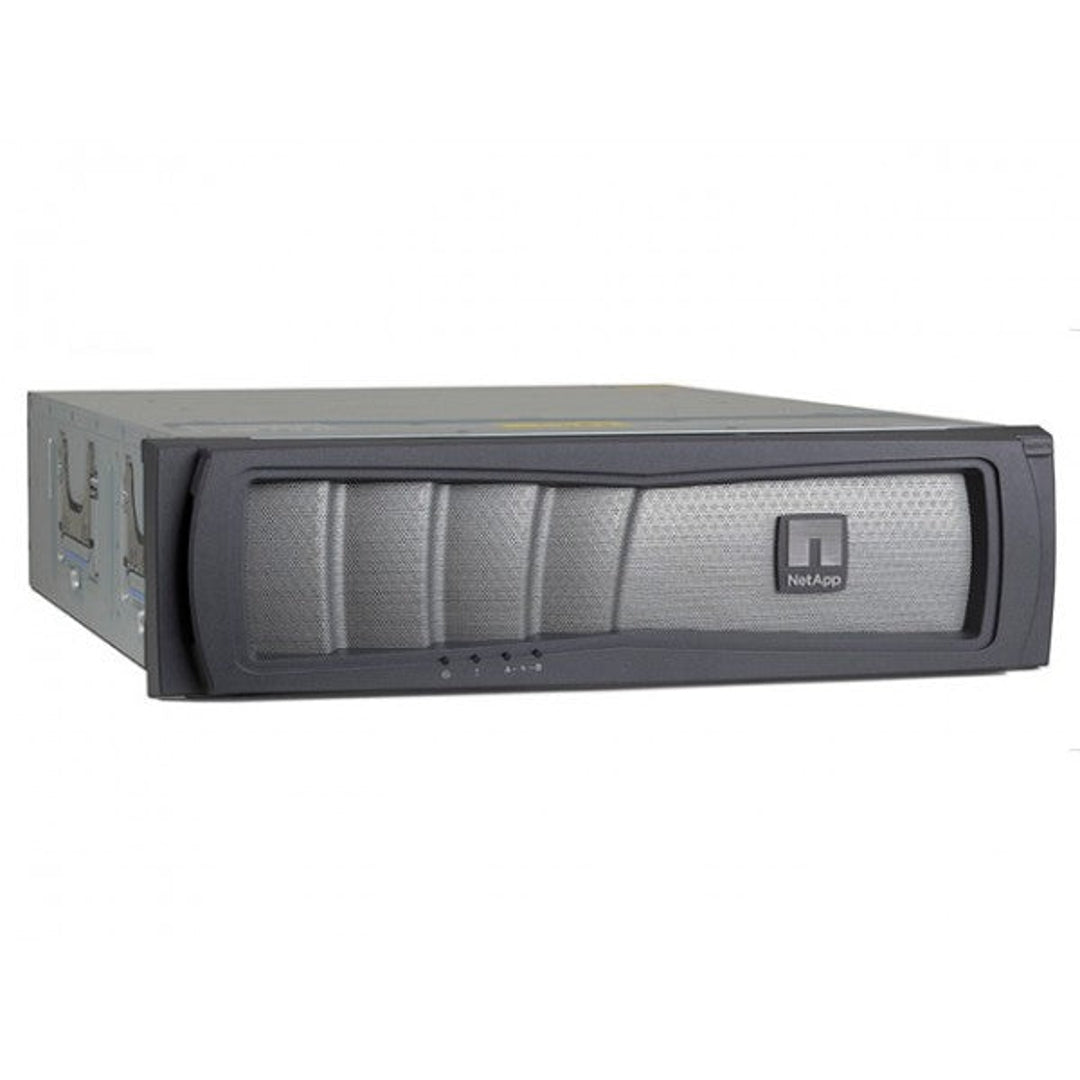

NetApp FAS3240 Filer Head Single Controller

SKU: FAS3240

NetApp FAS3240 Single Controller + IOMX Filer Head (Stand Alone)

Name: NetApp FAS3240 Single Controller + IOMX Filer Head (Stand Alone)
Brand: NetApp
SKU: FAS3240
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS3240 is a versatile 3U storage platform that supports both standalone and high-availability (HA) configurations. With single or dual controllers, it offers up to 16GB of total memory and safeguards data through RAID 4 and RAID-DP. An expansion IOMX (IOXM) chassis allows the system to scale seamlessly and accommodate changing workload requirements.

Each controller features a 64-bit, 2.33GHz quad-core processor, along with 1GbE, 4Gb FC, and 6Gb SAS connectivity. Six PCIe slots (when combined with the IOXM) enable further expansion for network or storage interface cards. Remote management capabilities also simplify administration, ensuring that critical business operations remain continuous.

The FAS3240 supports up to 600 drives for a maximum capacity of 3.6PB and works with a range of NetApp disk shelves, including DS14, DS2246, DS424x, and DS4486 models. It accommodates various drive types—FC, MSATA, NL-SAS, SAS, SATA, or SSD—offering flexible performance and capacity options for mid-sized enterprise environments seeking scalable, reliable storage.

System Config

Model: NetApp FAS3240
Chassis: Single Chassis
Total Rack Height: 3U
Controllers: Single Cntr (Stand Alone) + Expansion Cntr (IOMX)
Memory (HA): 8GB
Ethernet Ports: 2 x RJ45 (1Gb)
Fibre Channel Ports: 2 x SFP (4Gb)
SAS Ports: 2 x QSFP (6Gb)
PCIe Expansion Slots: 6 x PCIe (with IOXM)
Max Drives (total): 600
Max Capacity: 3,600TB (3.6PB)
Disk Shelves: DS14-Mk2-AT, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 3U
Chassis Heights: 5.12" (13 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
Chassis Weight: up to 79.4 lb (36.0 kg)

Expansion IOMX Controller Specs

PCI Slot (per): 4 x PCIe

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 2 x PCIe
Ethernet Ports (per): 2 x RJ45 (1Gb)
Fibre Channel Ports (per): 2 x SFP (4Gb)
UTA2 Ports (per): N/A
SAS Ports (per): 2 x QSFP (6Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 4-core 2.33 Ghz
Memory (Single/HA): 8GB/16GB
NVRAM (Single/HA): 1GB/2GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 600
Max Capacity: 3,600TB (3.6PB)
Max Number of FC Drives: 600
Max Number of MSATA Drives: 600
Max Number of NL-SAS Drives: 600
Max Number of SAS Drives: 600
Max Number of SATA Drives: 600
Max Number of SSD Drives: 240
Drive Interface: FC, MSATA, NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP)
Max # of DS14-Mk2-AT Shelves: 43 external
Max # of DS14-Mk4-FC Shelves: 43 external
Max # of DS2246 Shelves: 25 external
Max # of DS4243 Shelves: 25 external
Max # of DS4246 Shelves: 25 external
Max # of DS4486 Shelves: 13 external

FAS3240 Parts Lists

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

Compatible With:

NetApp FAS3240

(Click to View)

NetApp FAS3240 Single Controller + IOMX Filer Head (Stand Alone)

Quick Specs
