Specs
Quick Specs
Form Factor:
6U Rack Server
Processor Max: 56 Cores (PP)2x 4th Gen Intel Xeon Scalable Processors
Memory Max: 4TB32x DDR5 RDIMM 4800Mhz
Storage Max: 122.88TBUp to 16x E3.S EDSFF NVMe
Boot OptionsBOSS-N1
RAID Controller:S160 (SW RAID)
H965i
2 x 1GbE (optional)
1 x OCP 3.0 (x8 PCIe lanes)
iDRAC9
PCIe Slots:10 PCIe slots (x16 Gen5)
GPU:8 NVIDIA HGX H100 80GB 700W SXM5 GPUs
8 NVIDIA HGX A100 80GB 500W SXM4 GPUs, fully interconnected with NVIDIA NVLink technology
Other Versions:
Ideal for:
- Artificial Intelligence (AI)
- Data Analytics
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Language Model
- Machine Learning (ML)
- Virtualization
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specifications** (NOTE: ** indicates Additional features Coming Soon.) | |
|---|---|---|
| Processor | Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor | |
| Memory | • 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only | |

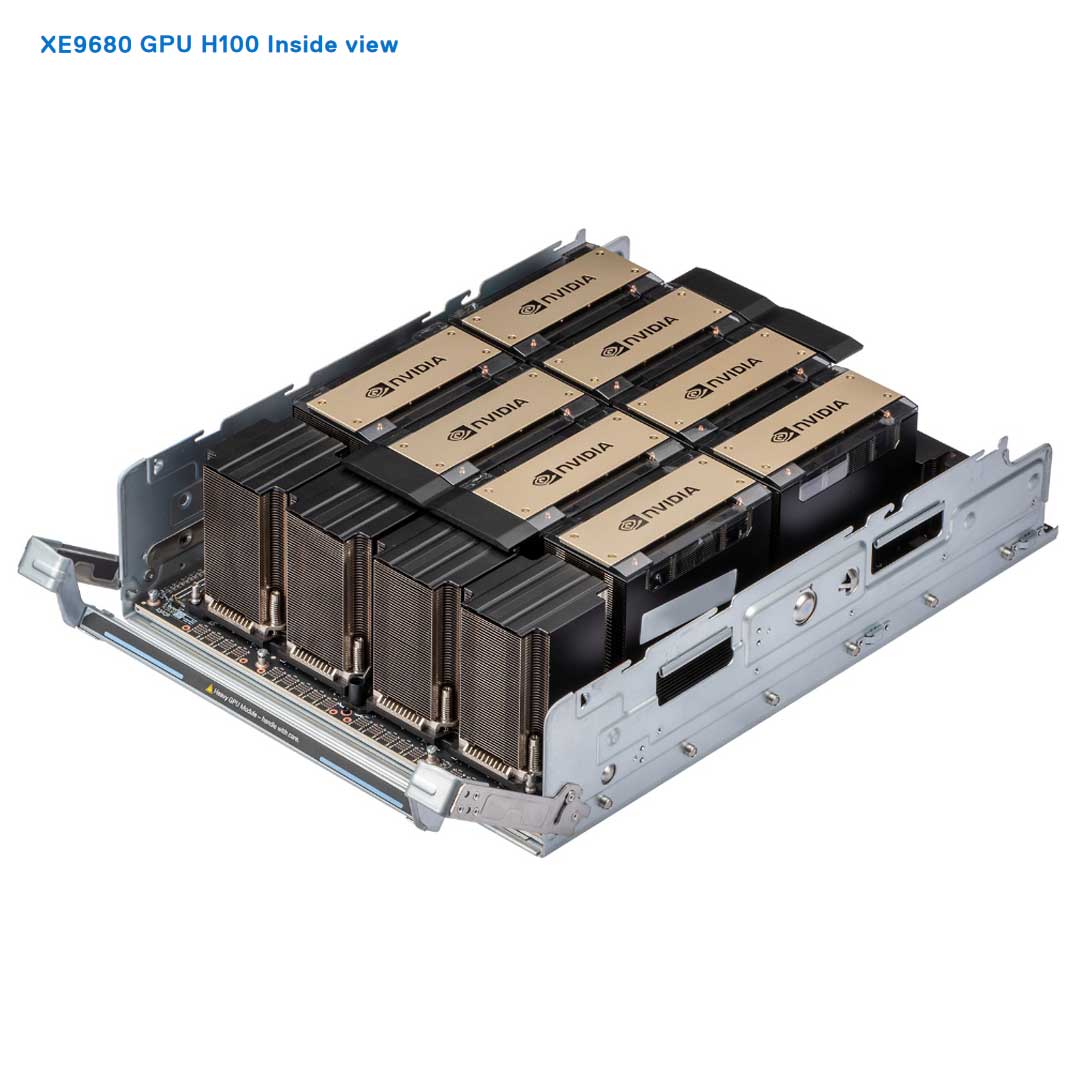

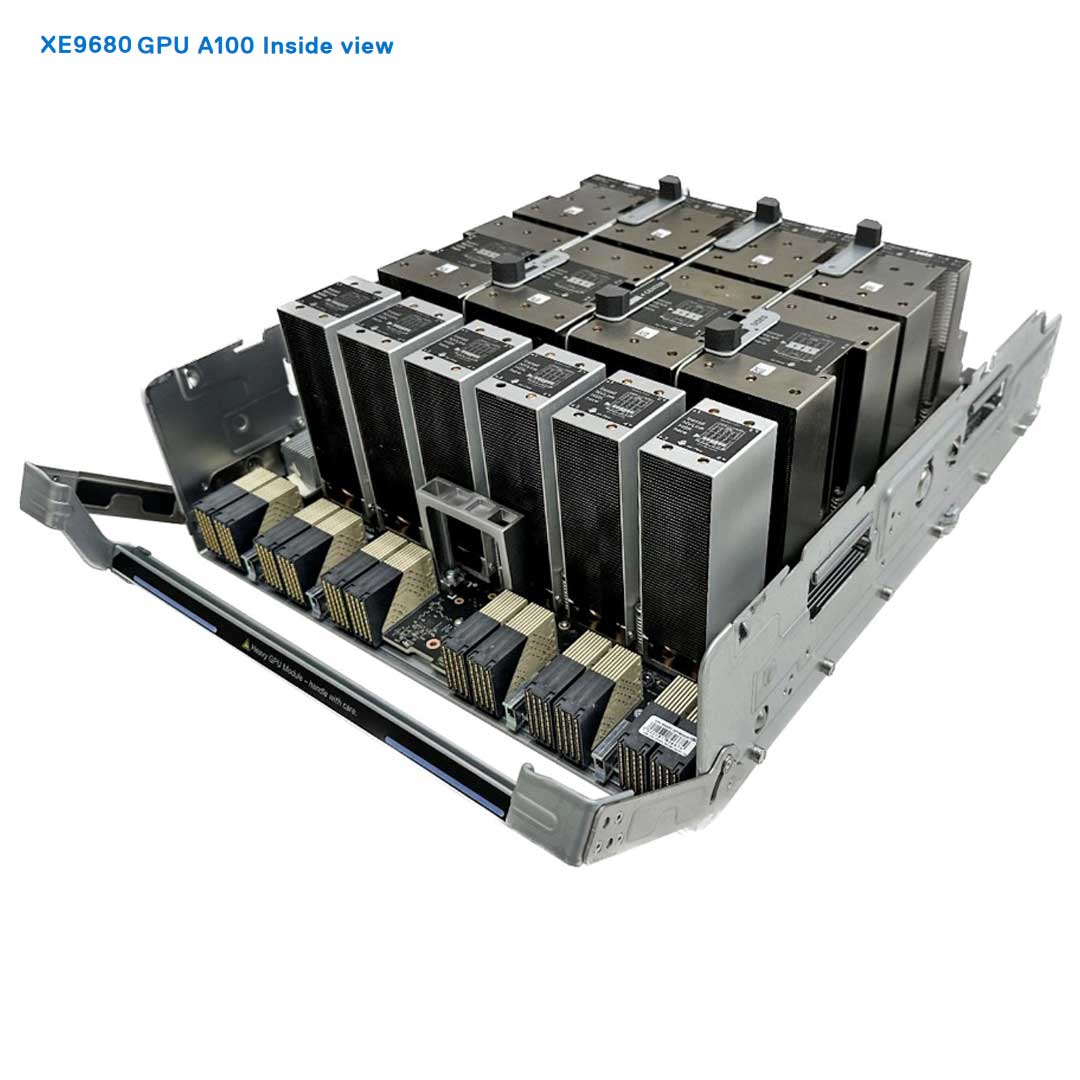

| GPU | • 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs or • 8 NVIDIA HGX A100 80GB 500W SXM4 GPUs, fully interconnected with NVIDIA NVLink technology | |
| Storage controllers | • Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Software RAID: S160 | |

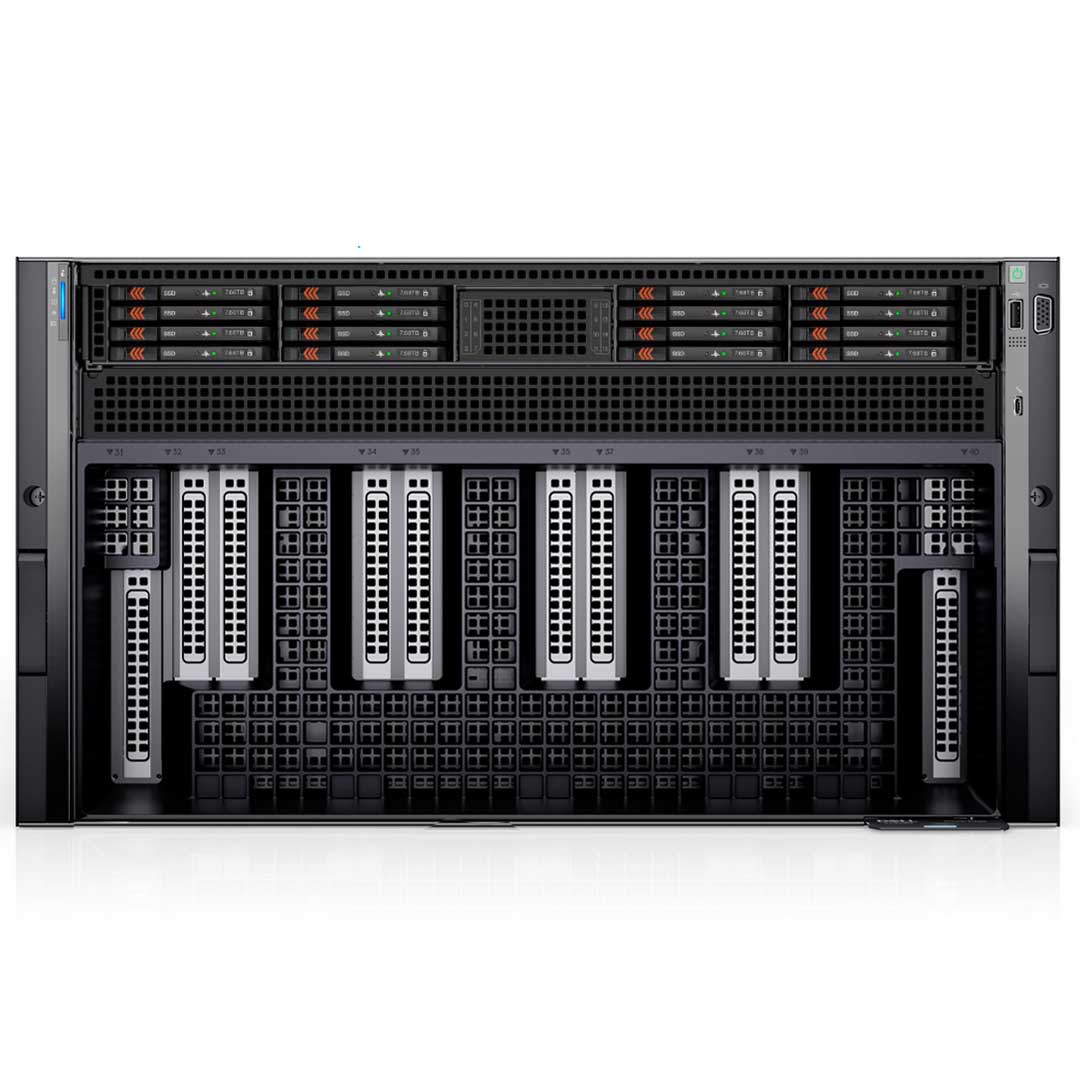

| Drive bays | Front Bays • Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB | |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant | |
| Cooling Options | Air cooling | |
| Chipset | Intel® C741 chipset | |

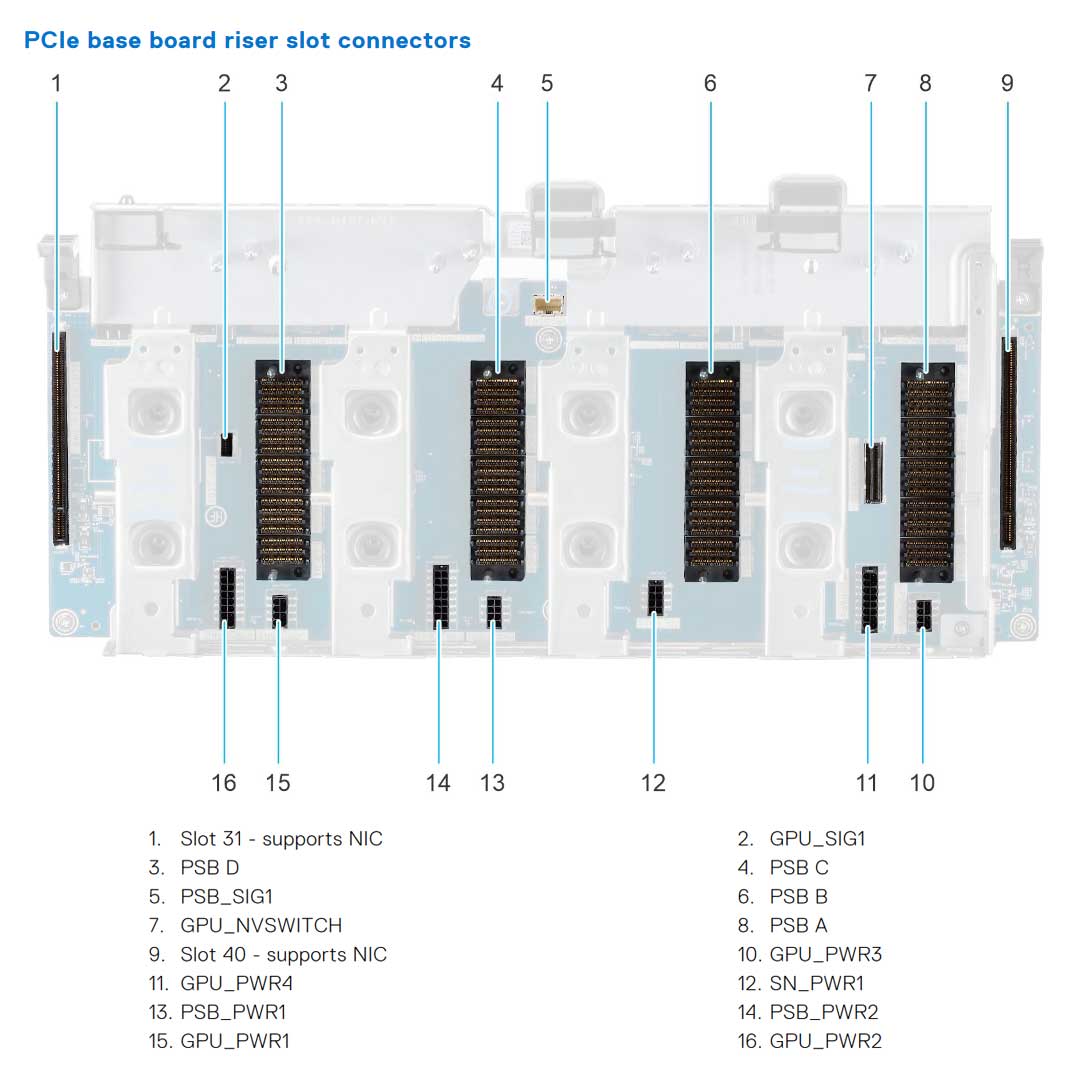

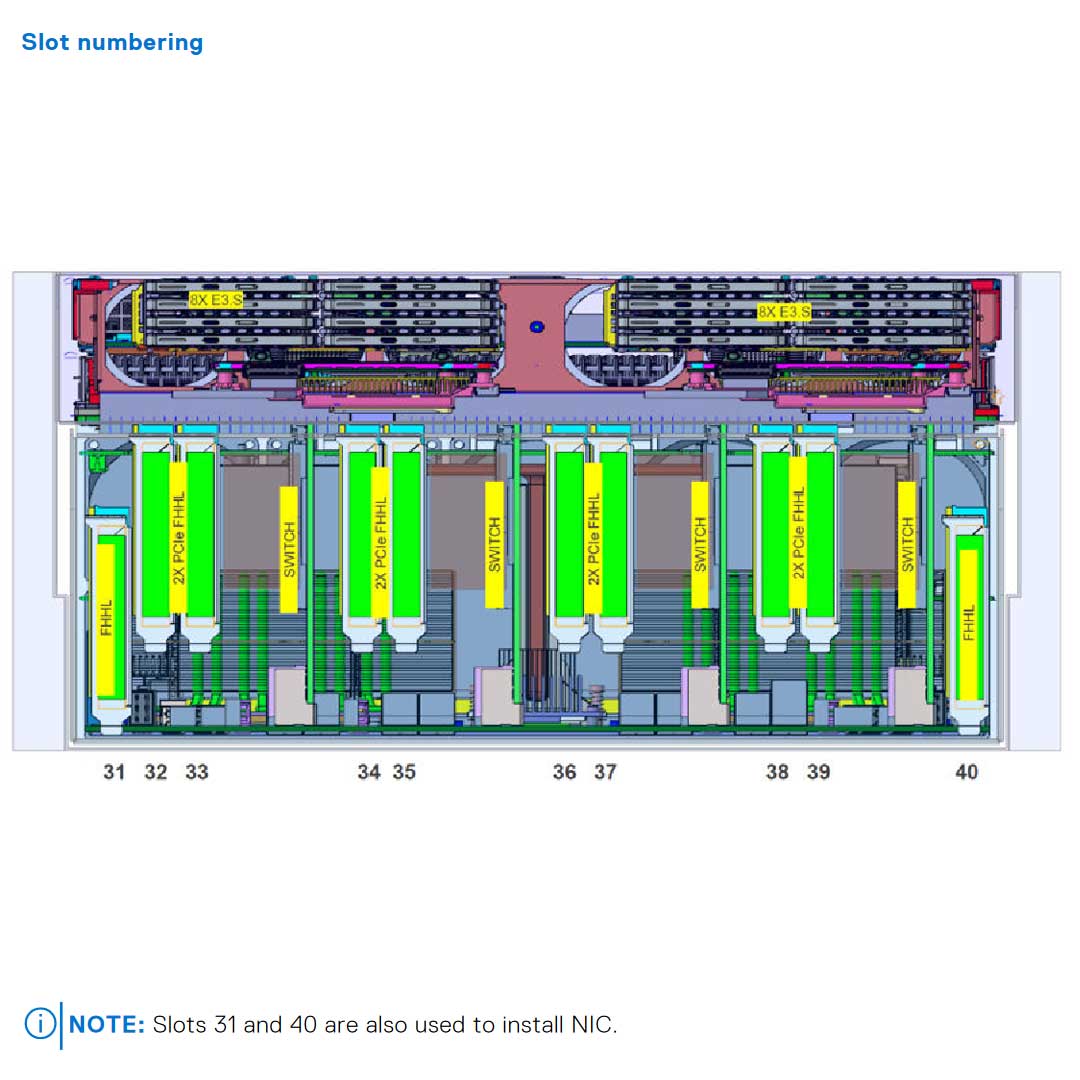

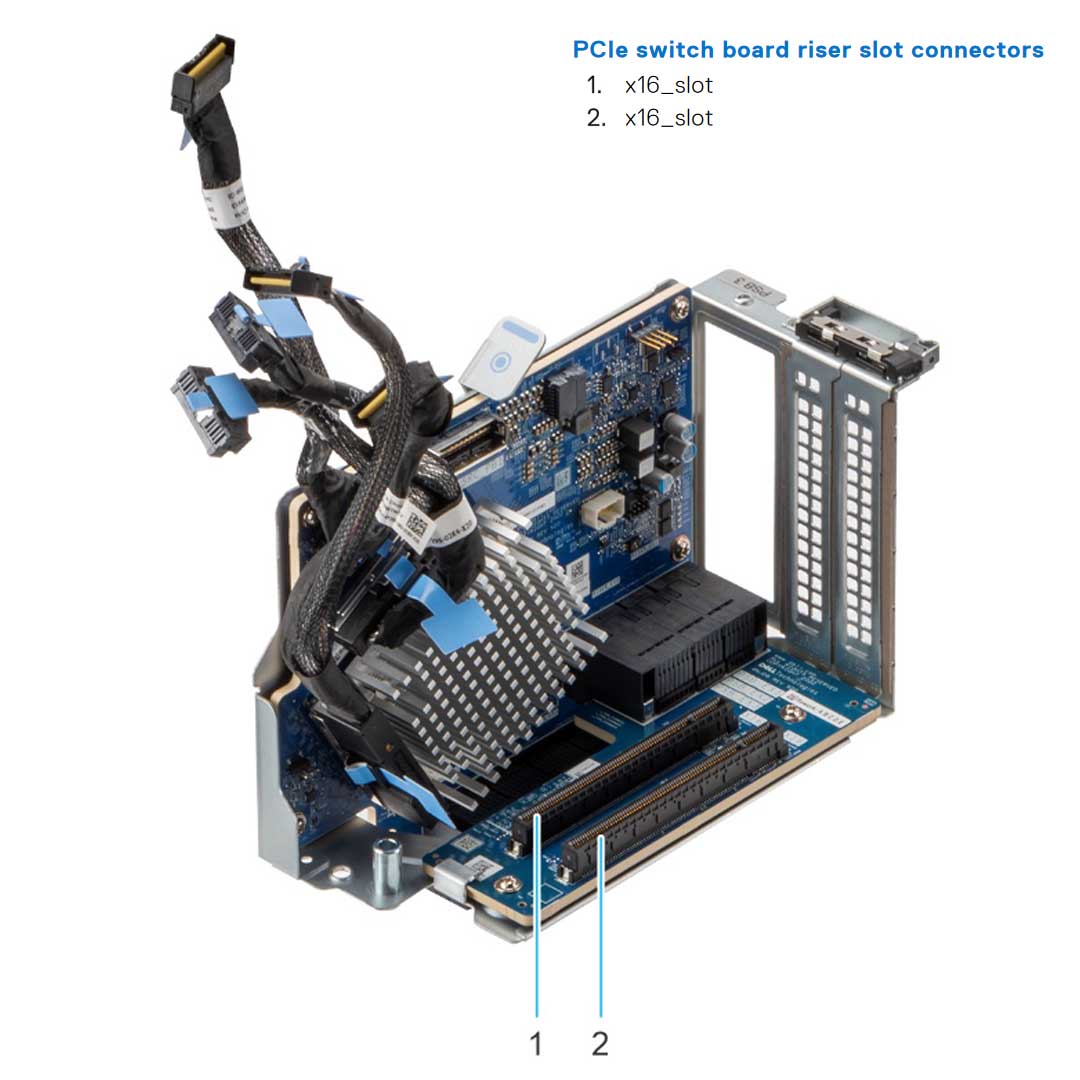

| PCIe | Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length | |
| Embedded NIC | 2 x 1 GbE | |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) | |
| Fans | • Up to 6 High performance (HPR) gold grade fans installed in mid tray • Up to 10 High performance (HPR) gold grade fans installed on the rear of the system • All are hot swap fans | |
| Dimensions and weight | • Height — 263.2 mm (10.36 inches) • Width — 482.0 mm (18.97 inches) • Depth — 1008.77 mm (39.71 inches) with bezel — 995 mm (39.17 inches) without bezel • Weight —107 kg (235.89 pounds) | |
| Form Factor | 6U rack server | |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module | |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center | • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow | • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) | • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Ports | Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA | Rear ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x RJ45 iDRAC9 ethernet port |
| Operating Systems and Hypervisors | • Canonical Ubuntu Server LTS • Red Hat Enterprise Linux | |
